Cleaning Roll Holder

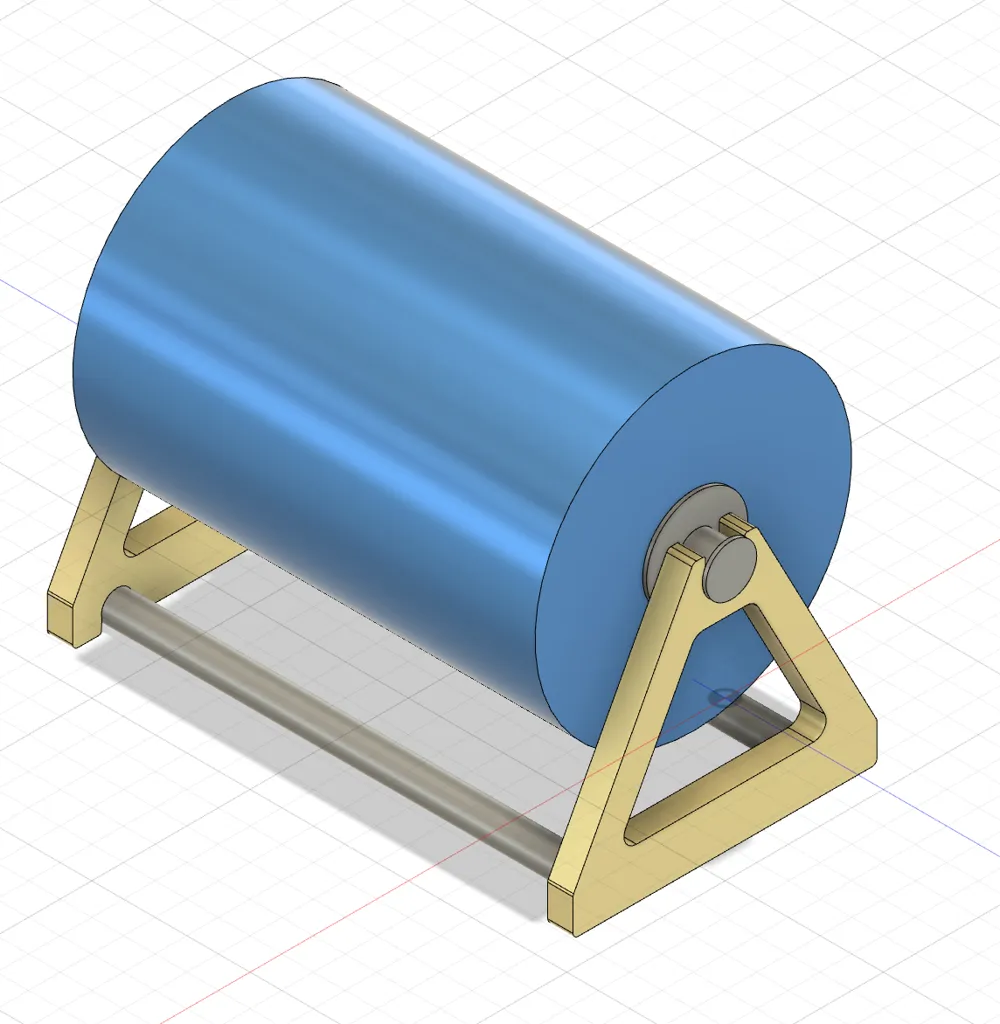

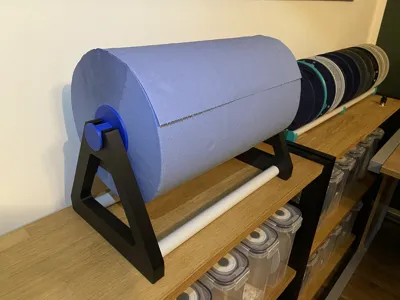

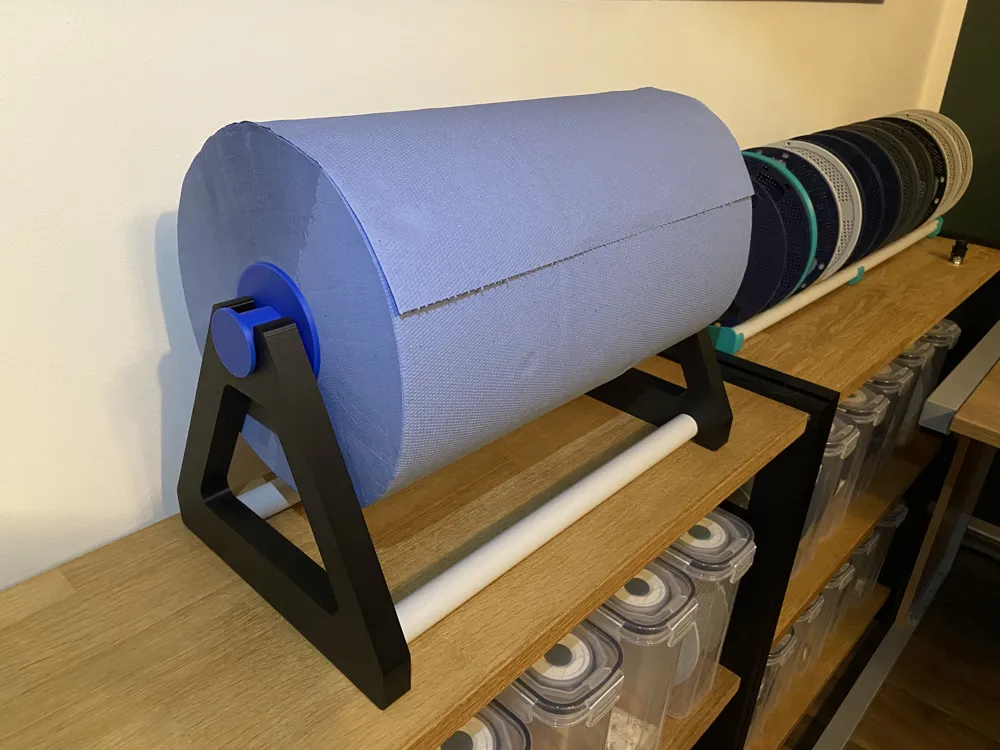

I designed a holder for the cleaning wipes for my print plates.

Suitable for the following model.

https://amzn.eu/d/05XQ2s8s

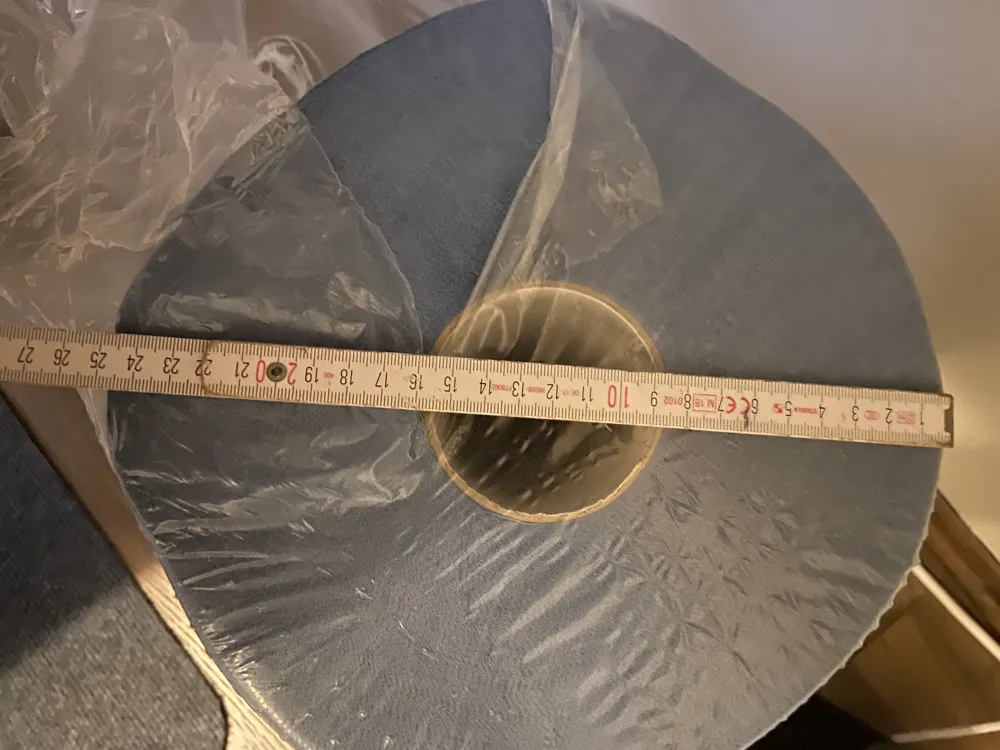

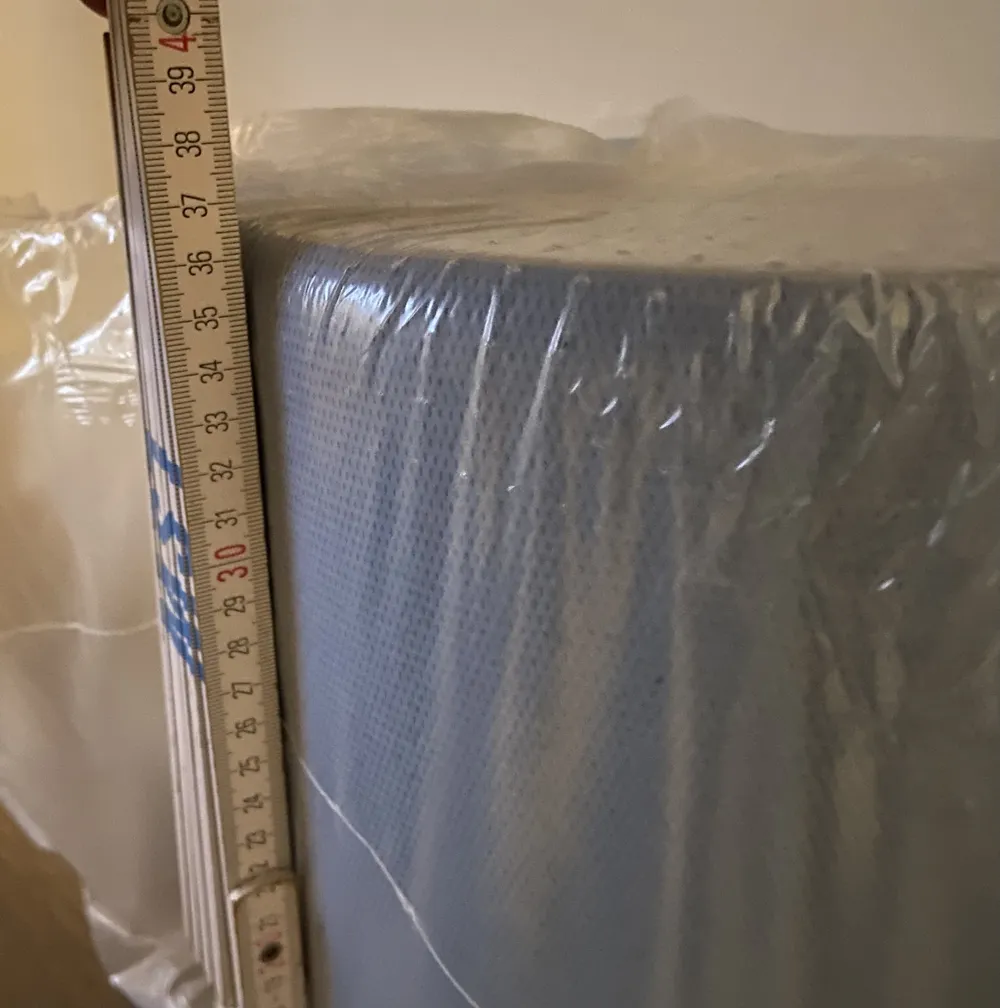

2x blue cleaning rolls, 2-ply, 500 sheets each, total approx. 1000 sheets, approx. 36x36 cm, perforated, highly absorbent cleaning cloths, cleaning paper, wipes

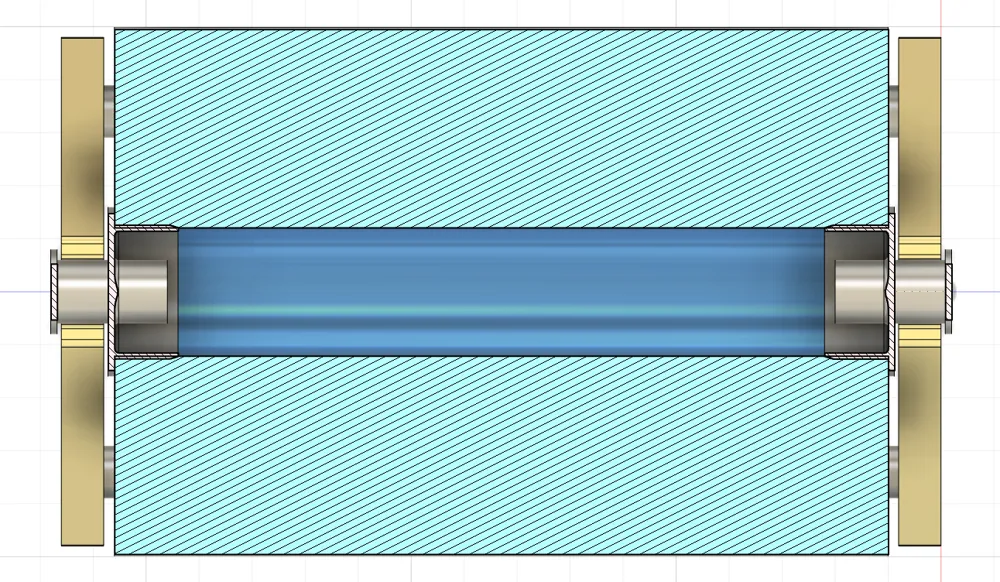

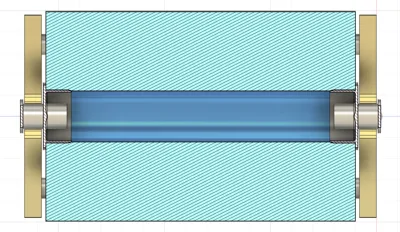

As a connector for the two supports, I used an electrical installation pipe (plastic pipe) DN25 with a diameter of 24.7mm.

Alternatively, it would also be possible to print a suitable pipe.

The electrical installation pipe used must be cut to a length of 409mm and is then simply clicked into the holder.

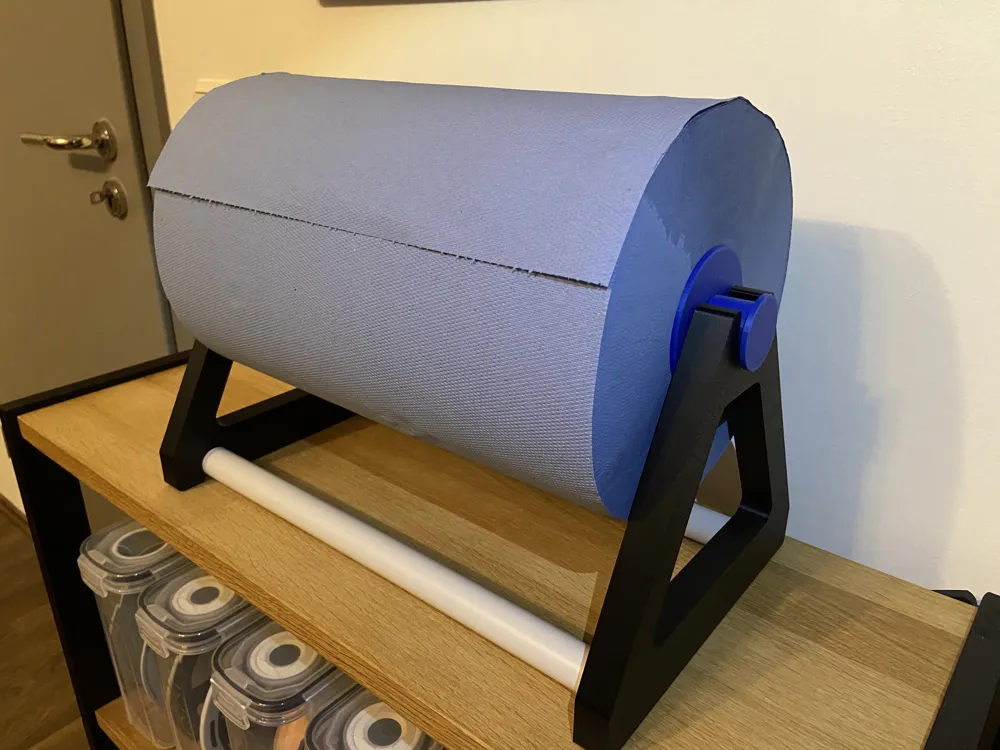

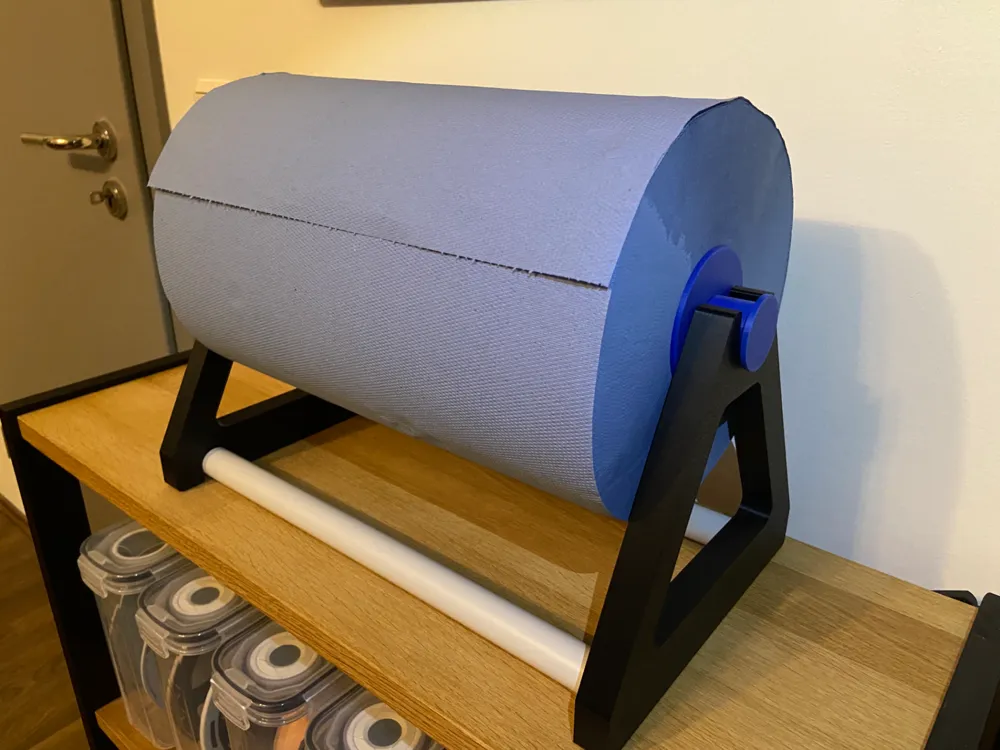

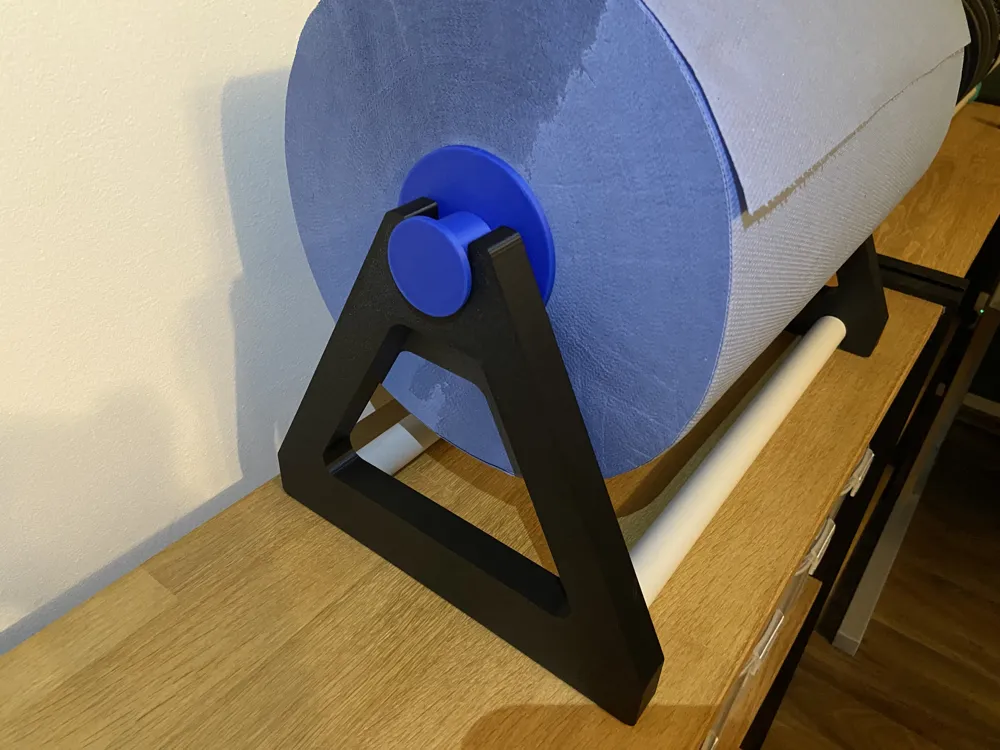

The other two parts are inserted into the sides of the cleaning roll, and the roll holder is already assembled.

I printed the components in Sunlu PETG High Speed Matte Black and Blue.

Have fun printing ;)
