Minimalist Floating Dock for Pixel Watch 3 & 2
IP Report
Print Profile(2)
0.2mm layer, 2 walls, 30% infill
Designer
1.5 h
1 plate
0.2mm layer, 2 walls, 30% infill ASA
Designer
1.5 h
1 plate
Open in Bambu Studio
Boost
0
0
0
0
3
0
Released
Description

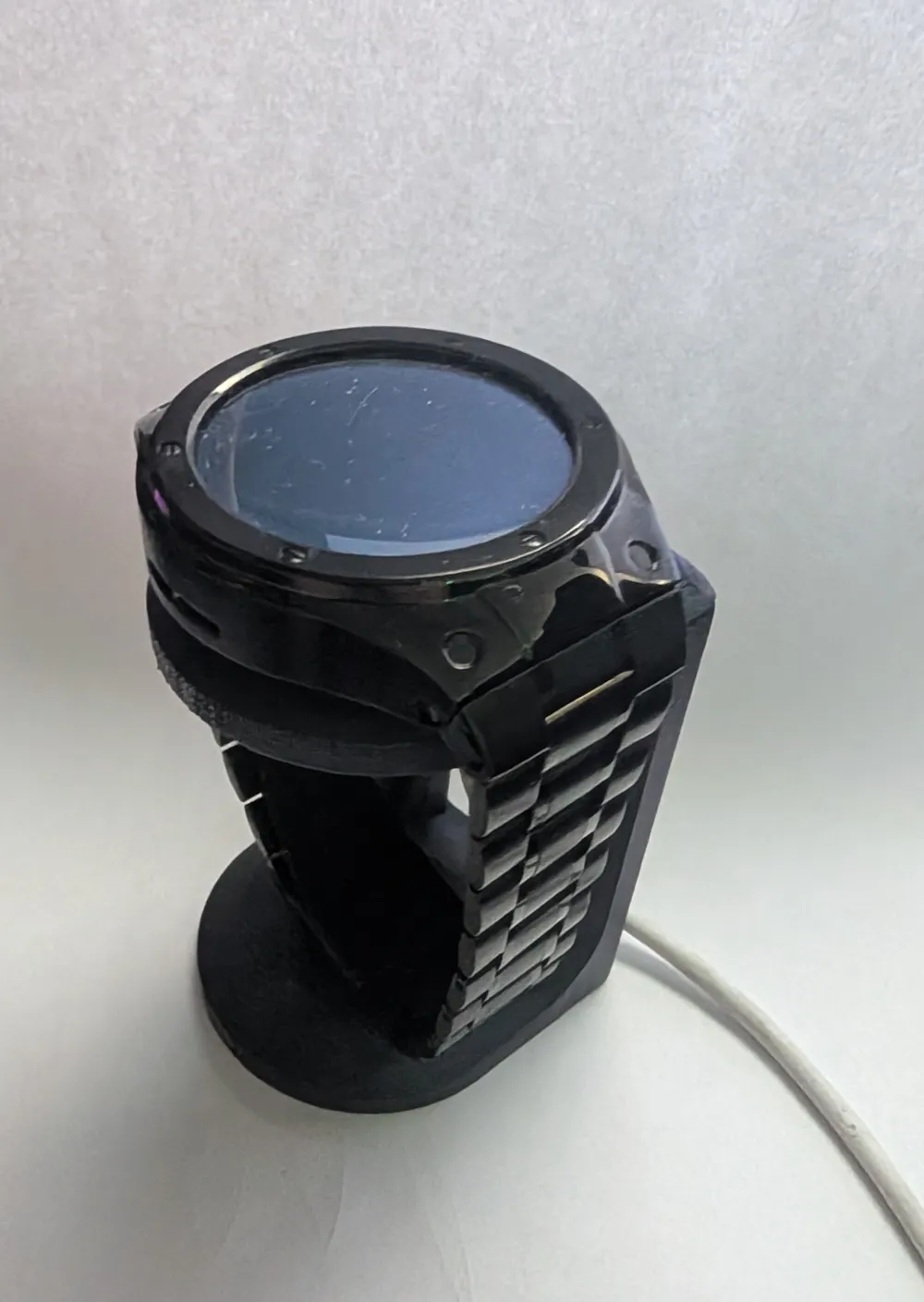

A sleek, modern cantilever charging dock optimized specifically for the Google Pixel Watch 3 (41mm & 45mm) and Pixel Watch 2 . The open C-shape frame allows your watch band to loop seamlessly underneath the charging deck without unbuckling, bending, or putting stress on the strap .

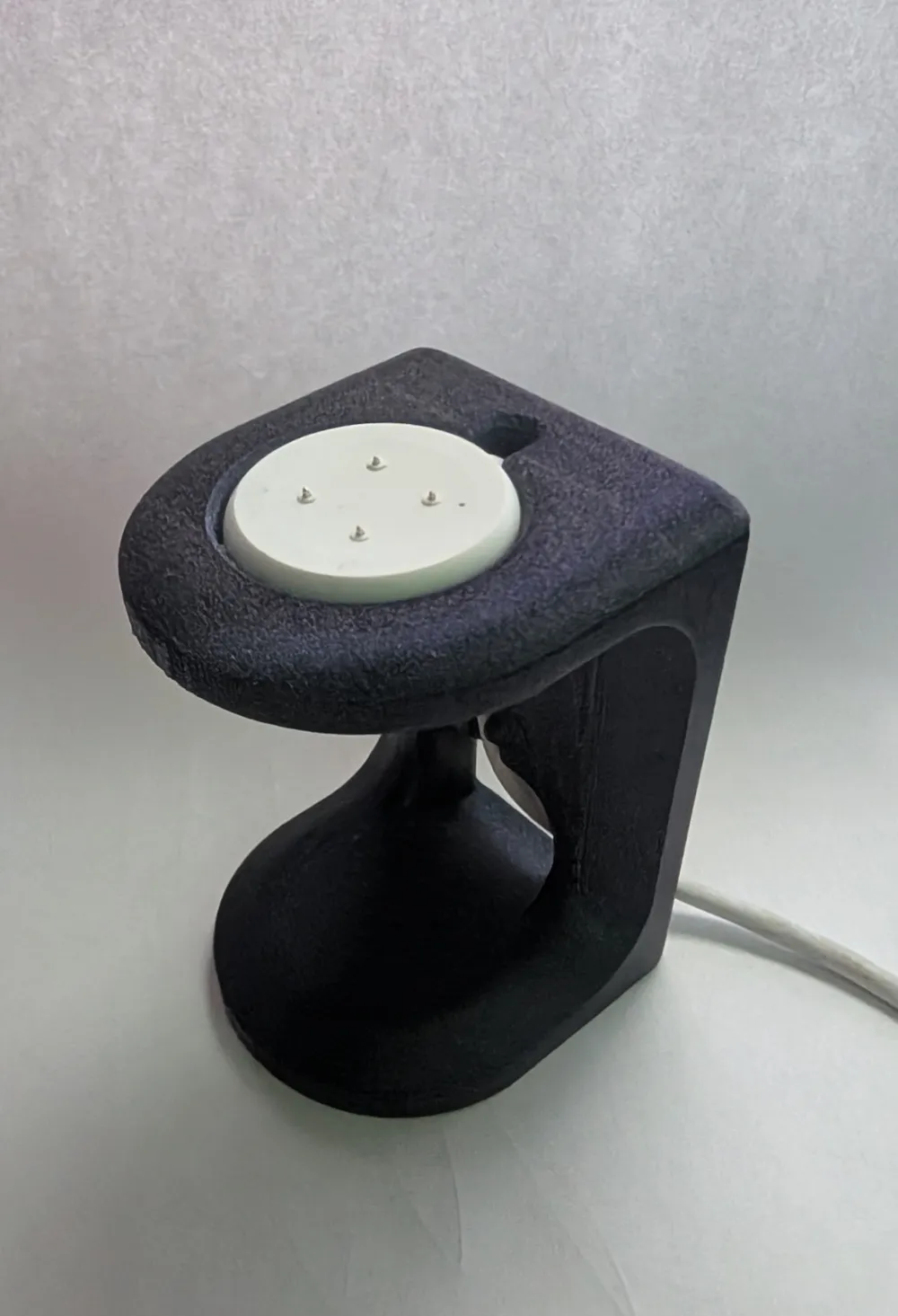

The top deck features a precise friction-fit recess tailored perfectly to the official 29 mm Google 4-pin magnetic puck. The cable routes neatly through the rear cutout and runs out the back of the base to keep your desktop setup clean, minimal, and wire-free.
Recommended Print Parameters

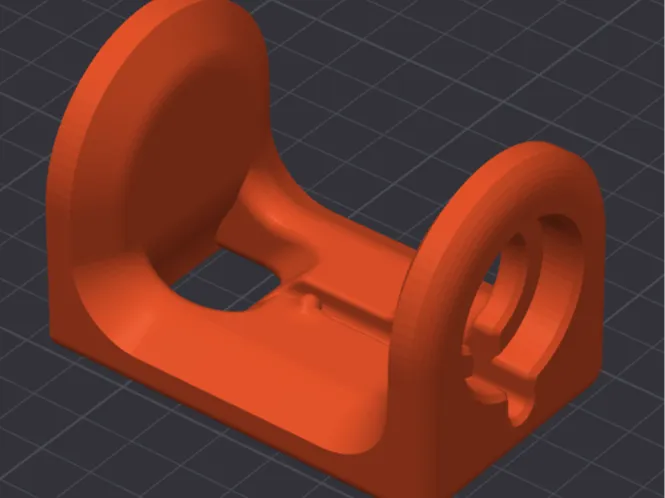

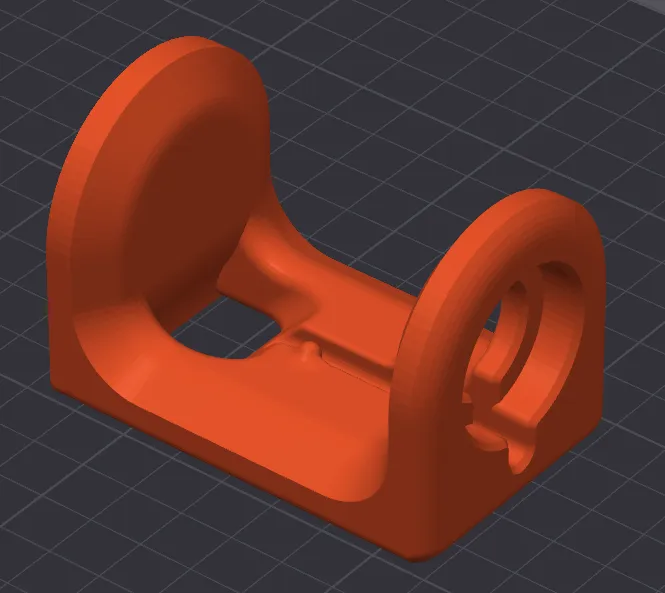

Because your design features an open cantilever arm, printing it in the right orientation is important for its structural strength.
| Parameter | Recommended Setting | Purpose |
|---|---|---|

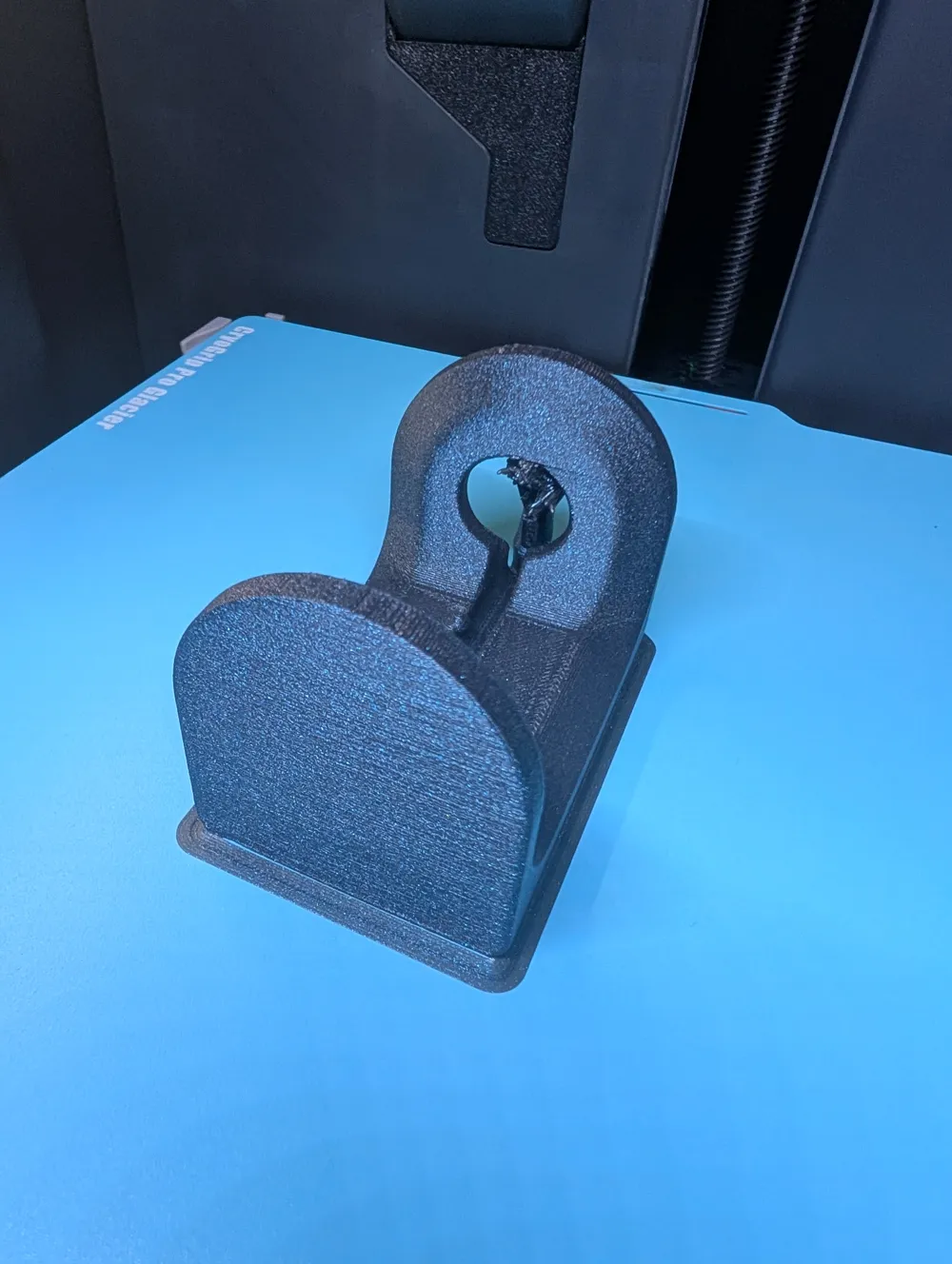

| Orientation | Print flat on its side profile | Running the filament layers along the C-curve profile prevents the arm from snapping under the weight of the watch. |
| Layer Height | 0.20 mm (Standard) or 0.16 mm | Smoother layers yield clean press-fit tolerances for the charging puck. |
| Wall Loops | 3 to 4 | Adds structural armor to the thin vertical support column. |
| Infill Density | 15% - 20% | Standard density is plenty for normal desktop use. |
| Infill Pattern | Gyroid | Provides excellent multi-directional strength. |
| Supports | On (Slim Tree Supports) | Only required to support the inner-roof curvature when printed on its side. |
| Material | PLA, Tough PLA, or PETG | Any standard filament works perfectly. |
Technical Dimension Profiles
- Puck Pocket Diameter: 29.2 mm (Engineered with a 0.2 mm clearance tolerance to securely lock the 29 mm factory charging base)
- Puck Pocket Depth: 6.7 mm (Allows the pin face to sit perfectly flush so the watch back makes flawless electronic contact)
- Base Footprint Width: 60 mm x 72 mm
- Total Height Clearance: 102 mm
