Big Fish Suzaku Belt Tensioner 1.0 (Lark Ported Version)

        Version 2.0 has been upgraded to fix the problem of the belt pushing backward, click to jump

🎯 Idea

        The Dayu Zhuque printer adjusts belt tension by moving the motor mount, which is difficult to operate and hard to fine-tune.

        After searching for a long time, I couldn't find a ready-made dedicated belt tensioner. After referring to the structure of the Yunque printer, I decided to modify and port it to the Zhuque.

⚠️ Notes

        Since I didn't want to re-modify the hotend carriage model (which was previously made of nylon material) and wanted to minimize the workload as much as possible, this model is relatively simple.

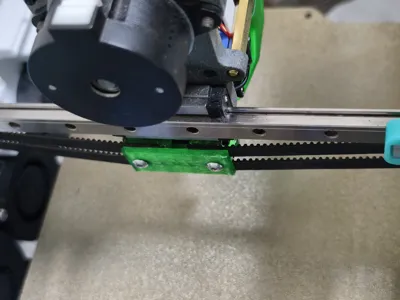

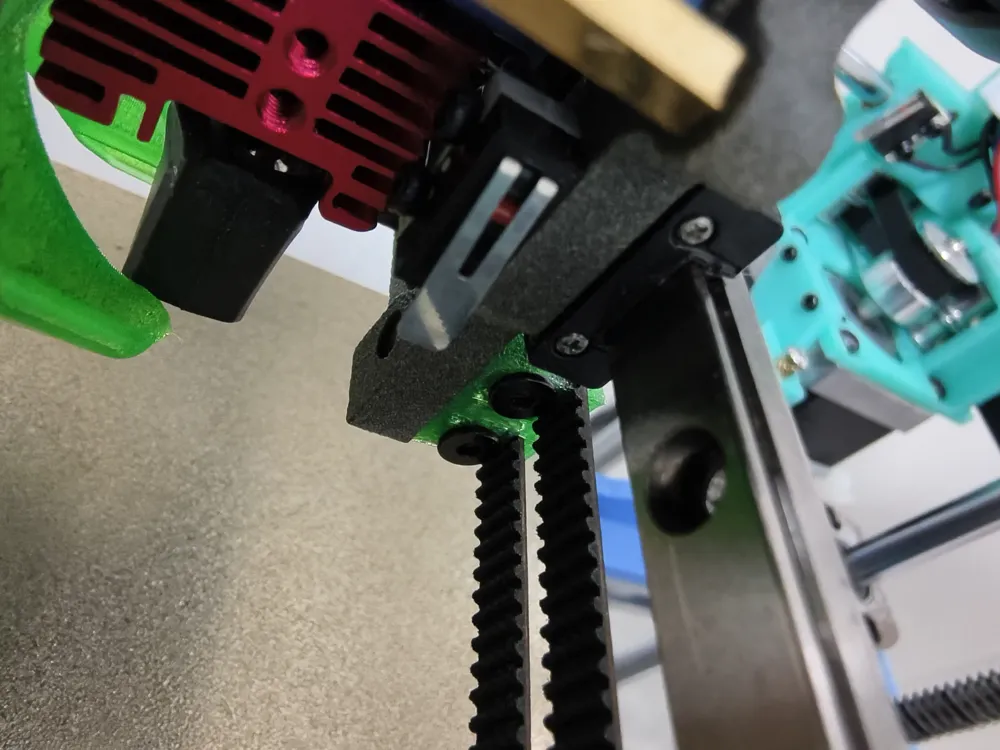

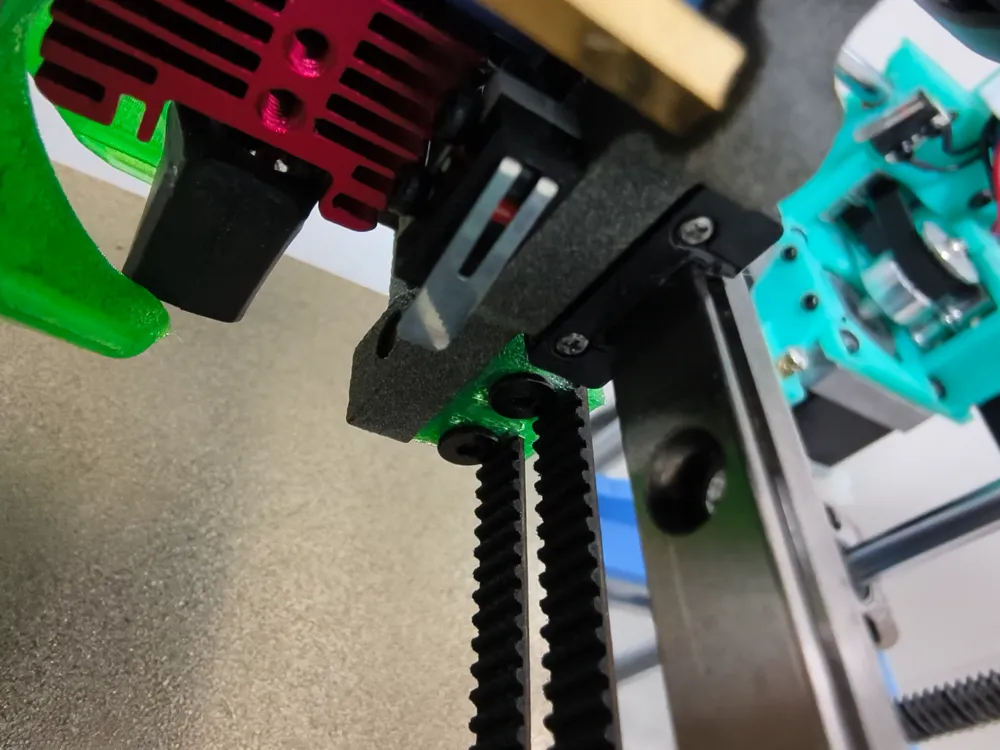

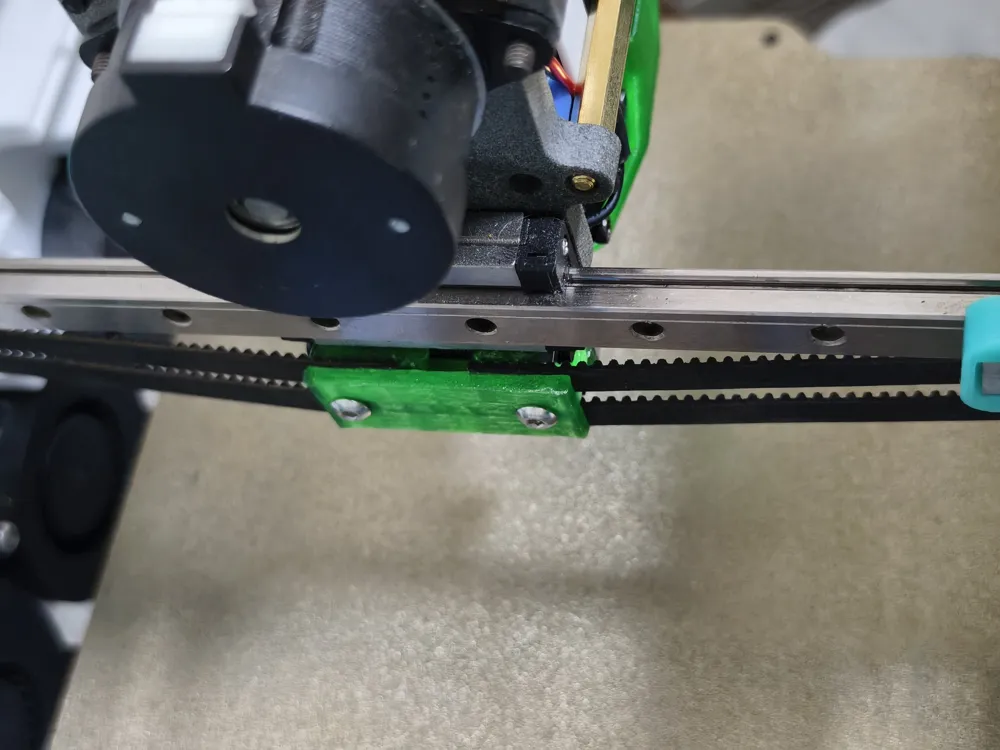

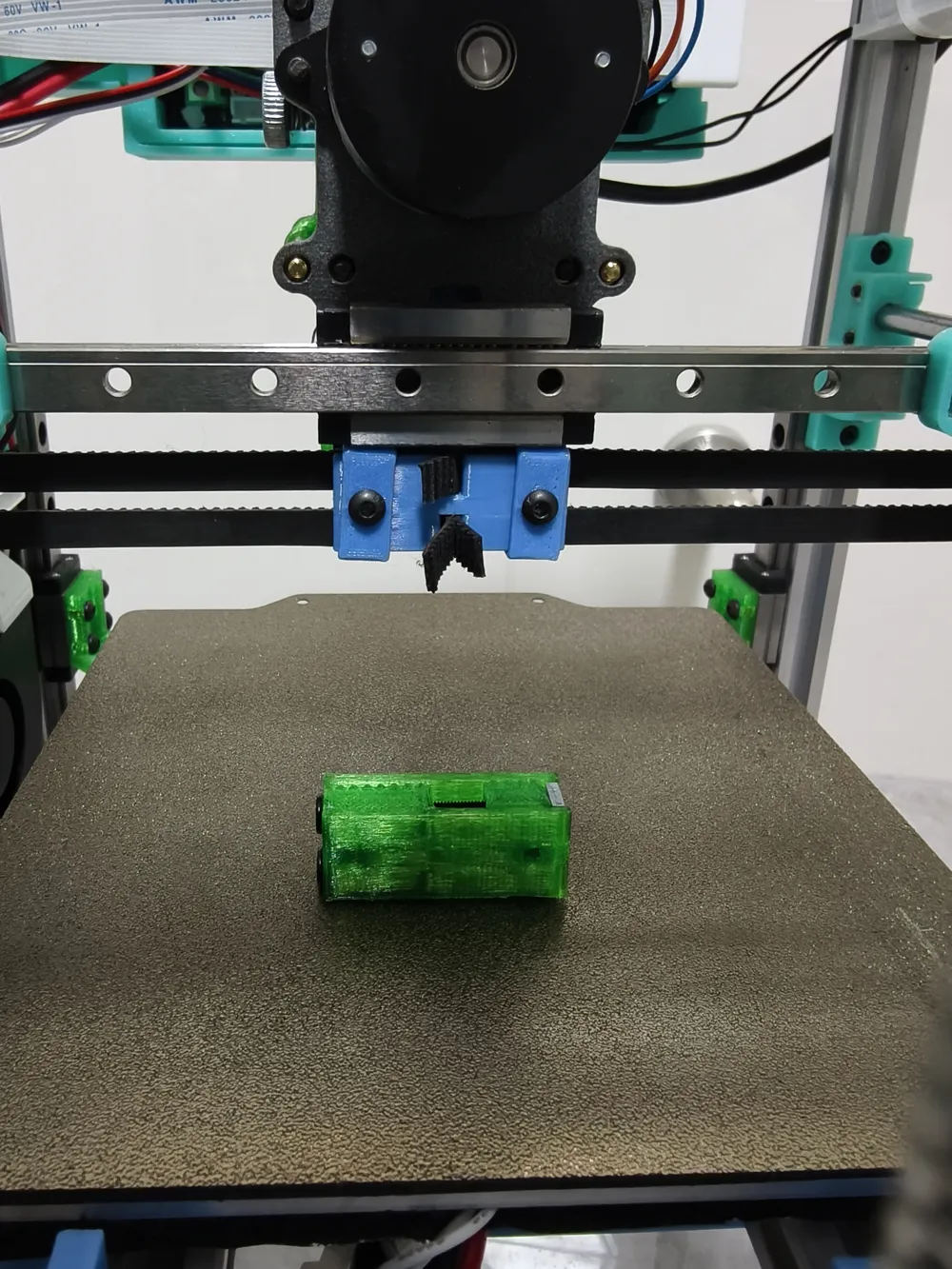

        It can directly replace the original timing belt clamp, but the belt will push back slightly after installation. There are no other effects besides the appearance.

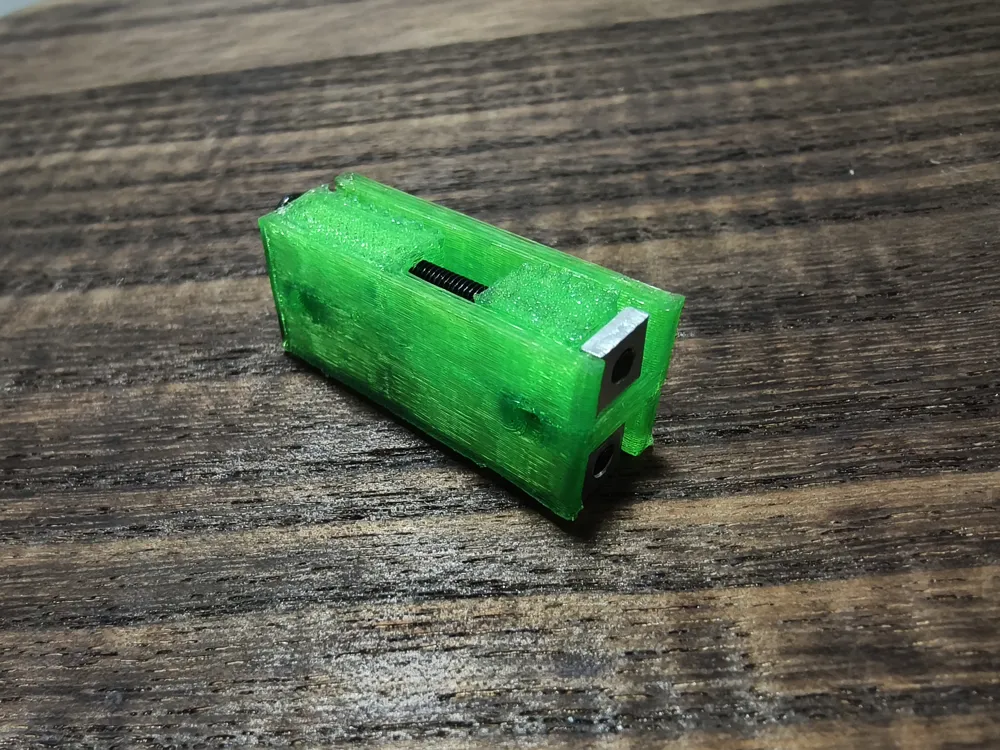

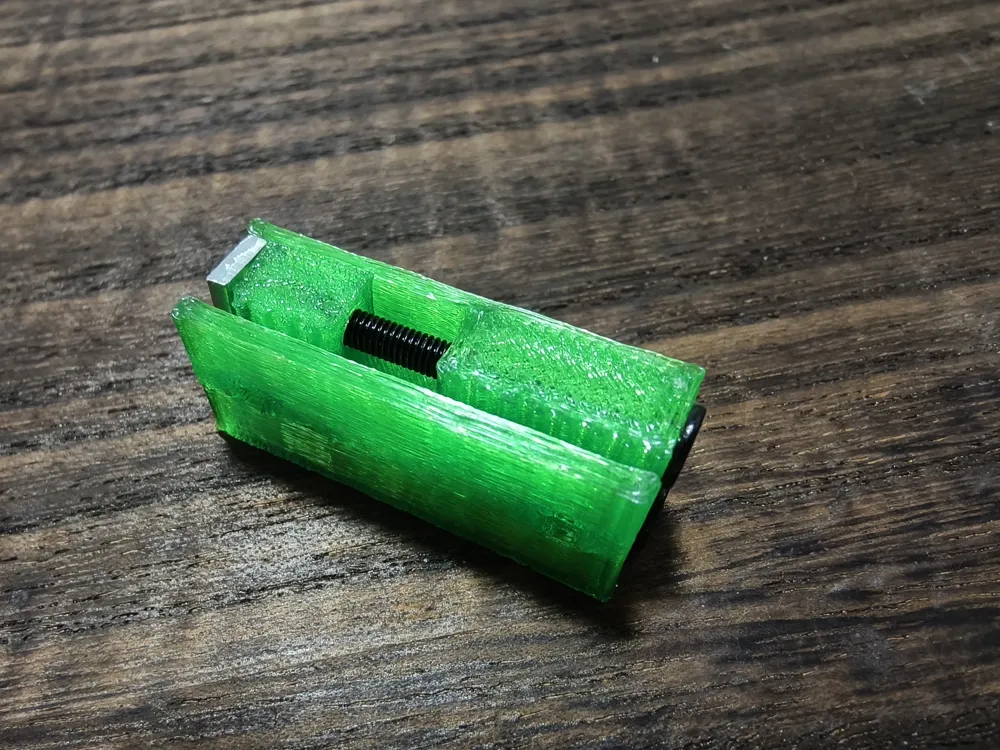

        Turn the side screw to adjust the belt tension.

🖨️ Print settings

• Layer height: 0.2mm
• Walls: 3
• Infill: 40%

🔩 Additional parts needed

• M3×35 flat head hex screws ×2
• M3×16 flat head hex screws ×2
• M3×6×2 square nuts ×2 (thickness doesn't matter much, just choose inexpensive ones when buying)
