K1 Series Stepper Motor Cover For Heatsink Mod

OrcaSlicer profile included in files

K1 Series Stepper Motor Cover For Heatsink Mod

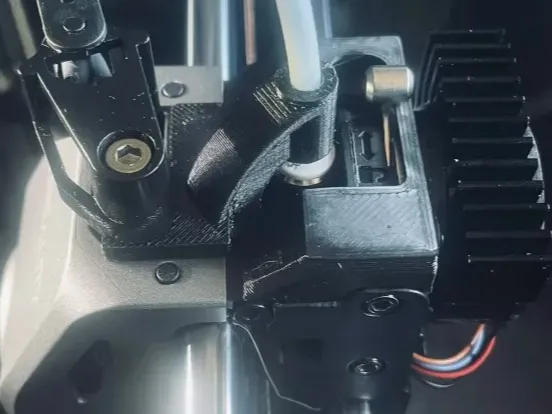

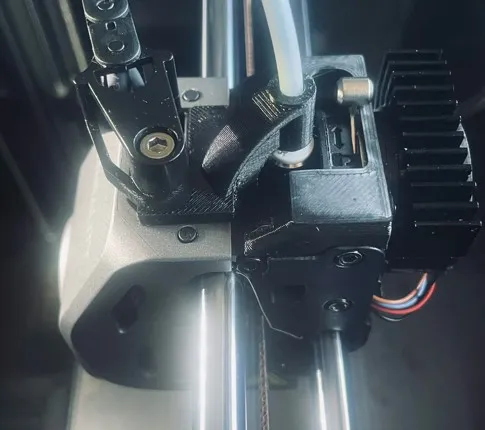

This is a remix of LockManipulator's model on Printables that allows for the stepper motor/extruder to be slightly covered to try and prevent dust or debris from flinging into the extruder and messing up the print. Model may not fit too tightly on one side of the extruder for some reason and i dont really know how to fix it otherwise - perhaps tweaking with walls should help. Either way i hope you enjoy this model!

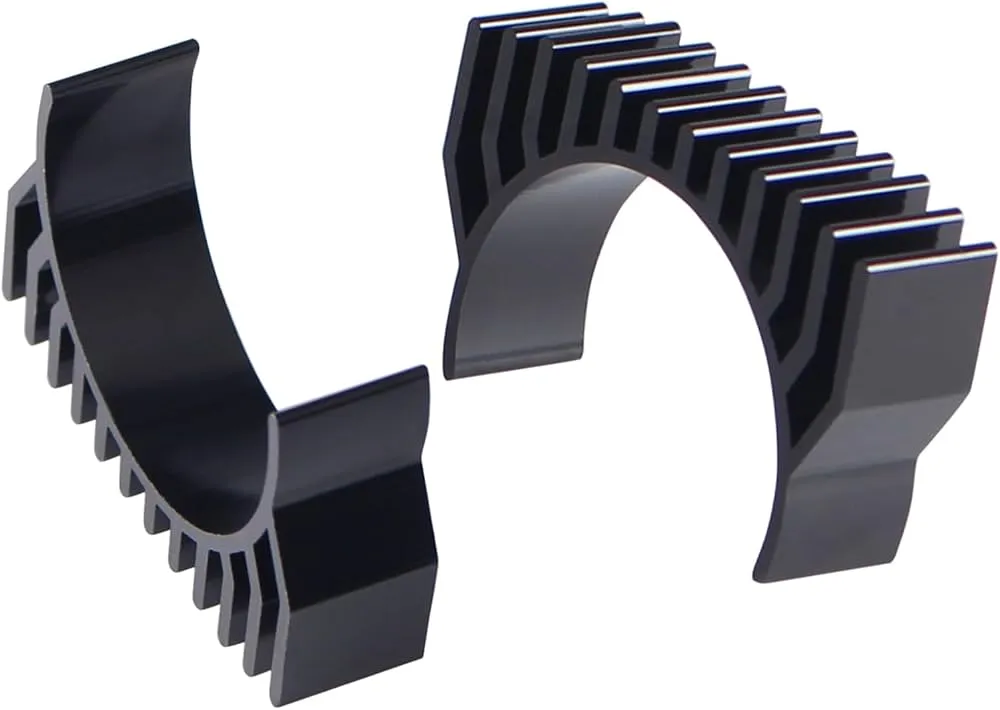

Heatsink is not included. I got mine from AliExpress (they cost like 1 dollar, not a very expensive mod and yet it works wonders)

Very quick print taking only about 10 minutes and 2 grams of filament.

PRINT SETTINGS IF THE 3MFS DO NOT WORK FOR YOU:
Infill: 15% Gyroid or equivalent
Walls : 3
Support and/or brim: Not needed
Filament: Just make sure it can withstand higher temps - PETG minimum, ABS or ASA recommended (i did use PETG for my print though)
