KAMIC Smoke Detector Replacement Mount
IP Report
GIF
This model is created by Image to 3D
Make Your Model
Print Profile(1)
0.2mm layer, 3 walls, 15% infill
Designer
33 min
1 plate
Open in Bambu Studio
Boost
0
0
0
0
0
0
Released
Description

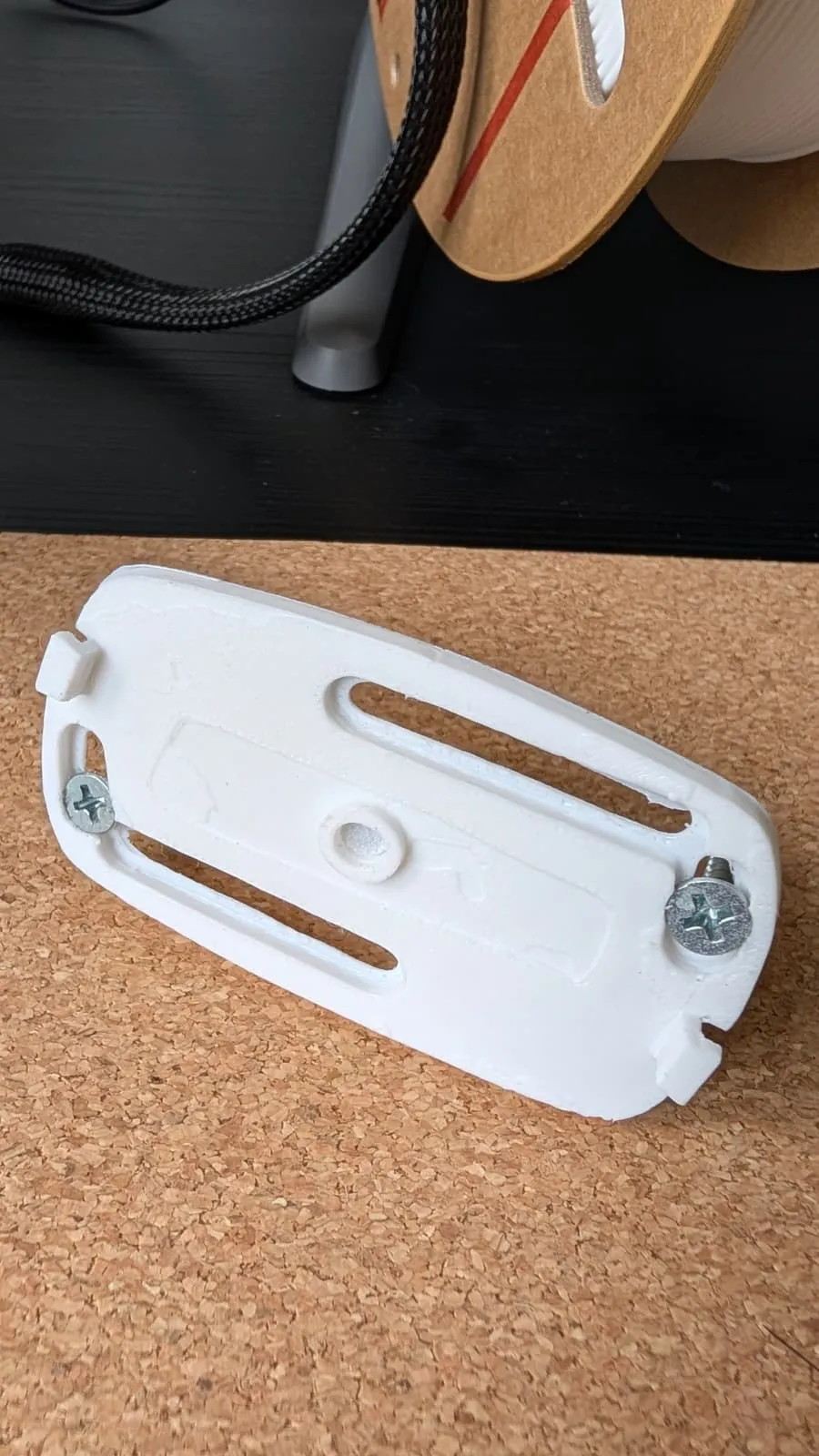

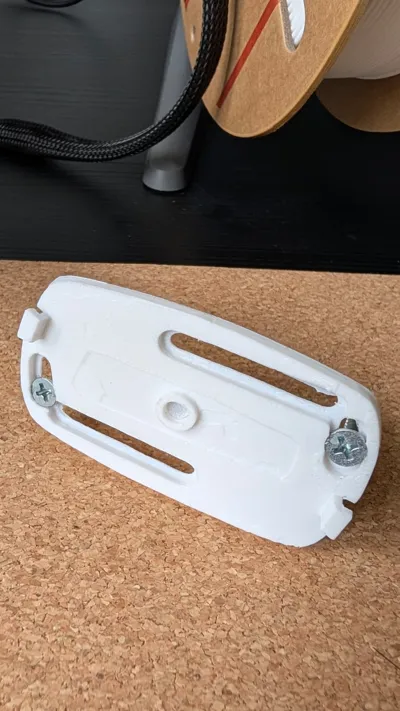

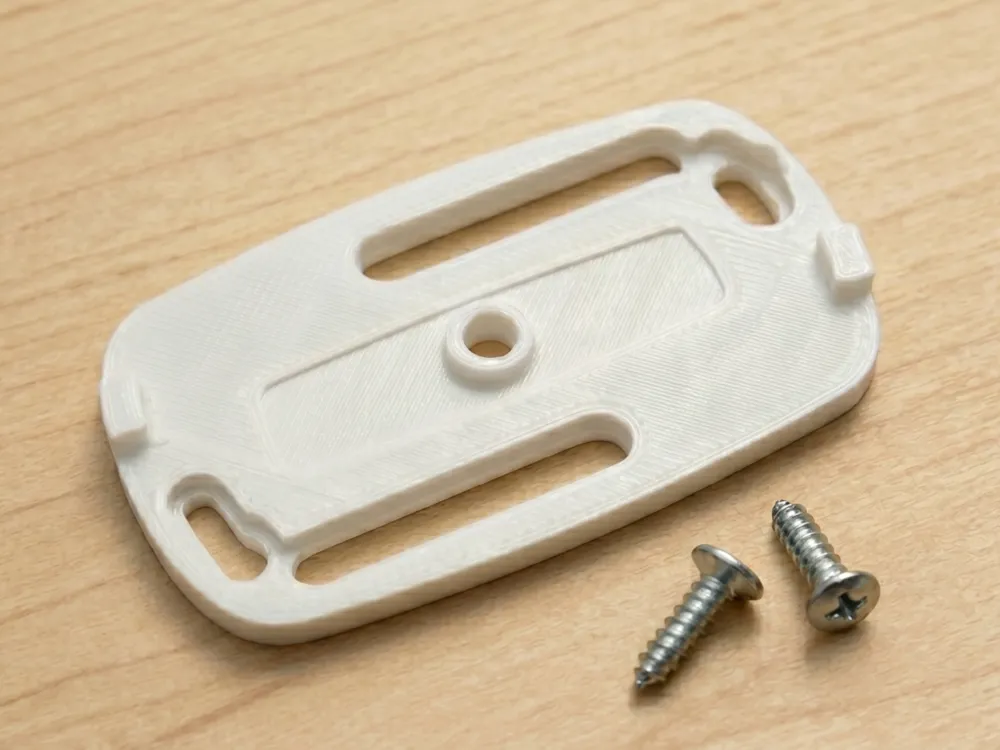

This is a 3D-printed replacement ceiling mount (monteringsfäste) for KAMIC smoke detectors. I created this part to replace a broken original bracket. It features the exact slide-and-twist locking mechanism needed to securely attach the alarm to the ceiling and automatically activate its internal battery.
Compatibility

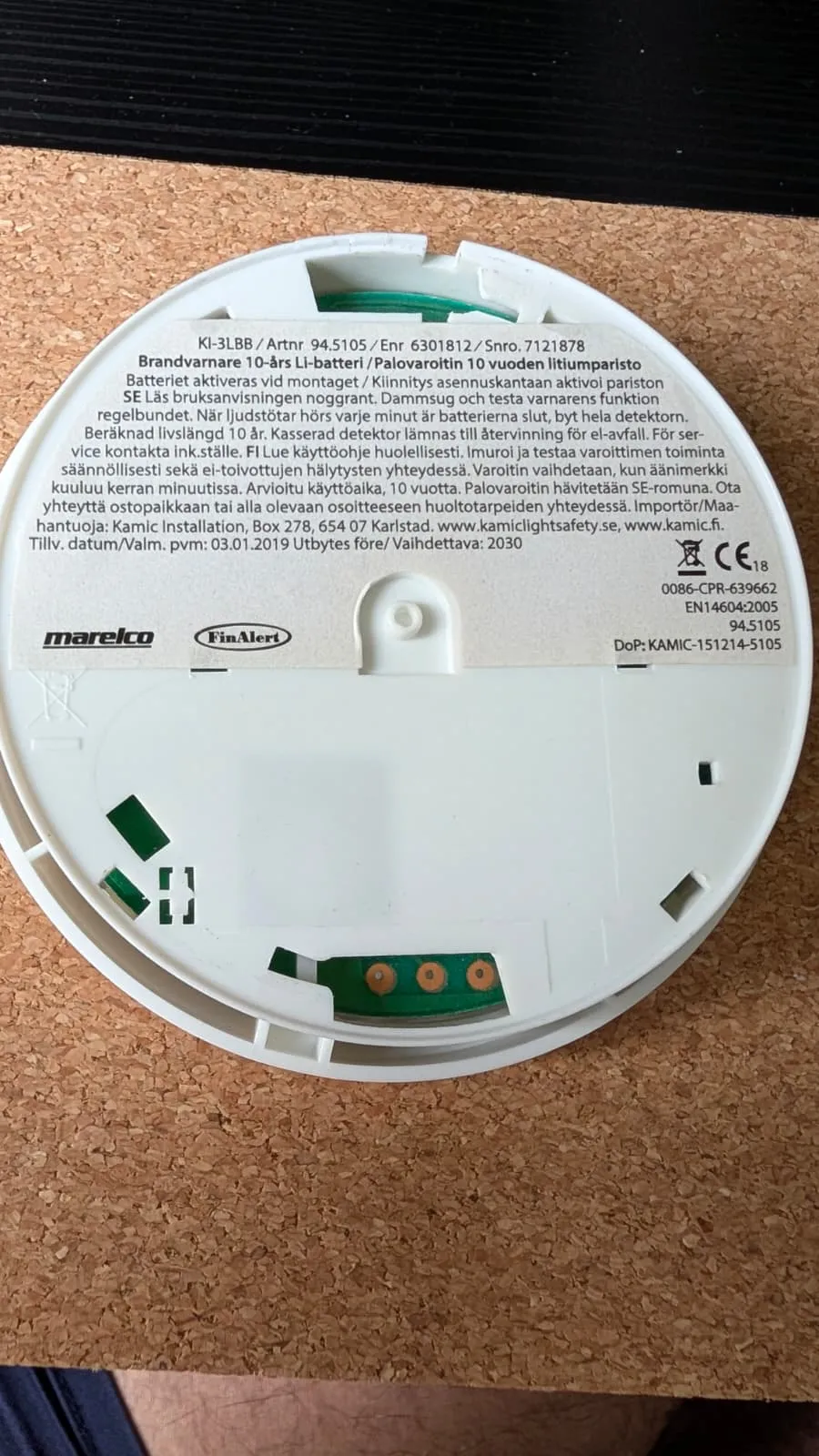

- Brand/Model: KAMIC KI-3LBB Monteringsfäste till 9V-brandvarnare - KAMIC
- Article Number: 94.5105
- Also labeled as: Marelco, FinAlert.
- Screw hole distance: Adjustable between 30-75 mm.
Installation

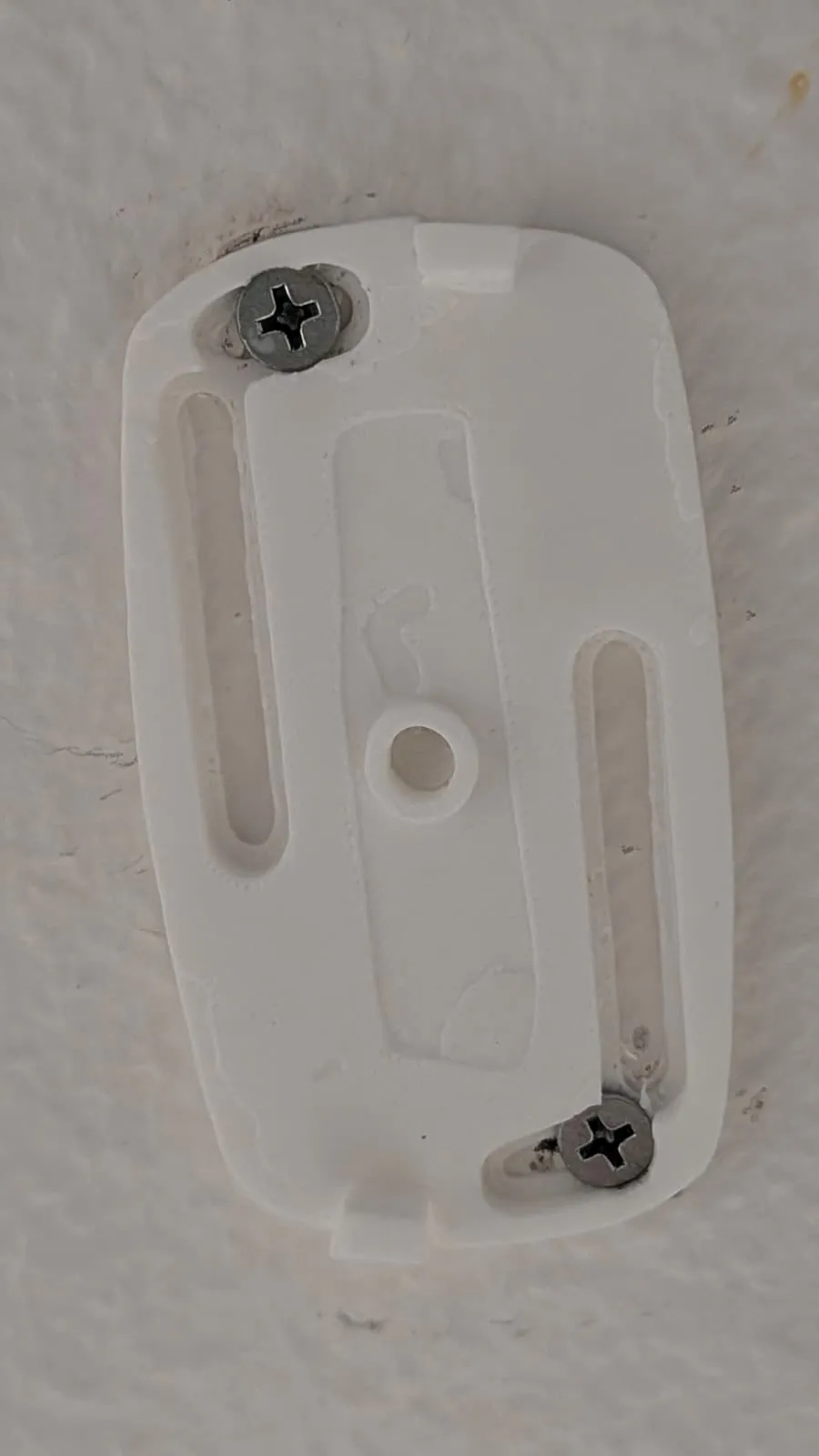

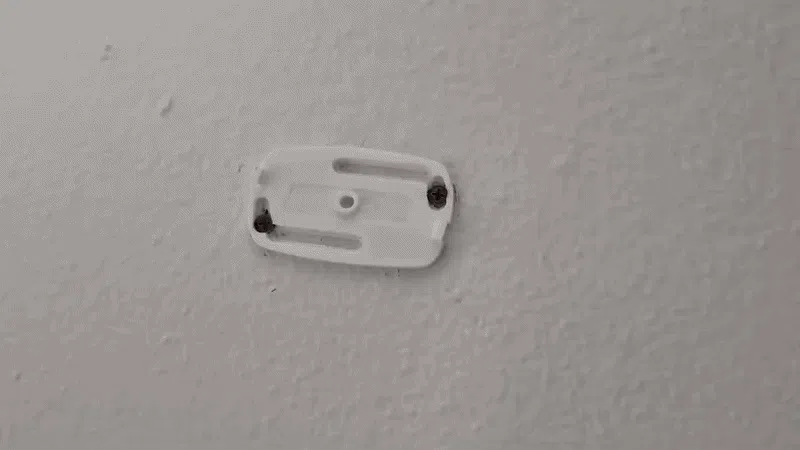

- Install the printed bracket on the ceiling using two screws.
- Align the back of the smoke detector with the mount.

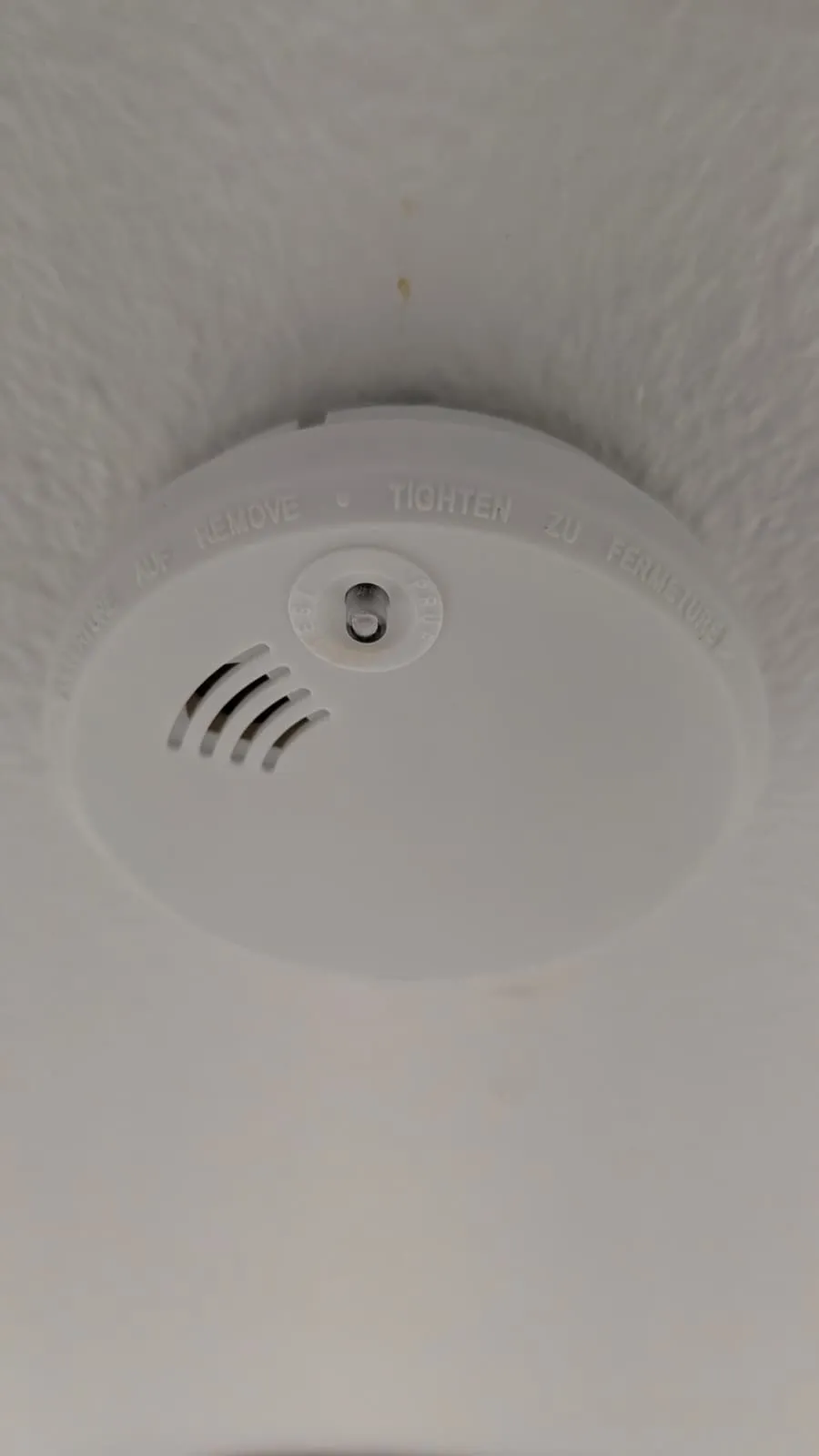

- Twist the detector into place until it clicks. This twisting action snaps the detector securely and activates the battery.
