Pixel Matrix Display-Used for clock and telemetry

Print Profile(1)

All
H2C
H2D Pro
H2D
H2S
A2L

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
11.5 h
4 plates

Open in Bambu Studio
Boost
0
0
0
0
0
0
Released

Bill of Materials

Maker's Supply Kits and Parts
Select all
BT2x8 SHCS Self Tapping Screw (20PCS) - AA019
Bambu Filaments
Select all
Matte Charcoal (11101) / Refill / 1kg
Matte Ash Gray (11102) / Filament with spool / 1kg
Red Granite (13201) / Filament with spool / 1 kg
Jade White (10100) / Filament with spool / 1kg

Description

Content has been automatically translated.
Show original

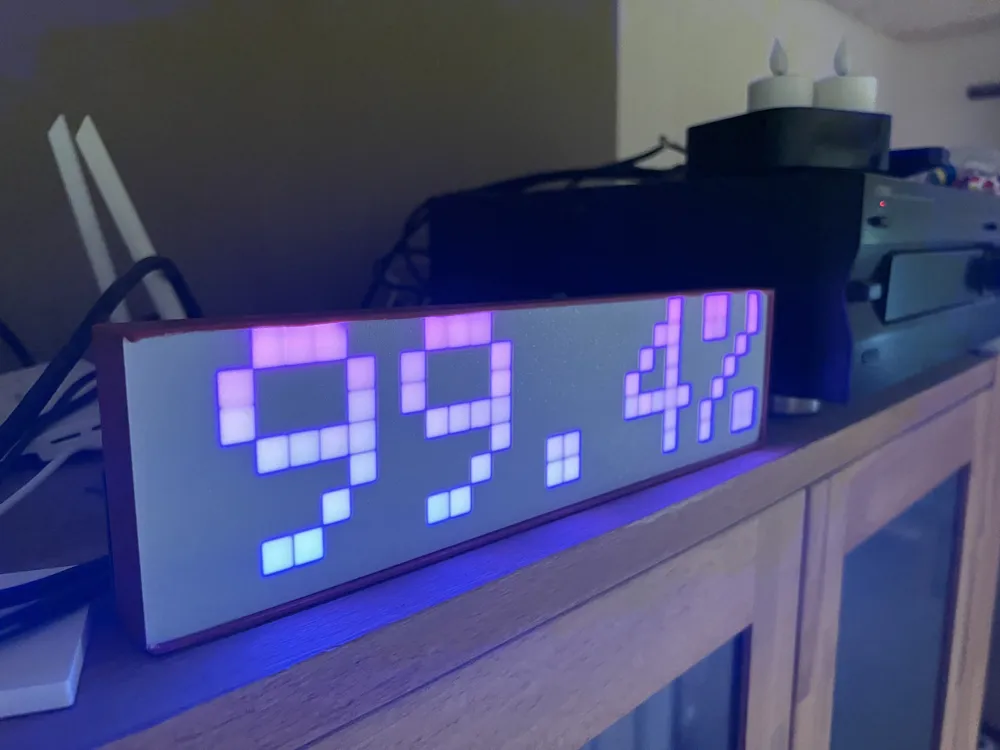

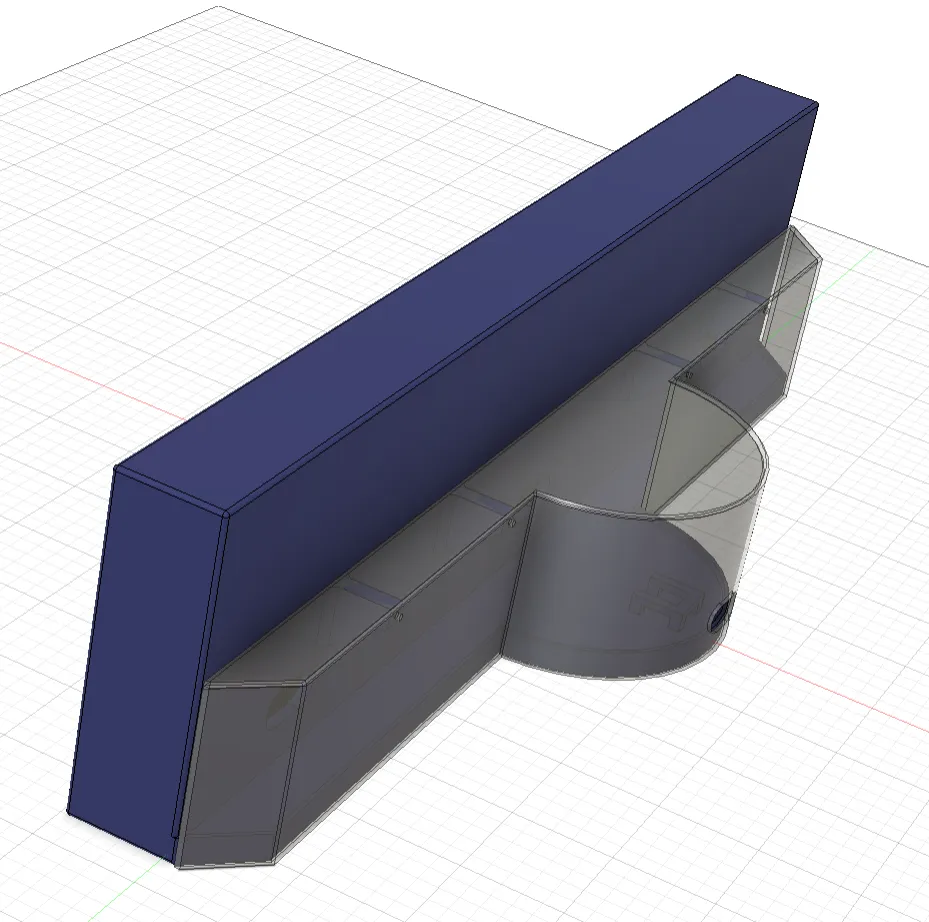

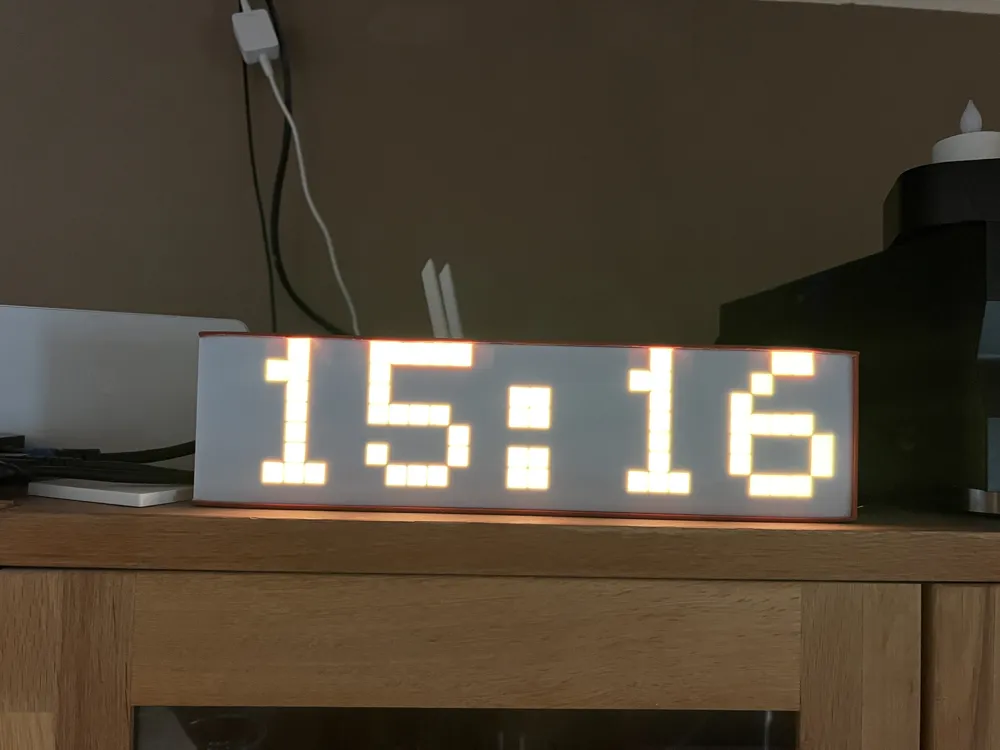

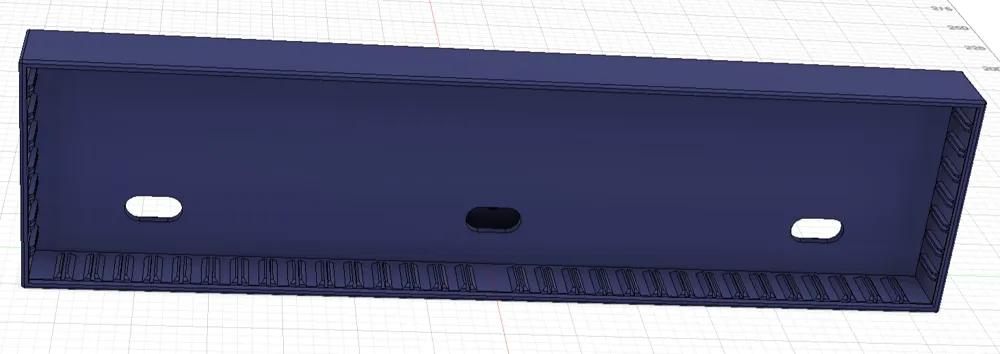

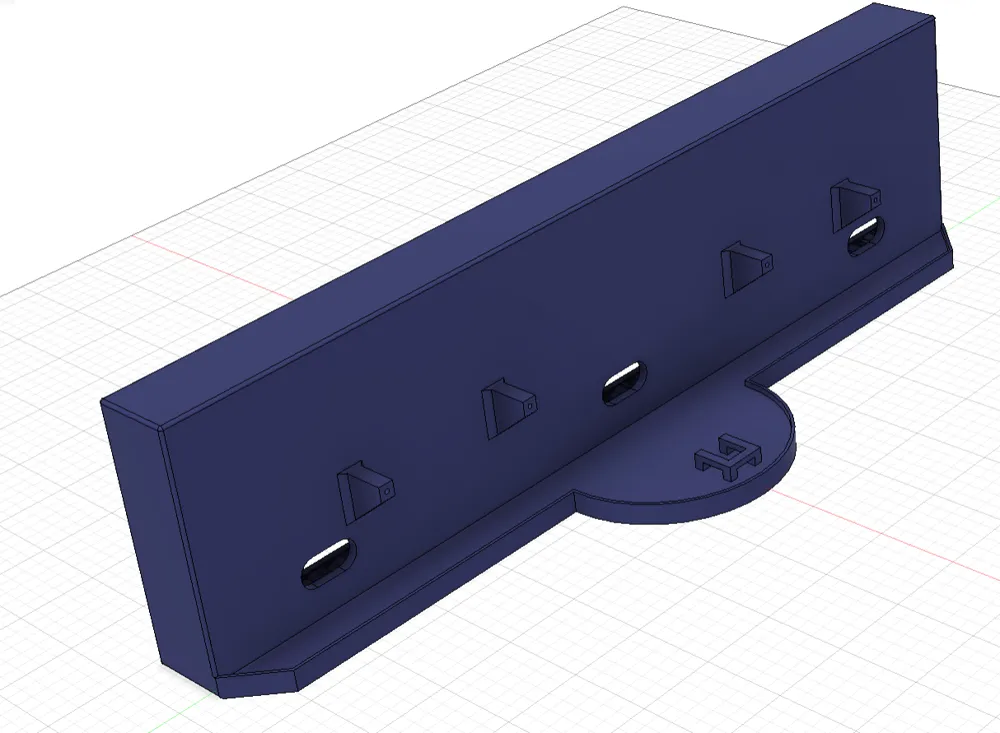

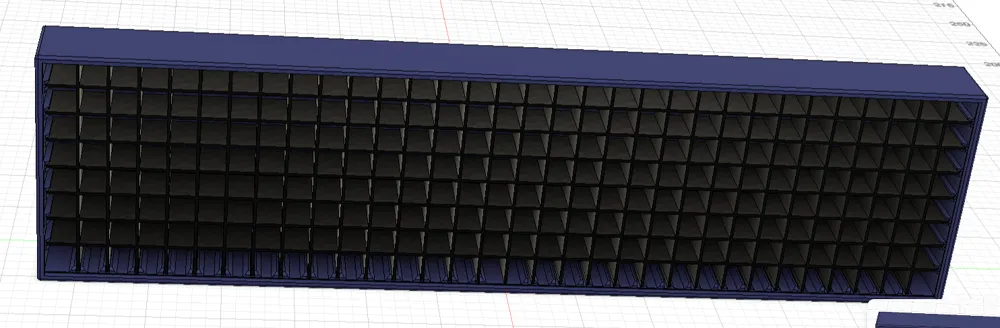

I’ve put together a kit that lets you turn an 8x32 LED pixel matrix into a smart clock. I use this with an ESP32 and the WLED software to display the current output and charge level of the solar system. But the system can display anything you can imagine or simply play animations to the current music. Assembly is super easy. Insert the display, place the honeycomb panel on top, and then slide in the 3D-printed cover. On the back, connect your ESP32 to the pixel matrix and the power supply, and you’re almost done. Just quickly secure the power cable to the strain relief with two cable ties, then close the case and screw it shut (or glue it).
For the front panel, I recommend Bambulab’s opaque transparent Jade White. Other white filaments don’t let enough light through. Attempts with transparent PETG just looked cheap.
