Hailink Human Presence Module (LD2410C) Case
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
23 min
1 plate
Open in Bambu Studio
Boost
1
1
0
0
2
1
Released
Description
Content has been automatically translated.

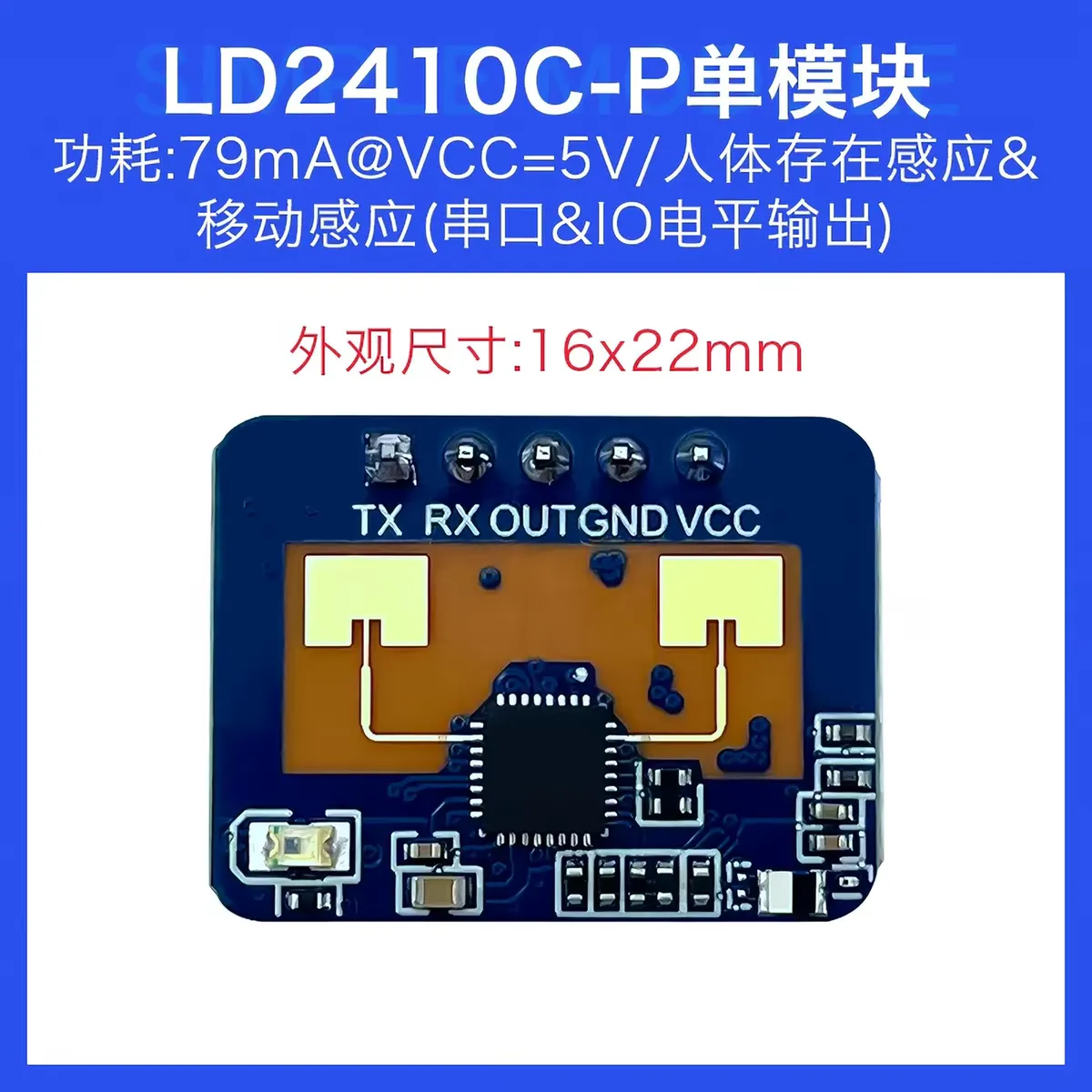

A case for the LD2410C human presence module. Because the LD2410C has built-in Bluetooth, no other peripheral devices are needed for debugging sensitivity or connecting to Home Assistant, only a 5V power supply is required

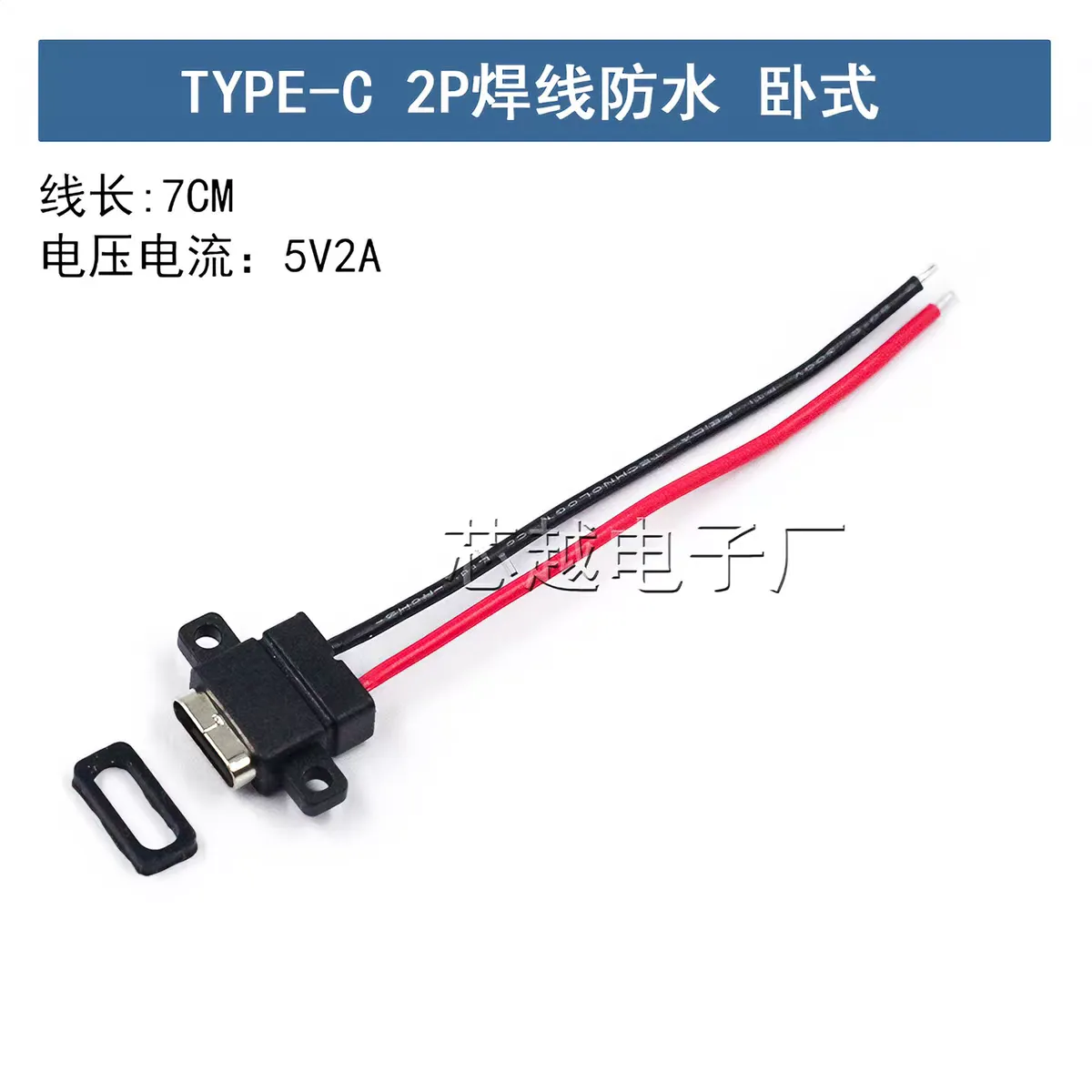

accessories: two M2 screws, one Type-C female connector (with cable) as shown in the figure below (for reference only)

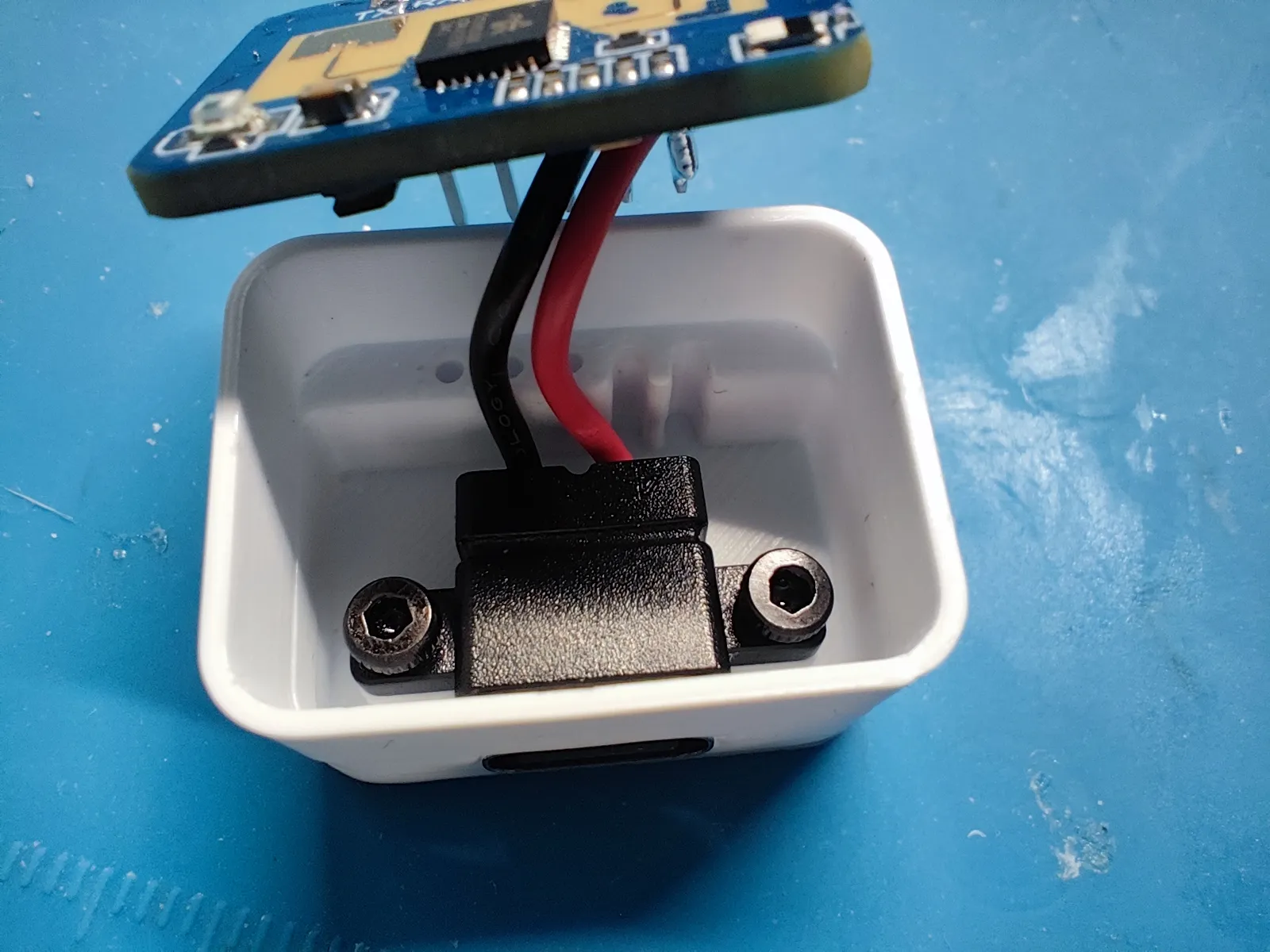

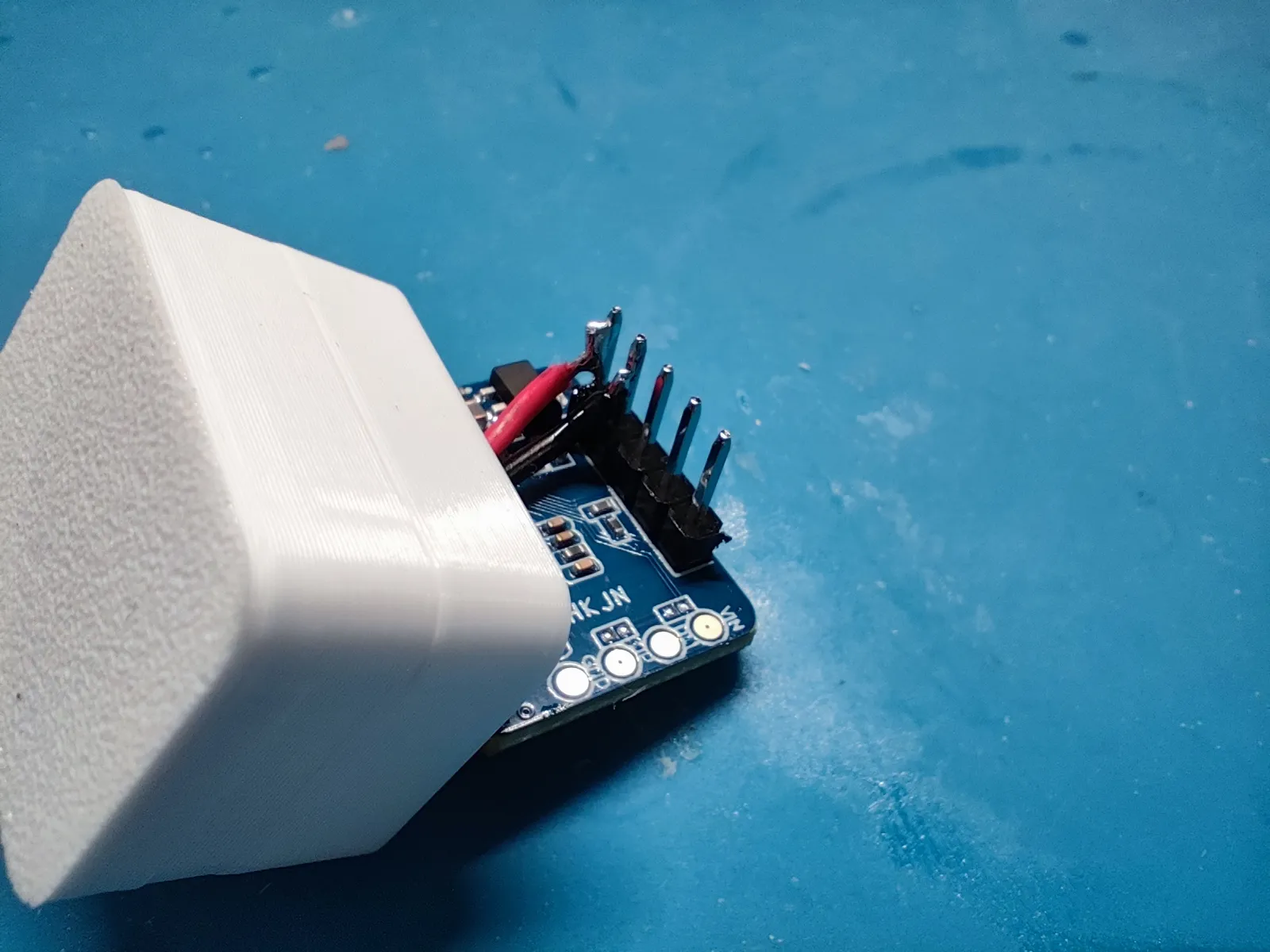

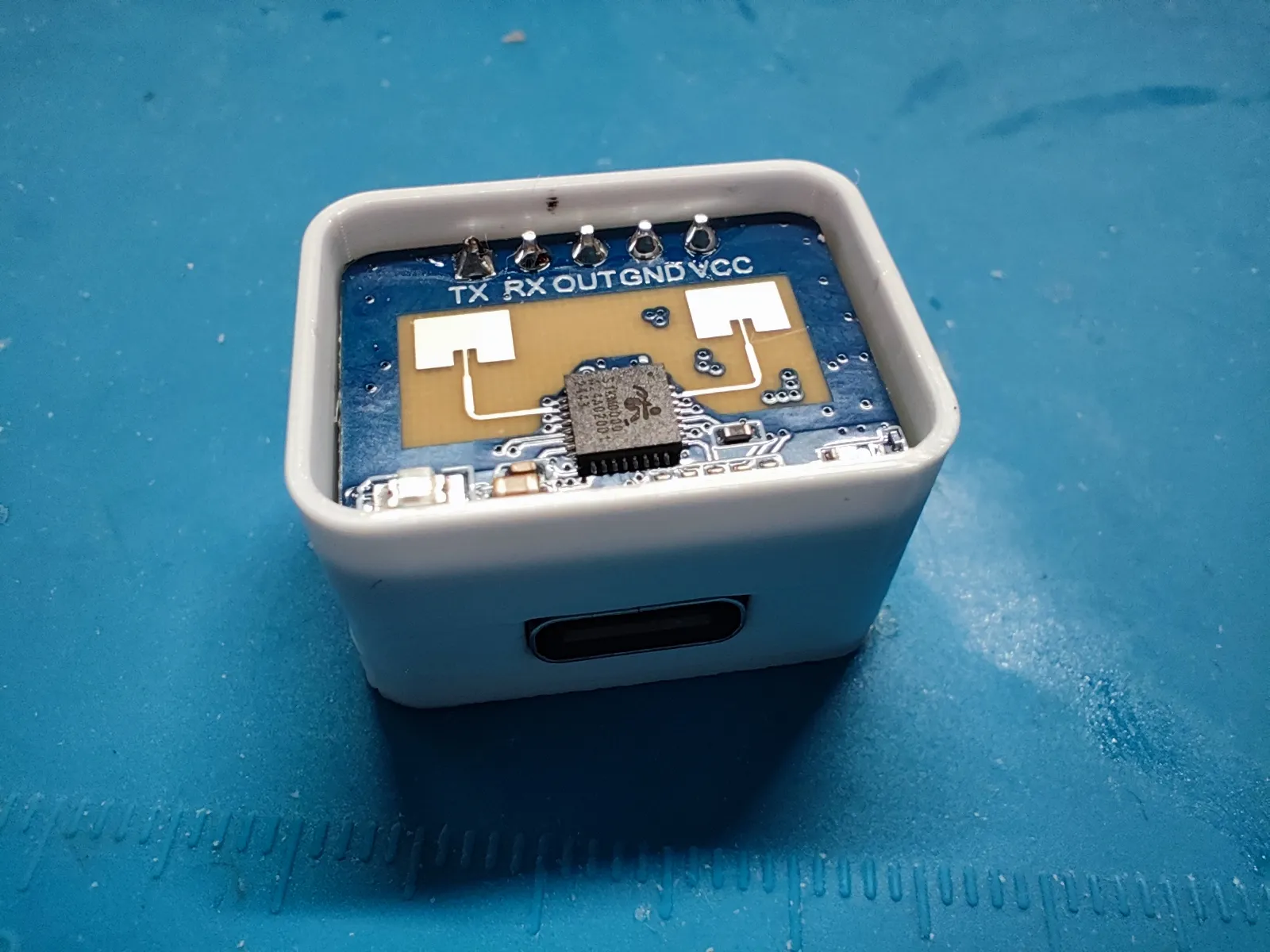

When assembling, first solder the power cable to the pin header of the human presence module, then use screws to fix the Type-C female connector, finally place the module inside, and use glue (T8000 recommended) to secure the top cover
