7 Robust Shelf Brackets 30*30*(60 to 200)

🏷️ Set of 7 Robust Shelf Brackets (30×30 mm) with Oblong Holes and Screw Covers

📝 Short Description

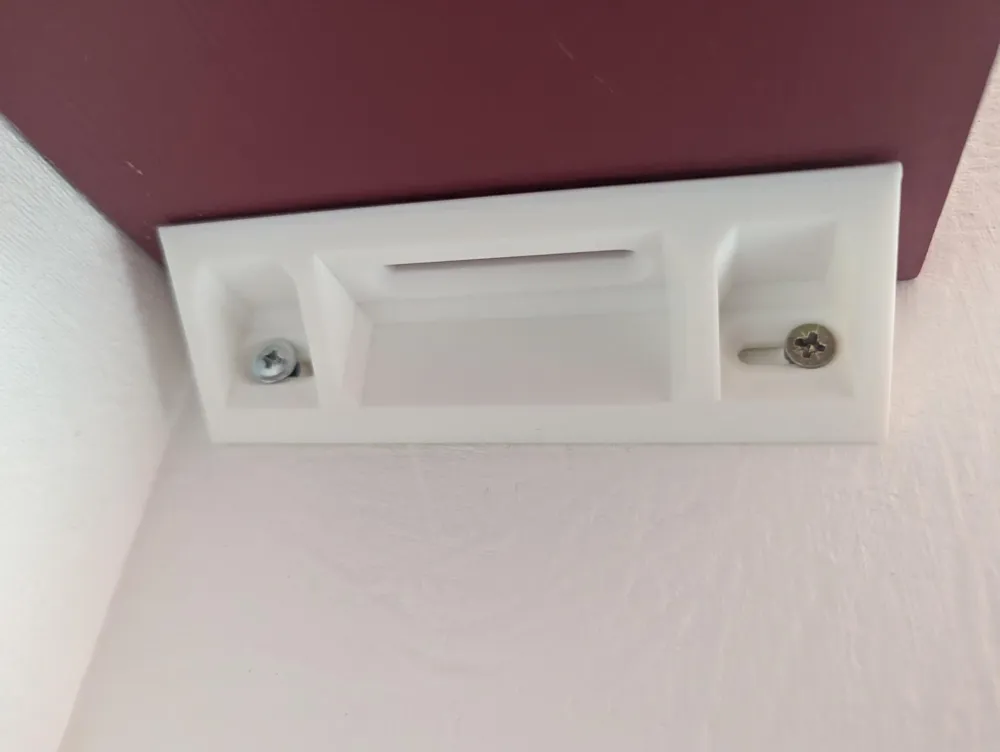

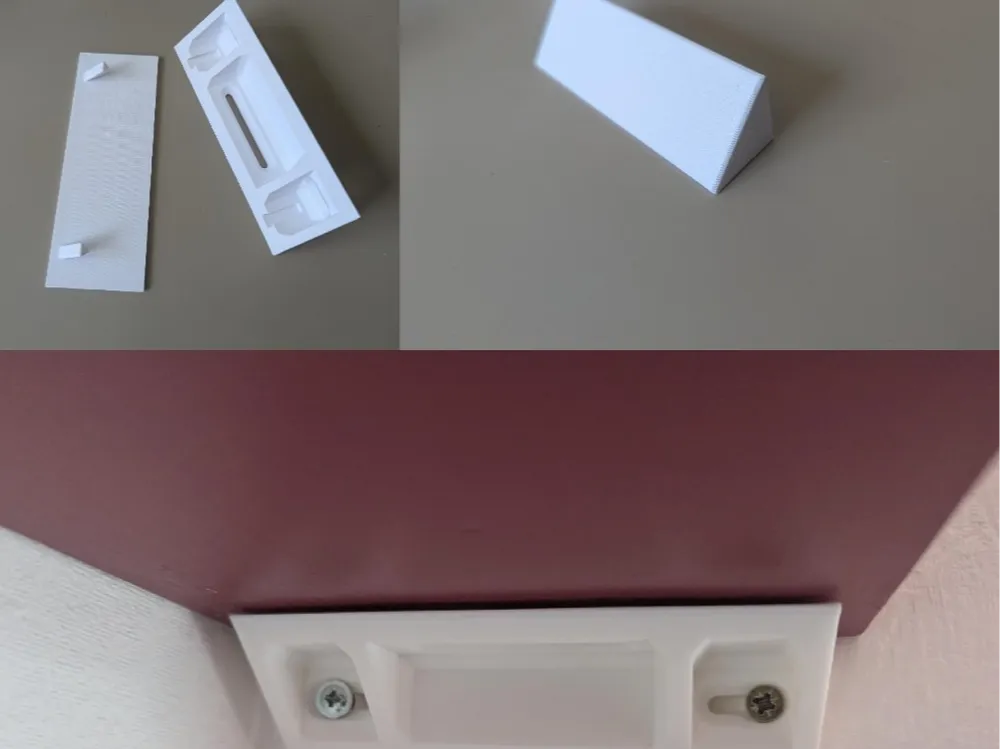

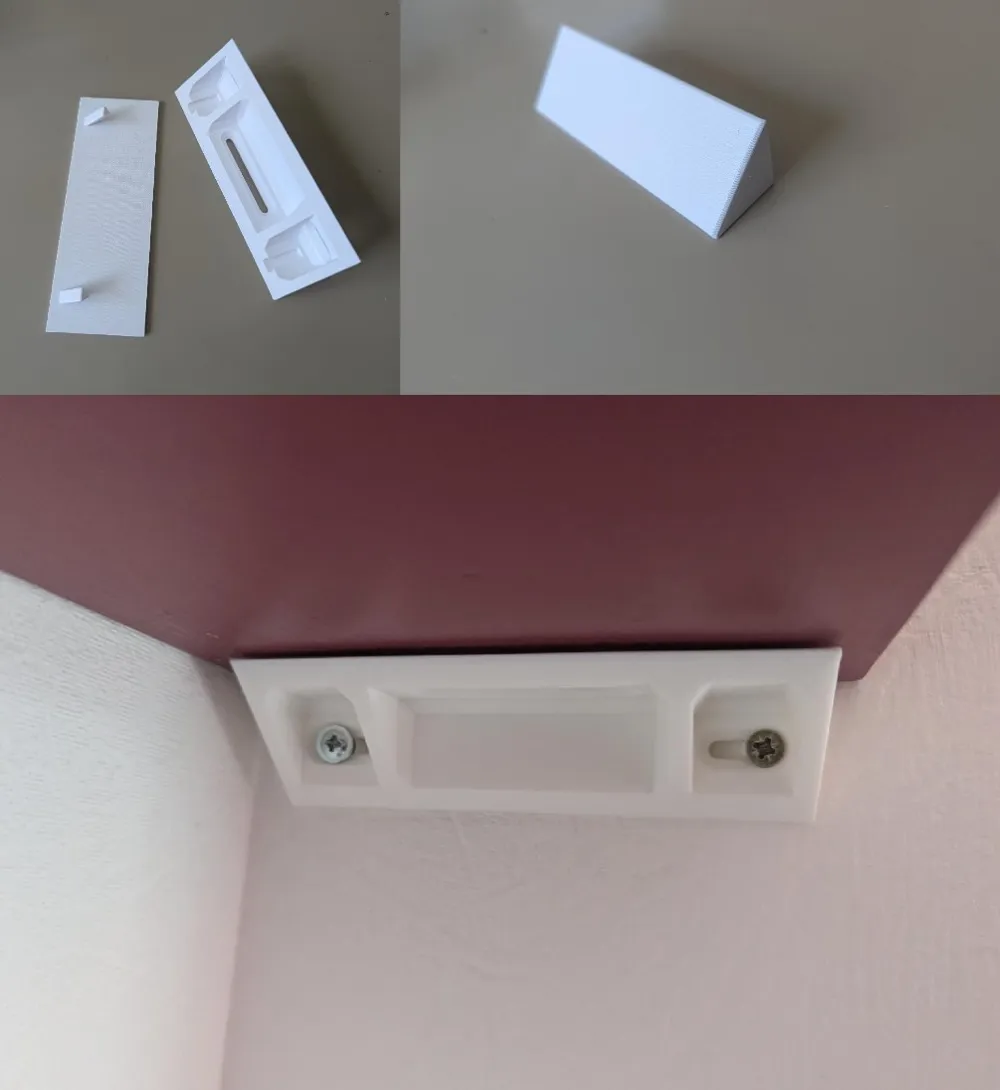

A set of 7 ultra-robust, compact, and quick-to-print shelf brackets. Each bracket measures 30 mm high, 30 mm deep, and integrates a 4 mm oblong hole for countersunk screws, allowing for precise adjustment. A clip-on cover hides the screws for a clean and aesthetic finish.

📦 Detailed Description

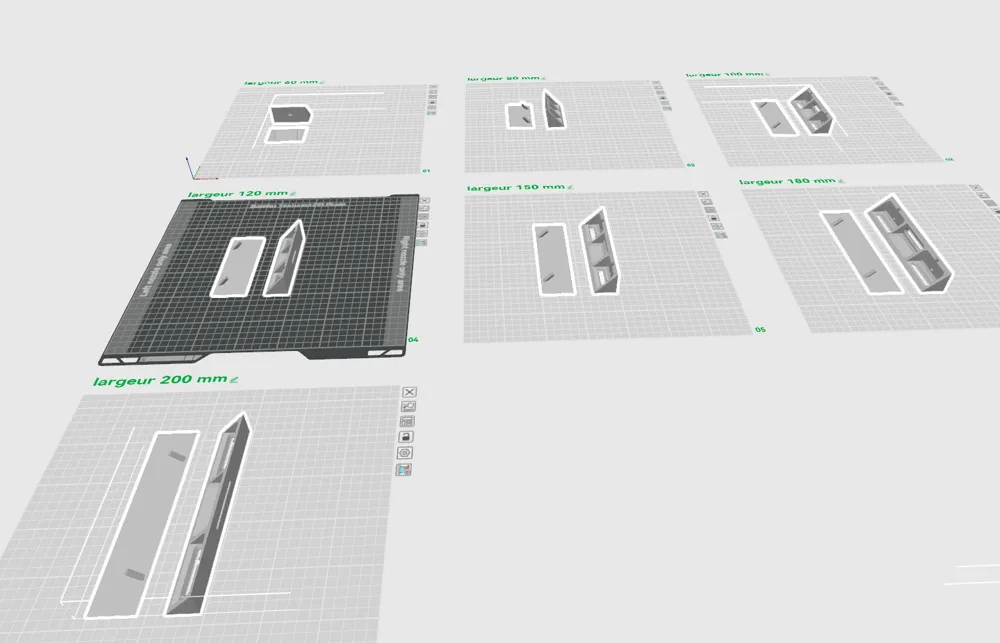

This pack includes 7 shelf brackets of different widths to suit all your needs: 60 mm, 80 mm, 100 mm, 120 mm, 150 mm, 180 mm, and 200 mm.

Each bracket is designed to offer:

• excellent rigidity,
• a wide support surface,
• a 4 mm oblong hole for precise adjustment,
• compatibility with countersunk screws,
• a screw cover for a clean finish.

The design is optimized for fast, support-free printing, while ensuring sufficient strength for light to medium shelves (depending on material and wall mounting). Ideal for workshops, garages, kitchens, offices, or DIY projects requiring a clean and robust mounting.

🔧 Features

• Type: shelf bracket
• Height: 30 mm
• Depth: 30 mm
• Included widths: 60 / 80 / 100 / 120 / 150 / 180 / 200 mm
• Mounting: Ø4 mm oblong hole (countersunk screw)
• Screw cover included
• Level: beginner

🖨️ Recommended Print Settings

• Layer height: 0.20 mm
• Infill: 20–40 %
• Supports: no
• Walls: 3 to 4
• Orientation: base to build plate

🧵 Recommended Materials

• PLA: ideal for indoor use and decorative shelves
• PETG: perfect for heavier loads or humid environments
• ABS: very good strength/heat compromise for demanding indoor use
• ( ASA: recommended for outdoor use or heat exposure )

🛠️ Usage / Assembly Tips

• Use Ø4 mm countersunk screws
• Adjust position using the oblong hole
• Fix with wall plugs suitable for the wall
• Clip on the cover for a clean finish
• For heavy loads: PETG or ABS + 4 walls + 35–40 % infill
