Light Hardware - Hunting Knife Hand Blaster

ASIA

Print Profile(2)

Description

2026-5-30 Update

Button spring updated to rectangular spring, with higher strength and better elasticity than the round one

PS: For printing springs, due to different filaments used by individuals, the elasticity and durability will vary. Generally, PETG has better elasticity and higher strength. Some materials will break upon a light squeeze after printing. Please try different materials

This hunter hand cannon is an improvement based on the previous "Little Naif"

This is a light hardware version with an upgraded play feel

Based on the Little Naif, the blade and handle length have been increased, providing an excellent grip

A small amount of hardware has been added, improving performance by 200%

The installation method is almost the same as the Little Naif, with zero difficulty, so no installation video will be made. If you have any questions, please refer to the Little Naif installation video

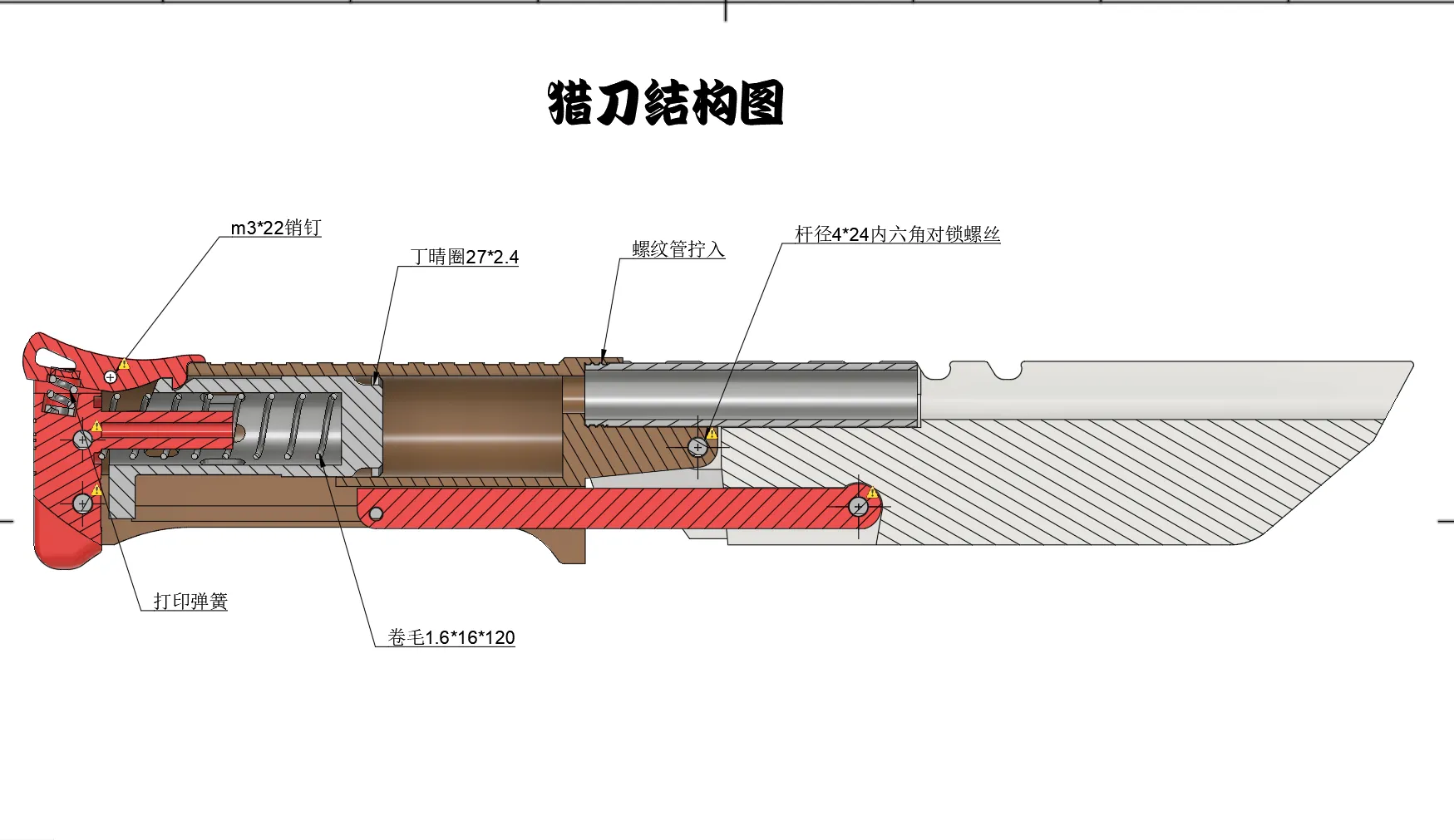

Below, a structural cross-section diagram is provided for reference

O-ring model 27mm outer diameter * 2.4mm wire diameter (Nitrile rubber) 1 piece

Screw bolt 4mm rod diameter * 24mm length 1 piece

Pin M2 * 22mm 1 piece

Coil spring 1.616120 1 piece (maximum outer diameter can be 18mm)
