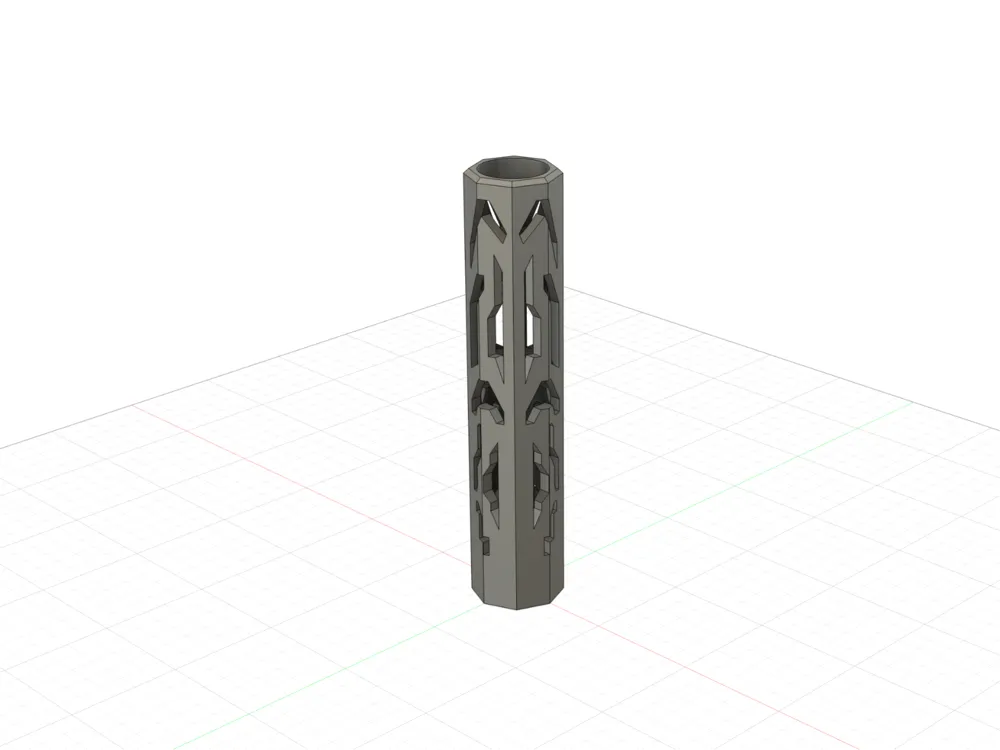

sqb Octagonal Hollowed Fishbone with Built-in Inner Barrel Stabilization
Print Profile(1)
Description
The fishbone thread is compatible with 90% of CNC and nylon receivers and includes inner barrel stabilization. You can first print a threaded test piece (due to varying PETG sinkage rates from different manufacturers) to test it. If it's too tight, you can increase the X-Y inner contour dimension compensation setting in the quality options to 0.13 (currently 0.08) and try again. Conversely, if it's loose, reduce it appropriately until it perfectly fits the receiver.
0.1mm layer height: longer printing time, high precision.
0.2mm layer height: slightly shorter printing time.
Please choose as you see fit.

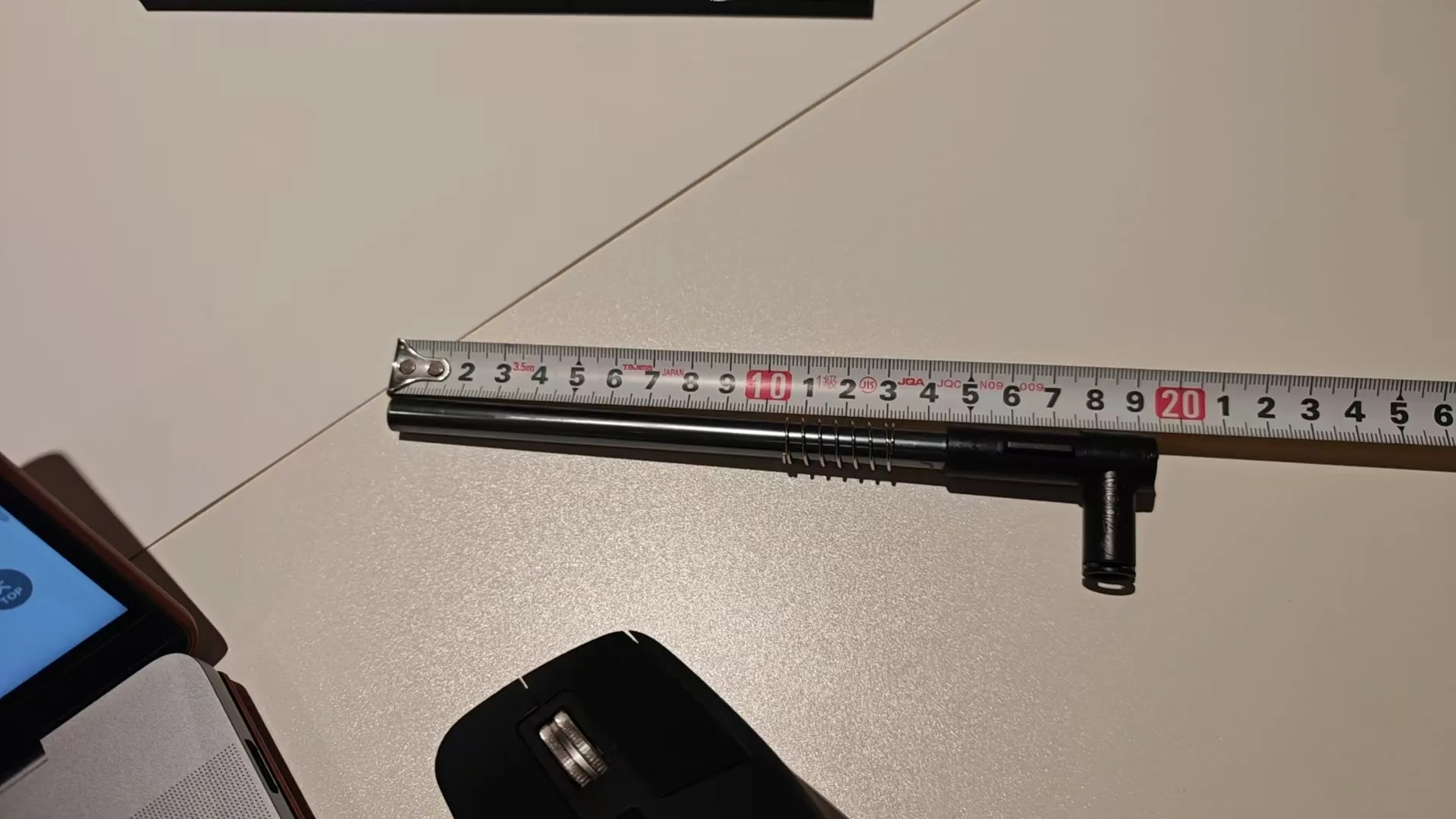

Regarding the inner barrel plus T-piece length
As shown in the figure
Looking forward to your tips and boost coupons
