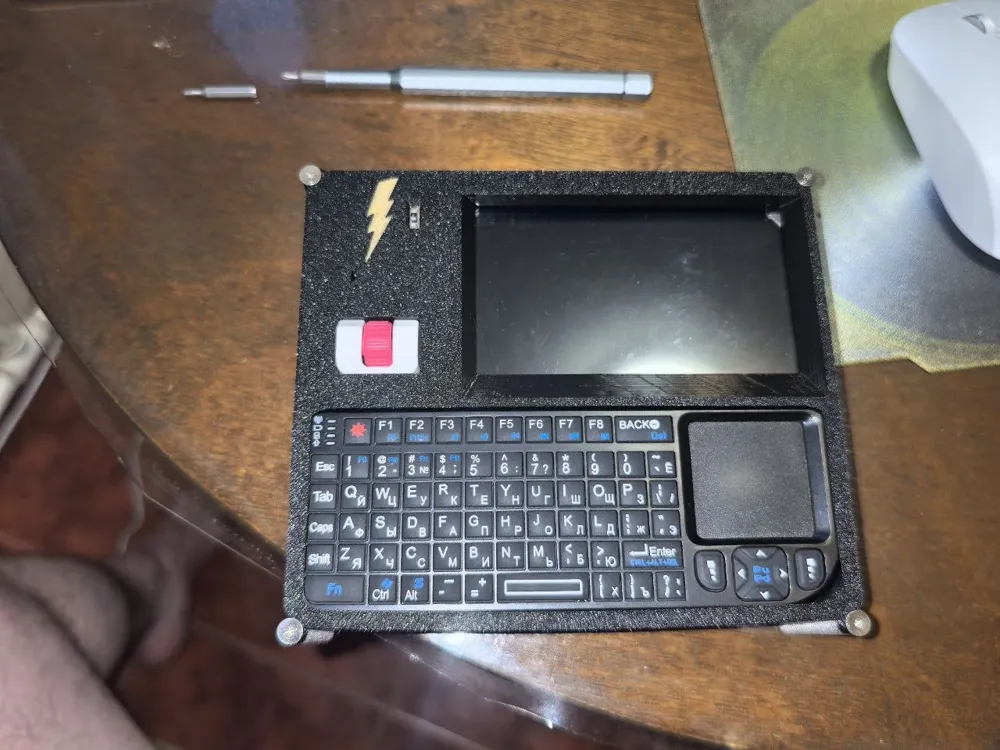

Cyberdeck PI4 with Display 4,3''
Print Profile(1)
Description
The goal of creating this model was to have a portable Raspberry Pi 4 that could operate for at least 2-3 hours without a power outlet and allow for convenient typing with a mini-keyboard.
For this model, I used the following components:
1) Raspberry Pi 4 8GB;

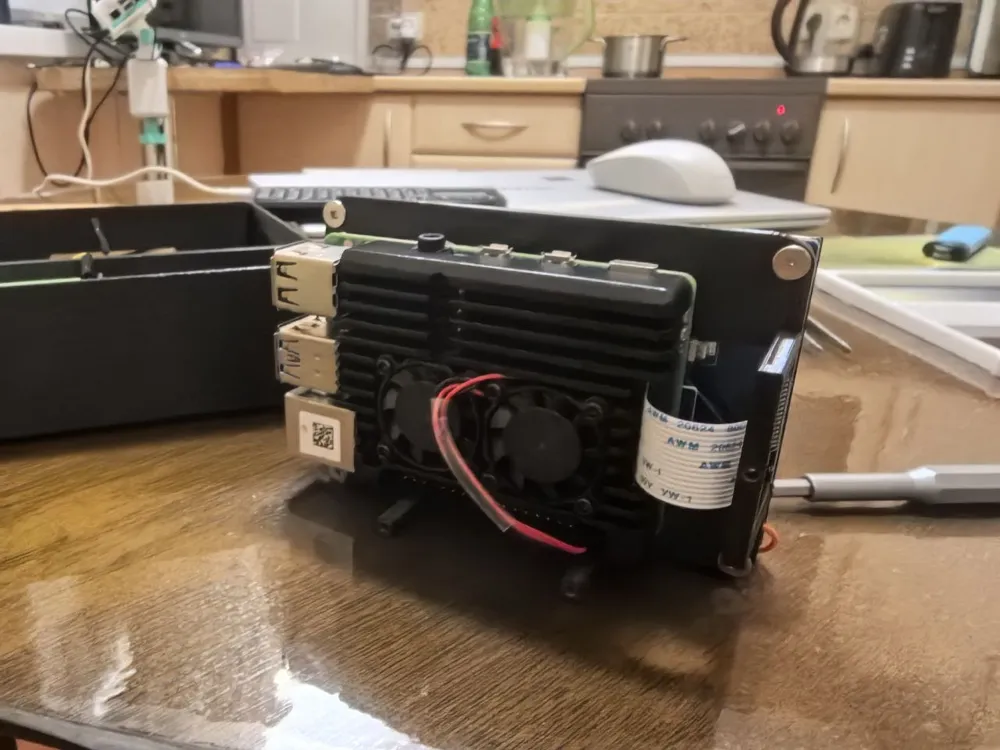

2) Heatsink with two 3010 fans;

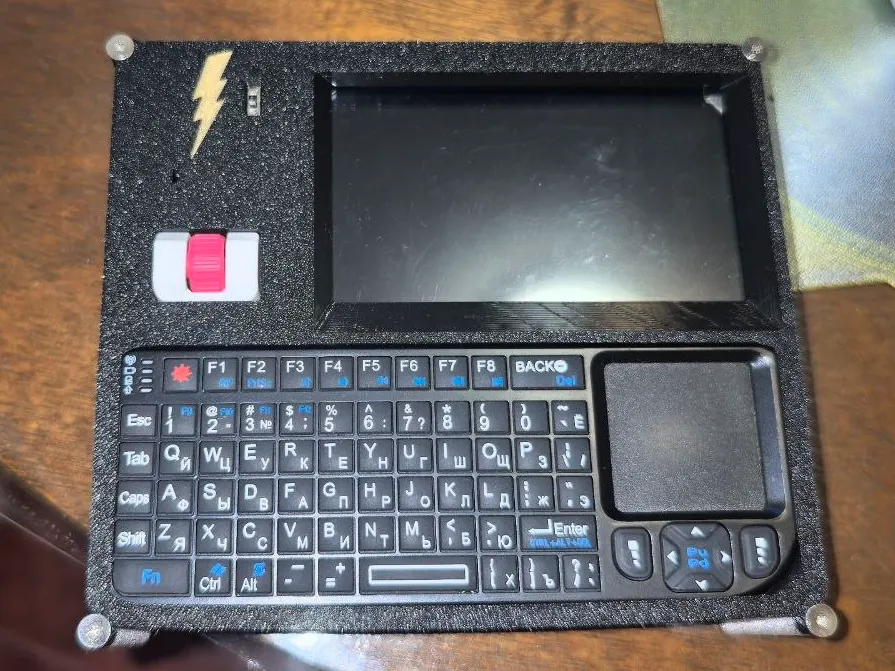

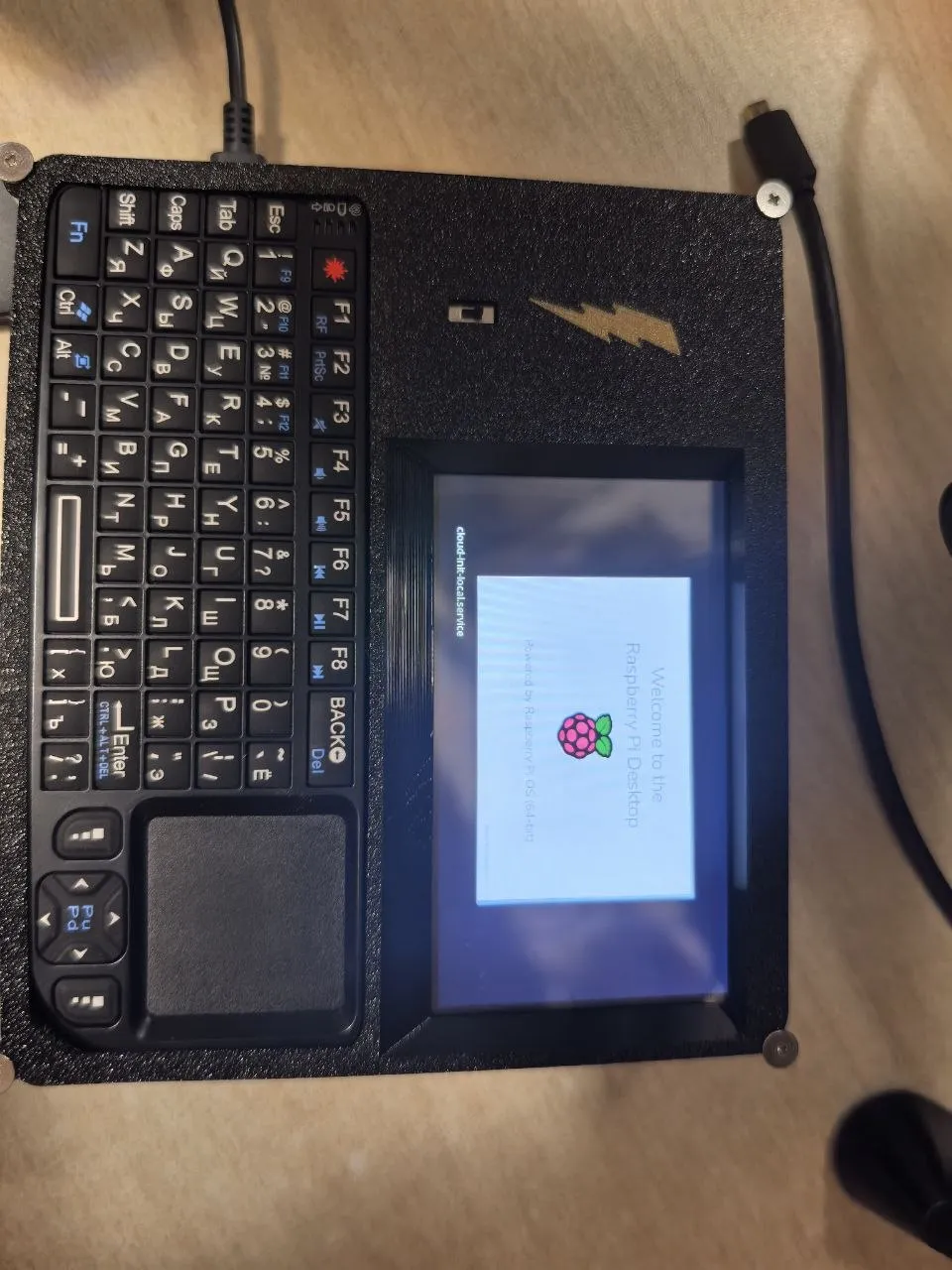

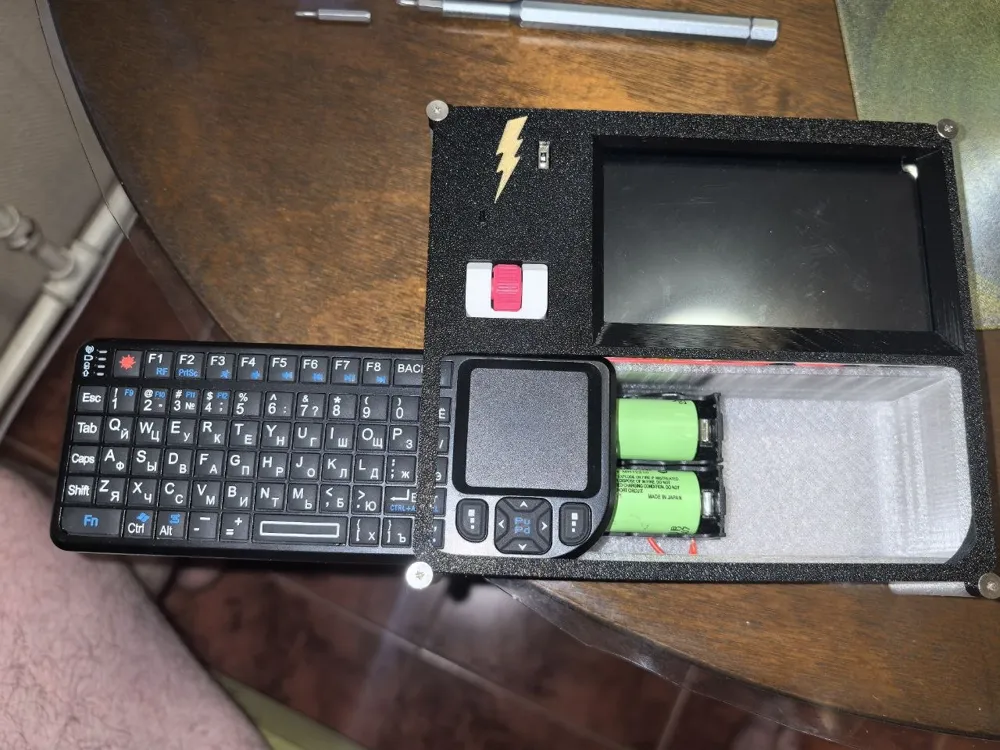

3) Kebidumei mini keyboard (Rii Mini X1 analog);

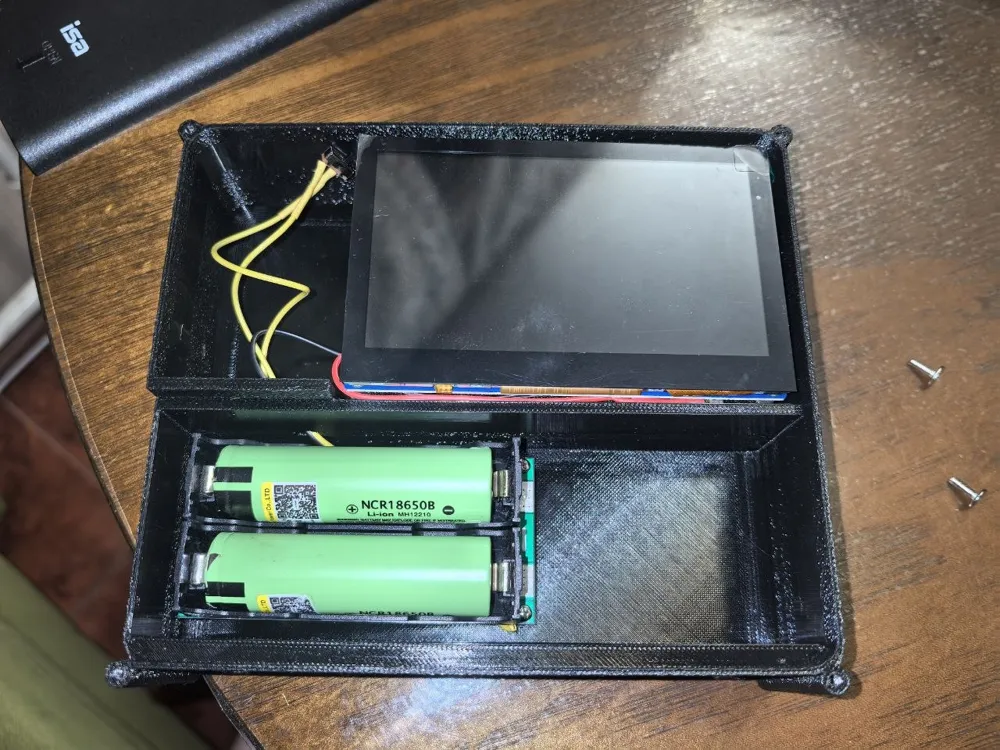

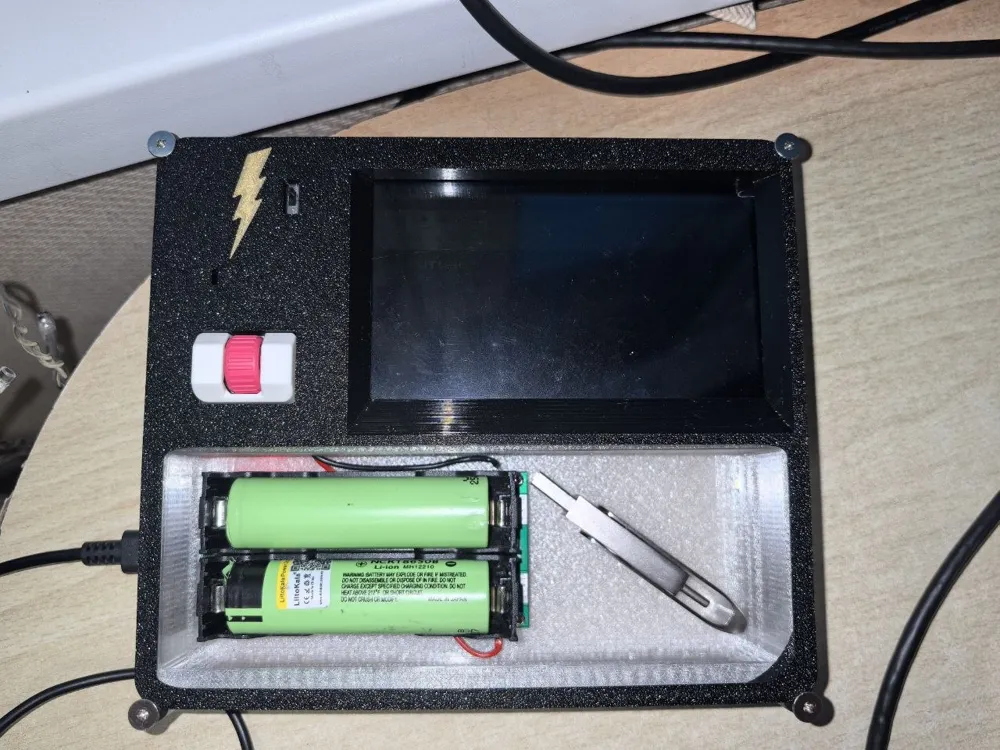

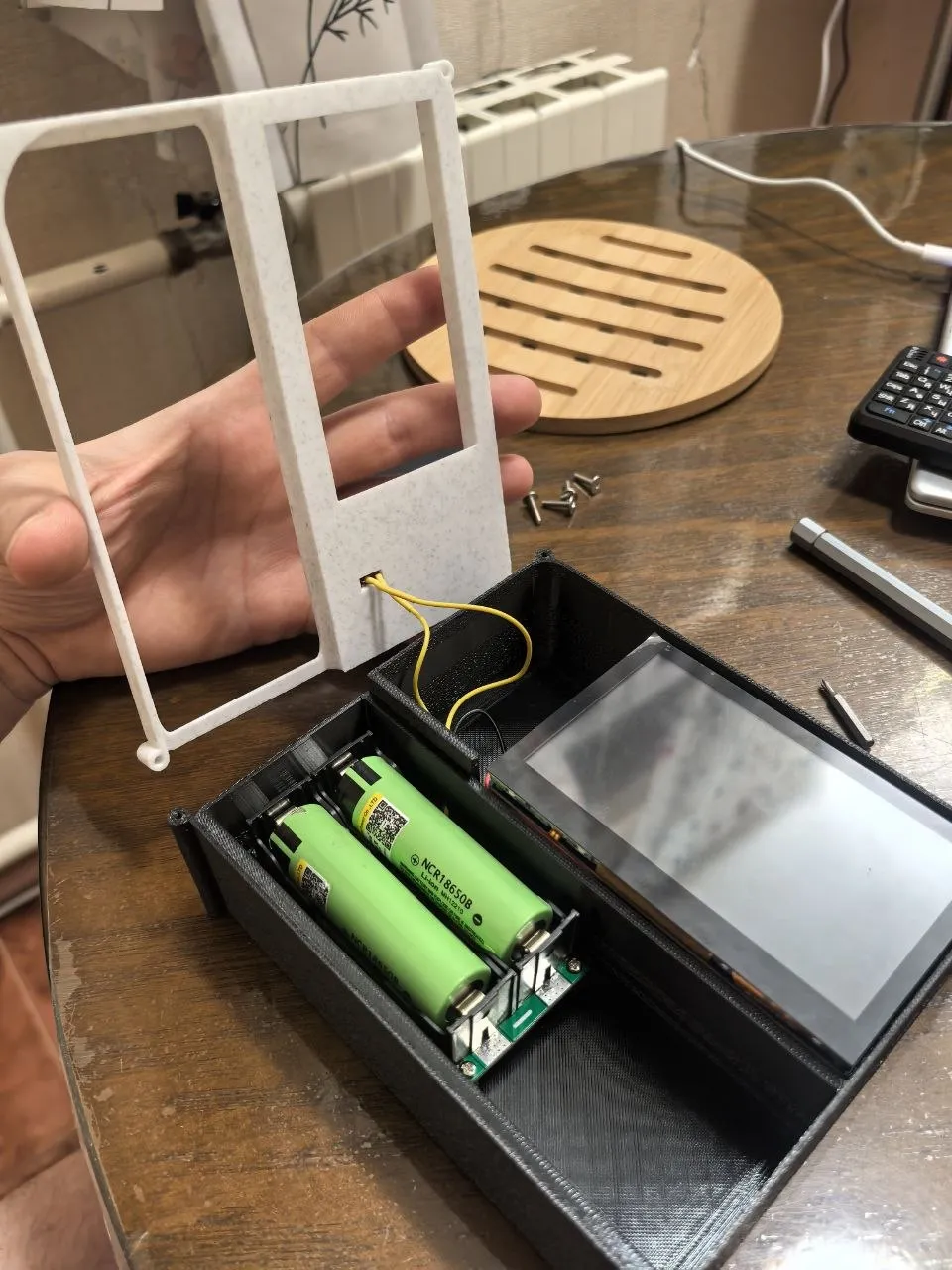

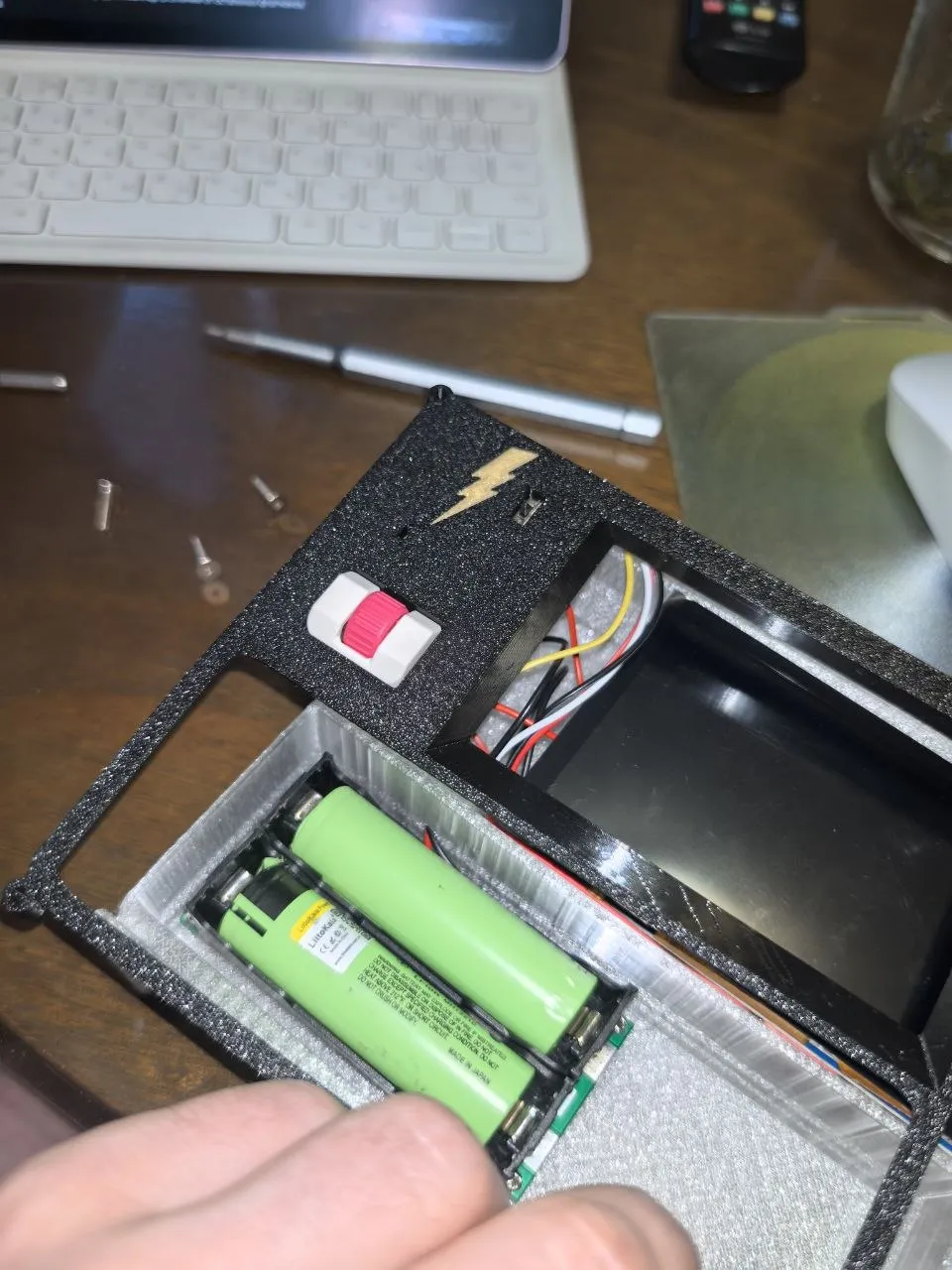

4) UPS 18650*2 (with 3A peak current);
5) Power on/off toggle switch;

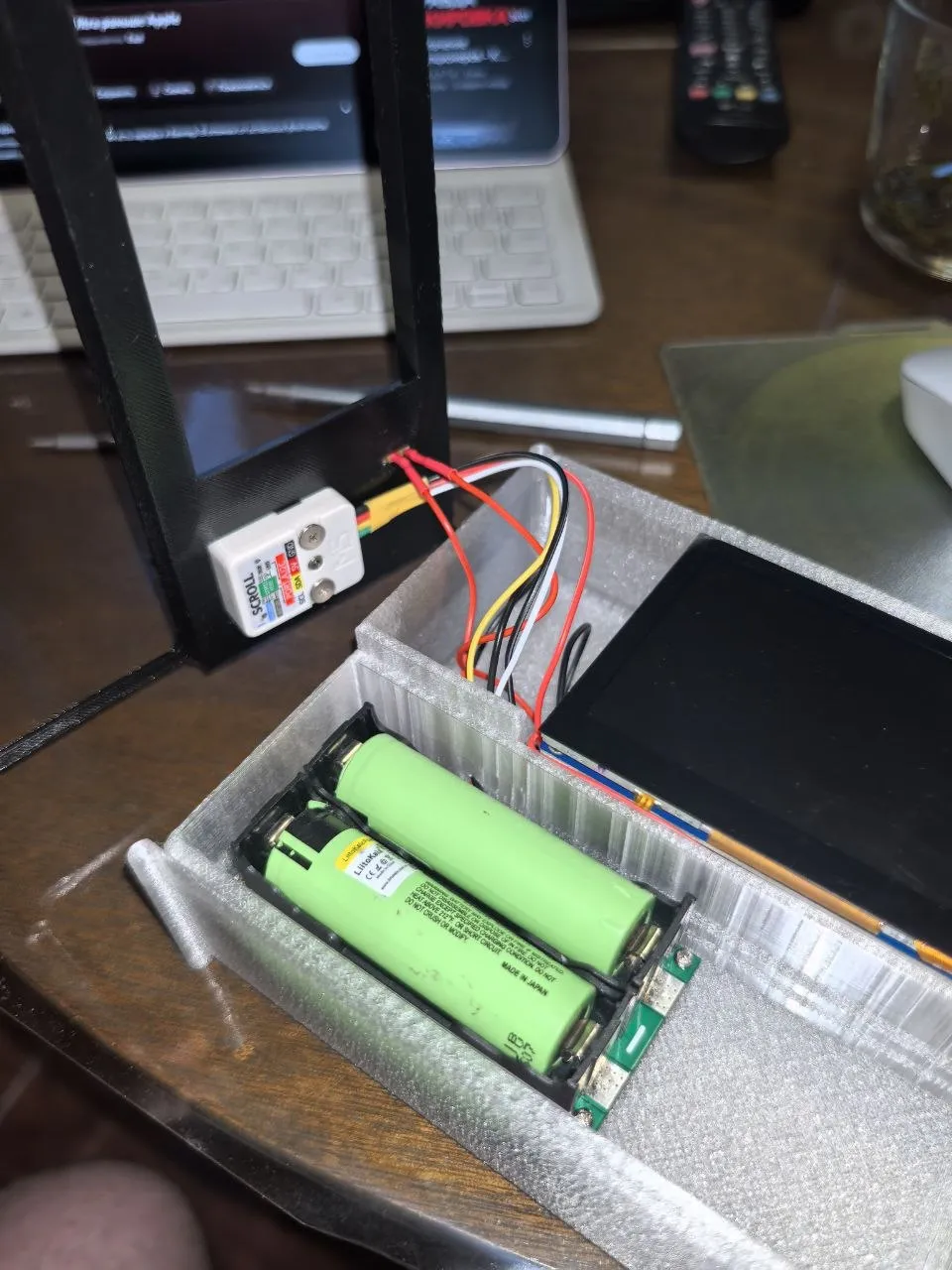

6) M5Stack Scroll - for simulating a mouse wheel when working with Raspberry Pi 4:
- link to the repository with scroll setup: https://github.com/Haidegger22/pi4-scroll-unit
7) M2.5 8mm bolts - 11 pieces; 12mm - 4 pieces; UPS M2.5 (6mm) - 2 pieces;
8) DuPont wires for M5Stack Scroll - 4 pieces;
9) 1mm wires for UPS.
