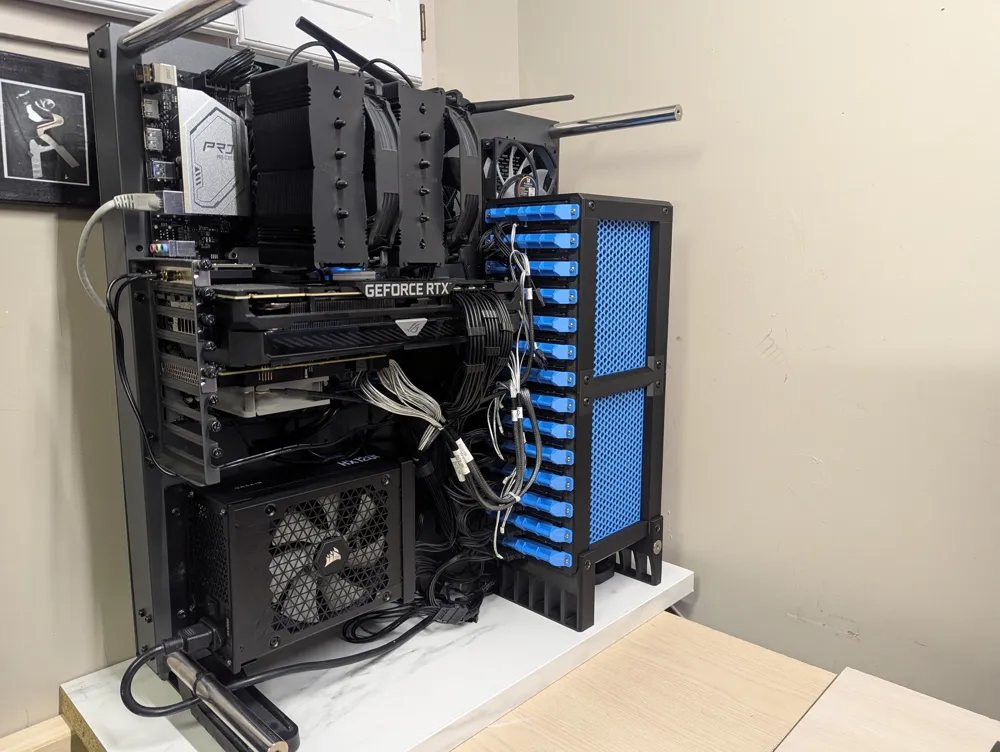

14 bay JBOD / Hard Drive Enclosure
Print Profile(3)
Description
Boost Me (for free)
Please consider boosting :)
If you like this model and would consider leaving a review or boosting, it not only feeds my printing obsession (by helping to purchase filament) but I'd also be flattered and immensely grateful for your support. If you're not inclined to do so, that's totally ok too. You're still a cool person and I appreciate you. Either way, I hope you enjoy!
Features

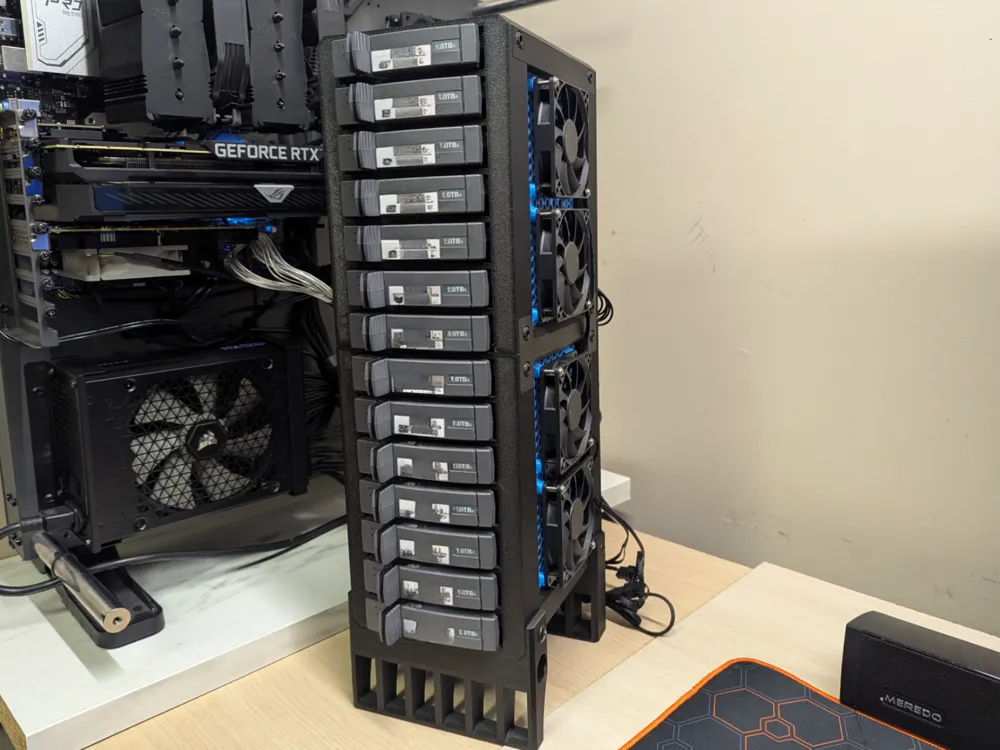

- 14 drive bays with 4mm drive spacing

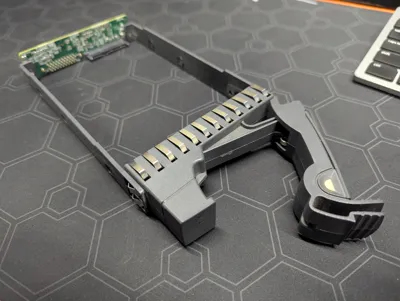

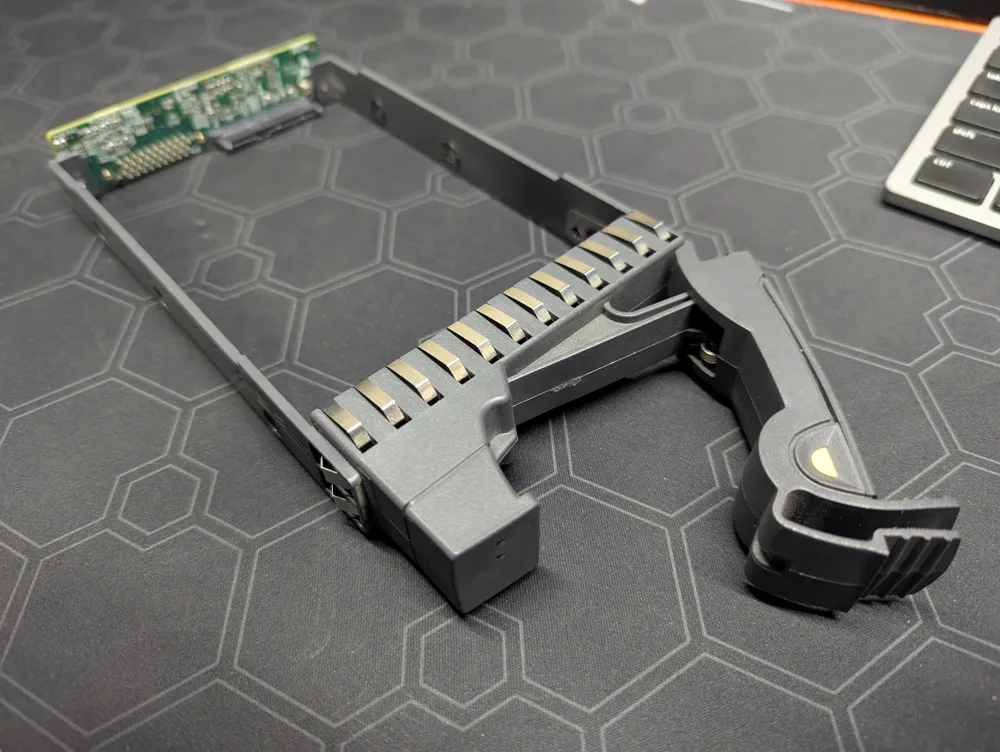

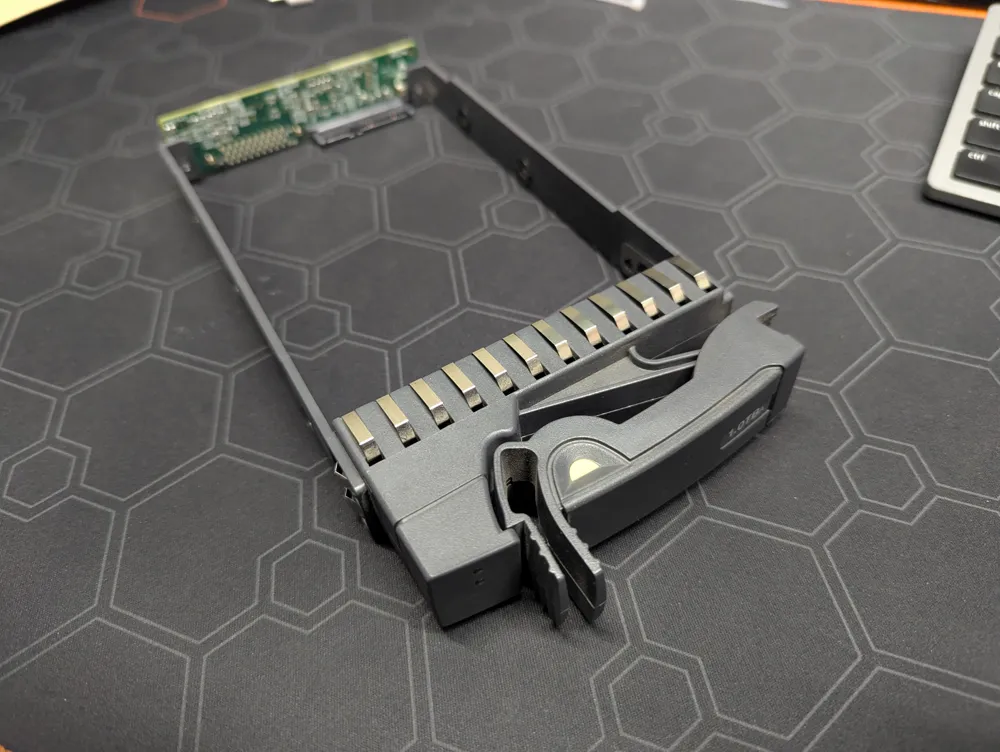

- Designed for NetApp-style drive sleds but a custom sled is also available. Check the profiles.

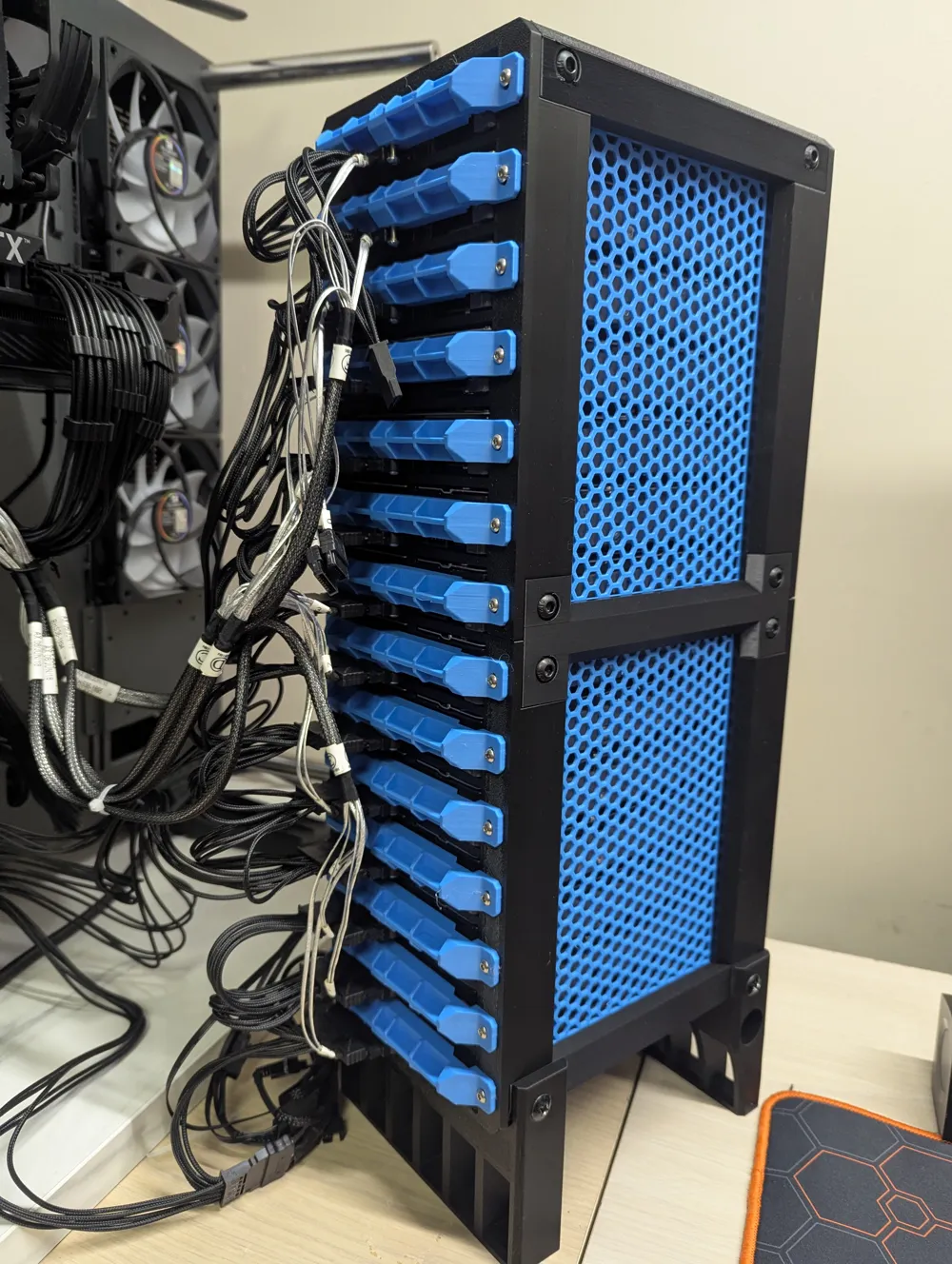

- Side panels fully perforated for exhaust airflow

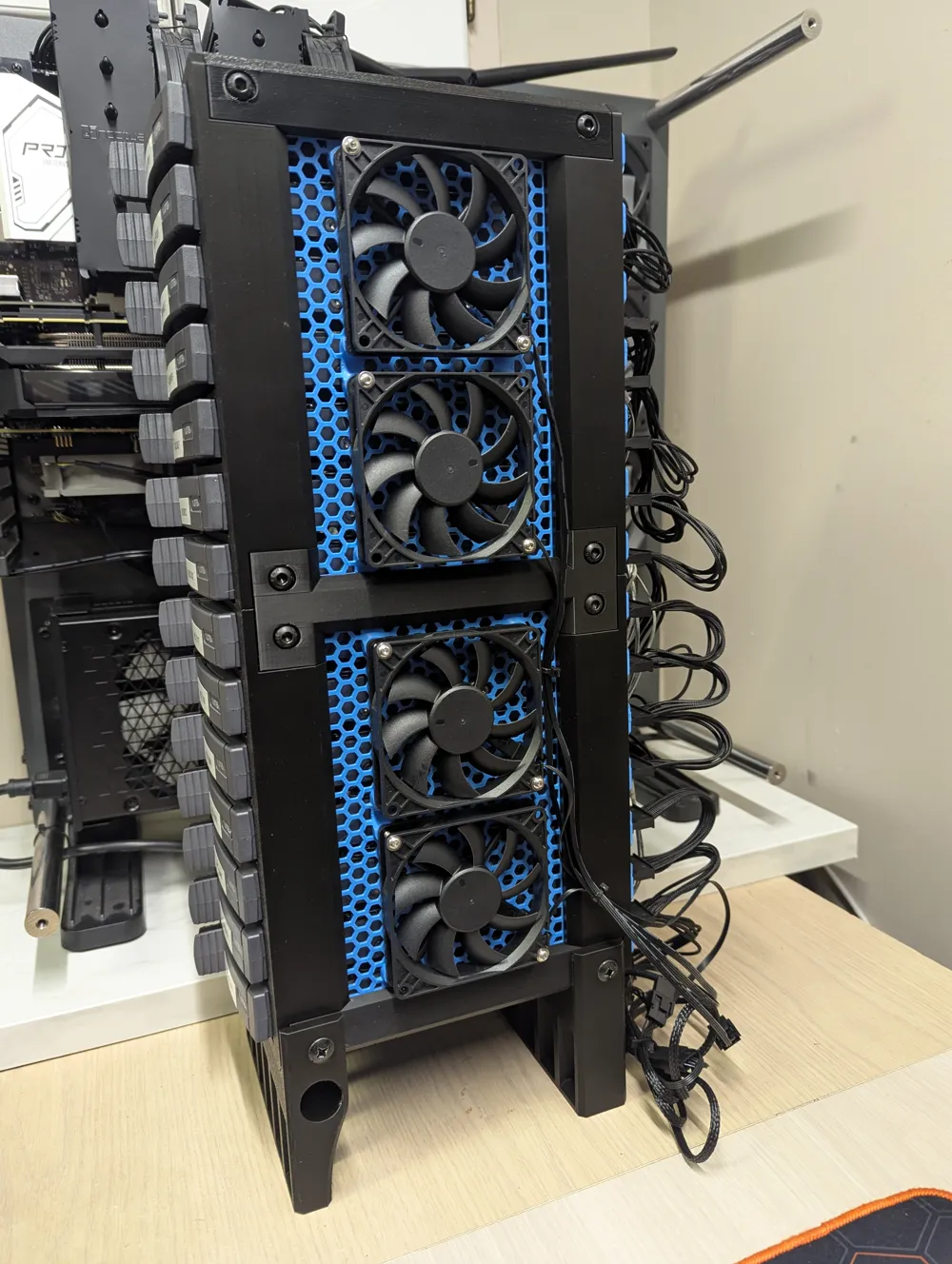

- Side panel mounts 4× 80mm fans for intake
- Inline airflow design compatible with PC case fan setups
- Straight-through SATA connectors can be mounted on rear brackets for cable management and easy swapping.
- Drives connect via standard SATA data and power cables. Straight through connectors are useful but not required.
Cooling
- Under load with active cooling: drives stabilize in the mid-30s°C. (+ a few degrees more when inside the computer due to less airflow)
- Cooling is 100% necessary. Top drives hit 70°C without it.
Hardware Required
- M3 screws and heat set inserts - SATA bracket and fan mounting
- M6 screws and heat set inserts - frame and stand assembly
- 4× 80mm fans
- 14x SATA straight-through connectors (optional)
- HBA card: I used the LSI 9300 series, with an added 80mm fan and 4x SAS to SATA breakout cables
- PSU SATA Cables
- PSU with:
- enough SATA ports to handle the additional cables
- at least 200W of headroom on top of what your PC already draws
License
