90° adapter for bike handlebar accessories

This adapter allows to install a bike accessory or command (dropper post for instance) to be installed 90° from the handlebars, instead of directly on the handlebar.

I created it so the trigger from my Aliexpress dropper post is in a more ergonomic position, i.e. horizontal and not vertical.

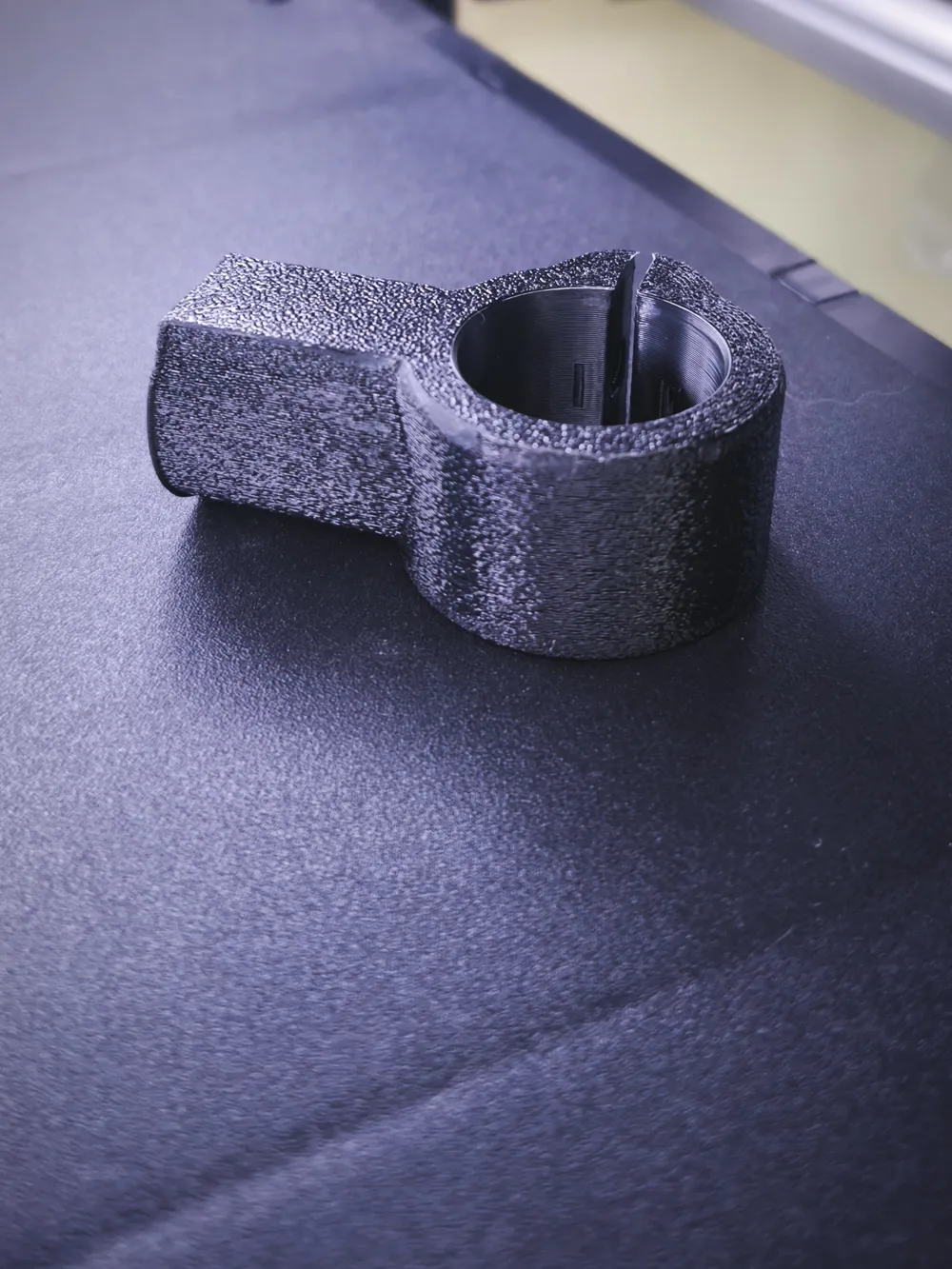

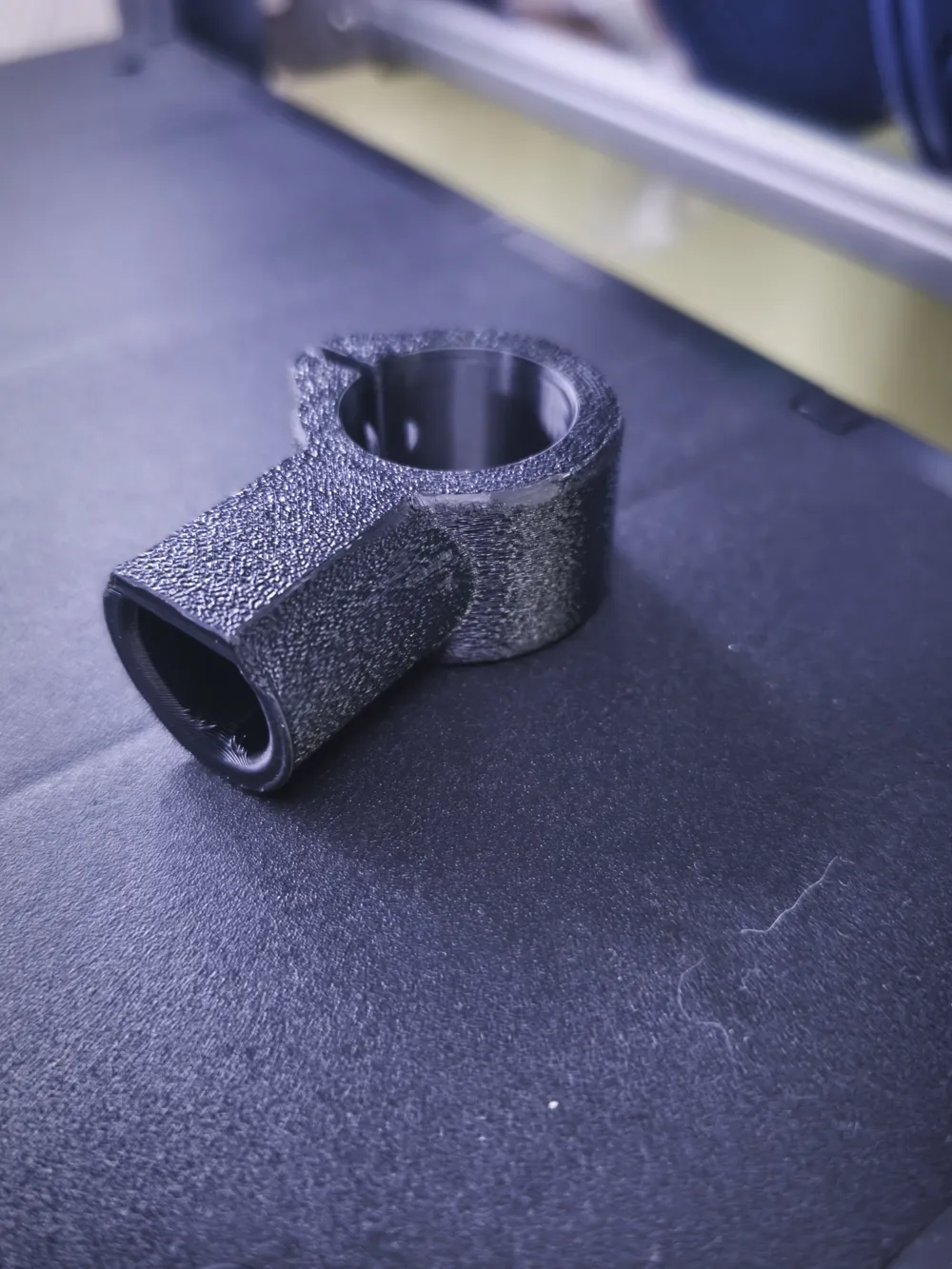

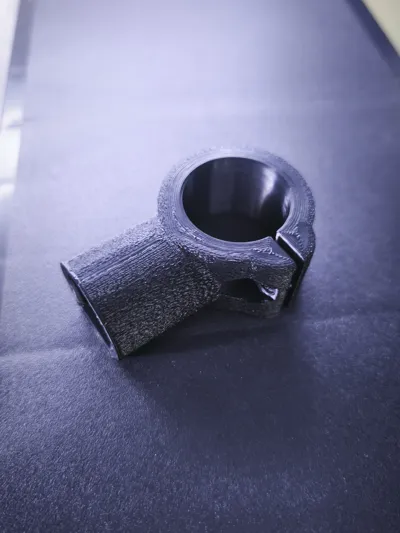

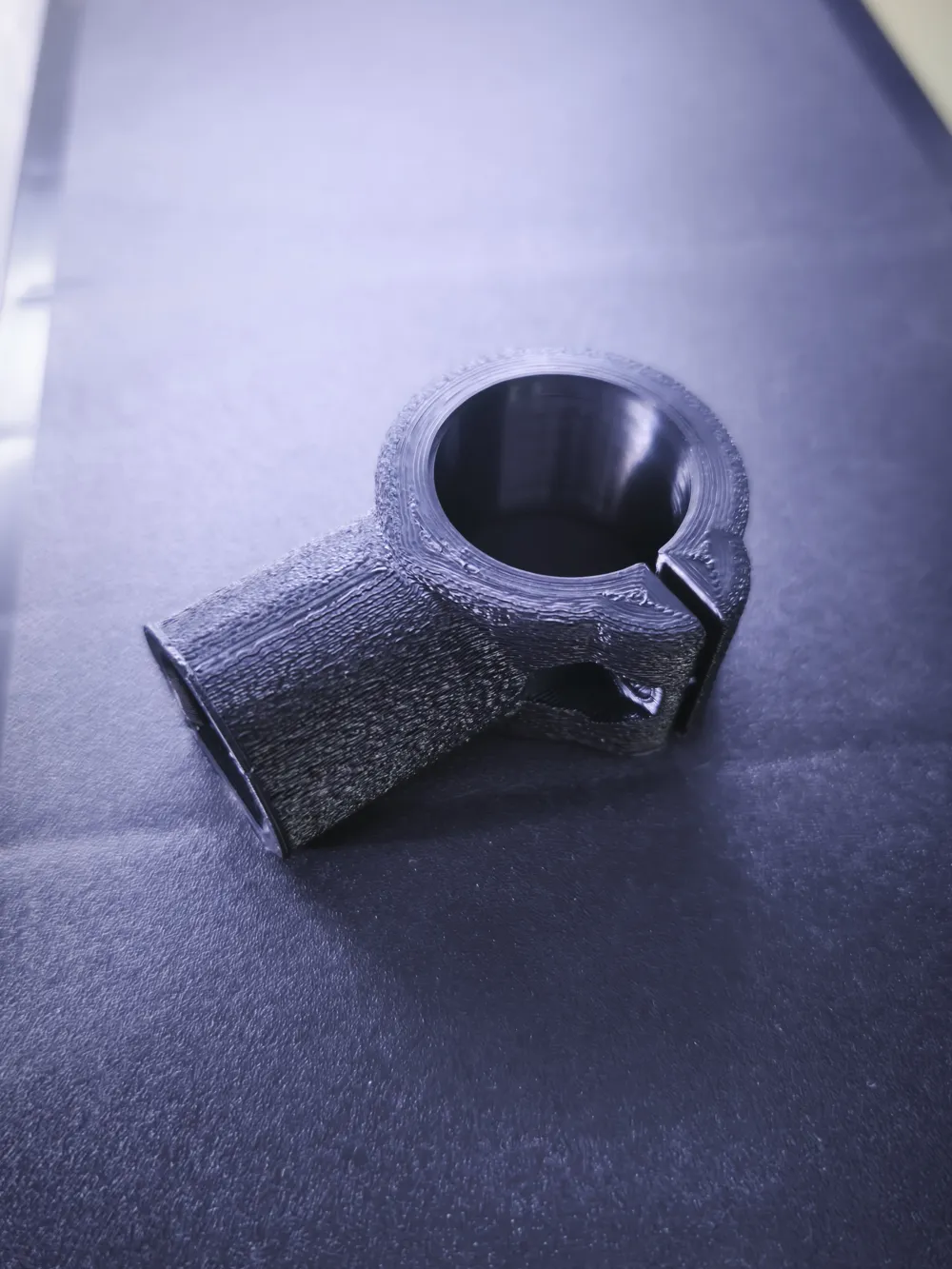

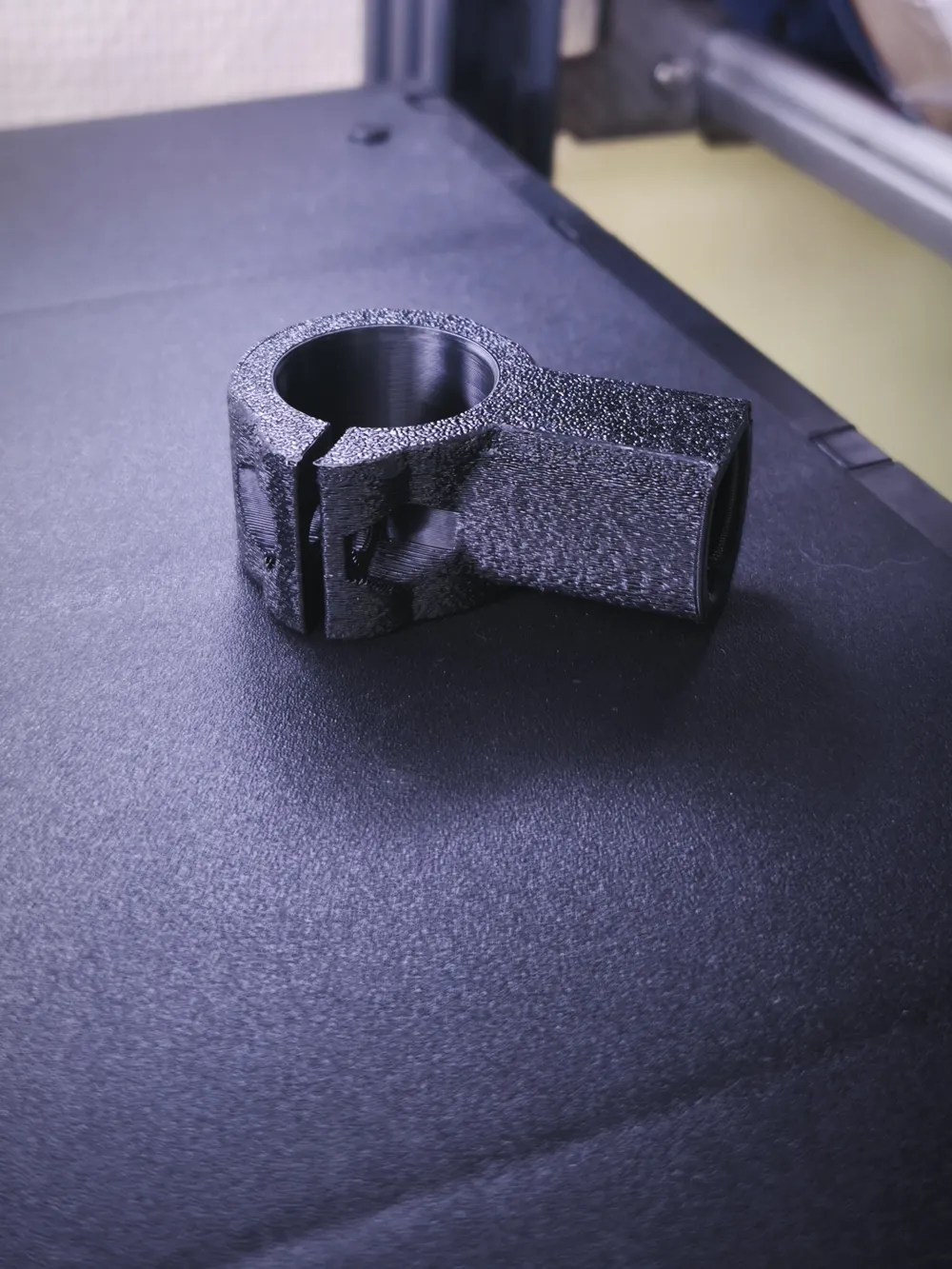

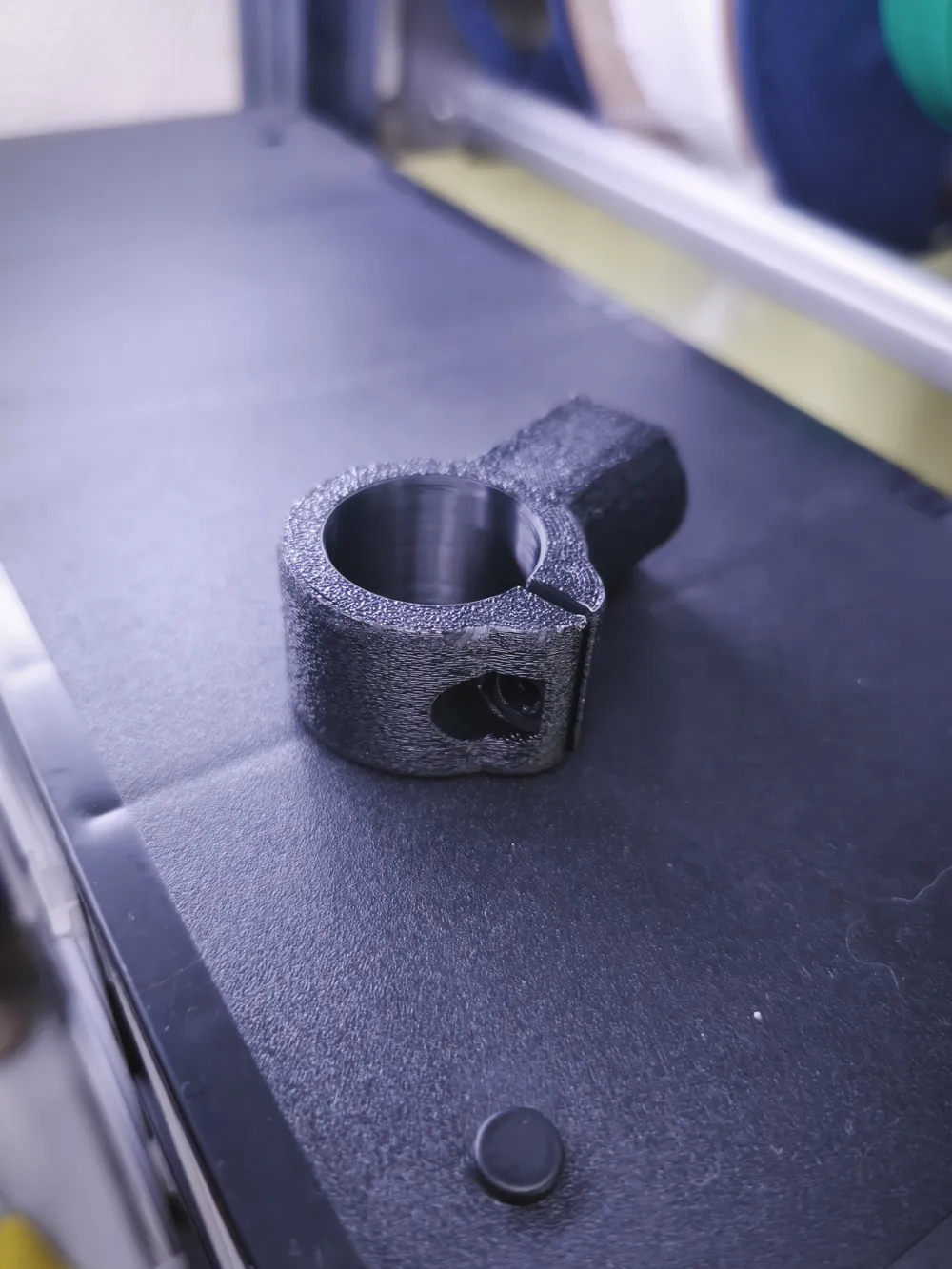

There is 2 print profiles, one with textured skin and one with normal outside surface. I personally printed the textured one, so you can have an idea of the result.

I suggest to use ABS or ASA, both for mechanical properties and temperature resistance. Some kind of nylon should be even better. PETG or even PLA could work too but I haven't tested it nor recommend it.

Dimensions :

• Fits 22.2 mm diameter bars
• Accomodate 22.2 diameter accessories, maximum 20 mm wide

Installation hardware :

• 1x M5 Socket screw or machine screw
• 1x M5 hexagonal nut

Safety disclamer: be careful with what you install on it. Critical commands like brakes are NOT TO BE INSTALLED on it, as any unexpected failure can cause harm to yourself or others.

Don't forget to like, or even spending your free Boost if you feel it is deserved! Giving your thoughts and advice in comment will be read and apreciated too. Thank you!

I'm looking forward seeing your creations in the comment section.

In case of problem, please contact me, solutions are seldom far away :)
