9 Pointed Star Pin
Print Profile(1)
Description

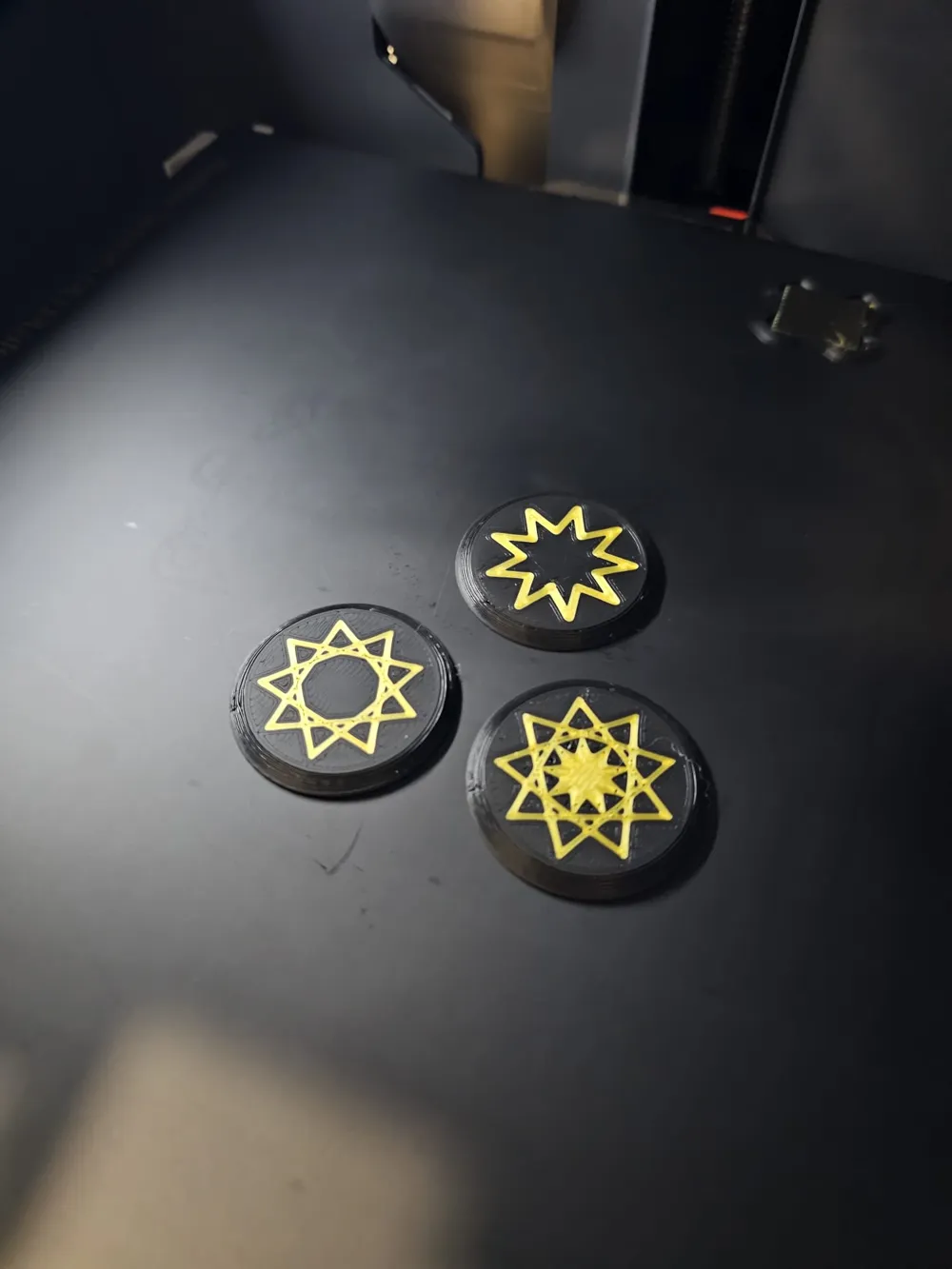

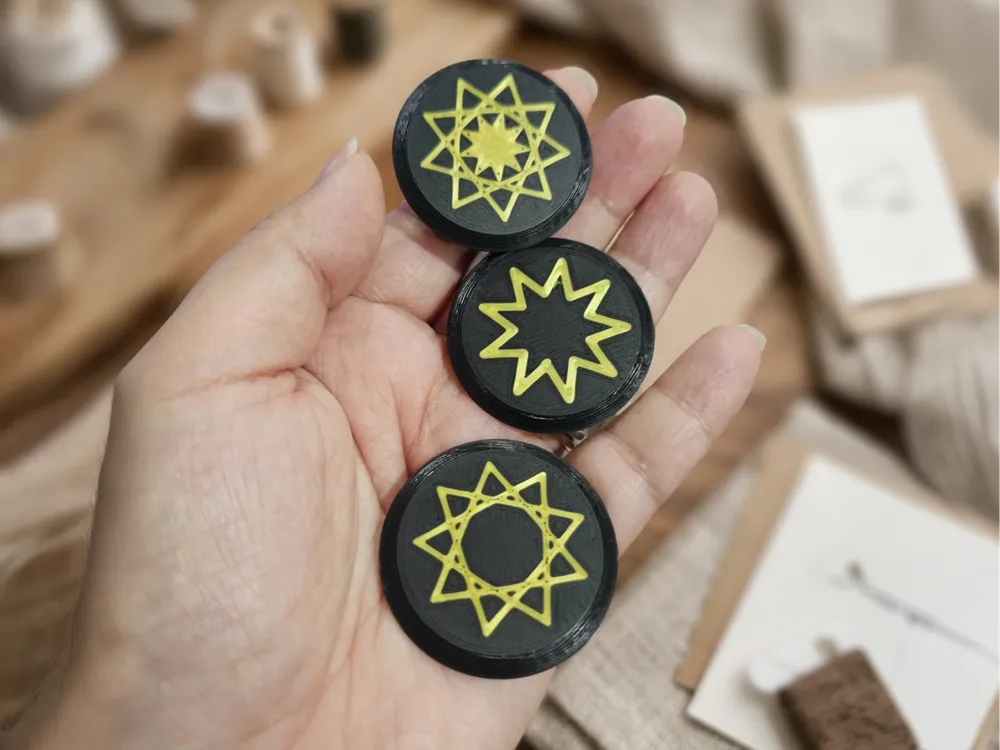

This is my second pin collection design using this amazing solution from Karen Chau Design. This time I'm sharing my 9-Pointed Star design as a pin. We gave it out to some friends and they loved them.
I've ordered the 25mm pin by Hocansen from Amazon.
My first pin design can be found here with a bit of the badge design process, if you're interested.
If you find this useful, please boost the original creator. Of course, I'd really appreciate the boost too!
STL, in the print profile you can take the .STL negative part and apply it to your model. I've kept the original creator's 20mm STL part in the print profile, but please use the above link to download her profile, which include test prints.
As always, I'd love to see the colour variant if you decide to print one yourself.
ASSEMBLY
Karen did a great job with the tolerance, so all the 20 pins that I've used have no issue fitting in, regardless if the pin is printed face up or down. I'm using the Bambu filament, so your shrinkage might vary.
Push the pin, close end first, from the larger slot into the longer narrow track, some pins maybe easier to push than others, then make sure the ‘latch’ end of your pin is caught by the larger slot end of the print.

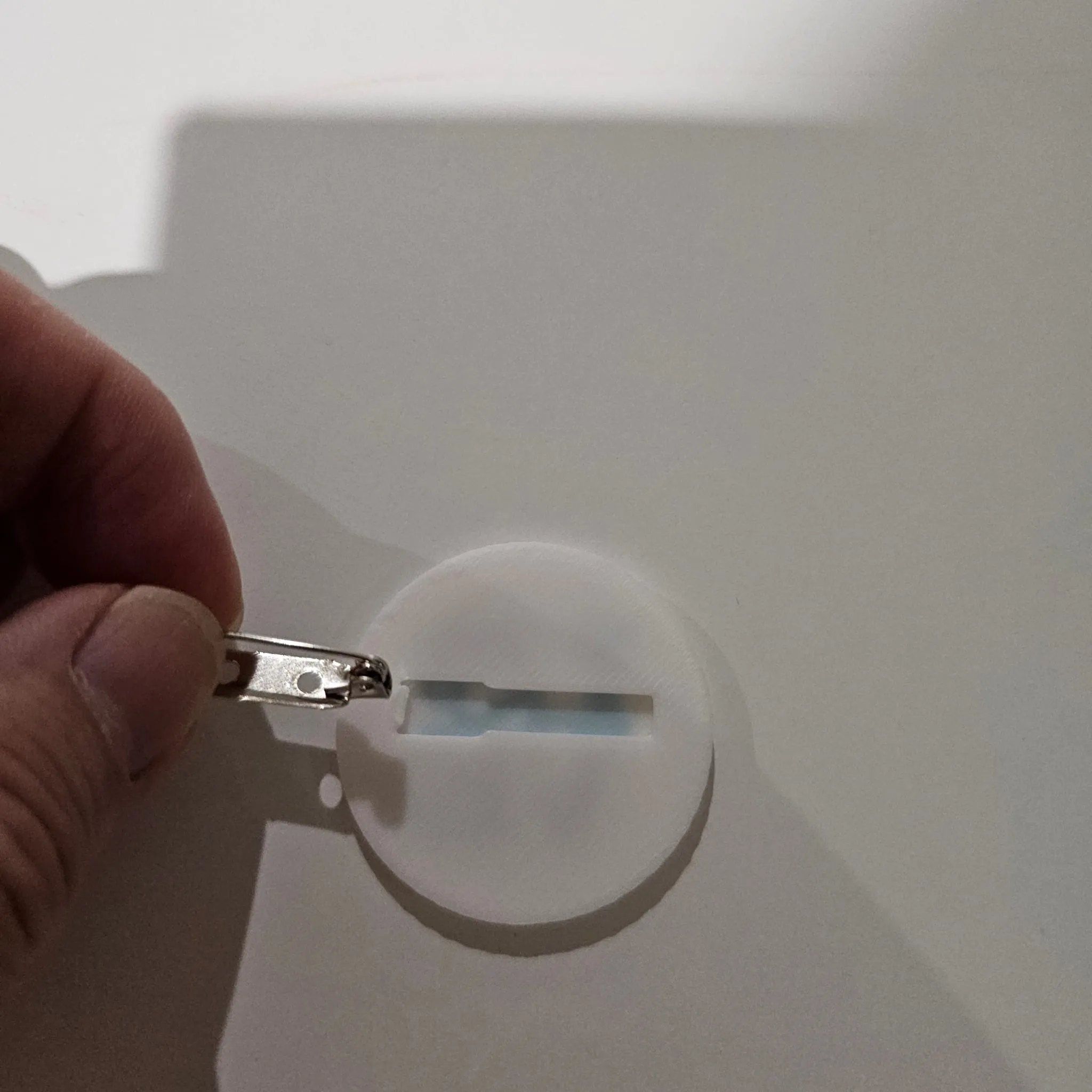

Push Pin In

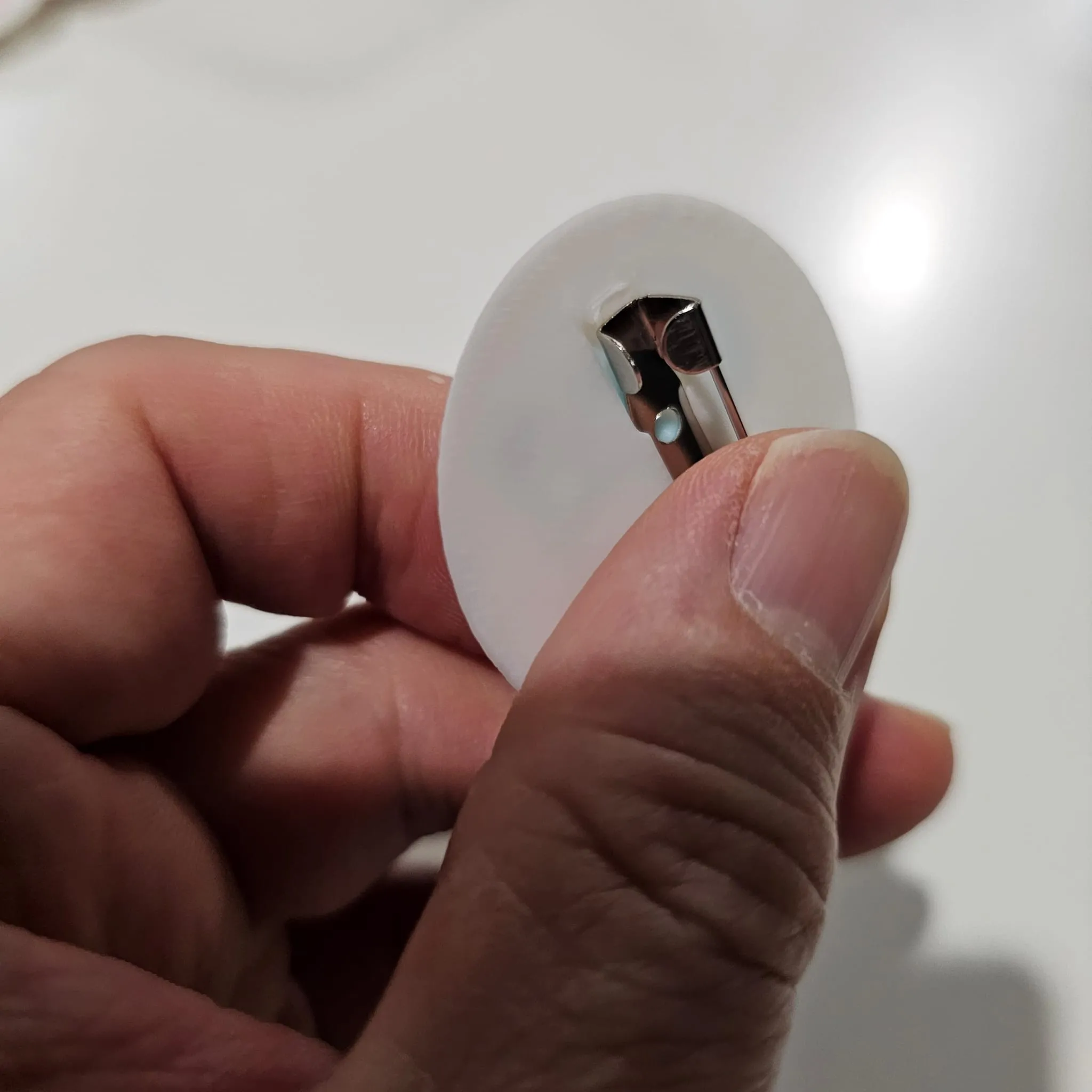

Slide it along the track

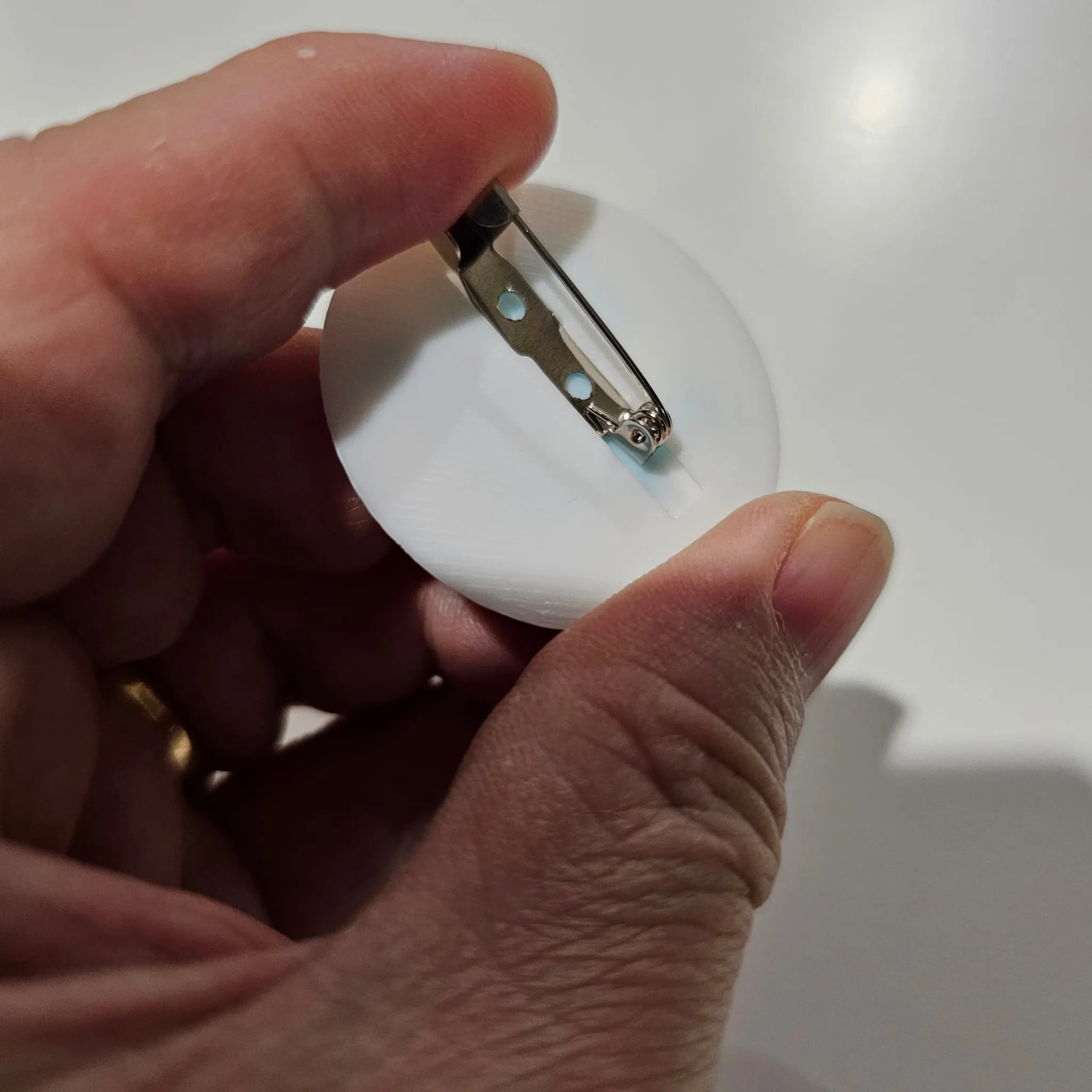

Keep pushing through, some pin may need a bit of force, some don't

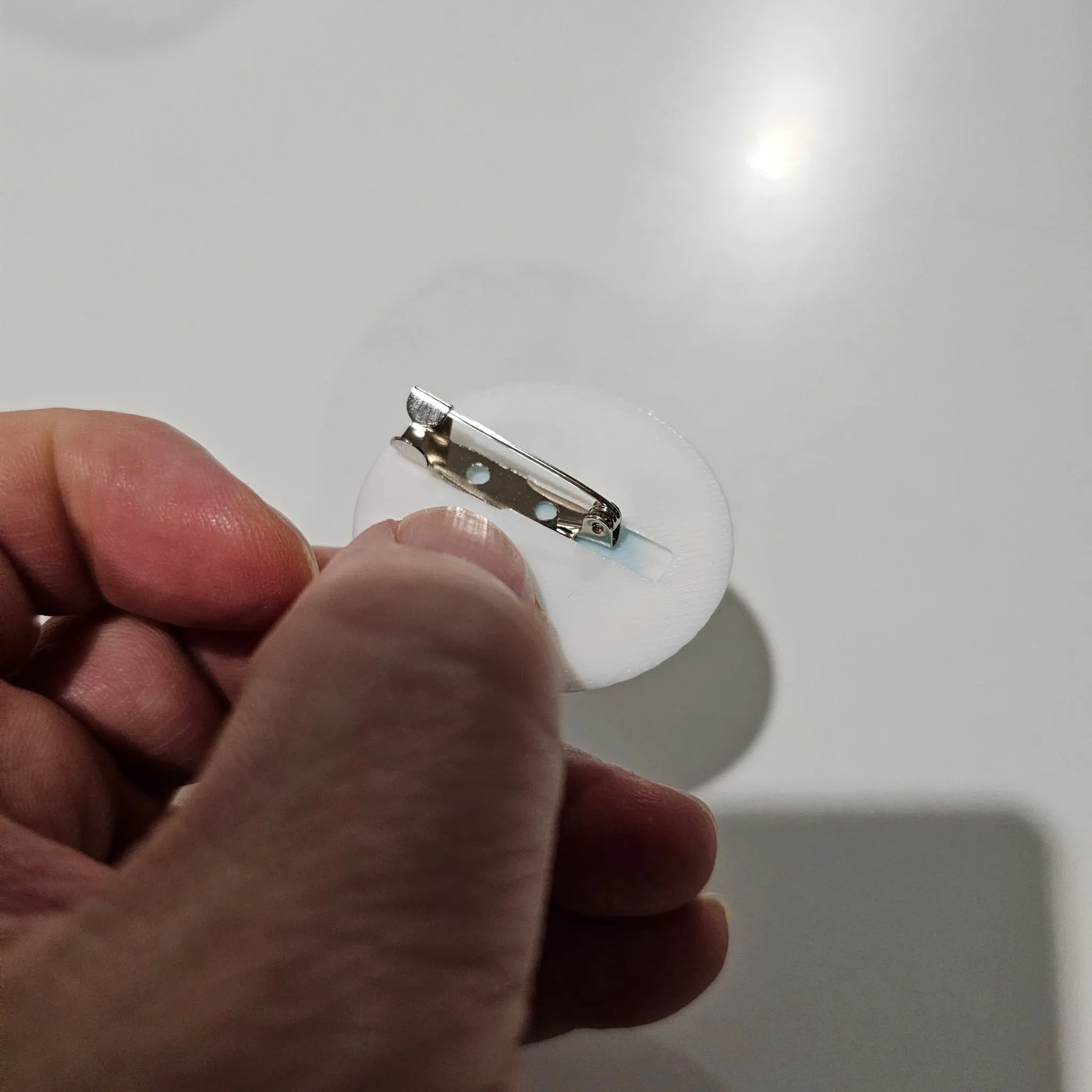

When the whole in is pin, make sure the catch is secure
Boost Me (for free)
Boosting encourages me to make more fun 3d print and share it with everyone! However, I encourage you to boost the original creator for her STL design.
