15.6-inch Samsung display + universal driver board modified for portability, with 75*75 VESA mounting holes
Print Profile(1)
Description

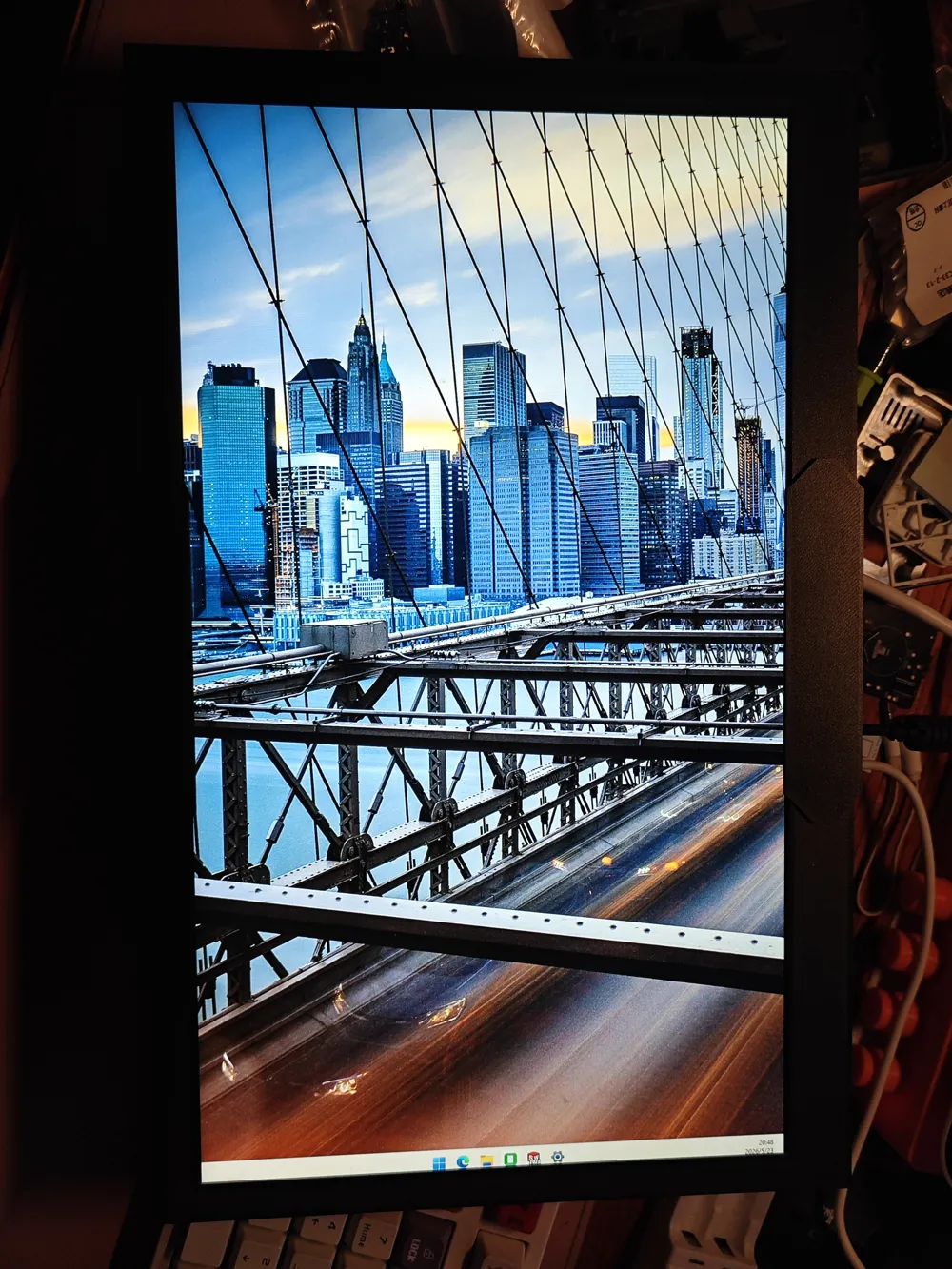

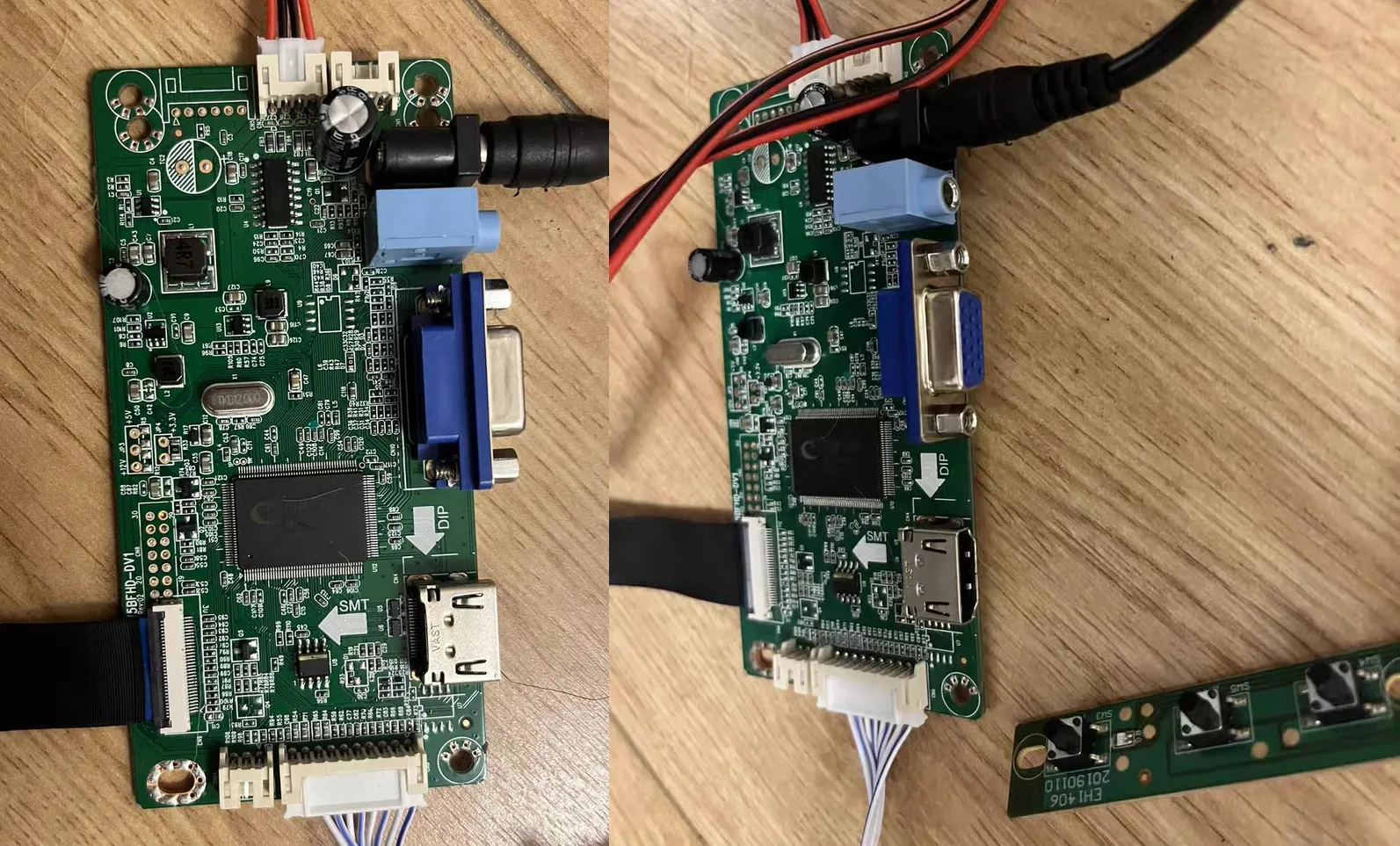

I previously modified a laptop screen myself, model Samsung LTN156HL02-301. Its 98% sRGB color gamut led me to repurpose it. The driver board is a generic 30-pin eDP driver board I casually bought on Taobao before
The filament I used is Jianji's PETG-CF10. It is recommended that those who need it also use carbon fiber reinforced filament for better strength and texture
I referenced the ideas and structural layout of @昜杨楊 & @明明白白先生. All models were drawn by myself
Requires several M3*6mm screws + 4 M3*30mm screws

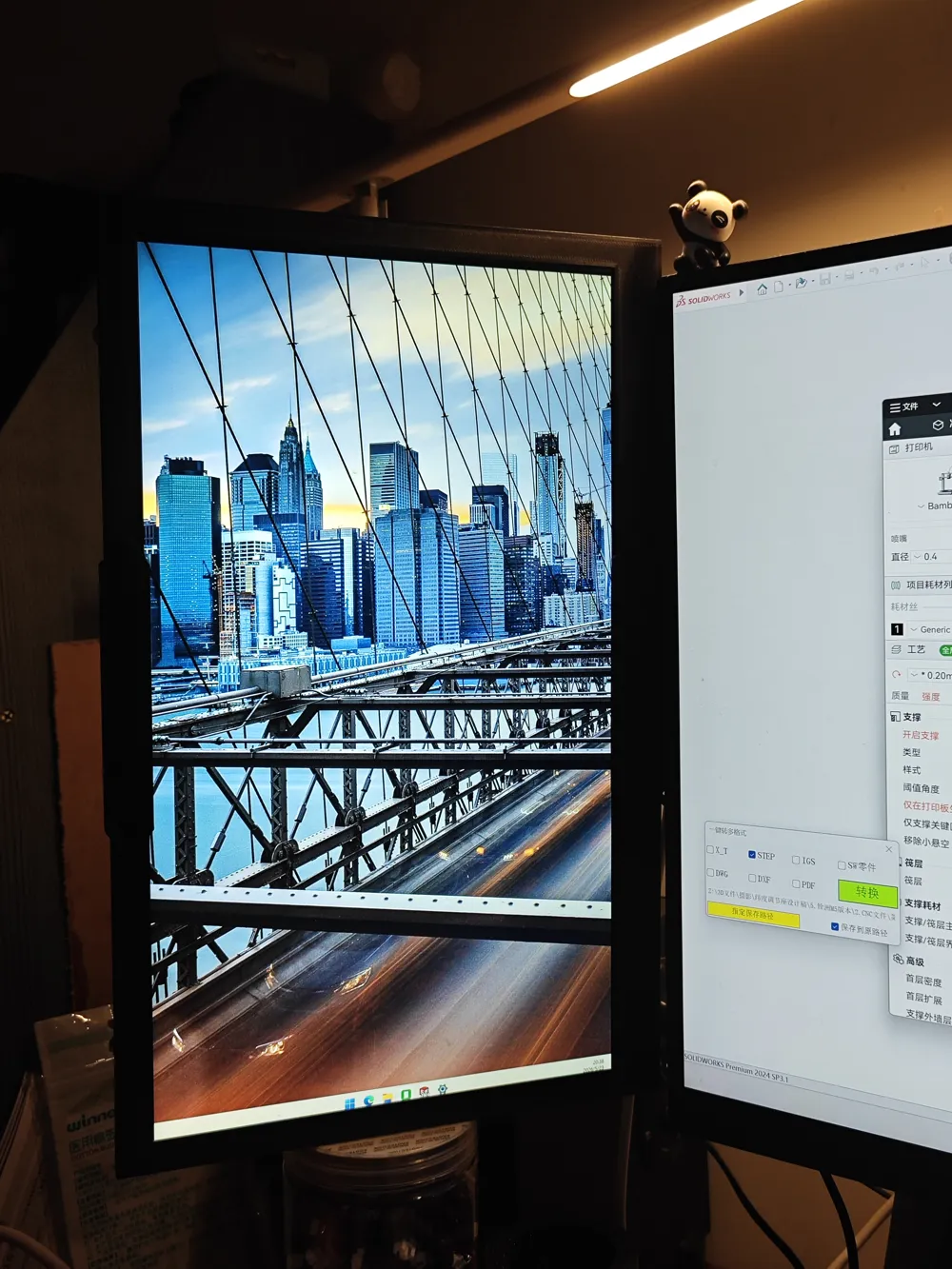

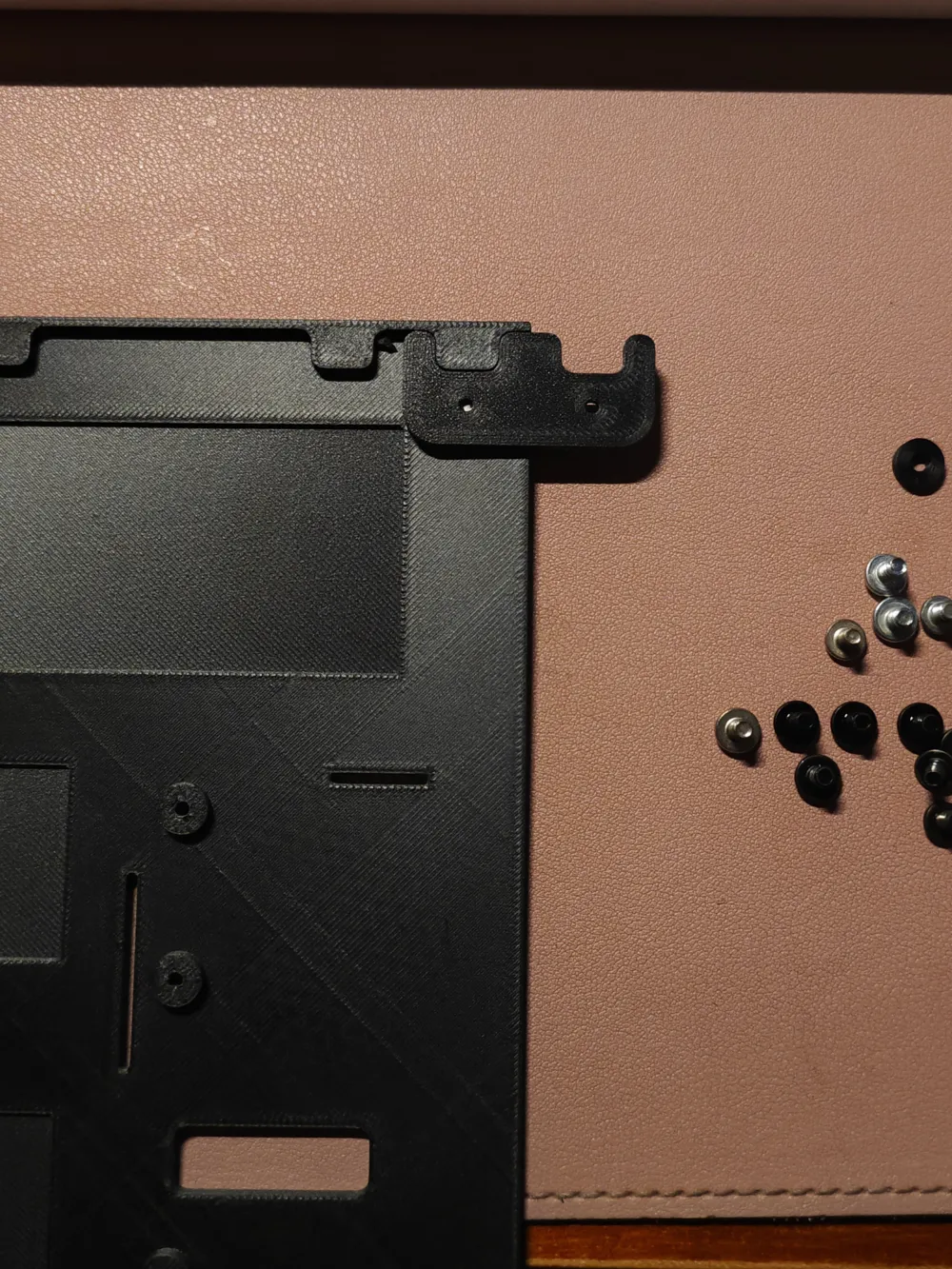

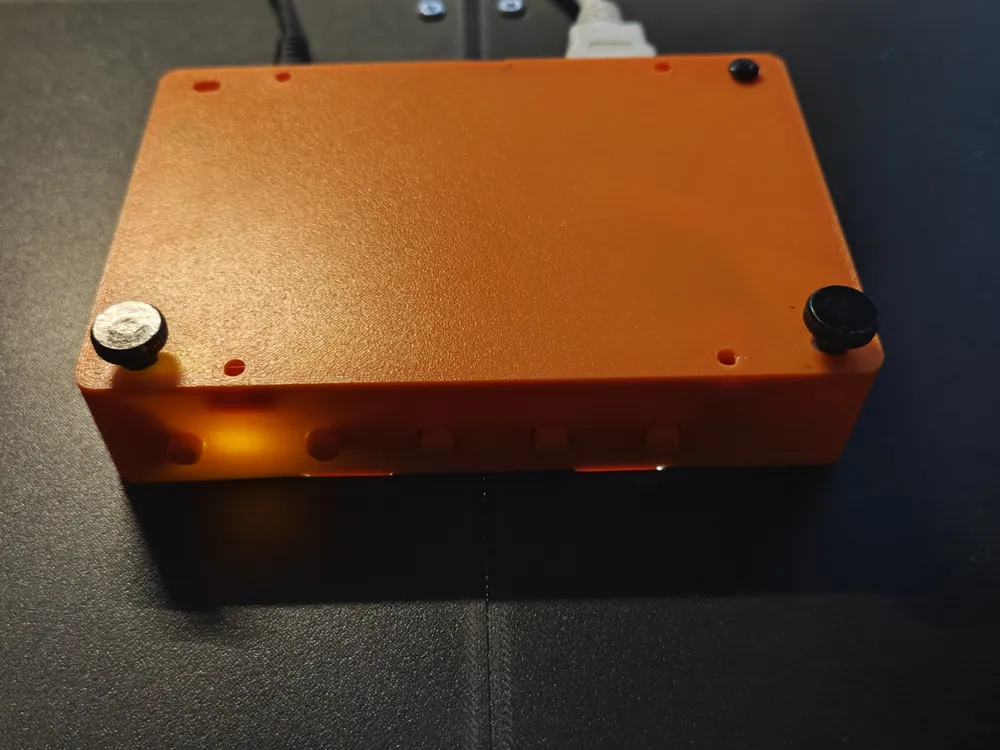

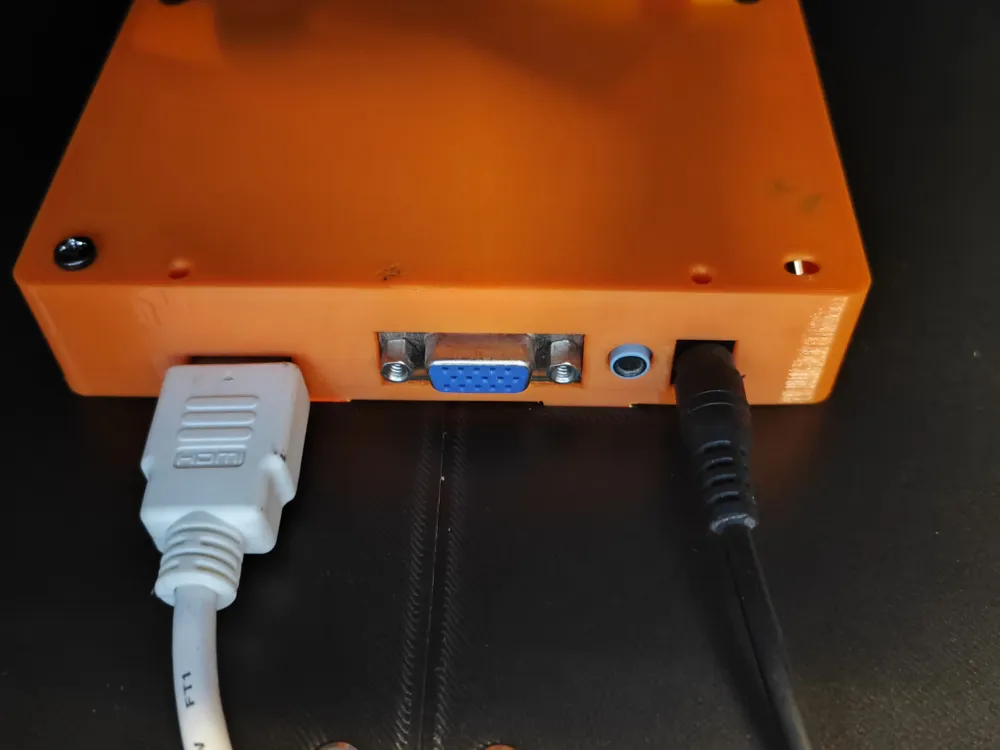

The driver board can optionally be fixed to the back panel or back cover, either one can be chosen. If using the back panel, spacers are needed, otherwise not

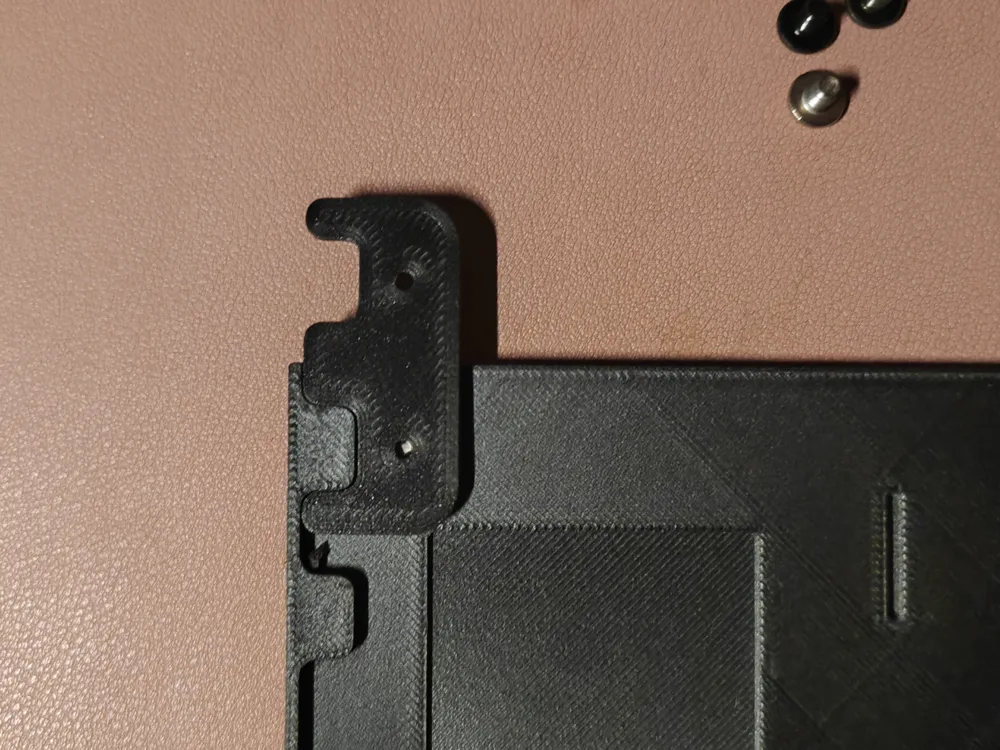

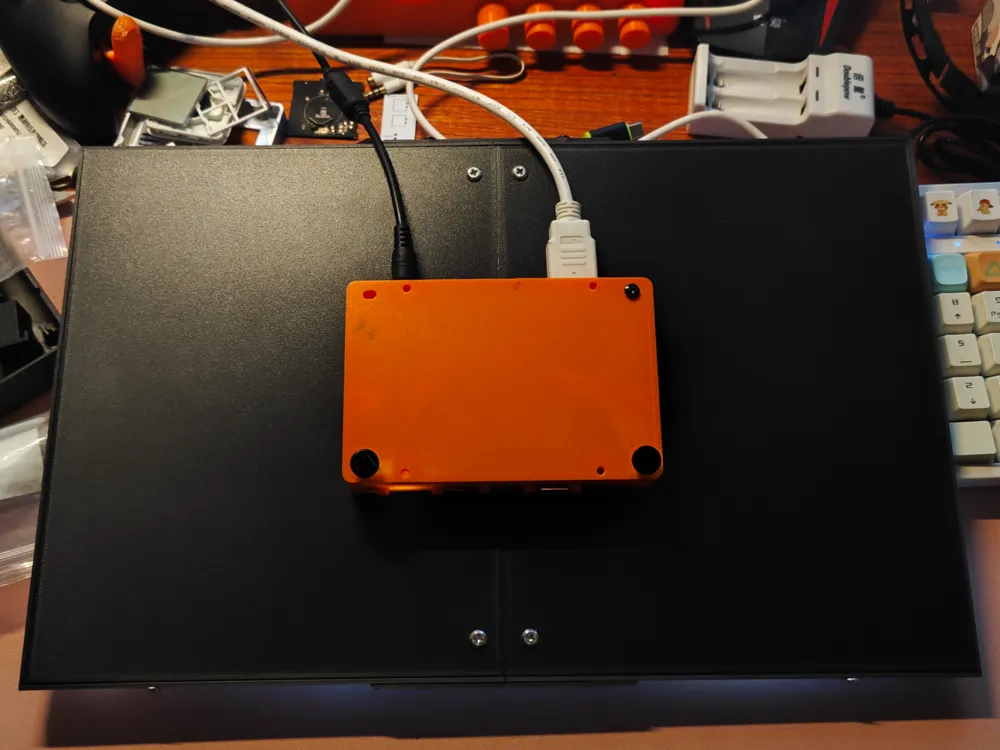

The back cover has 75*75 VESA mounting holes

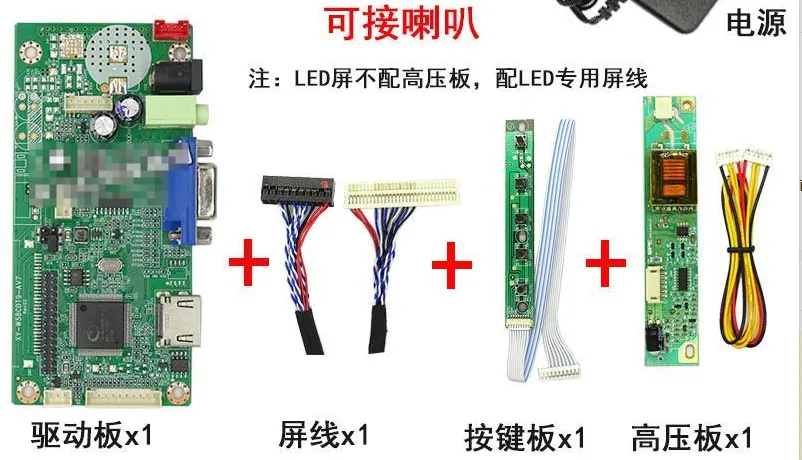

Applicable for this driver board:
The following information is for reference only
Approximate screen dimensions: Height 227 Length 183.5*2 Thickness 6mm
Threaded hole spacing position:
Side: ⚪-80-⚪-80-⚪ three holes Φ2.6
Front top and bottom: Center point-10-⚪-20-⚪-55-⚪-50-⚪ Φ3 mirrored left and right from center point
Driver board back cover:
⚪-106-⚪
| |70
⚪— —⚪ R1.75 spacing 2
