Heavy Duty 10" Water Filreinforcedter Wrench USTM

Heavy Duty Water Filter Wrench (10" UST-M & Standard)

Tired of flimsy plastic wrenches bending or snapping right when you are trying to unscrew a stuck water filter housing? This is a heavy-duty, fully reinforced replacement wrench designed specifically for standard 10-inch water filters (including UST-M, Aquafilter, and compatible systems).

Engineered with additional structural ribbing and an optimized thickened profile, this tool provides the exact leverage and strength needed to break loose stubborn, tight filter casings without flexing or cracking.

Design Features:

• Reinforced Structure: Features heavy structural webbing along both the inner ring and the handle to evenly distribute torque.
• Flawless Fit: Specifically tailored to lock perfectly onto the notches of standard 10" housings—no slipping, no rounding off your plastic filter casing.
• Ergonomic Handle: Extended and widened handle layout designed to sit comfortably in your hand while applying high force.

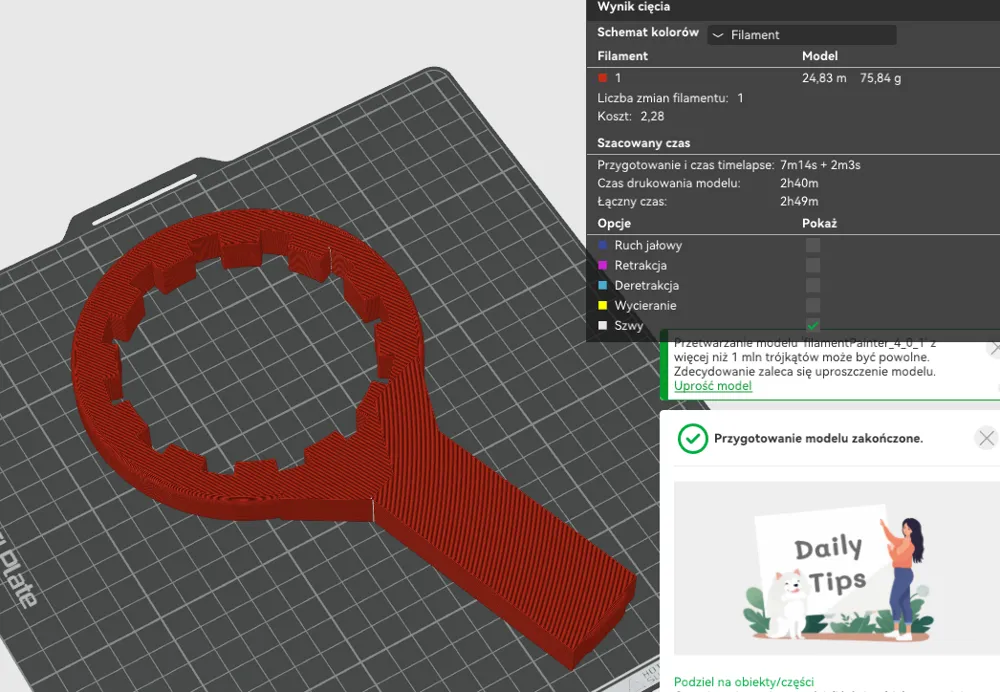

• Print-in-Place: Fully optimized for 3D printing; requires zero supports when printed flat on the bed.

Recommended Print Settings:

To ensure maximum mechanical strength and torque resistance, do not use standard profile shortcuts. Use these recommended settings:

• Material: PETG, ASA, or ABS is highly recommended for impact resistance, flex tolerance, and longevity. (PLA can work but may break under extreme force if the housing is severely stuck).
• Orientation: Lay completely flat on the print bed.
• Wall Loops: 4 - 6 walls (This is critical for handle rigidity!).
• Infill Density: 35% - 50%
• Infill Pattern: Gyroid or 3D Honeycomb (Provides uniform multi-directional strength).
• Top/Bottom Layers: 5 layers

Quick Tips for Easy Filter Changes:

1. Release the Pressure: Always shut off your main water supply line and press the red pressure release valve on top of the filter housing before trying to unscrew it. Removing the internal pressure makes the job 10x easier and protects your tools!
2. Smooth Force: Apply a steady, continuous pulling force rather than sudden jerky movements to minimize stress on both the printed tool and your plumbing brackets.
