ESP32-C3 SuperMini Relay Case - Longer
Print Profile(1)
Description
This is a remix of the great case produced by @alessiob and located at https://makerworld.com/en/models/2554961-esp32-c3-supermini-relais-case?from=search#profileId-2814406

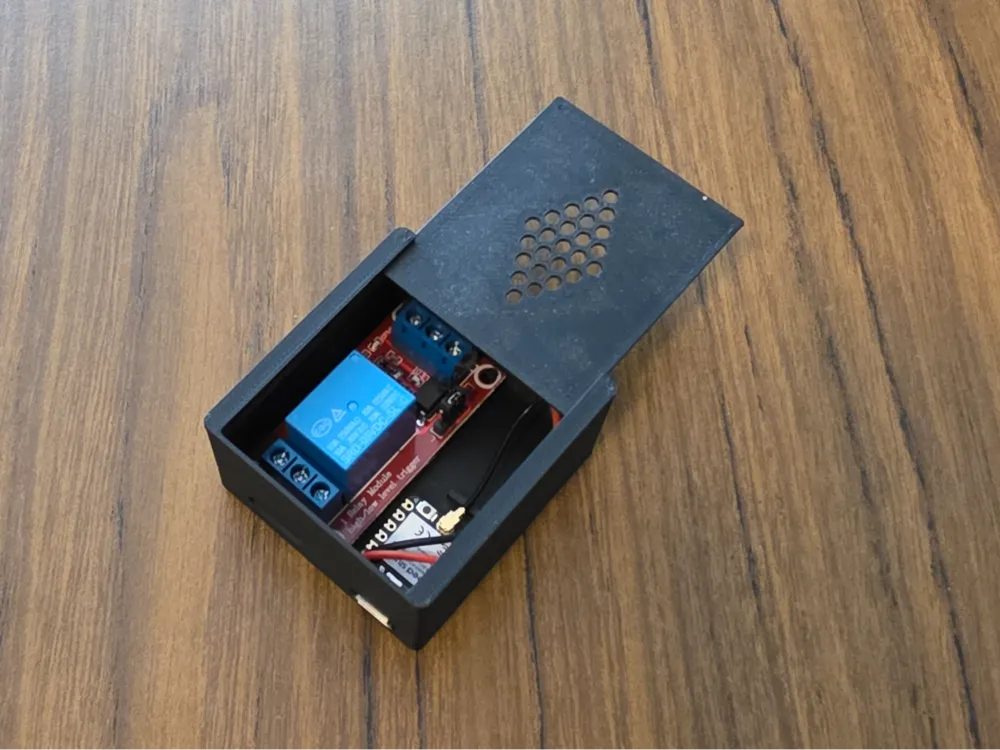

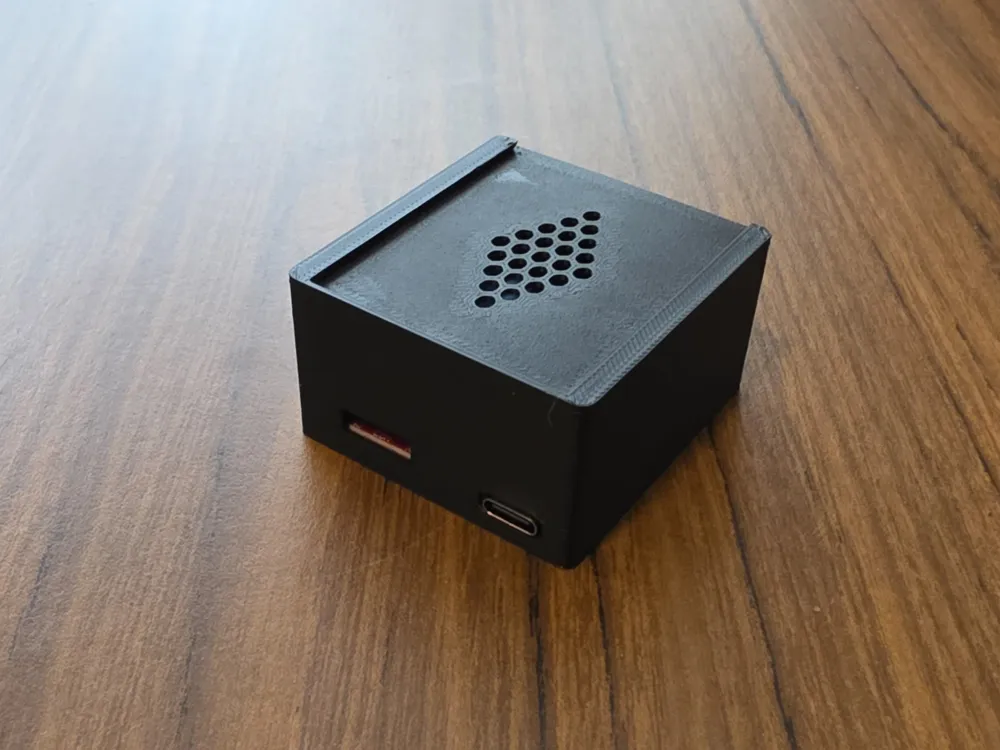

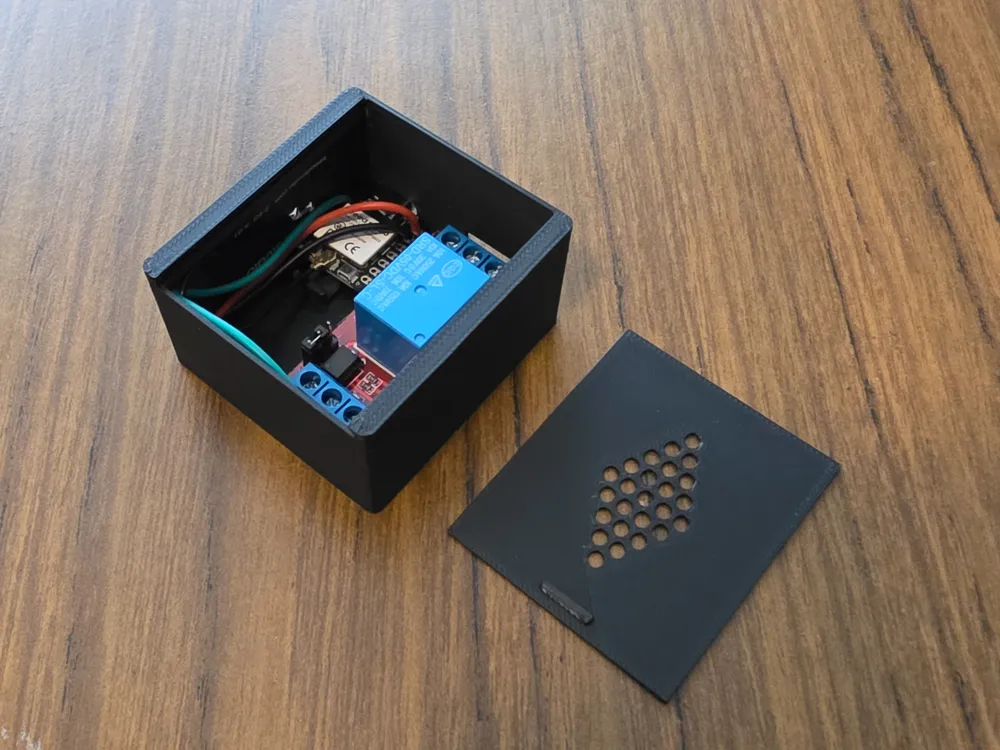

This compact enclosure is designed specifically for the ESP32-C3 SuperMini paired with a 5V-3.3V single-channel relay module with LED indicator. It’s perfect for IoT, smart home, and automation projects where a clean and reliable housing is needed.
🔧 Features:
- Precise fit for ESP32-C3 SuperMini
- Space for a 5V-3.3V relay module
- LED visibility through a dedicated opening
- Ventilation slots for better heat dissipation
- Easy access to pins and wiring
- Simple and fast assembly
💡 Perfect for:
- Smart home automation (e.g. light control)
- WiFi-controlled relay switching
- DIY electronics and IoT setups
🔧 Modifications:
- Made it a little longer so that it fit the slightly longer relay board at Relay Modules
- Made it a little taller to hold the external antenna that comes with the xiao esp32-c3 board

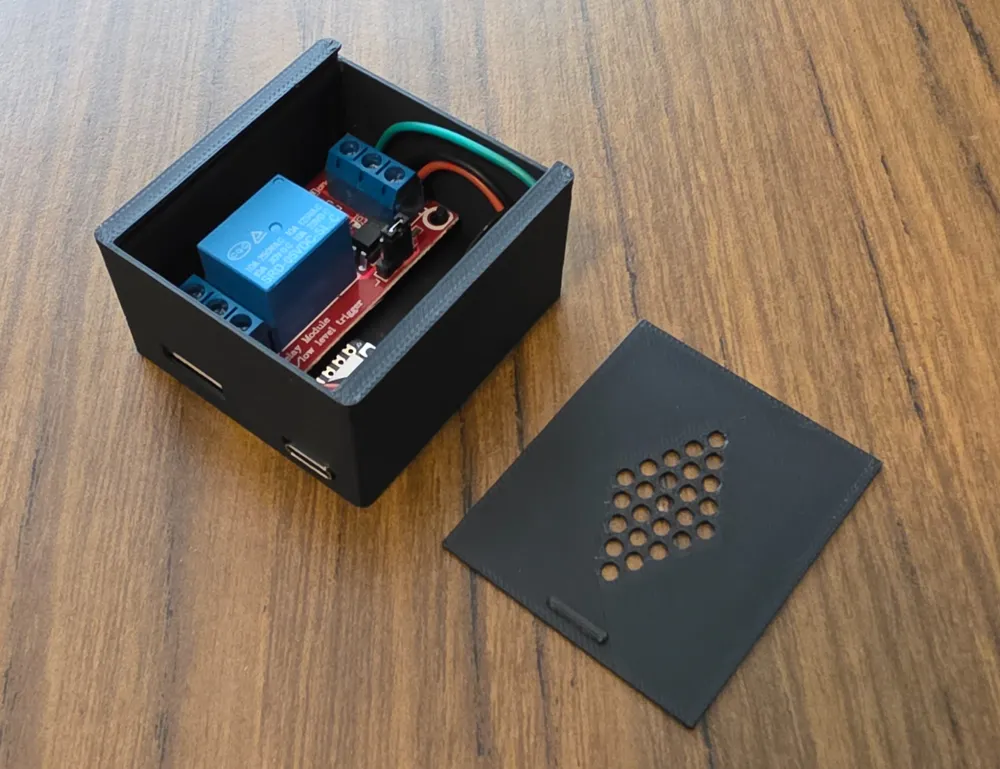

- Placed a small bump in the lid to keep it closed, even with moderate vibrations.
This enclosure keeps your electronics protected while giving your project a clean and professional look.
This remix is based on
