Magnetic TPU Vise Soft Jaws
Print Profile(2)
Description

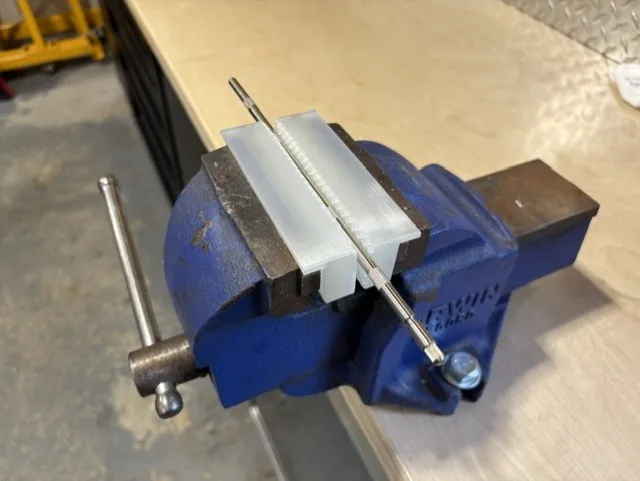

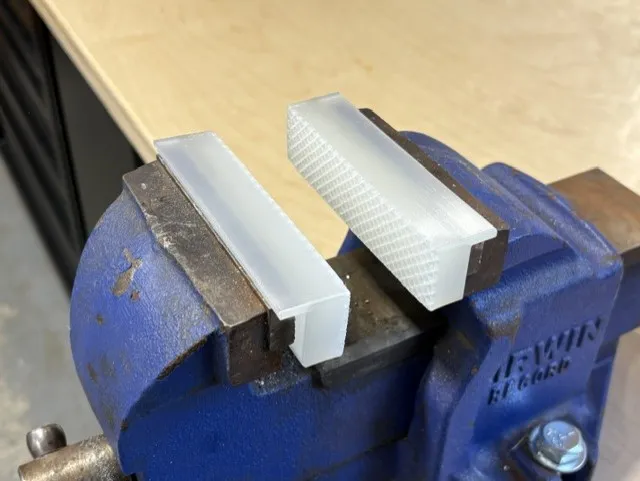

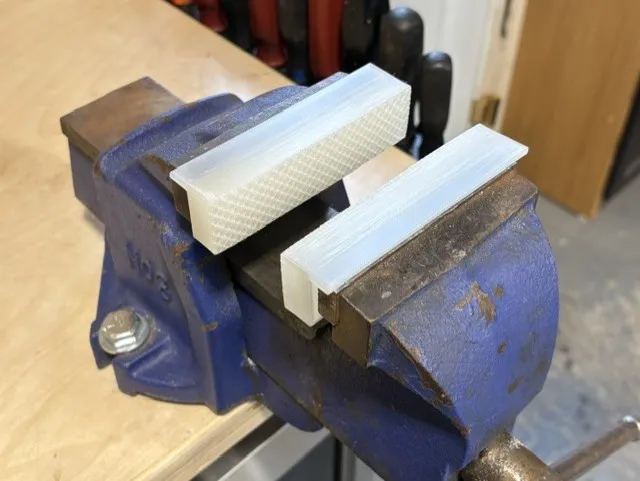

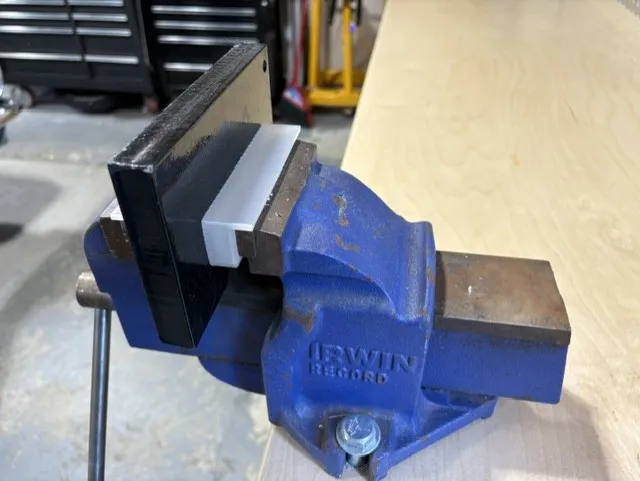

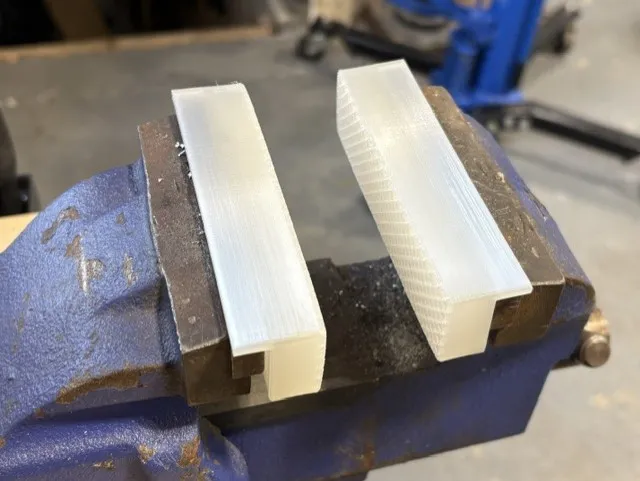

Magnetic TPU Vise Soft Jaws
Protect your workpiece from scratches and marks.
These are printed with TPU, 100% infill. They are firm but still have a little bit of give to protect your work from steel vise jaws.

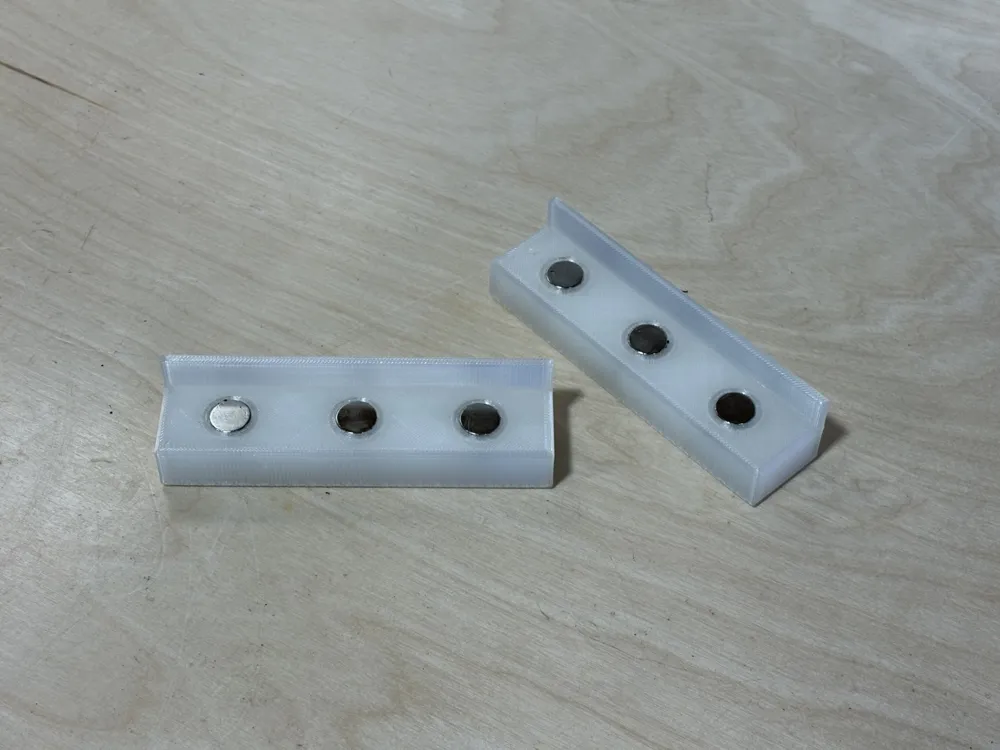

Three magnets are installed in the back side to hold the jaws in place while you position your workpiece.
They are sized to fir a 4" bench vise. They will work on others but may be a bit short or long depending on the size of your vise.
A great addition to every workshop. They do not have an overly aggressive pattern on the front but still give a great hold due to the TPU material.
(I originally had designed this with 2 10mm magnets in the back but felt it would be better with a little more hold. I have updated the profile to use three 12mm x 3mm magnets. I have also included a second profile with three 10mm x 3mm magnets. Either is a great option, but I left both options depending on what you have on hand. I personally prefer the 12mm x 3mm. It gives a really solid hold.)
Please comment and post pictures of your print in the comments below!
Boost Me (for free)
If you enjoyed this print please consider leaving a Boost. It helps me to keep printing and designing.
