🛟Floating Gyro Cup Holder🛟

Please consider boosting if you can so I can continue making FREE models :)

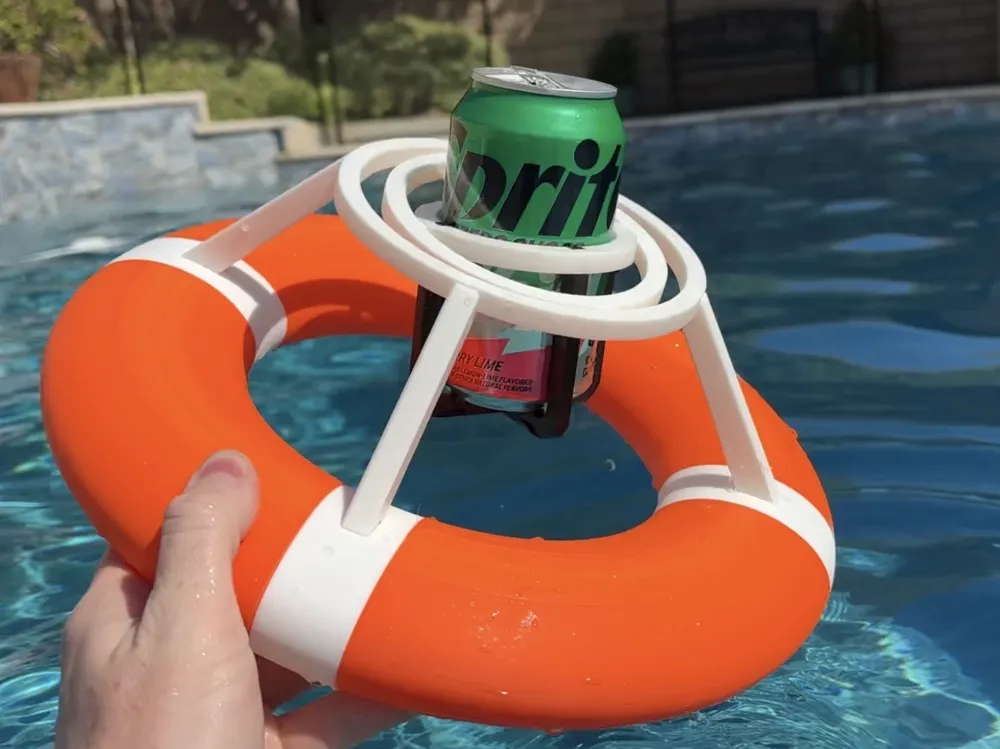

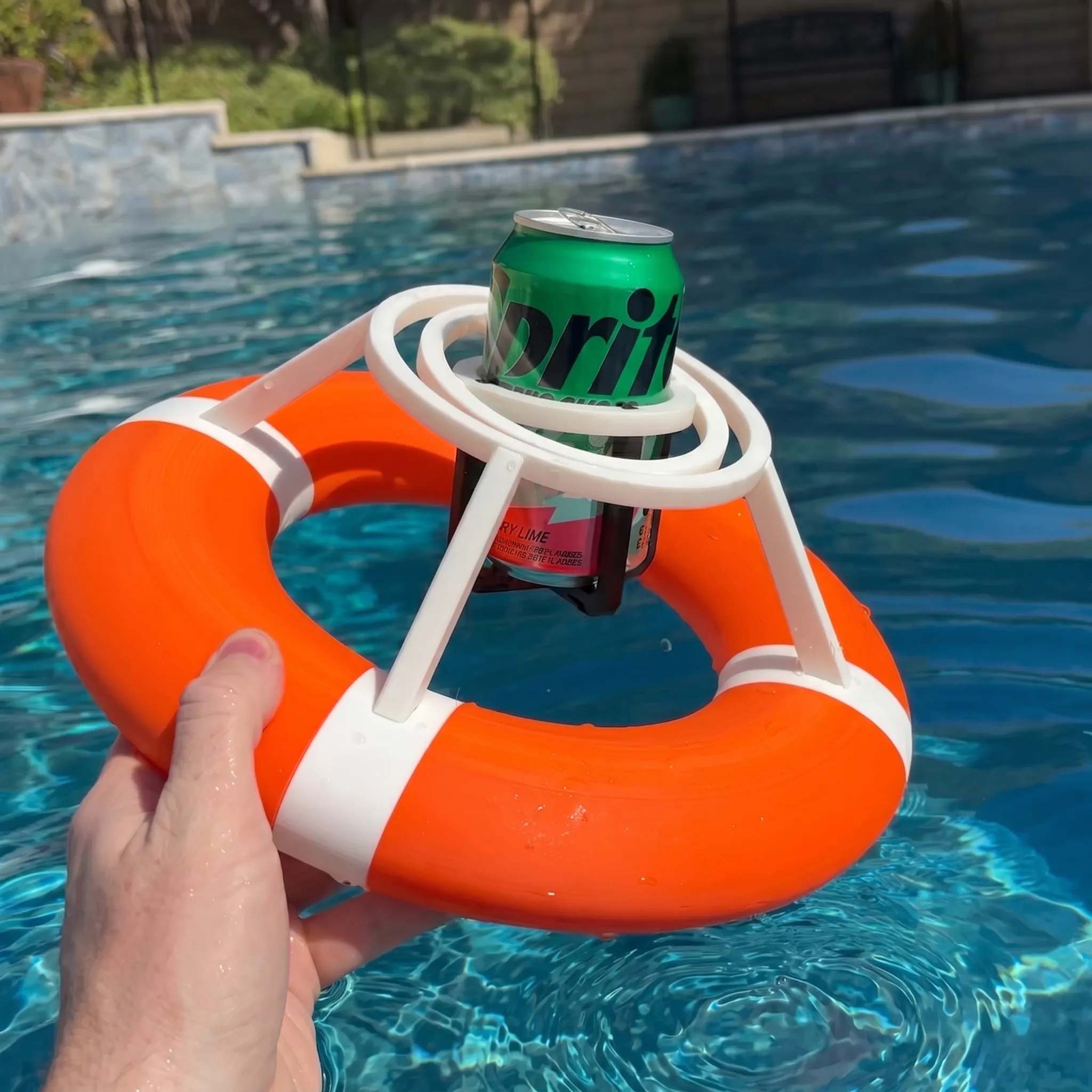

This floating cup holder was designed to stabilize 12 oz drink cans so that when the water in your pool gets a bit rough your drink doesn't spill. It was designed to look like a life the iconic life preserver ring.

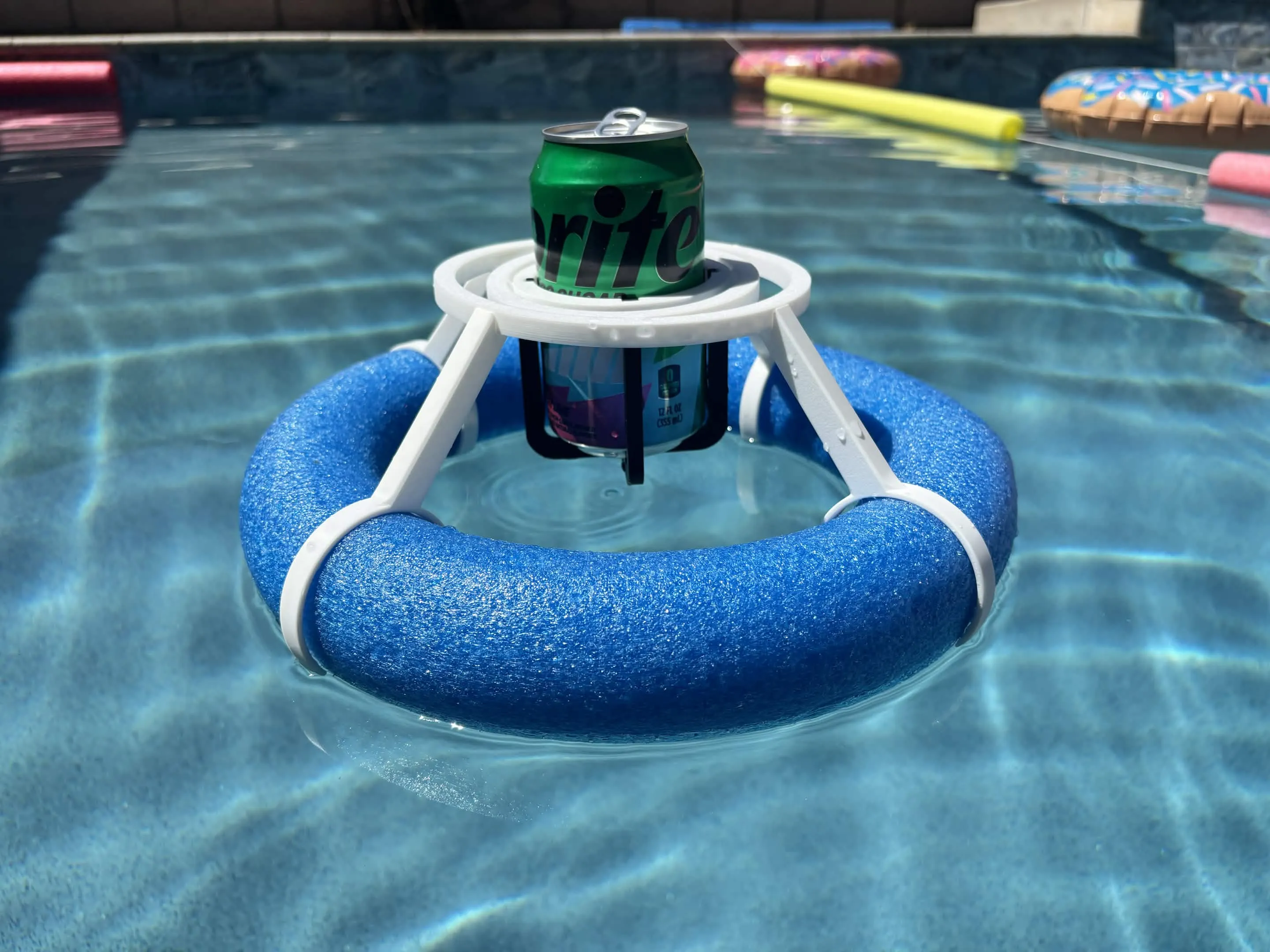

Pool Noodle Version Available Now!

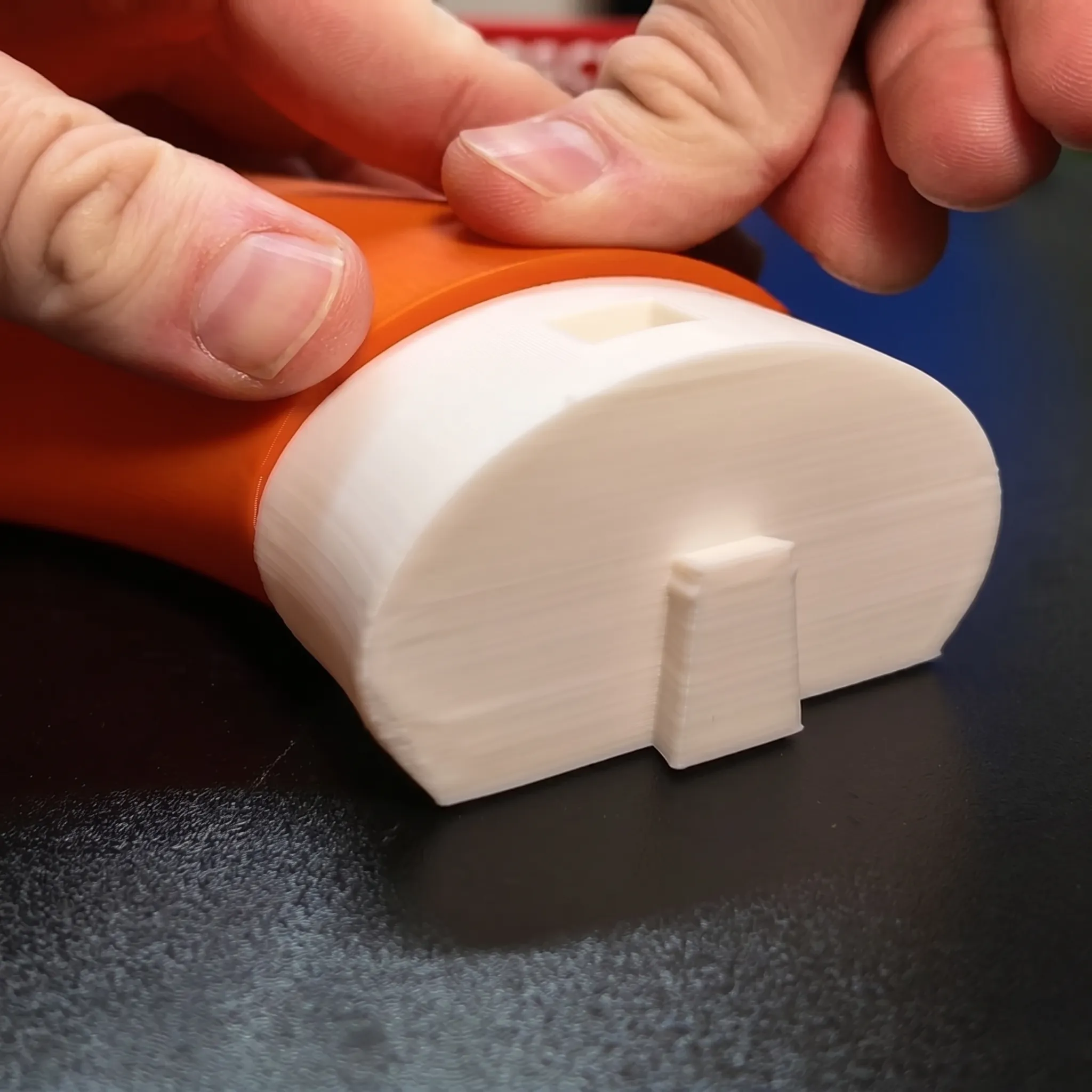

The pool noodle version uses the 60mm diameter pool noodles widely available at stores such as walmart and dollar tree. Cut the pool noodle to 34 inches (86 cm) length and use the coupler included in the print profile to make a donut.

Assembly:

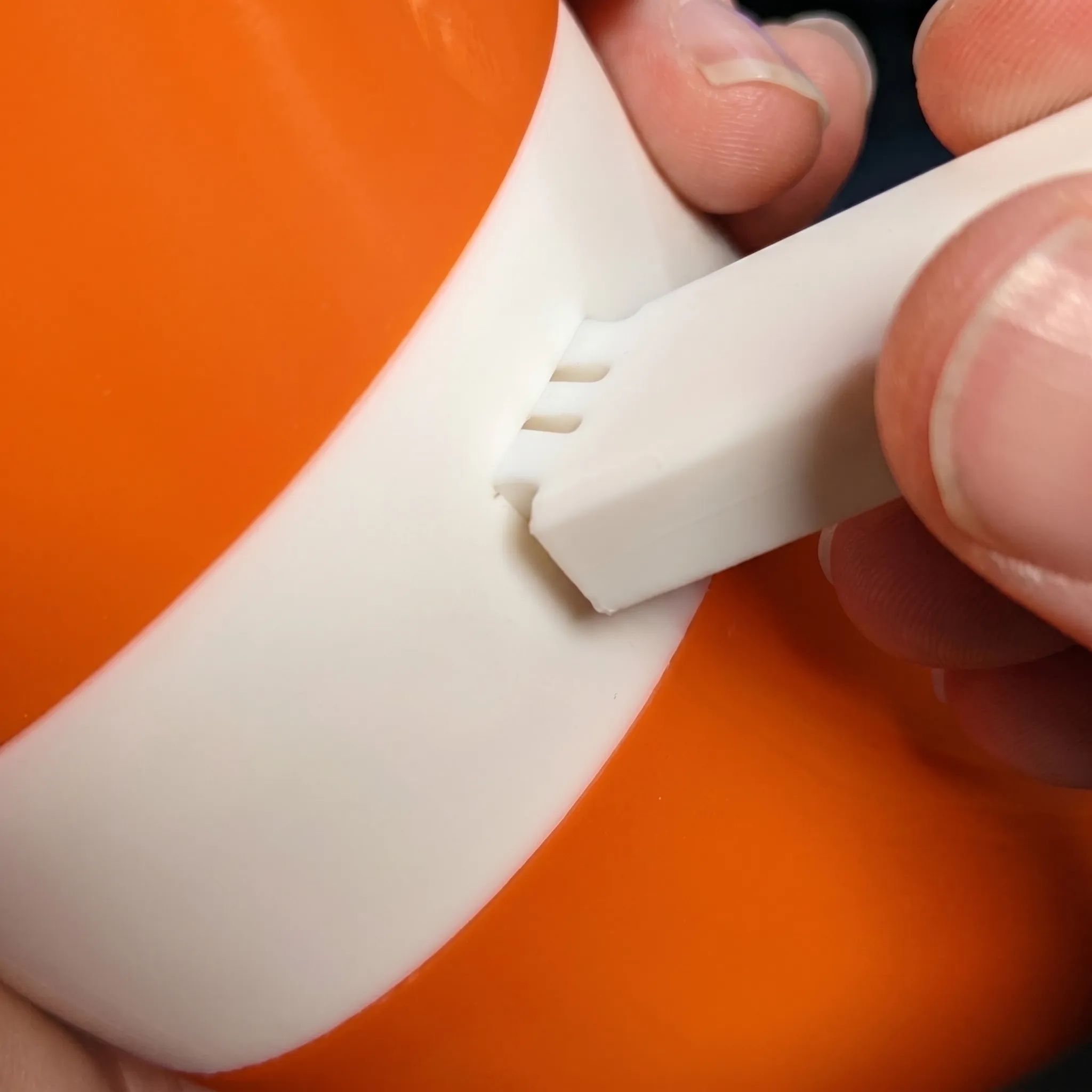

Step 1: Insert white stripe into larger piece and apply firm pressure on a flat surface.

Step 2: Insert (4) Gyro Supports into completed ring.

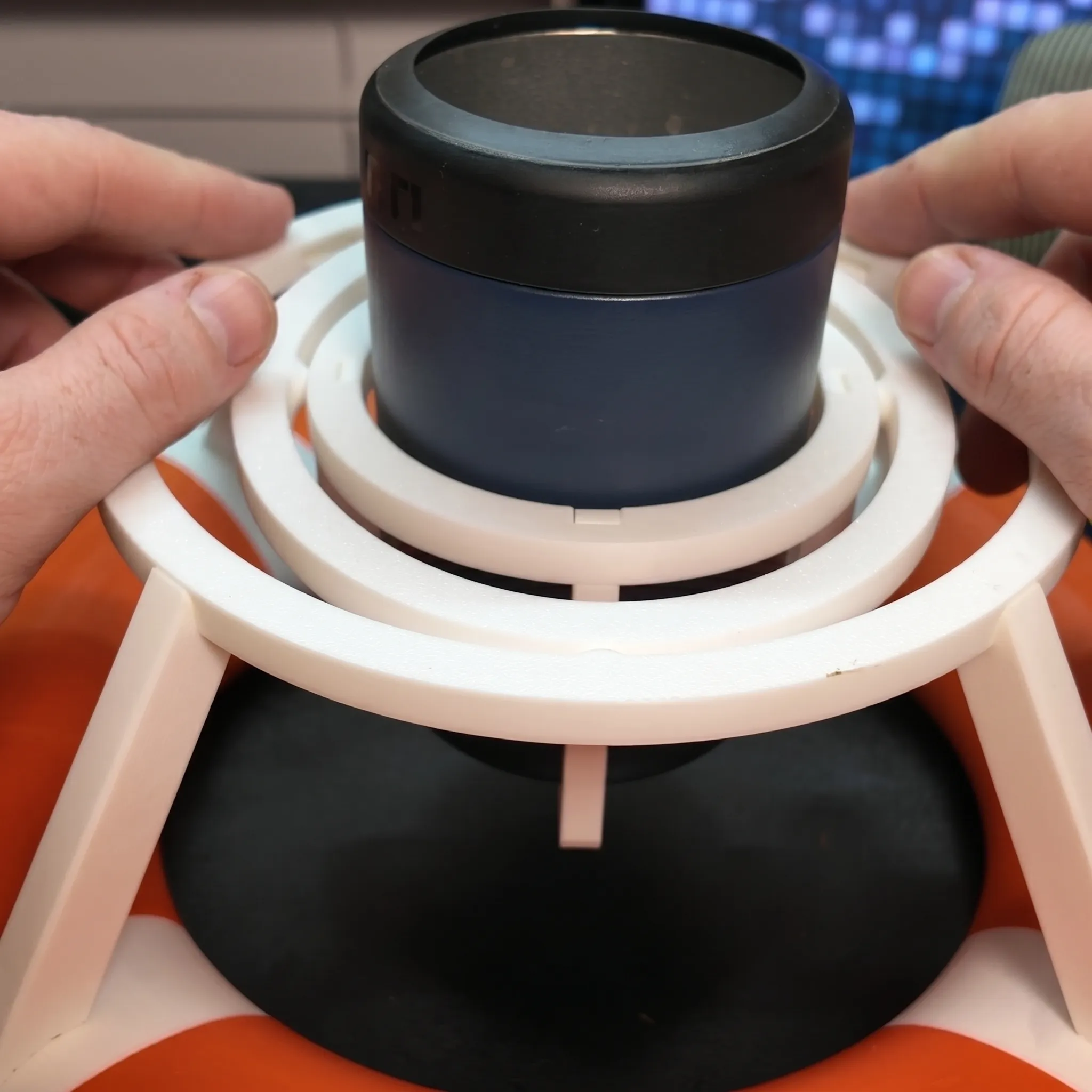

Step 3: Insert drink holders into gyro ring and apply force to snap the ring onto the supports.

Step 4: Enjoy!

Printing Notes

• ensure build plate is very clean for maximum adhesion
• .20 mm layer height - adaptive layer height (.25) on rings and stripes
•  4 wall loops on rings and stripes (2 on everything else)
• 3% gyroid infill on rings and stripes (15% gyroid on everything else)

Commercial Licensing

I have commercial licensing available here on MakerWorld or through my Patreon!
