Exhaust Valve DN100 – 6 Gap Variants
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
10.6 h
6 plates
Open in Bambu Studio
Boost
0
2
0
0
2
1
Released
Description
Content has been automatically translated.

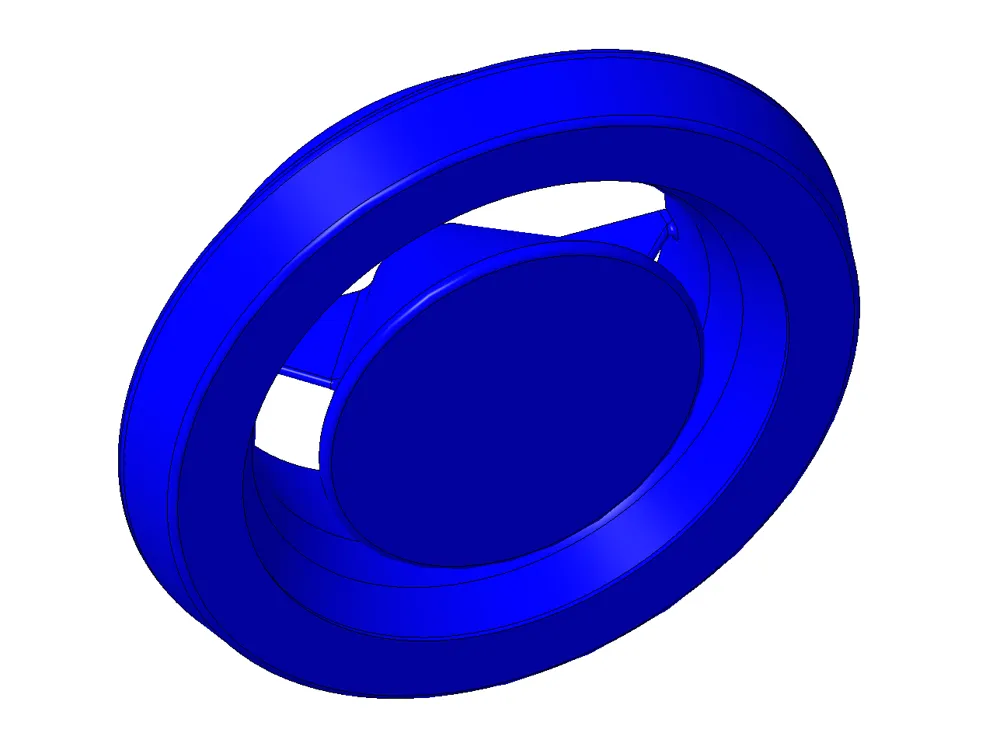

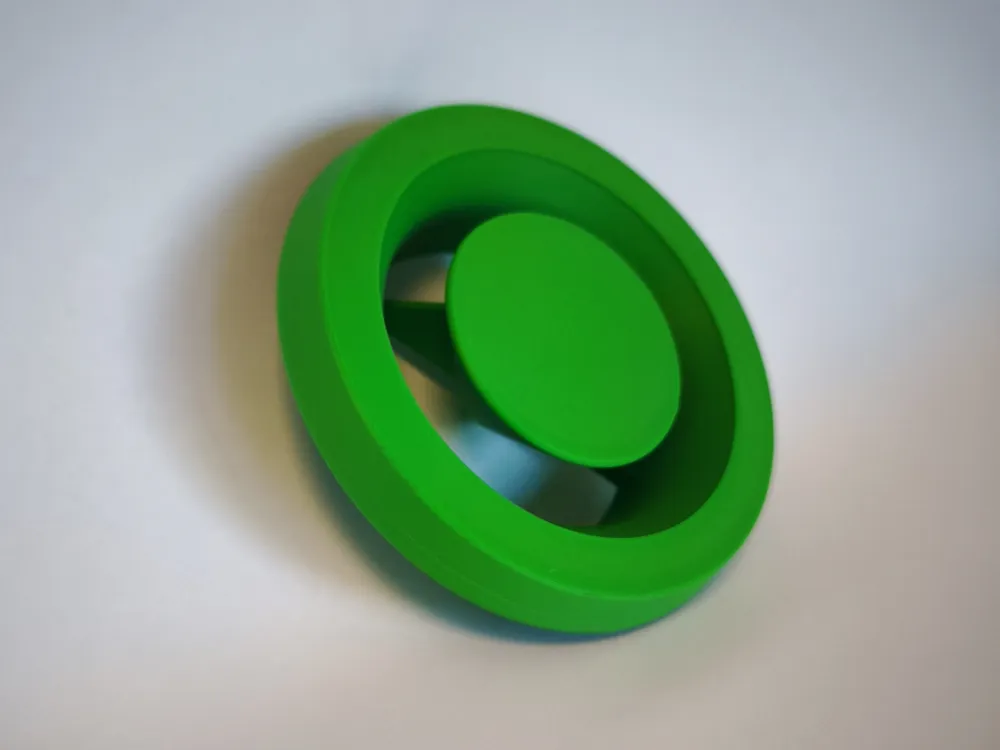

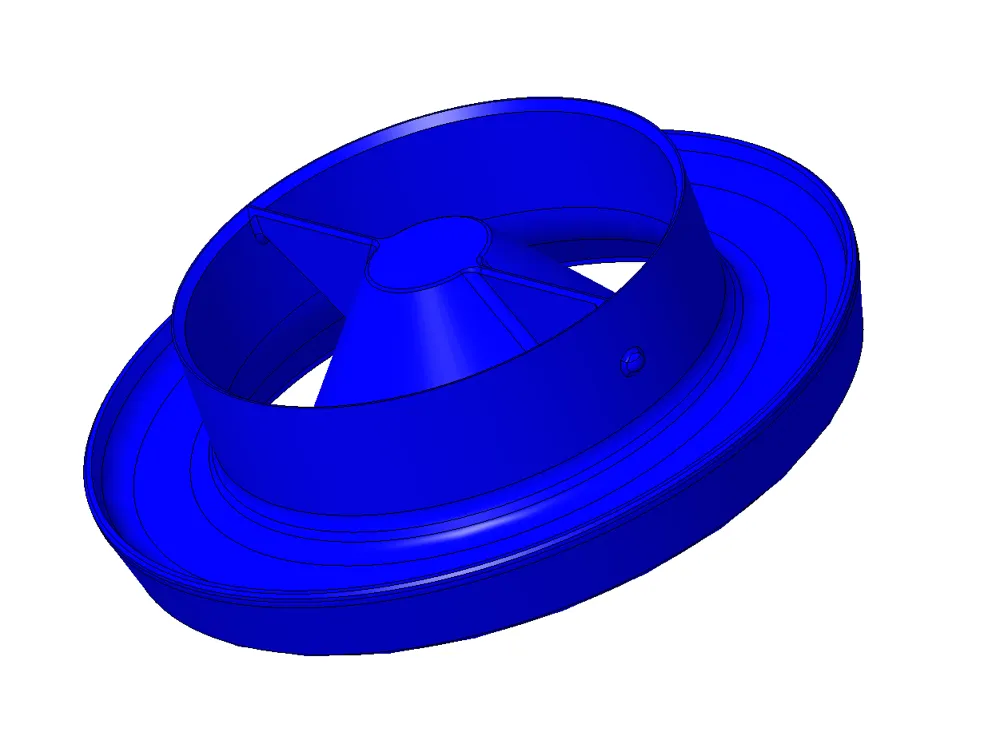

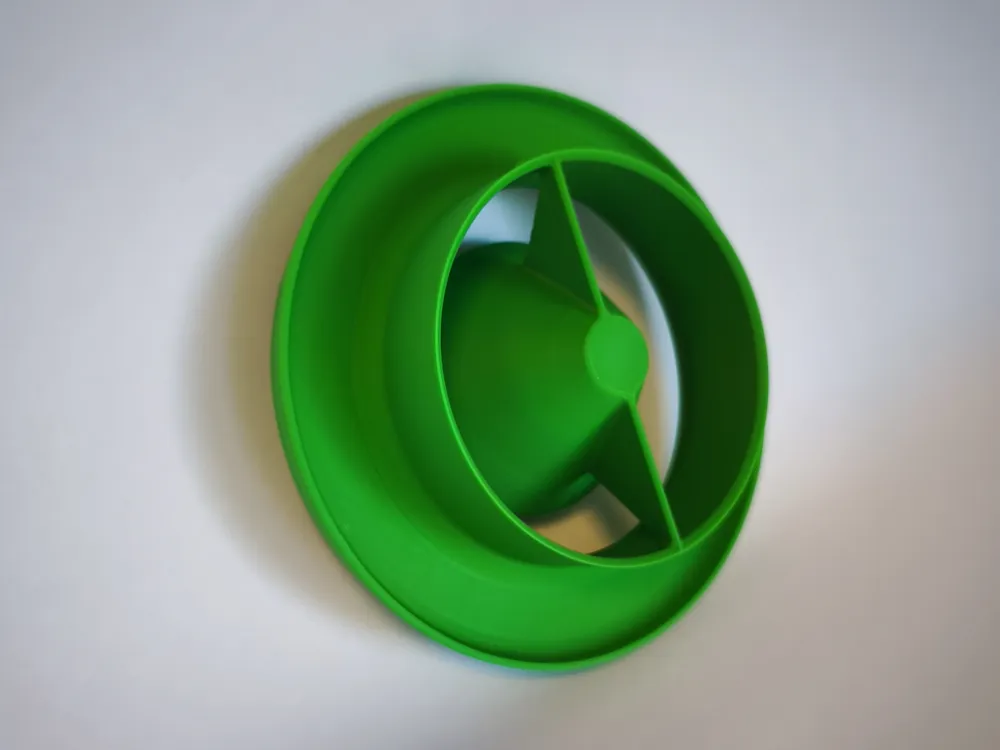

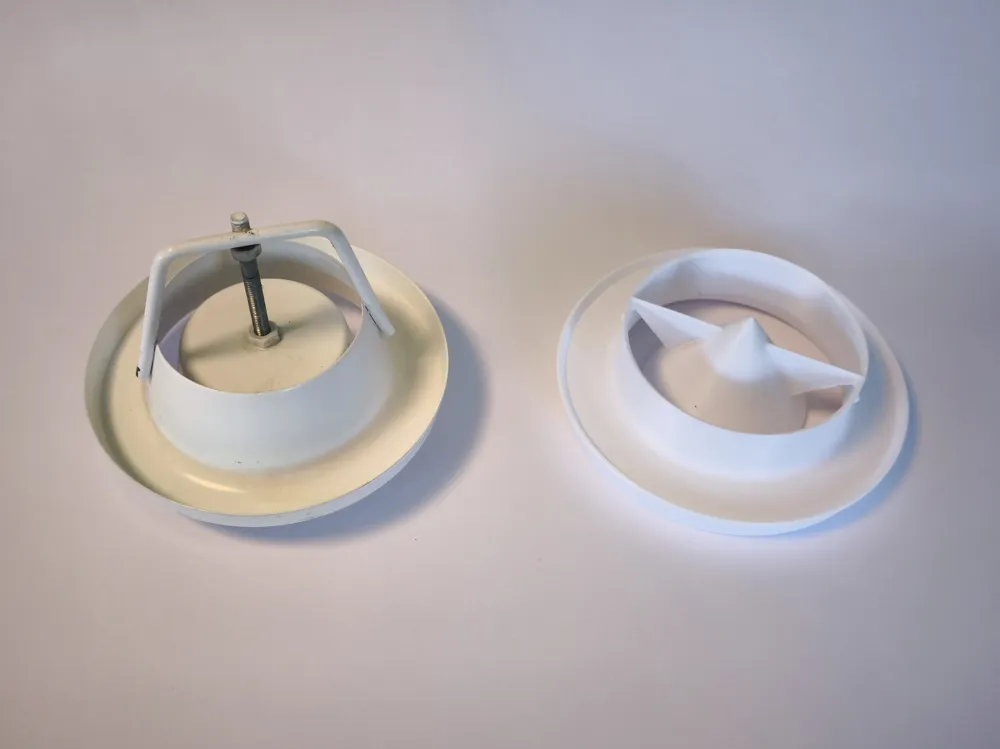

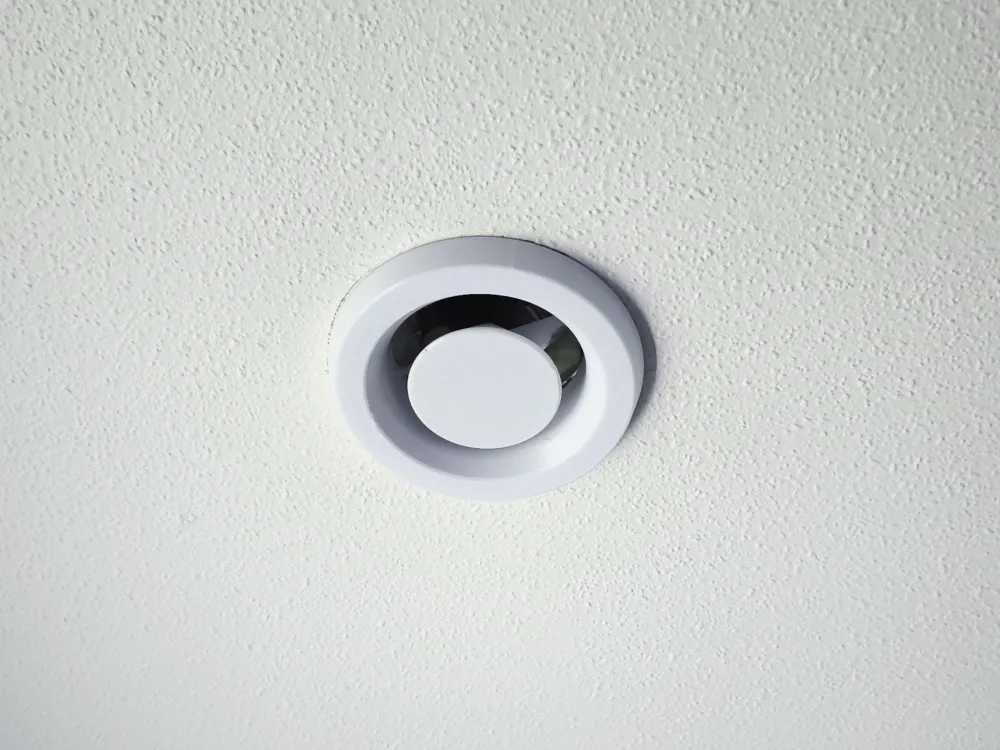

Exhaust valve (plate valve) for DN 100 ventilation pipes — extracts stale air and directs it through ducting to the outside. The valve screws directly into an existing threaded opening in the pipe or fitting. Six variants are included, each with a different air gap to control the extraction volume. Designed as a printable replacement for hard-to-find and expensive off-the-shelf valves.
Included Files
- tellerventil_dn100_abluft_5.stl — Air gap 5 mm
- tellerventil_dn100_abluft_8.stl — Air gap 8 mm
- tellerventil_dn100_abluft_10.stl — Air gap 10 mm
- tellerventil_dn100_abluft_12.stl — Air gap 12 mm
- tellerventil_dn100_abluft_14.stl — Air gap 14 mm
- tellerventil_dn100_abluft_16.stl — Air gap 16 mm

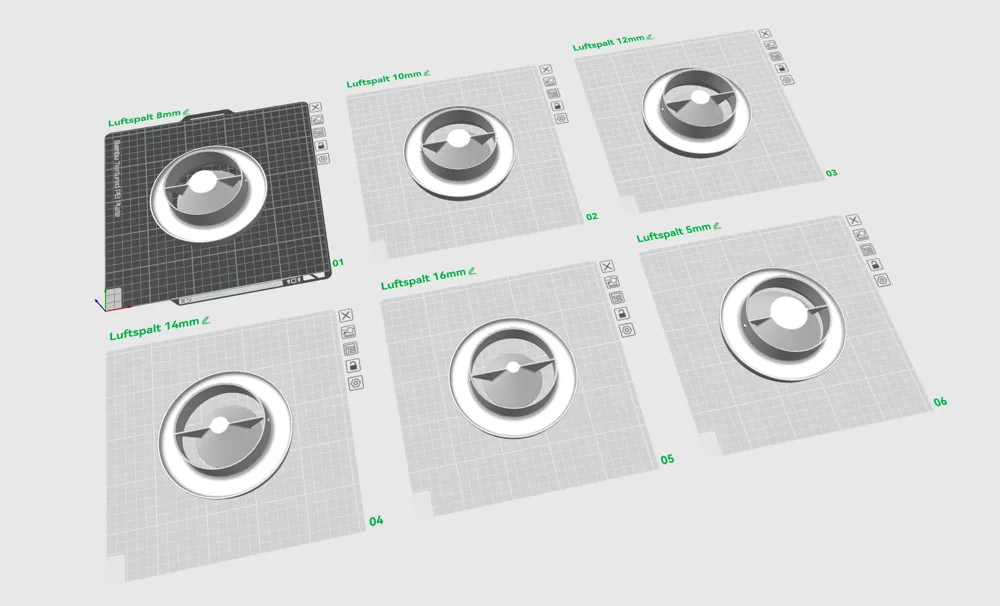

The complete project with pre-configured print orientations is available as TELLERVENTIL_DN100_ABLUFT.3mf.
Specifications

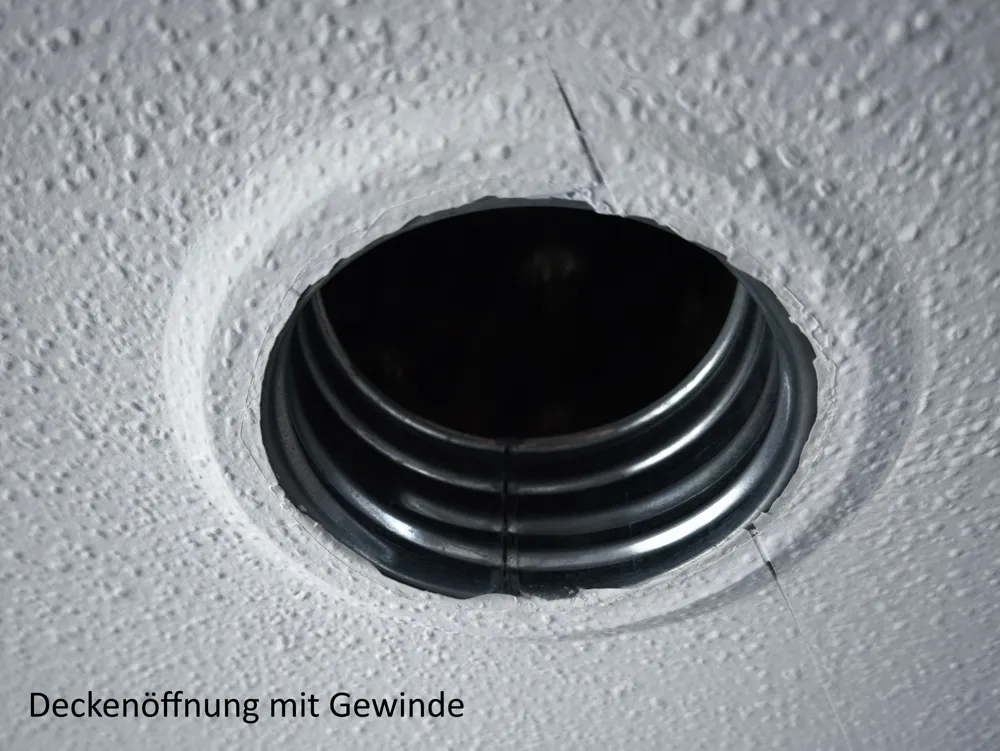

| Pipe diameter | DN 100 (100 mm inner diameter) |
| Outer diameter | 140 mm |
| Air gap | 5 / 8 / 10 / 12 / 14 / 16 mm (fixed per variant) |
| Mounting | Screws into existing thread in pipe or fitting |
| Required hardware | None — single-part valve, no screws or inserts needed |
Print Settings
| Material | Any (PLA, PETG, ABS, ASA) |
| Supports | None required |
| Orientation | As provided in the 3MF file |
See Also
Also available — Supply air version
A matching supply air valve (DN 100) is available separately on MakerWorld.https://makerworld.com/de/models/2837686-supply-air-valve-dn-100-adjustable-vent#profileId-3163003
