Supply Air Valve DN 100 – Adjustable Vent

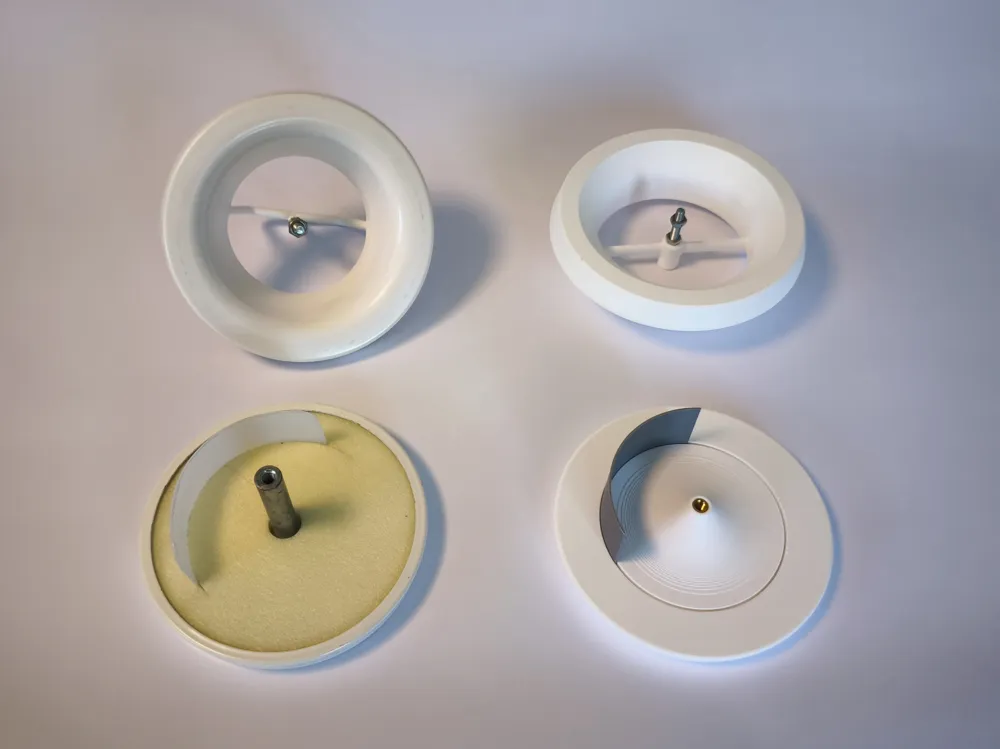

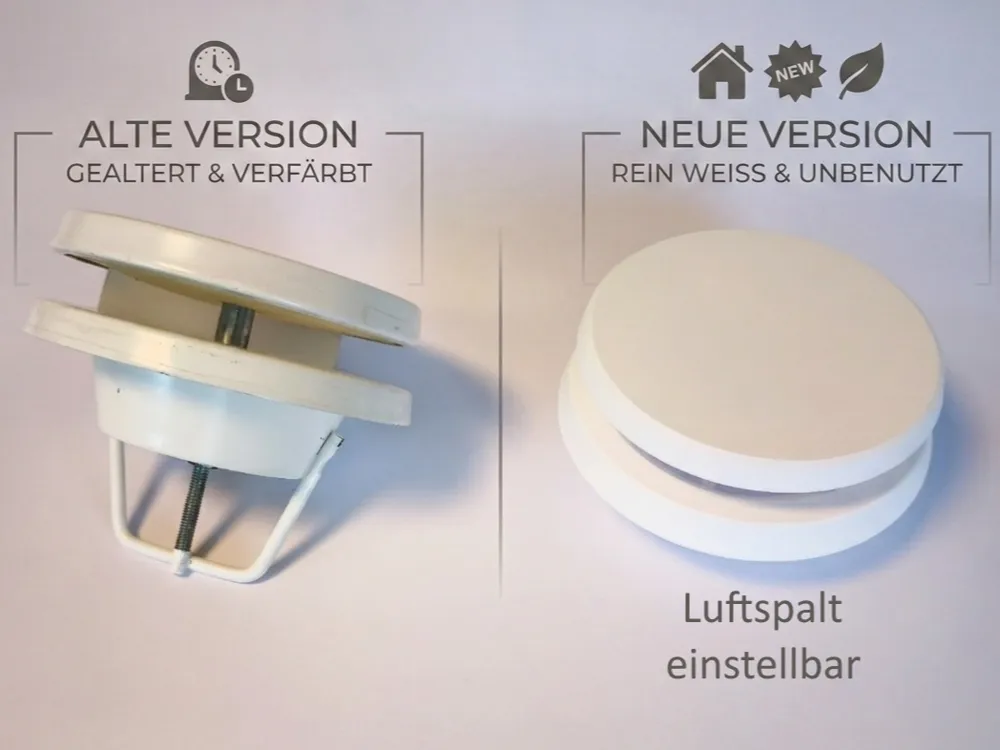

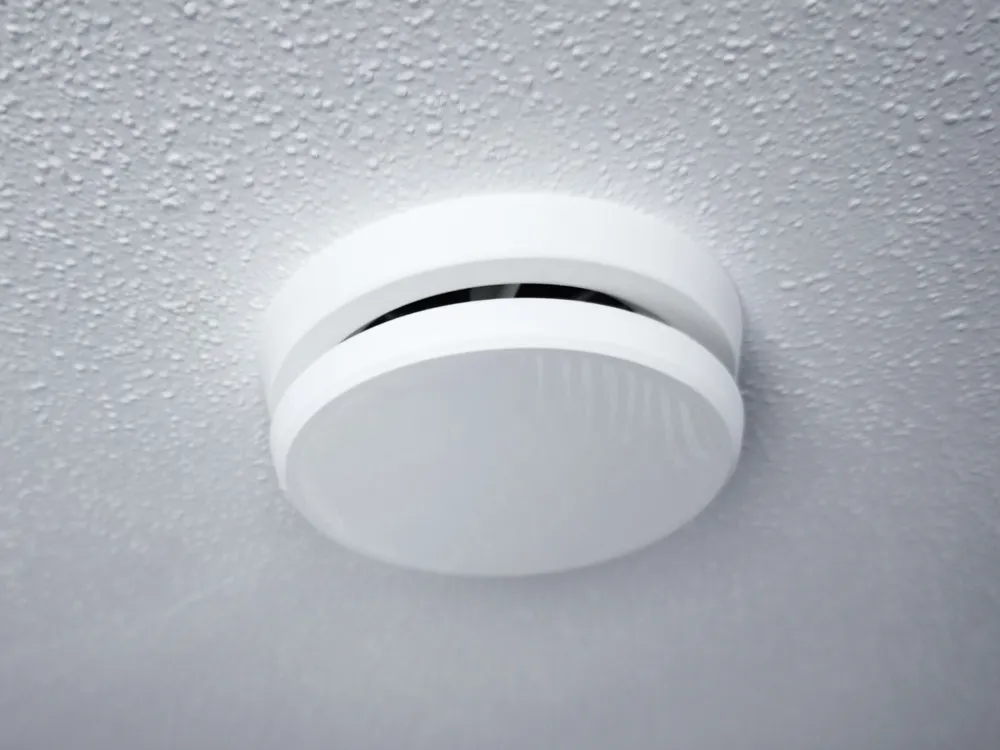

Fresh air valve (trickle vent) for DN 100 ventilation pipes — designed as a draft-free supply air inlet that screws directly into an existing threaded pipe opening. An adjustable air gap controls the airflow volume. Suitable replacement for hard-to-find commercial trickle vents.

Included Parts

• tellerventil_dn100_zuluft_1.stl — Valve body (frame / wall-side part)
• tellerventil_dn100_zuluft_2.stl — Valve disc (inner plate)
• tellerventil_wind_gebogen_90.stl — Airflow deflector, 90° (vase mode recommended)
• tellerventil_wind_gebogen_120.stl — Airflow deflector, 120° (vase mode recommended)
• tellerventil_wind_gebogen_150.stl — Airflow deflector, 150° (vase mode recommended)
• tellerventil_wind_gebogen_180.stl — Airflow deflector, 180° (vase mode recommended)

• tellerventil_wind_flach.stl — Airflow deflector, flat

  can be bent to shape after printing (standard mode recommended); 95 mm ≈ 120°

The complete assembly is also available as TELLERVENTIL_DN100_ZULUFT.3mf with pre-configured print orientations.

Specifications

⚠ Note — Deflector height
The default deflector height of 37 mm is calibrated for an air gap of 10–12 mm. If you use a significantly larger or smaller gap, adjust the height in your slicer before printing.

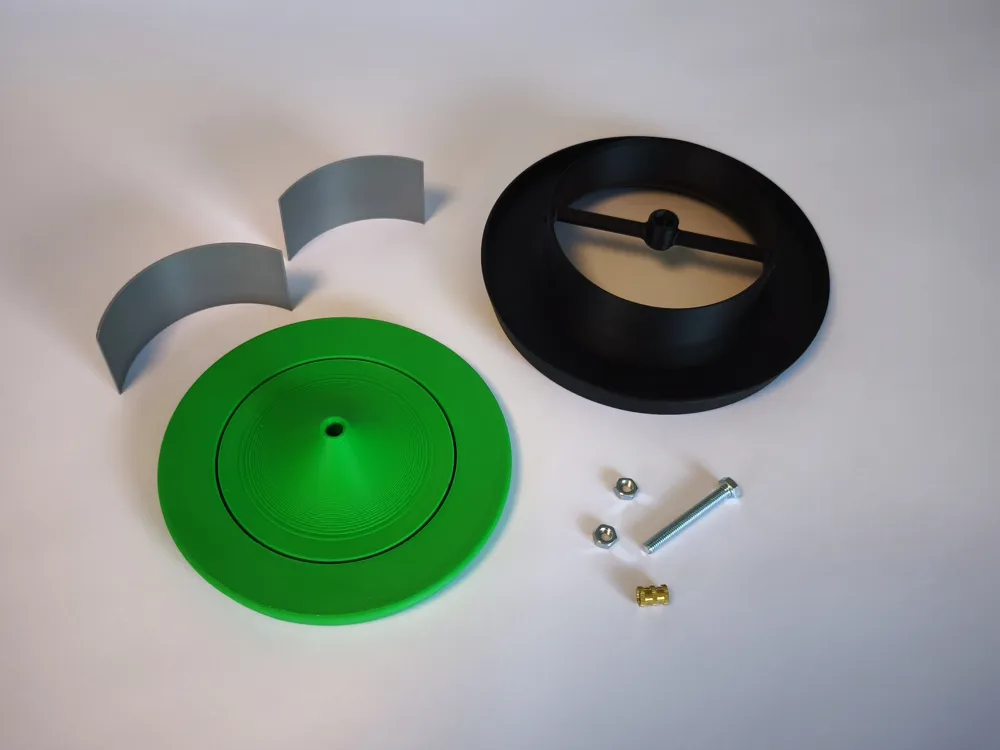

Required Hardware

• 1× Hex bolt M5 × 45 mm, fully threaded (length may vary for different air gaps)
• 2× Nut M5
• 1× Threaded insert M5 (press into pipe opening)

Assembly

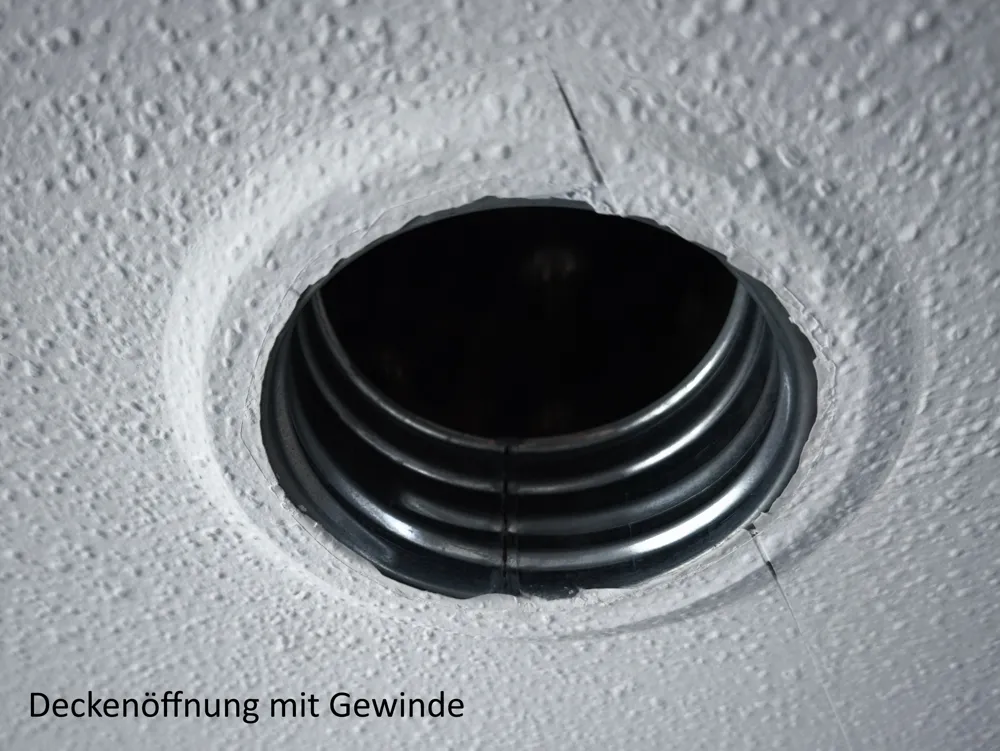

1. Press or install the M5 threaded insert into the ventilation pipe opening.
2. Insert the M5 bolt through the valve disc (part 2), add one nut as a spacer/stop.
3. Slide the optional airflow deflector onto the disc if desired.
4. Join the valve disc and valve body (part 1); secure with the second nut.
5. Screw the assembled valve into the threaded insert in the pipe.

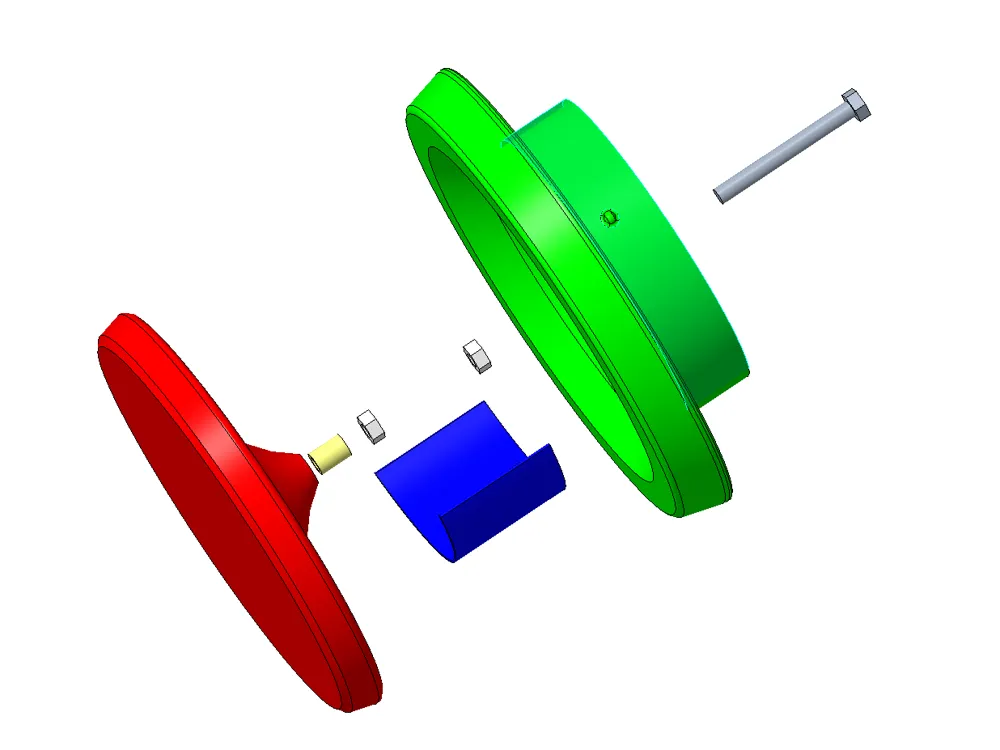

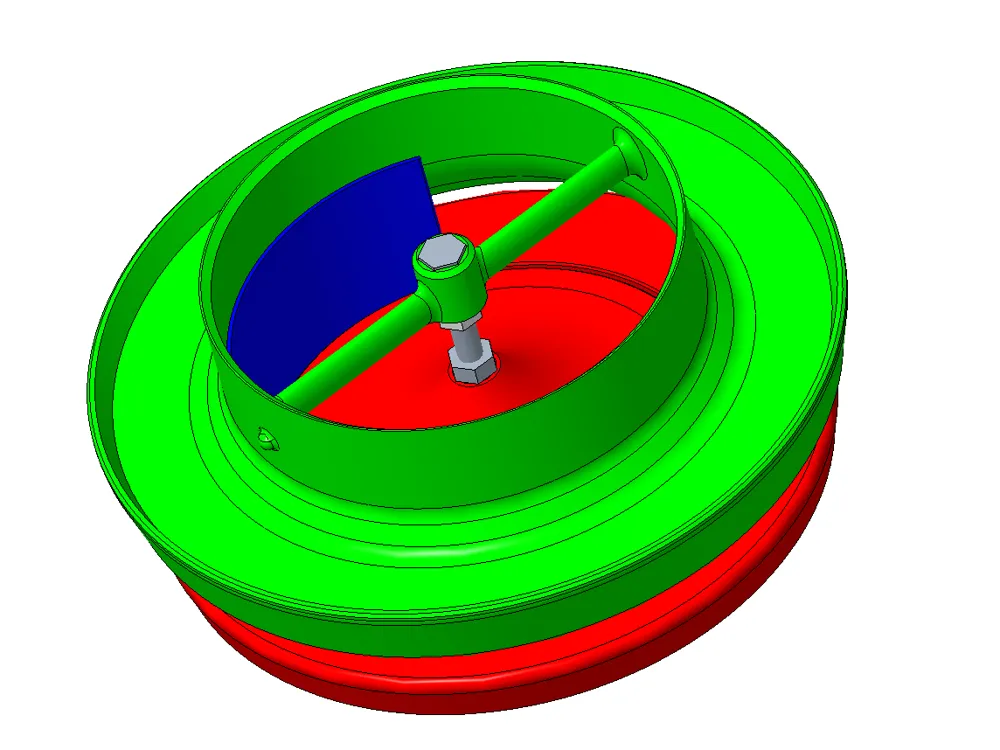

6. Adjust the air gap by tightening or loosening the bolt. See explosion drawing for reference.

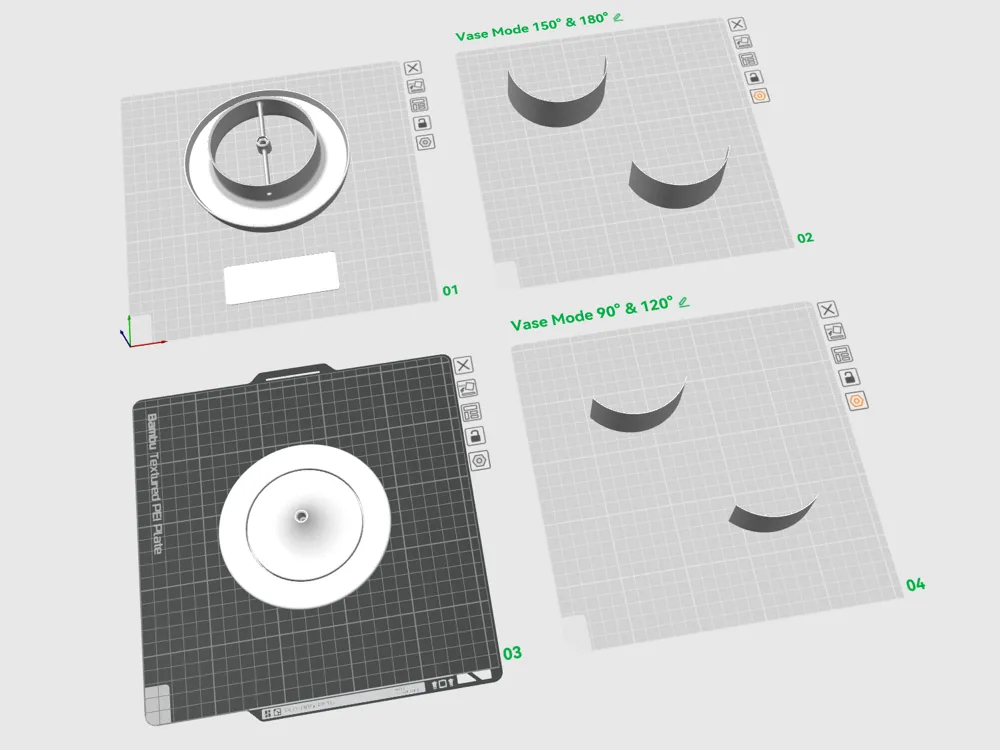

Print Settings
