Dual cable guide - bike spare part - gear shift
Print Profile(1)
Description

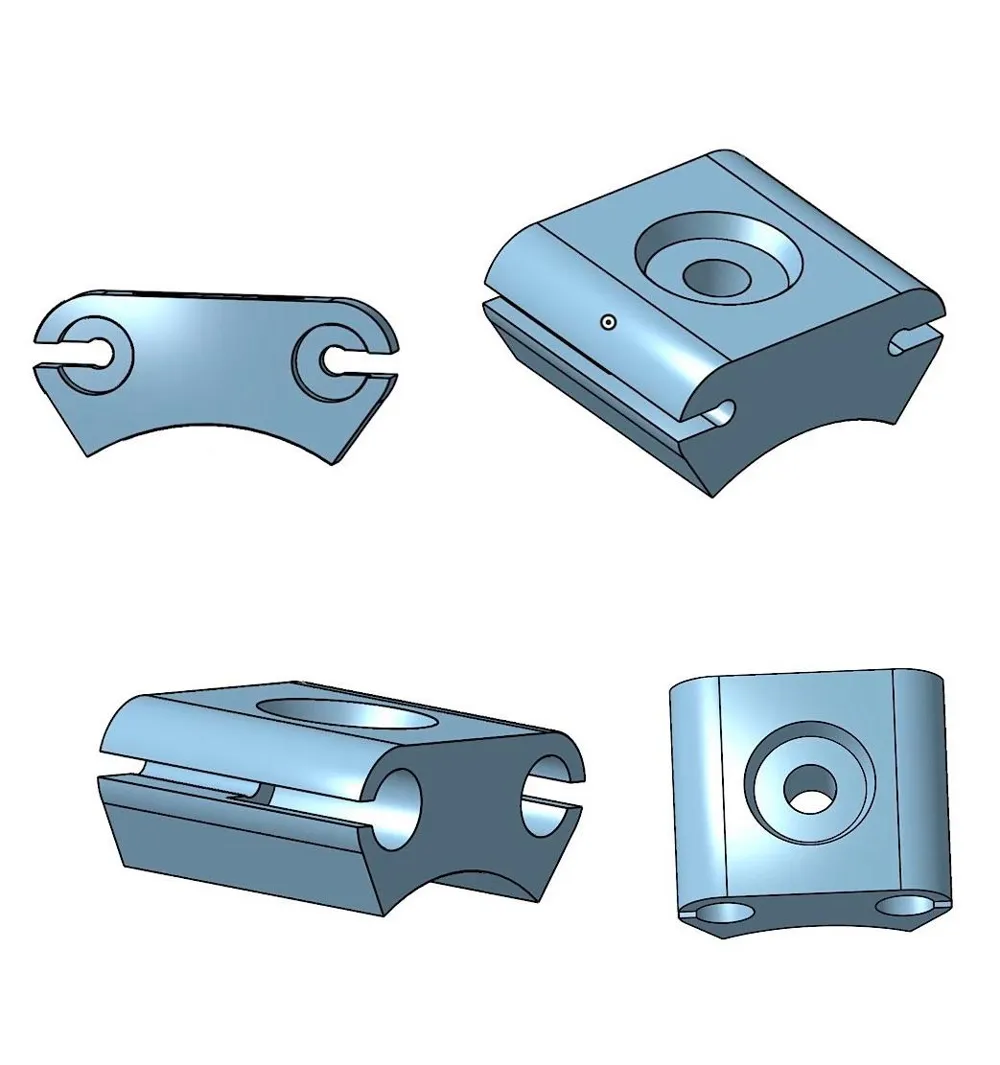

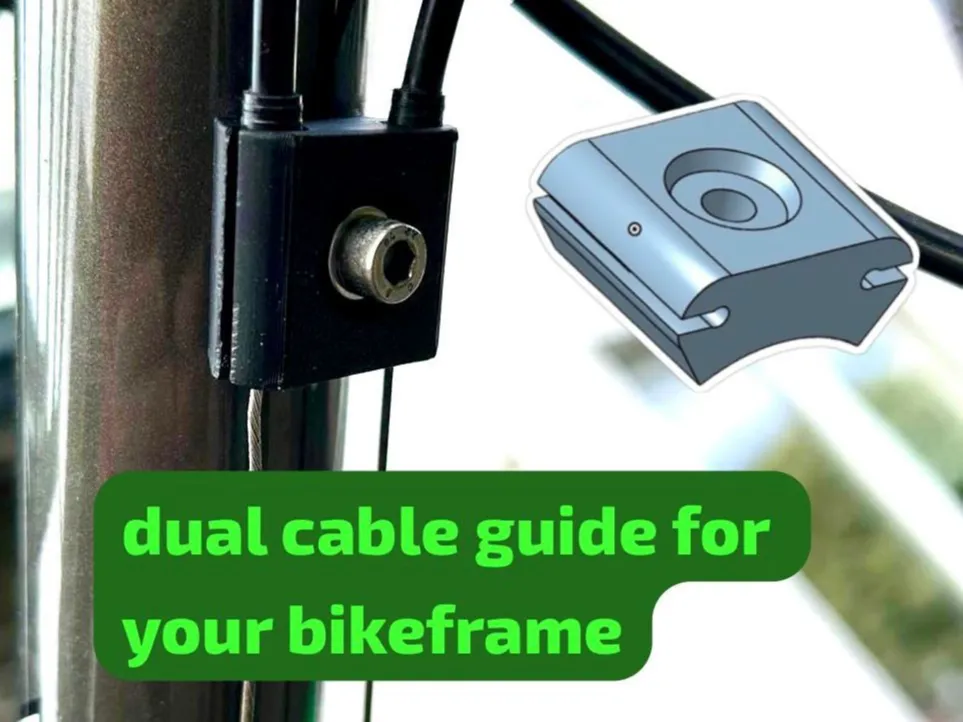

Bicycle Cable Holder / Cable Guide (Dual Cable Guide) - only 7g filament

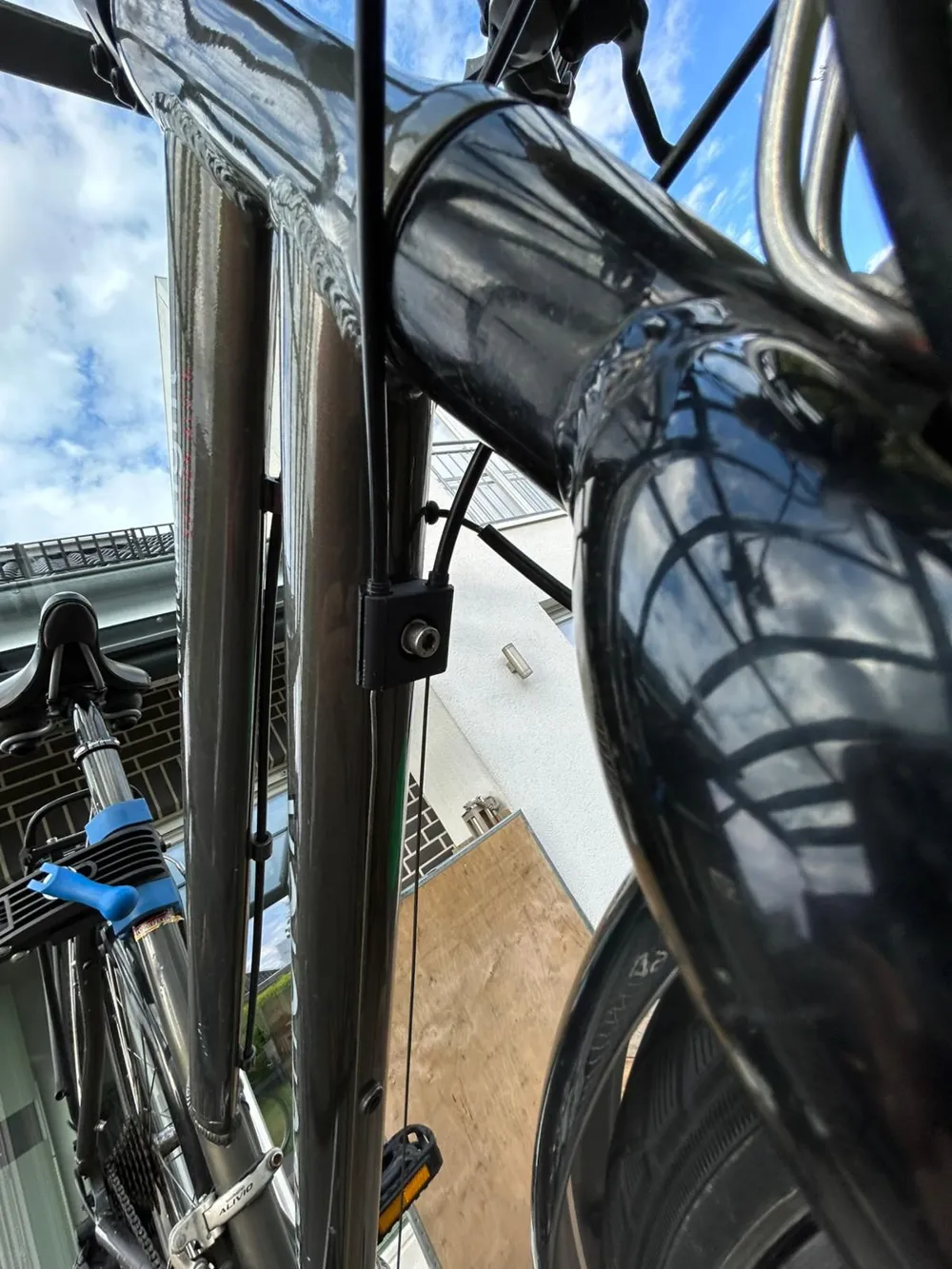

I created this model as part of my bicycle repair and want to share it A clean guide for two gear or brake cables, which adapts to round frames thanks to its design and securely holds the cables in position
- Easy Installation: Thanks to screw recesses, the model can be neatly mounted The side slots allow you to easily insert the Bowden cables into the holder
Print & Material Recommendations
Since this component on the bicycle is permanently exposed to weather, UV radiation, mechanical vibrations, and tensile forces, I advise against using PLA
- Recommended Material: PETG, ASA, or ABS These materials provide the necessary flexibility for the side clamping slots and will not become brittle in the sun
- Infill: 100% for maximum stability
- Walls (Wall Loops): 6 walls
Support: I recommend printing the model flat on the bottom side (with the curve facing upwards) This will require some support, but the model will gain additional stability
Do you have any questions or need a version for only a single cable Just write it in the comments!
I appreciate your support through likes, ratings, comments, or boosts if it helped you
Your Josie :)
Boost Me (for free)
Happy printing!
Your Josie <3
