Adjustable H2C/H2D Filament Track Switch Bracket

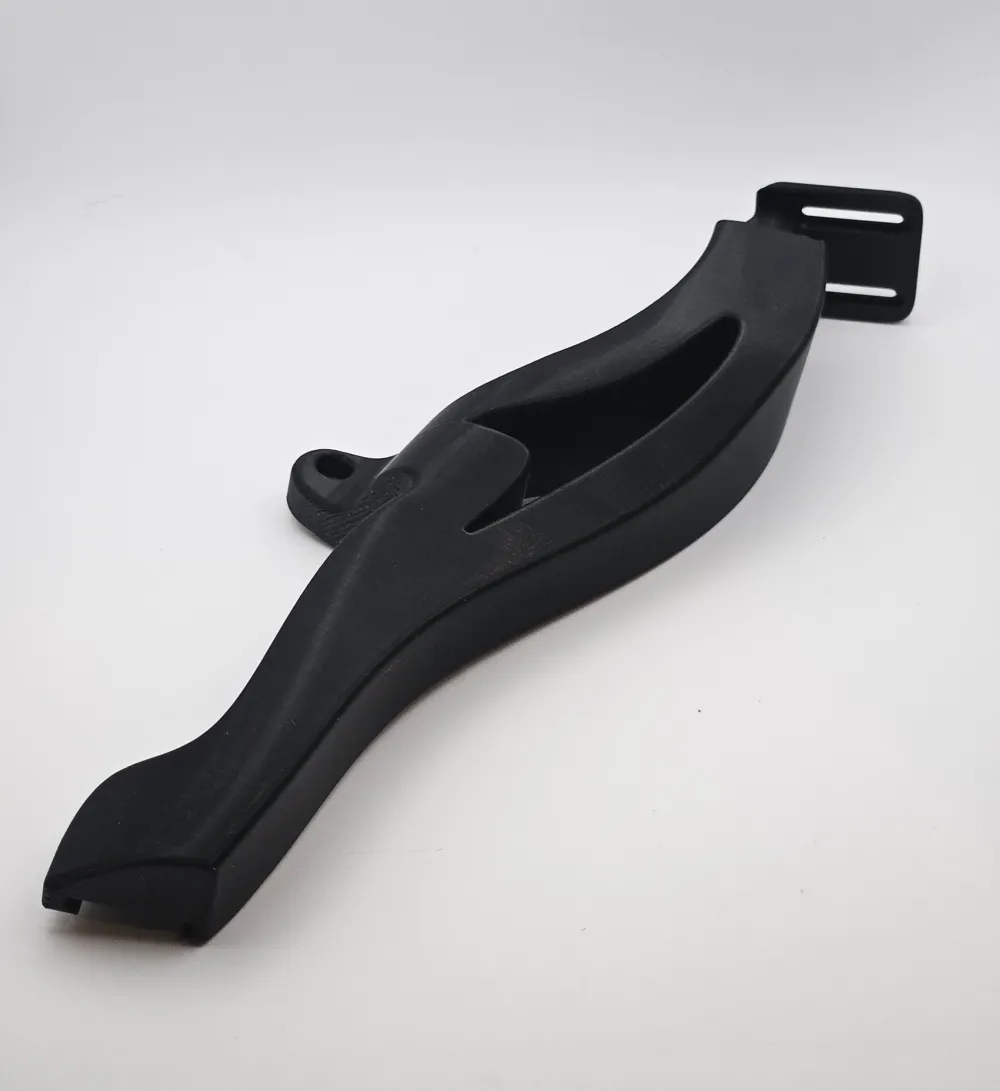

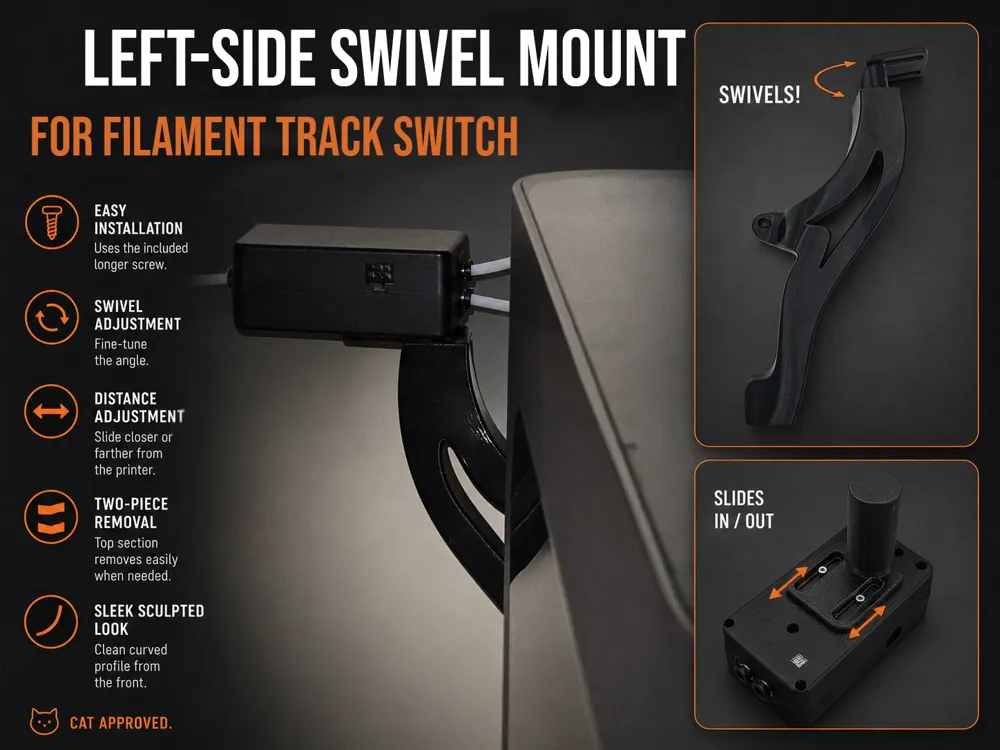

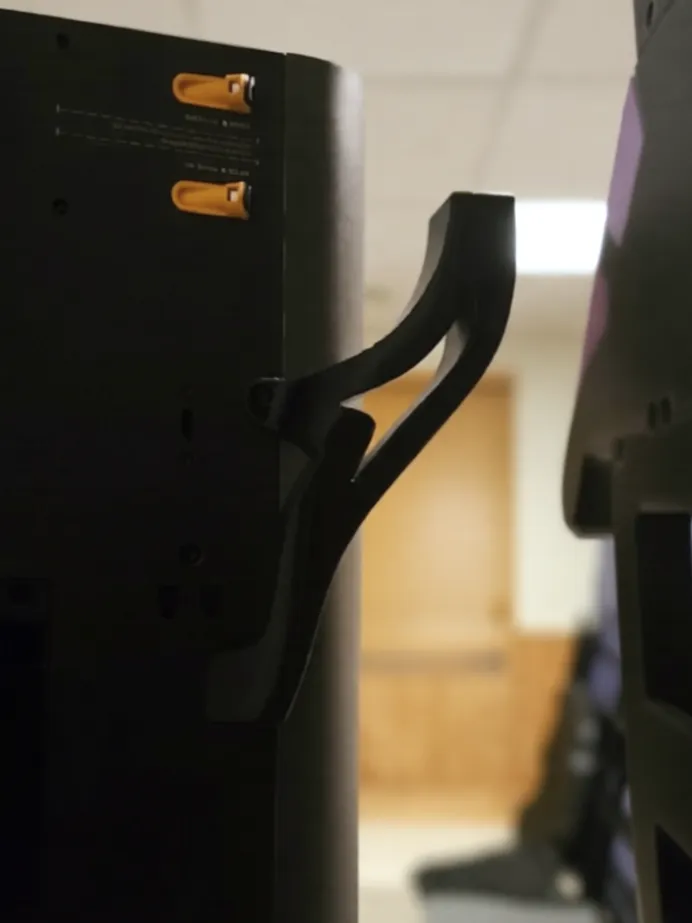

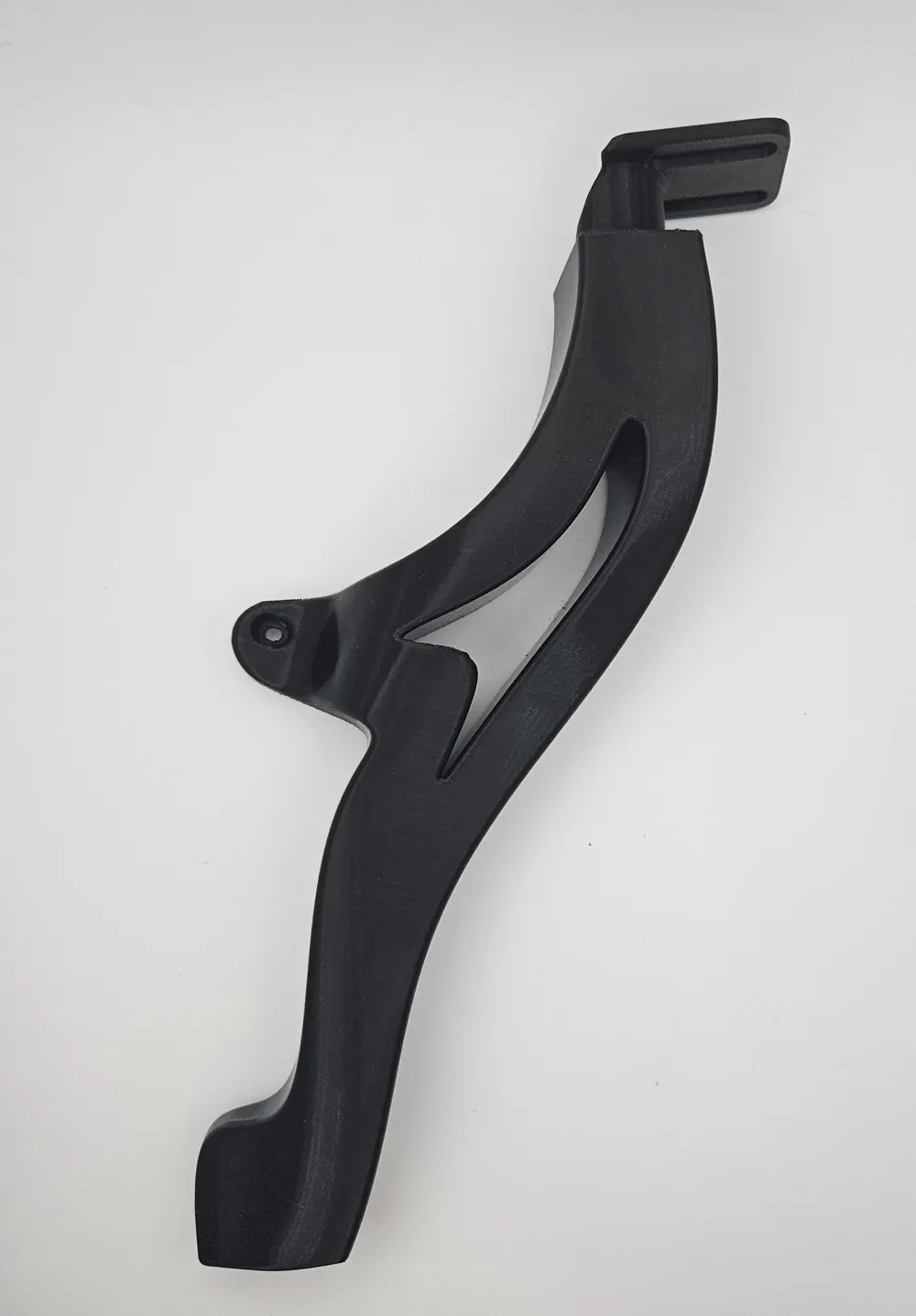

This is a sculpted two-part upper side-mount track switch holder that lets you fine-tune both the angle and distance from the machine for easier, more flexible filament routing.  The bracket has a sleek sculpted look, and what you see from the front of the printer is a smooth curved profile that looks intentional.  The cutout in the middle adds some style points, but also can serve as cable management if you run the 6 pin cables through it.

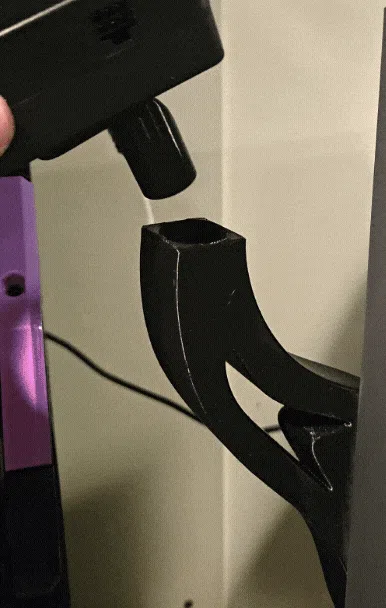

A fixed bracket could pose a problem for my setup with AMS units mounted very close to the printer. I wasn't sure what angle would give the cleanest filament path, so I designed this bracket that can swivel.  This makes initial setup easier, helps with alignment, potentially reduces stress on the connectors, and also makes the device much easier to remove when needed. The slotted mounting holes on the bracket allow for adjusting the distance from the machine as well.

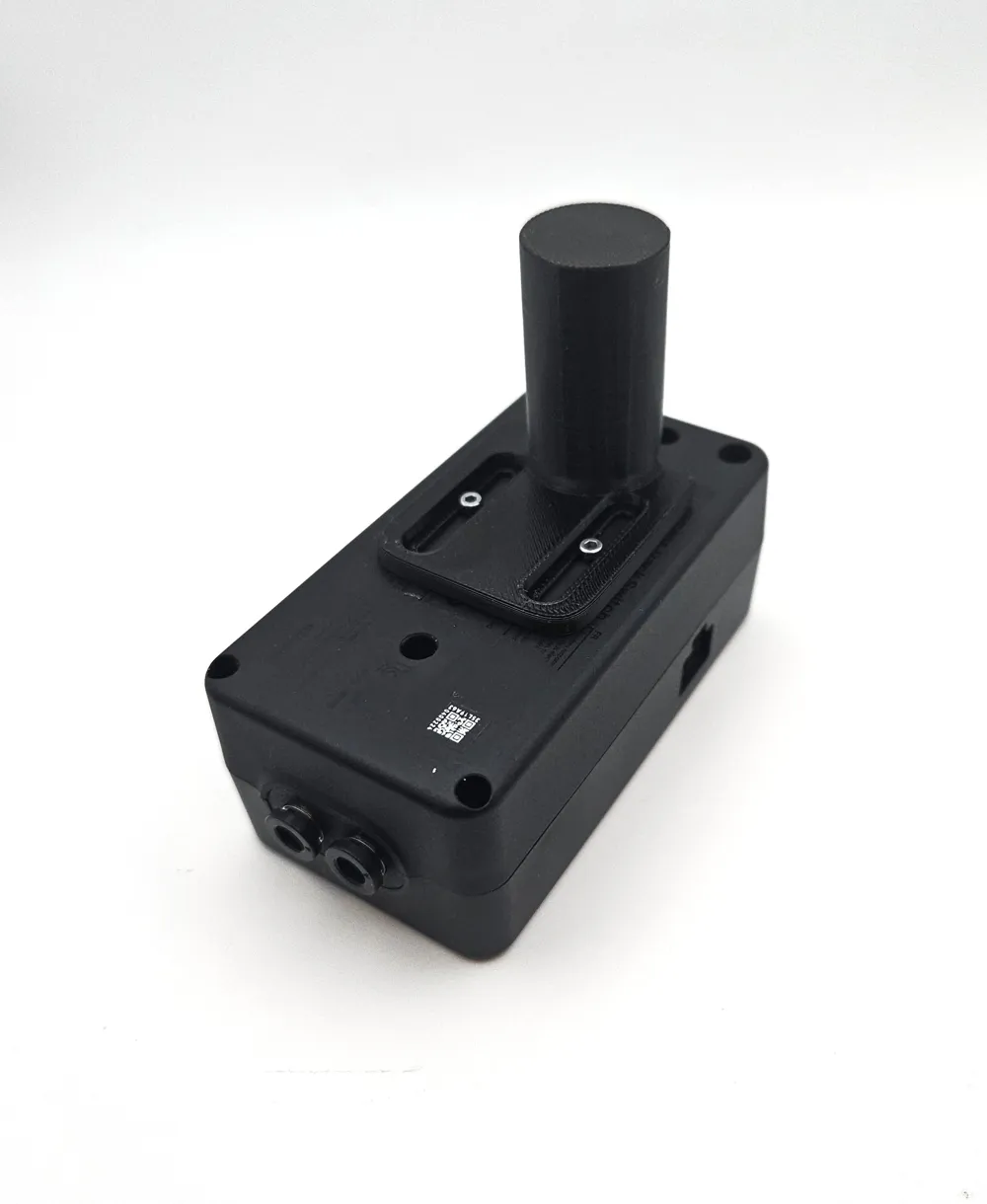

For installation all you need is the longer screw that is included with the switch, it replaces a shorter one already installed on the back of your machine.

---

I suggest printing it with the supports as they are in the profile, the angle is just right to balance a few factors including keeping the support interfaces minimal.
