Introduction:

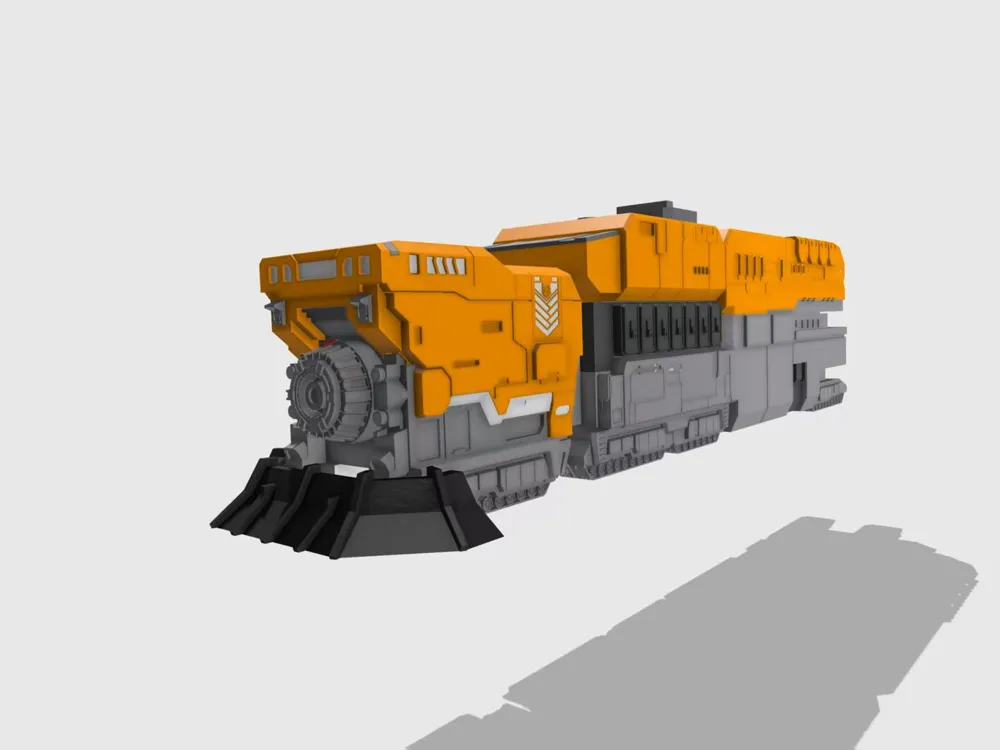

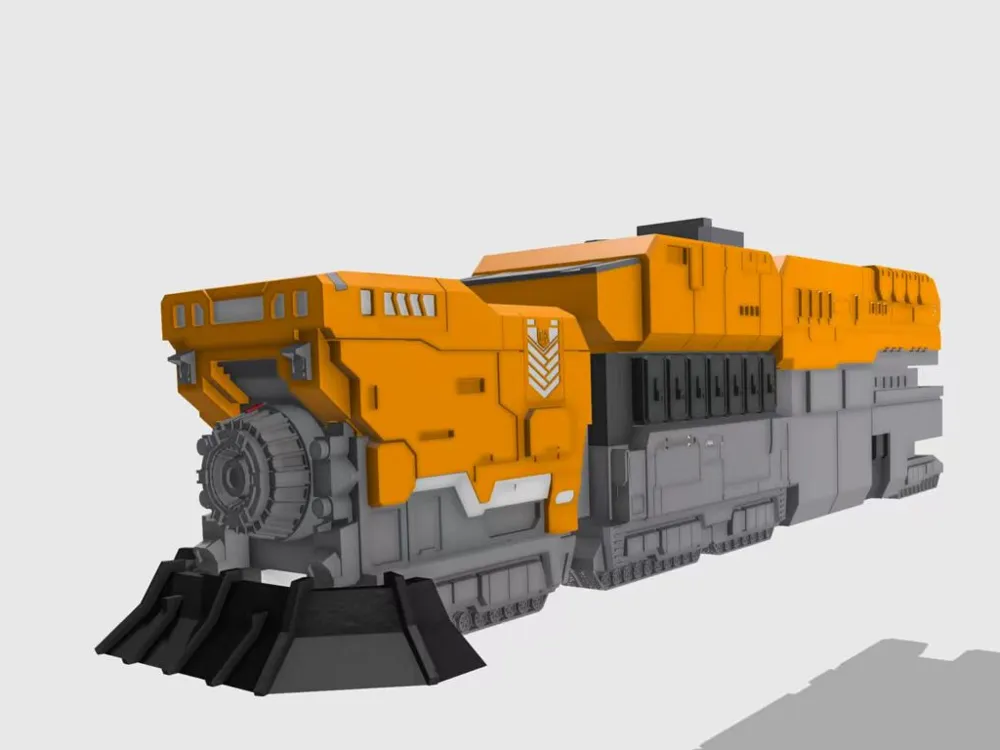

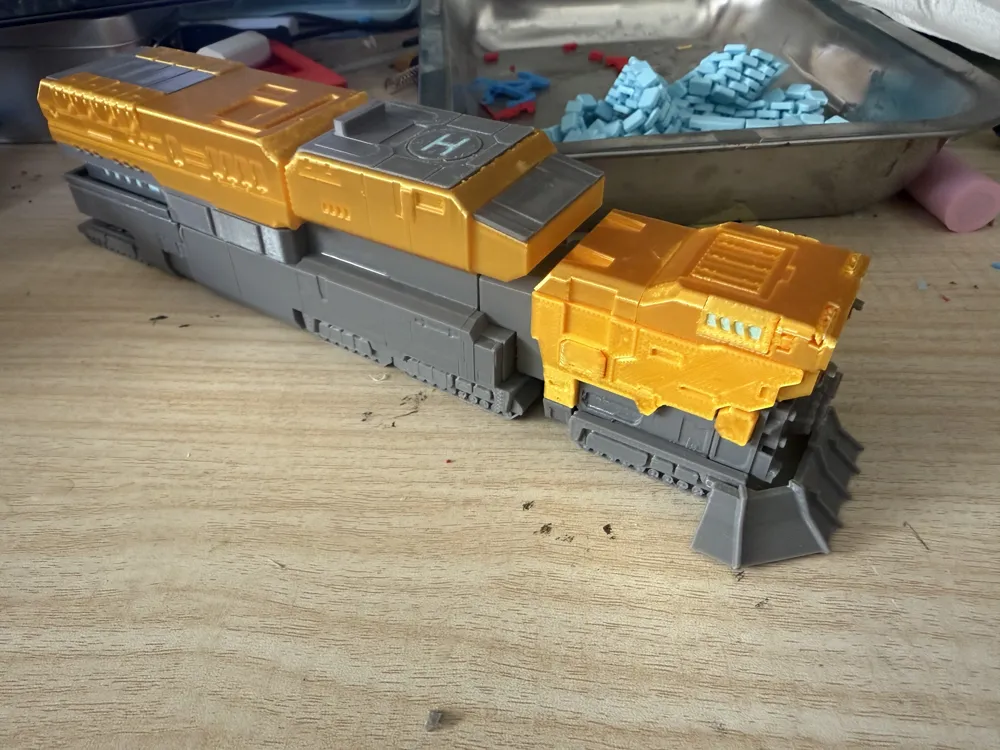

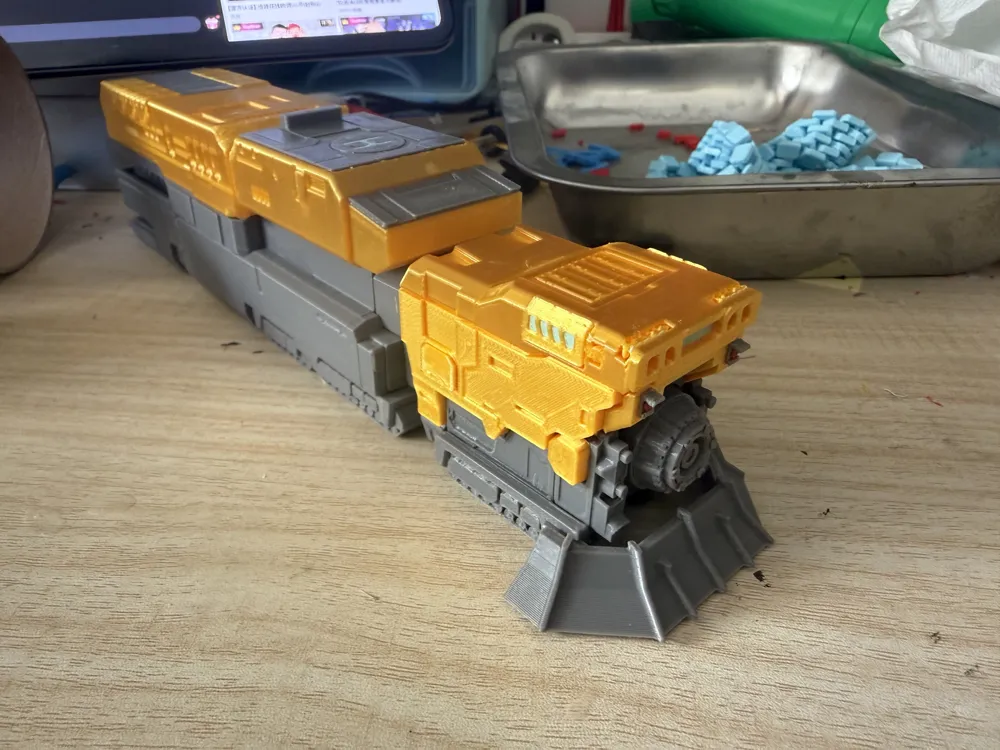

Eimo, the large mobile base vehicle from Girls' Frontline. I re-modeled it based on in-game assets. It is approximately 250mm long, 65mm high, 60mm wide, and A1 mini compatible.
Assembly Instructions:
Several exploded views are provided as assembly diagrams. Assembly requires glue, no hardware needed. Some parts were too small at 250mm scale and were therefore omitted in the actual production.

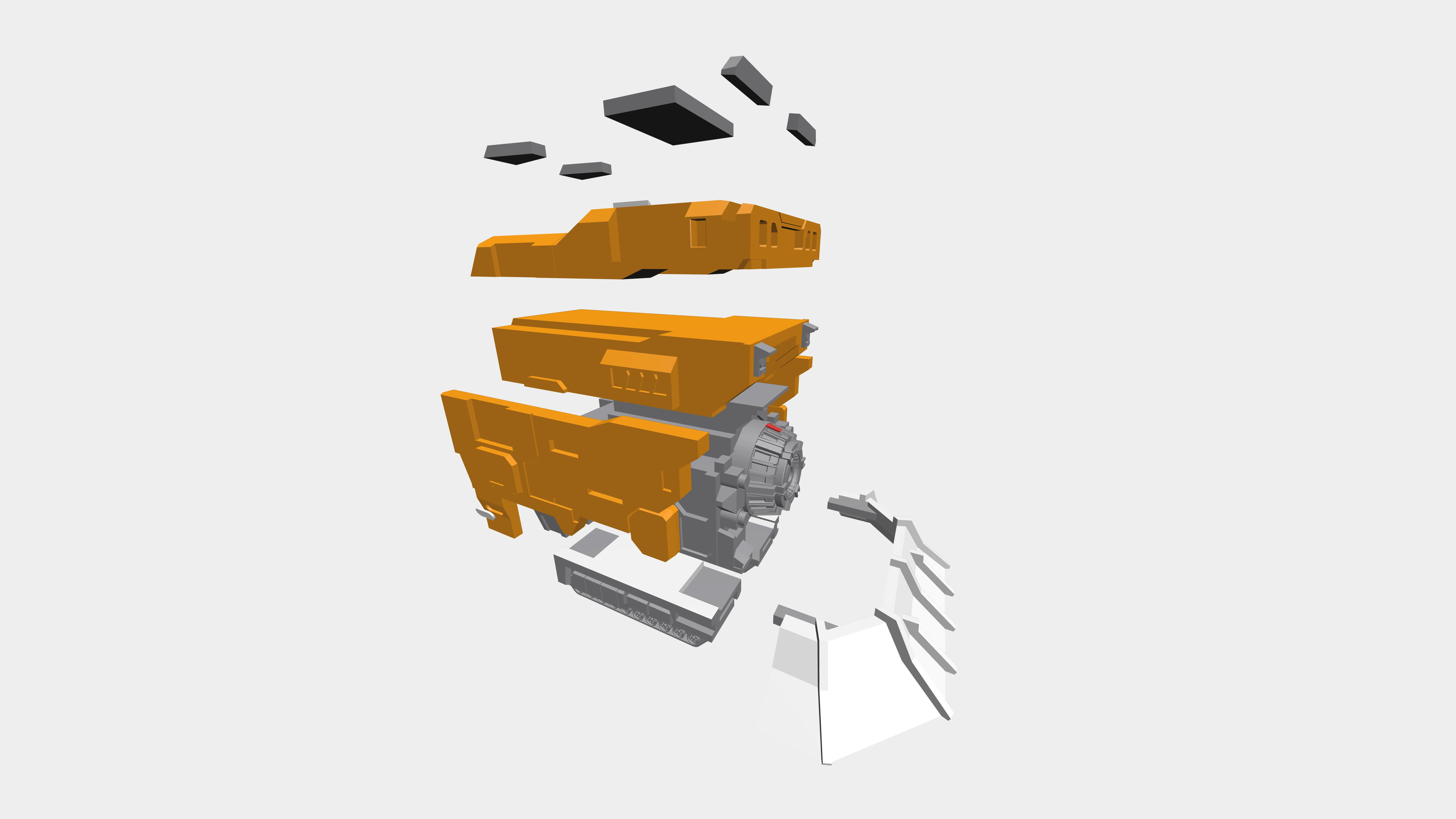

Assembly diagram for the front section, with the plow installed in the slot structures on both sides of the tracks.

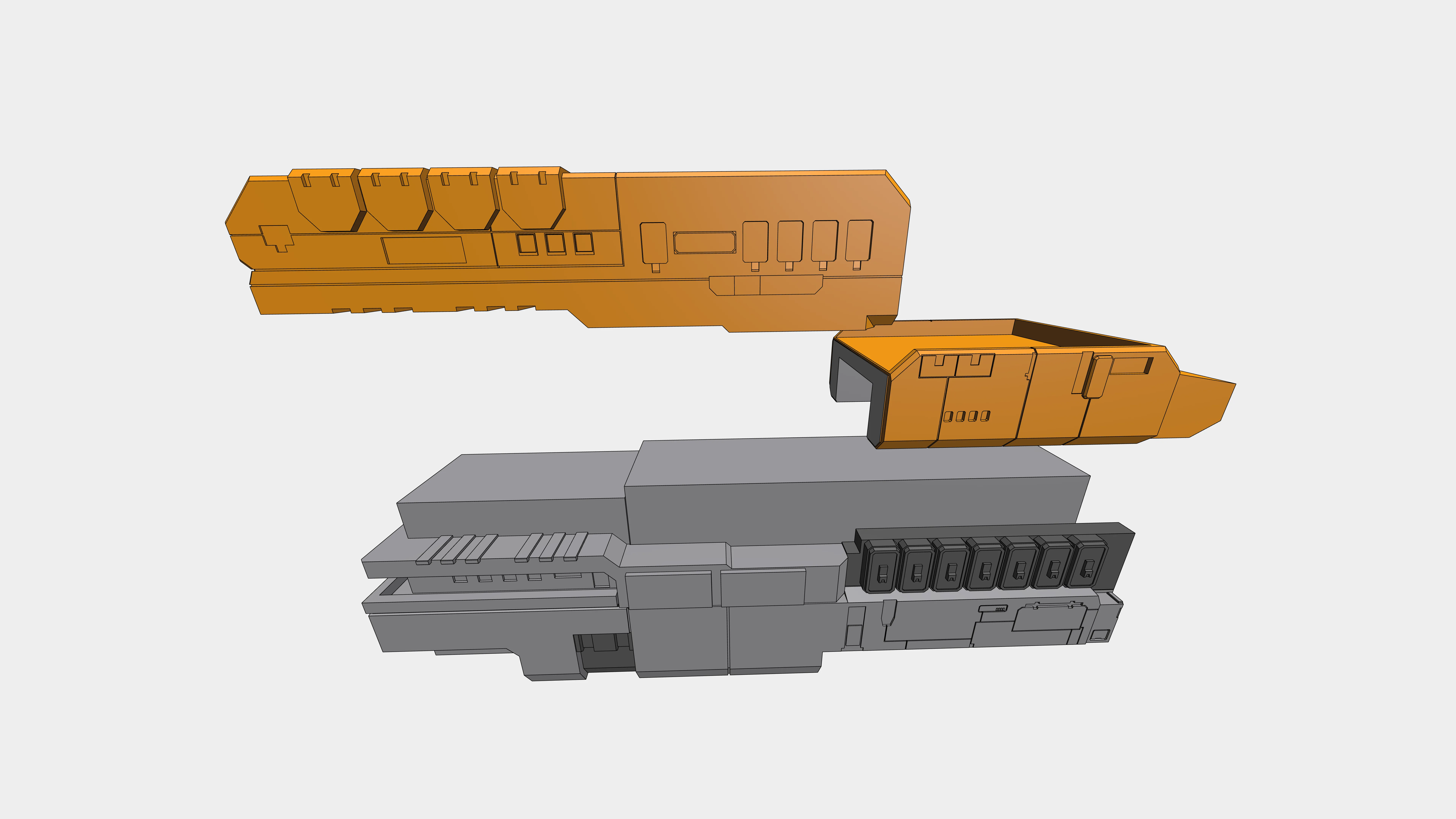

Main body of the carriage
Note the symmetrically glued portholes on both sides of the rear platform of the carriage

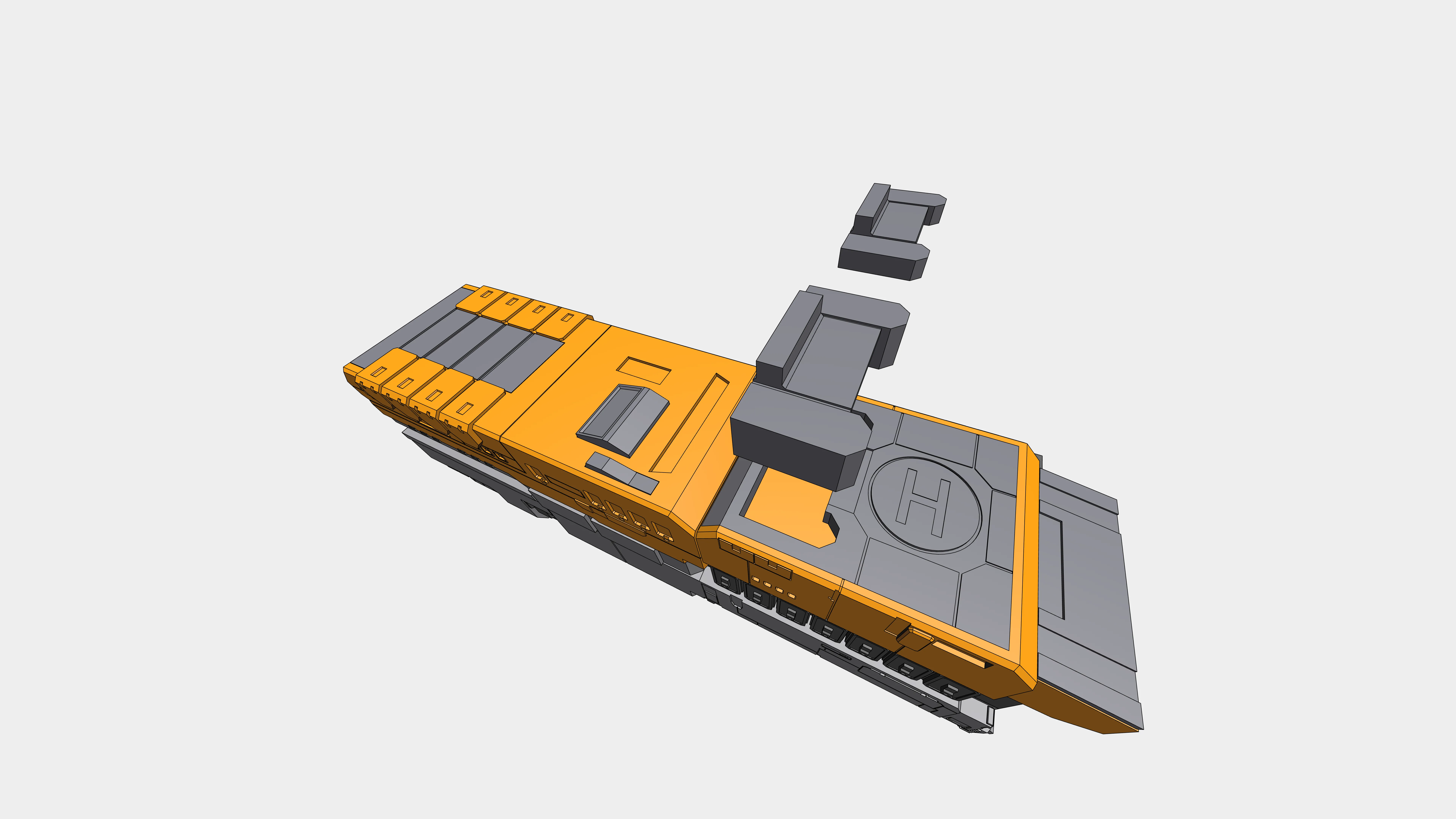

Assembly diagram for the top of the carriage

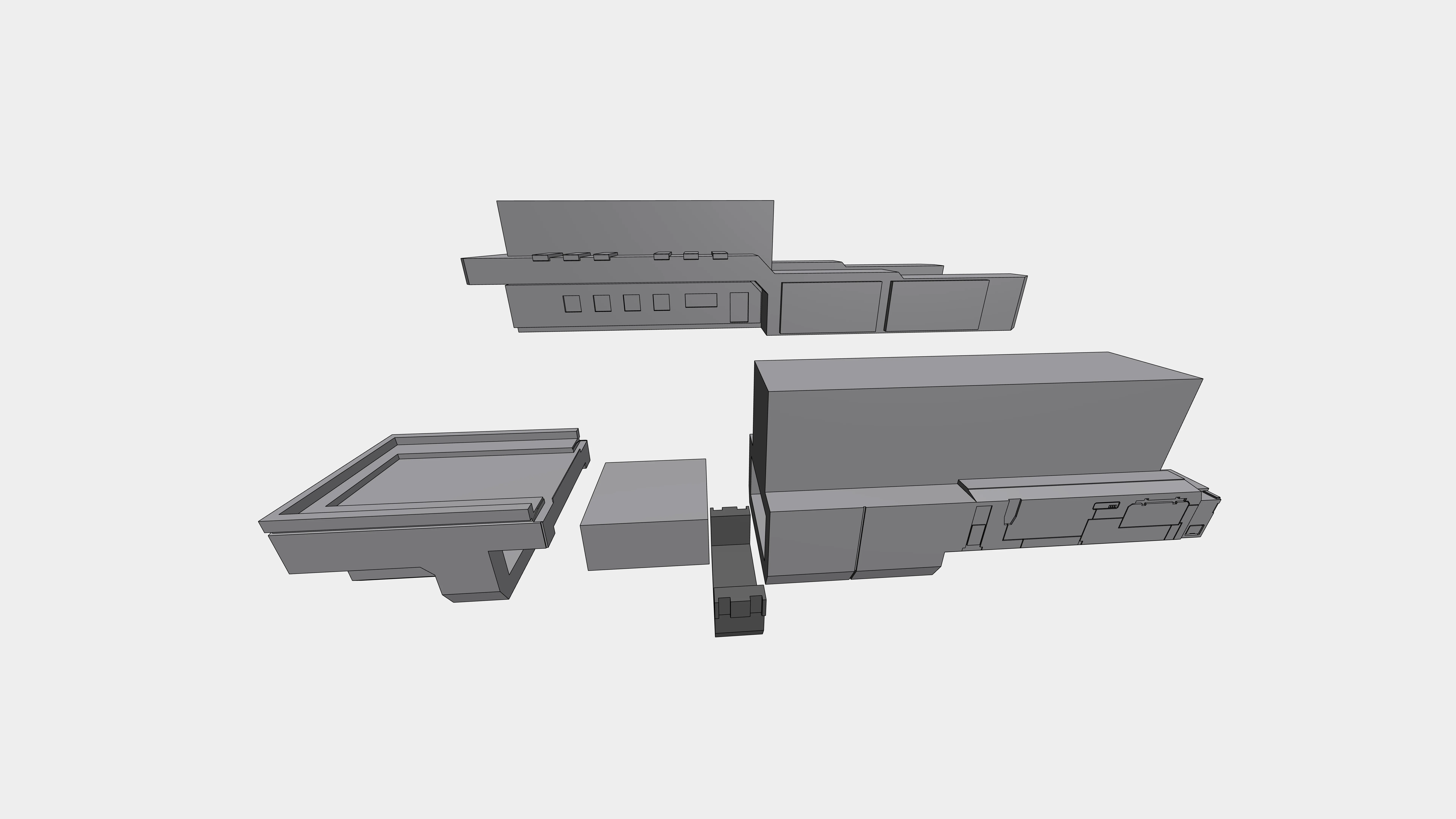

Assembly diagram for the vehicle tracks
Installation of roof decorative parts
Note that the elevating ladder has two separate parts (raised state) (stowed state)

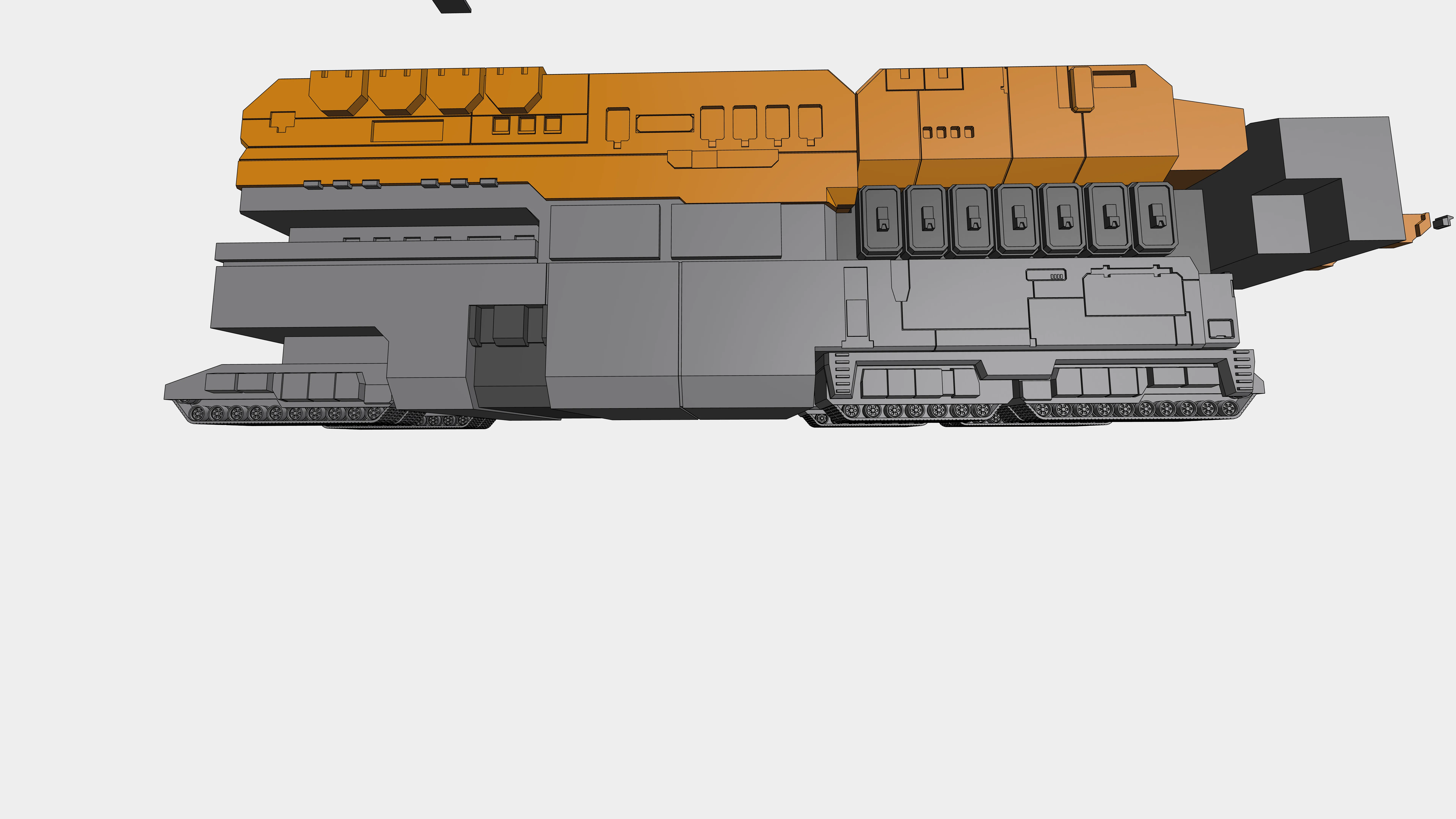

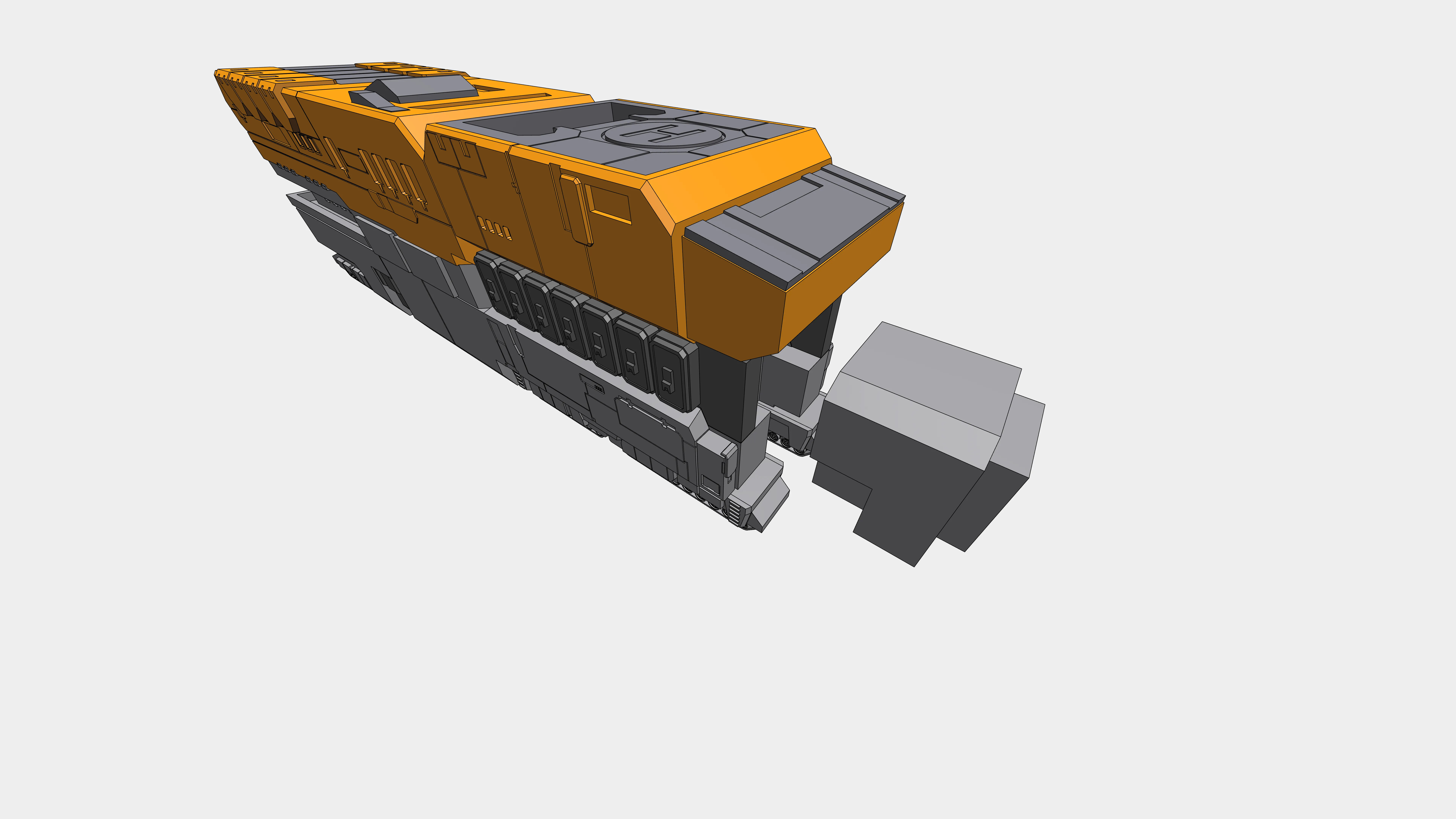

Assembly diagram for vehicle body connections
