AQUARIUM SENSOR RETAINER
Print Profile(1)
Description

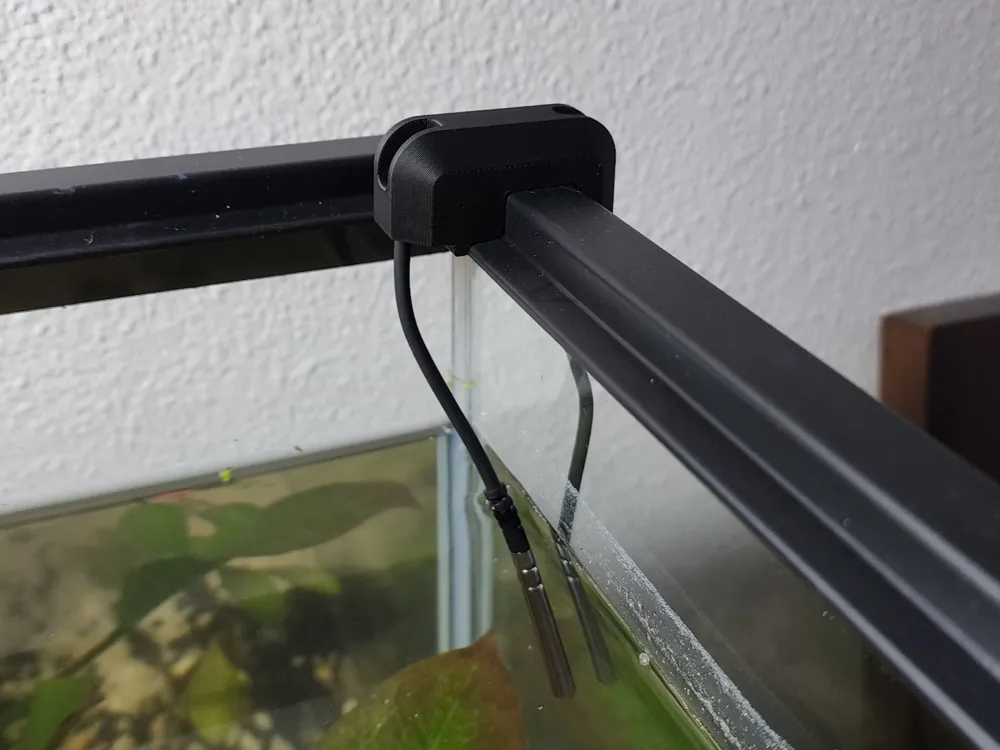

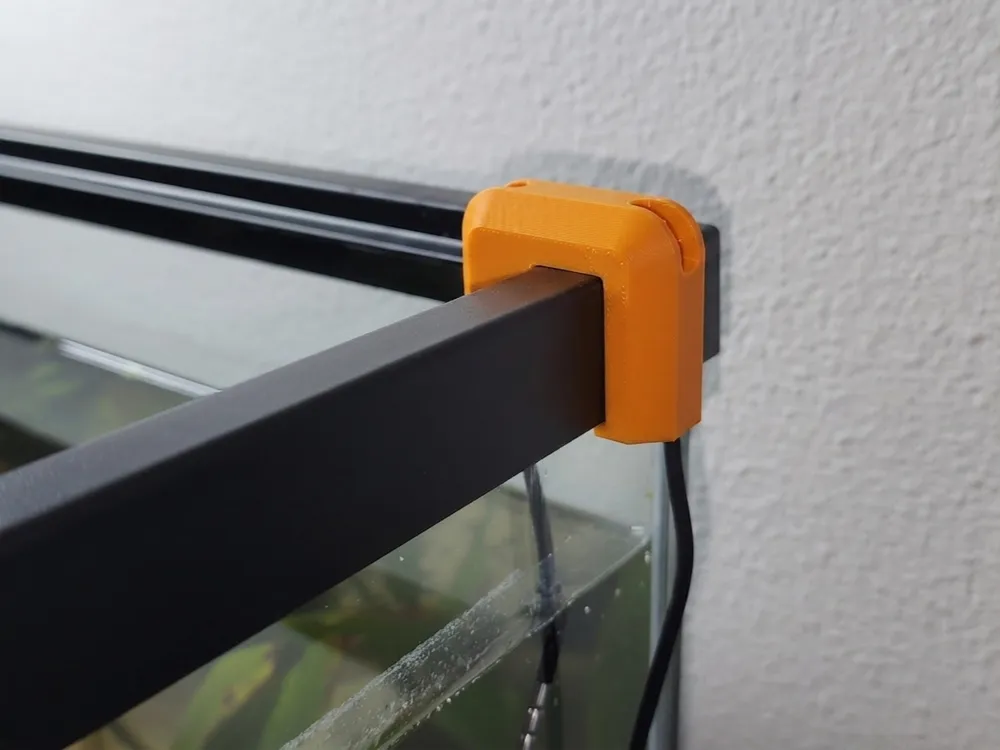

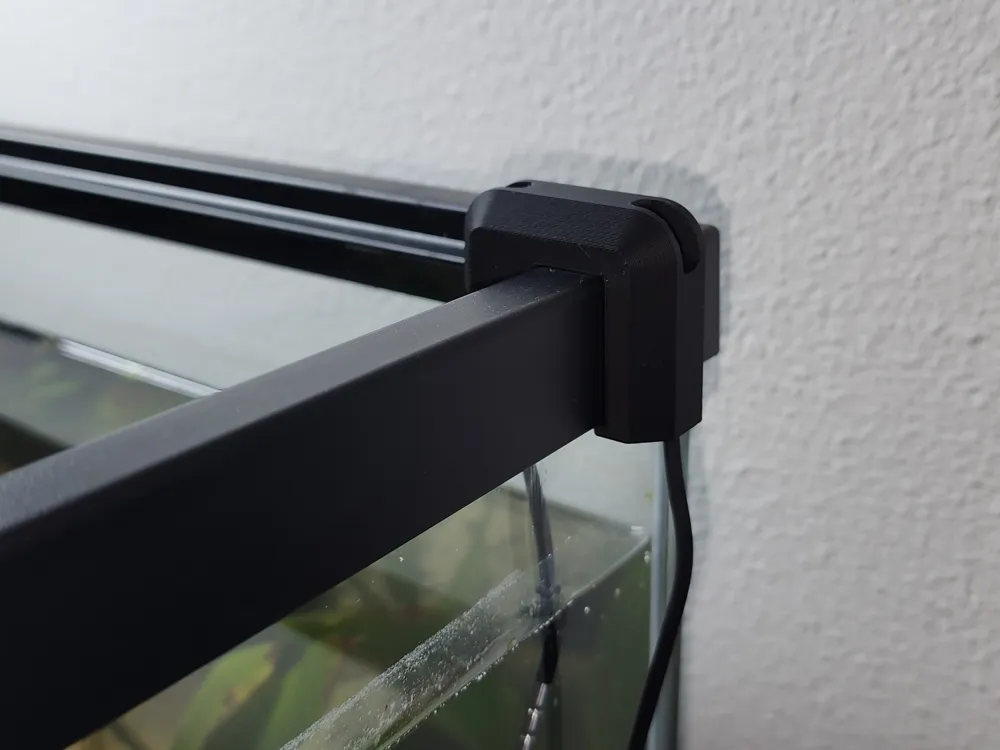

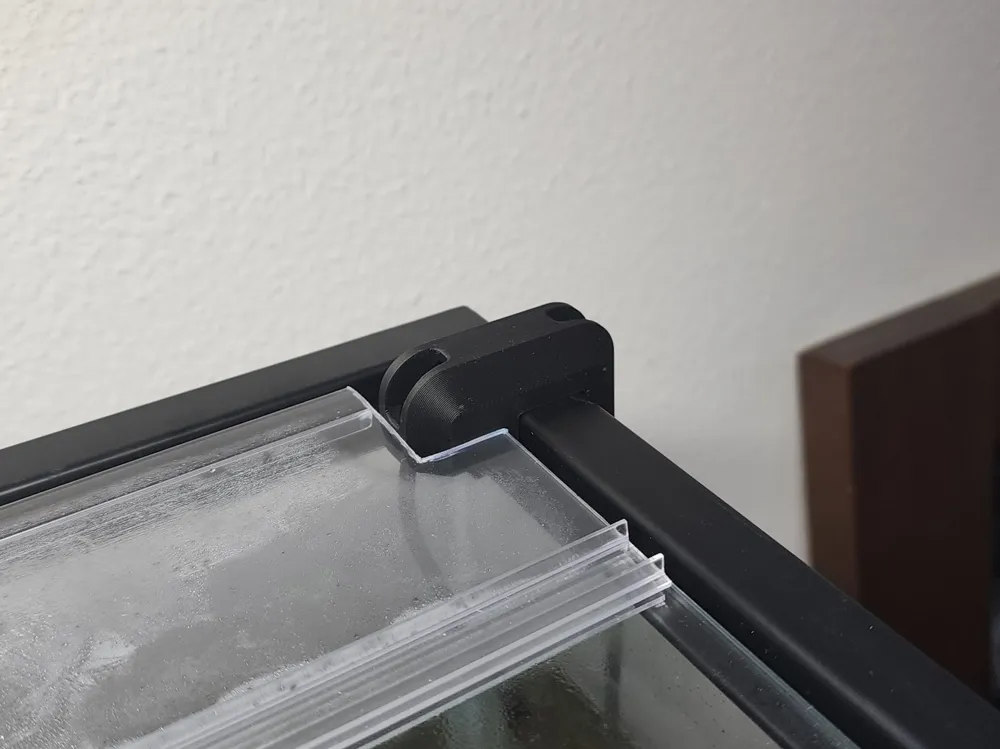

Rather simple Aquarium temperature sensor retainer, should work for most Aquariums with a frame, although it was specially designed for the Imagitarium brand found in Petco.
Works great with most Inkbird heating and cooling temperature controllers, but can serve as a retainer for almost any cable, probe or tubing up to .2" or 5mm max diameter.
Installation:
- For most sensors with a steel rod you must first pull the rod through and out of each shoulder hole, pull the wire away from the hole to make space to re-insert the rod through the same hole and onto the next (see photos).
- Push down on the retainer until you hear the bottom tab snap onto the exterior base of the Aquarium rim.
No supports required.
For my aquarium automatic water change system design see:
Let me know if you have any questions or have suggestions for improvement.
