A.R.C Formula Offroad Racer Chassis 1/10
Print Profile(3)
Description
Hey All,

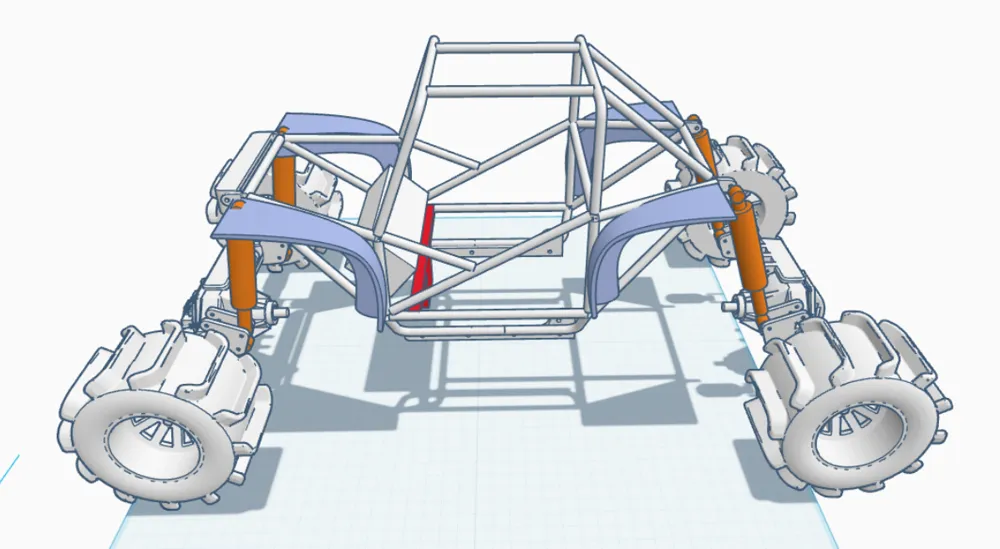

Here we have a Formula Offroad chassis kit based on the Axial Bomber or Wraith.

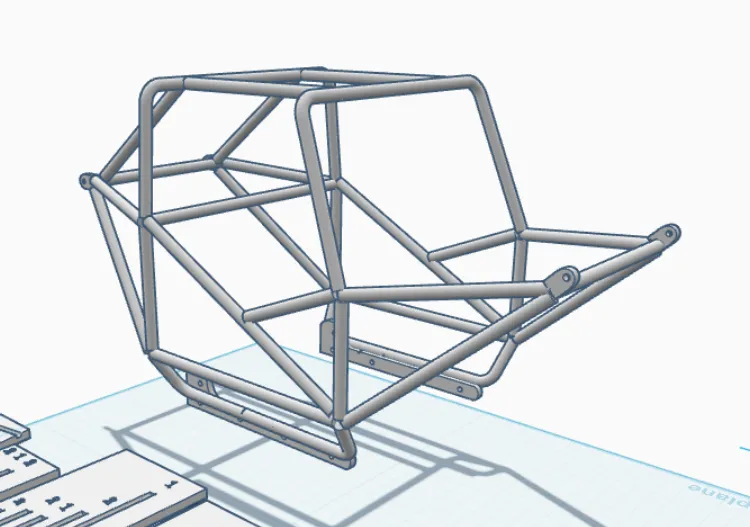

Cage is made from 3/16 Solid Rod, is bare bones so to speak so you can add and change to suit your needs. Be it bigger shock towers, extra bracing ect ect. Keen to see what You guys come up with from this.

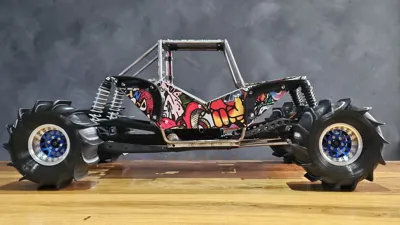

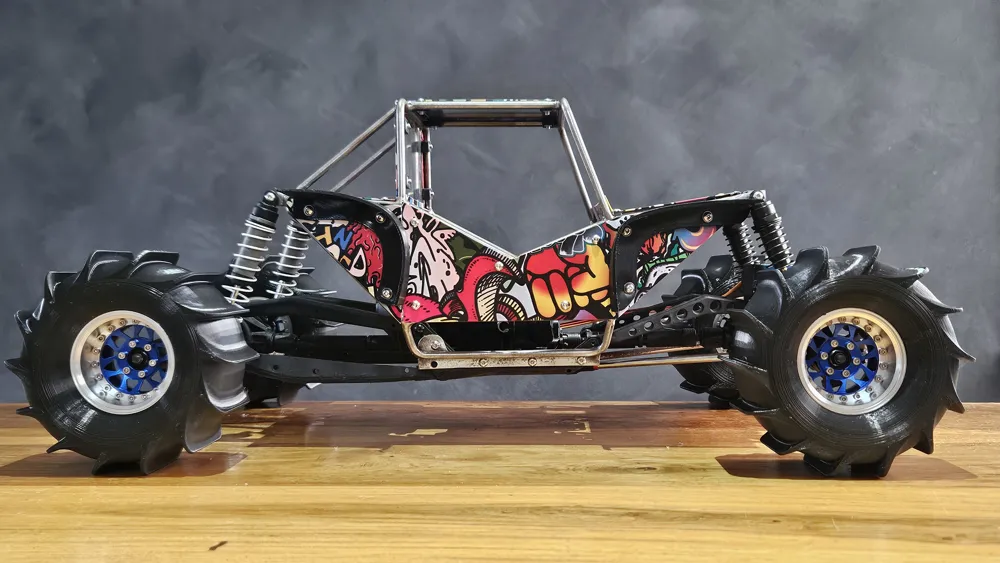

Panels you can make from anything, printed, rubber, 0.5mm alloy like what is shown and wrapped.
The kit includes the Following,

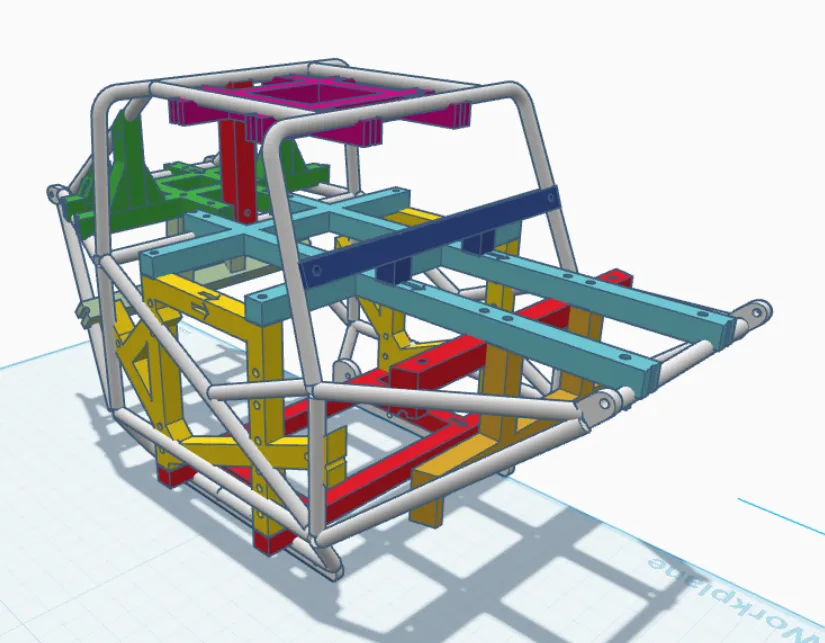

Jigs

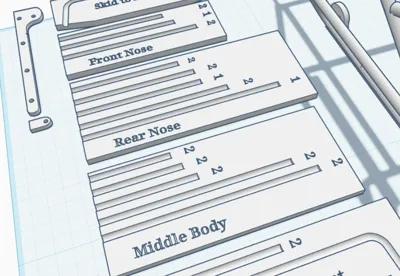

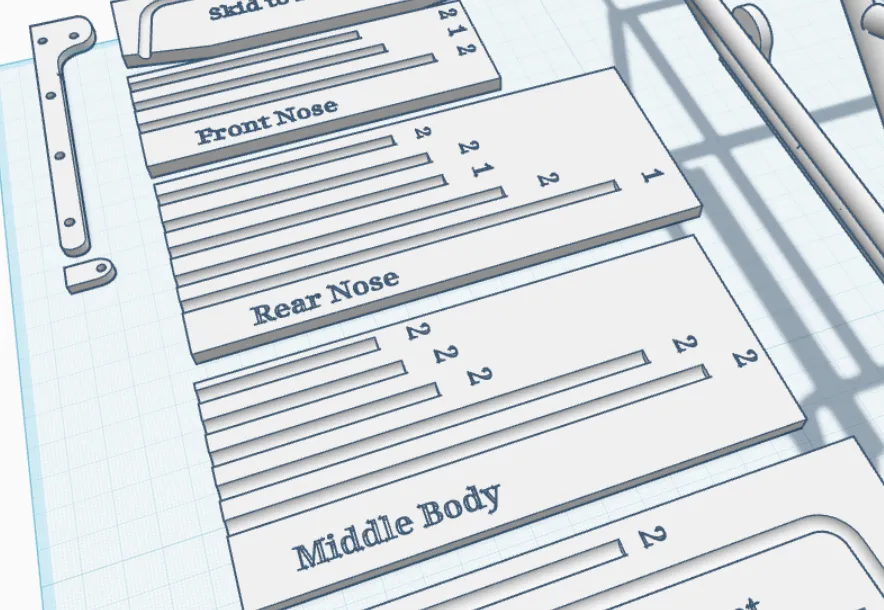

Templates
Associated printed parts needed
Bunch of images to help assembly
3MF Files
You will require a way to cut, bend and weld cage together
Plus a donor for the driveline.
There is no Provisions for electronics due to the varying size of electrics and batteries.
If anyone comes up with some prints to accommodate these then please share and i can add links on this page.
The files for the Tyres are here >> https://makerworld.com/en/models/2836142-formula-offroad-racer-tyres#profileId-3161009
Templates printed in PLA, Jigs in PETG with atleast 3-4 walls for strength while welding. Parts in PETG and the Flares in TPU
Added 3mf files for Jigs, Templates and Parts.
Some people having issues downloading the folder that contains all the files and images to help build.
A.R.C
