BMW M57 open intake adapter E90 E60 E39 E46
Print Profile(2)
Description

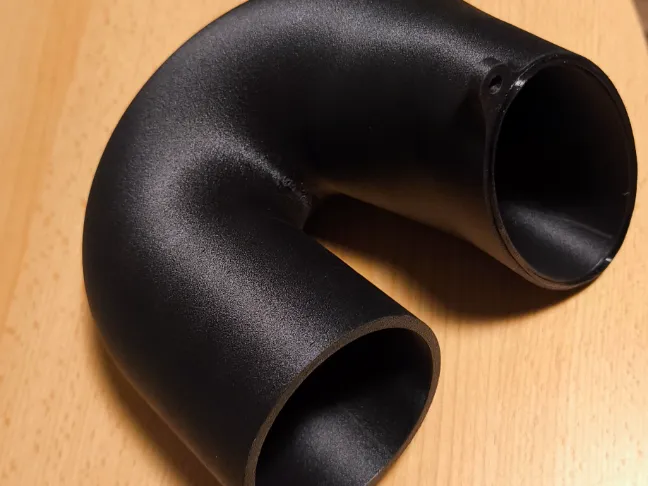

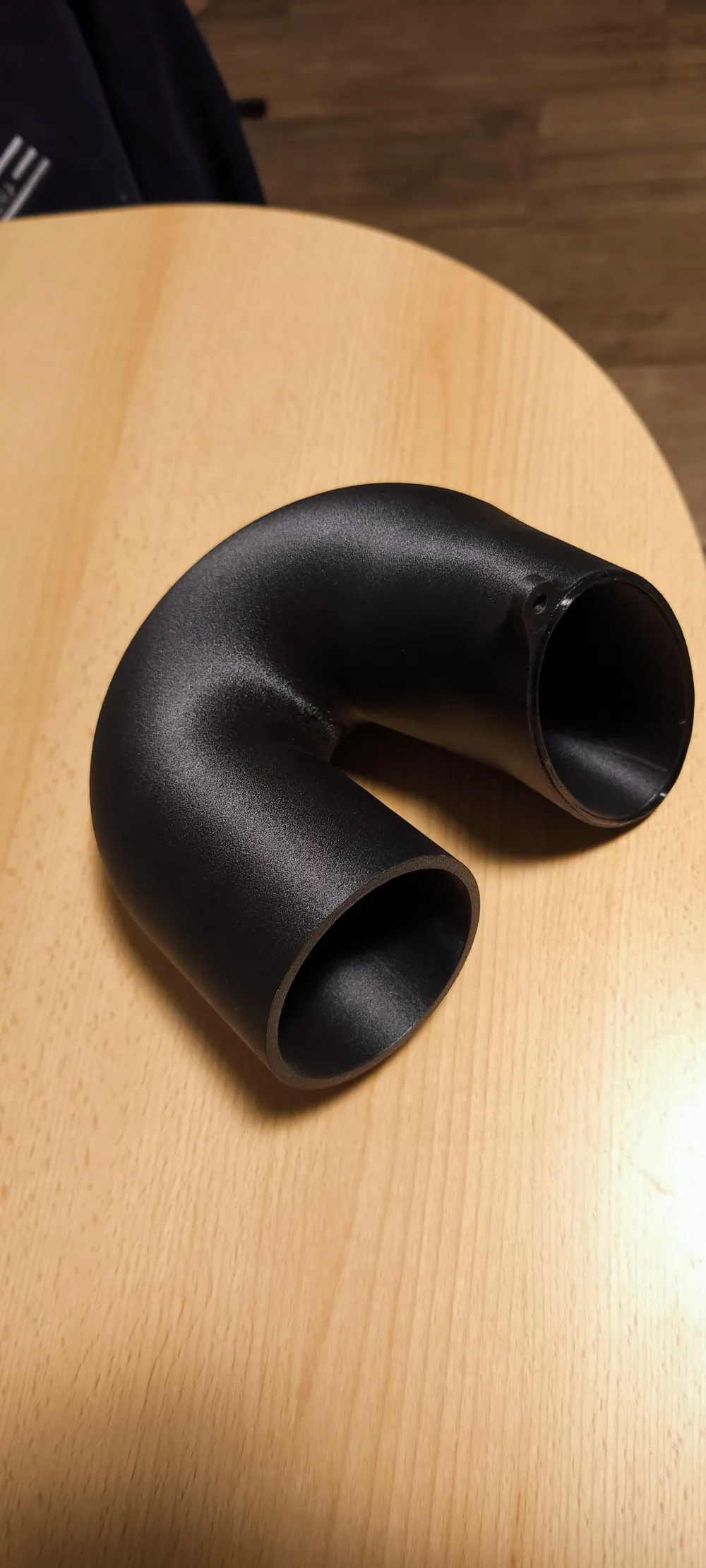

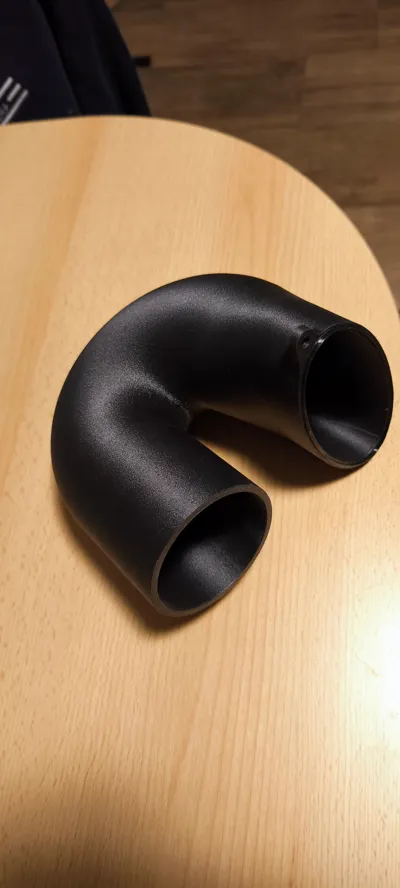

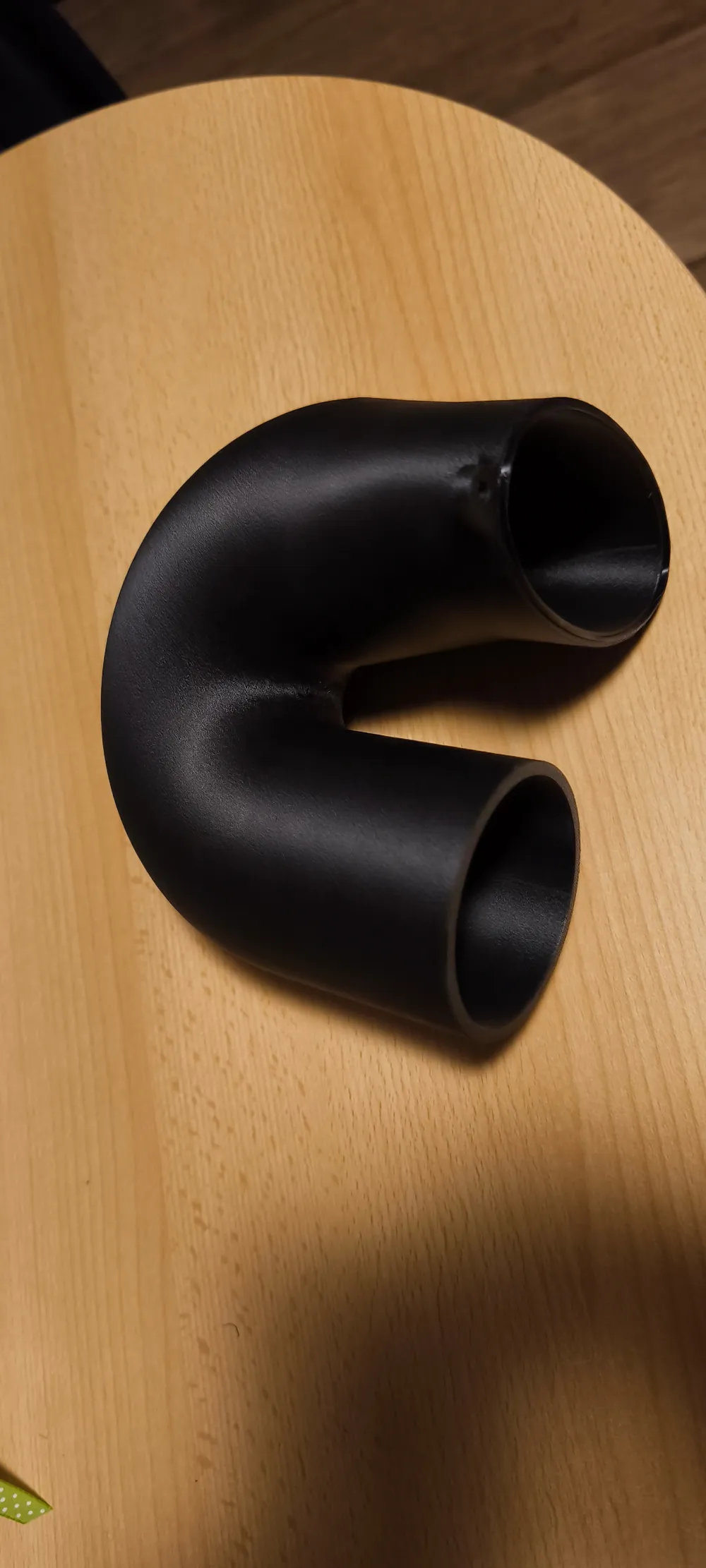

This is an **intake hose / intake adapter with 80 mm outer diameter** for BMW vehicles with an **M57 engine**
This part is designed for conversion to an **open intake** or a custom-fitted intake system
The model was tested on a **BMW E61 with an M57 engine**
In principle, the part should also fit many other BMW models with an M57 engine, for example:
- BMW E90 / E91
- BMW E60 / E61
- other BMW models with M57 engine
Please check before printing and installation whether the space conditions and connections fit your vehicle
Boost Me (for free)
Happy printing and boost on! 🔧🚗
Features
- Intake hose / intake adapter for BMW M57 engines
- 80 mm outer diameter
- Suitable for open intake / custom intake setup
- Tested on BMW E61 M57
- Usable for many M57 conversions
- 3D Printed replacement or tuning part
- 3MF includes prepared variants / profiles for different materials
- Optionally usable with a separate TPU seal
Included Files
The 3MF includes prepared files or profiles for:
- PETG
- ABS
- PA / Nylon
Additionally, a TPU seal can be used if it is included in the model package
Material Recommendation
Since the component is used in the engine compartment, it should definitely be **3D printed** from a **heat-resistant material**
**Recommended:**
- PA / Nylon – best choice for temperature and load capacity
- ABS / ASA – good heat resistance, but print cleanly and rework if necessary
- PETG – only conditionally recommended, rather for tests or less hot areas
**Not recommended:**
- PLA
- PLA Silk
- normal, brittle decorative material
PLA is not suitable for the engine compartment, as it can soften and deform with heat
- Before installation, check whether the diameter and position fit the vehicle
- Check all edges and sealing surfaces after printing
- Check component for cracks, leaks, and clean layer adhesion
- Tighten clamps only enough for the component to sit securely but not be damaged
- After the first test drive, check again that everything is sealed and tight
- Maintain sufficient distance from hot engine parts, manifold, turbo, and moving parts
Important Safety & Legal Note
This is a custom 3D printed part for hobby, tuning or motorsport use.
It is not an official BMW part.
Changes to the intake system may affect road legality, TÜV approval, emissions, noise level, insurance or vehicle warranty. Please check your local regulations before using it on public roads.
BMW® is a registered trademark of its respective owner. This model is not affiliated with, endorsed by or connected to BMW.
If the model helps you
If this part helps you with your M57 project, I would appreciate a like, a review, or a picture of your make
Feedback, suggestions for improvement, and experience reports on other M57 models are welcome
Happy printing and boost on! 🔧🚗
