Dual 18650 Power Bank – 22.5W USB-C PD QC4+
Print Profile(1)
Description

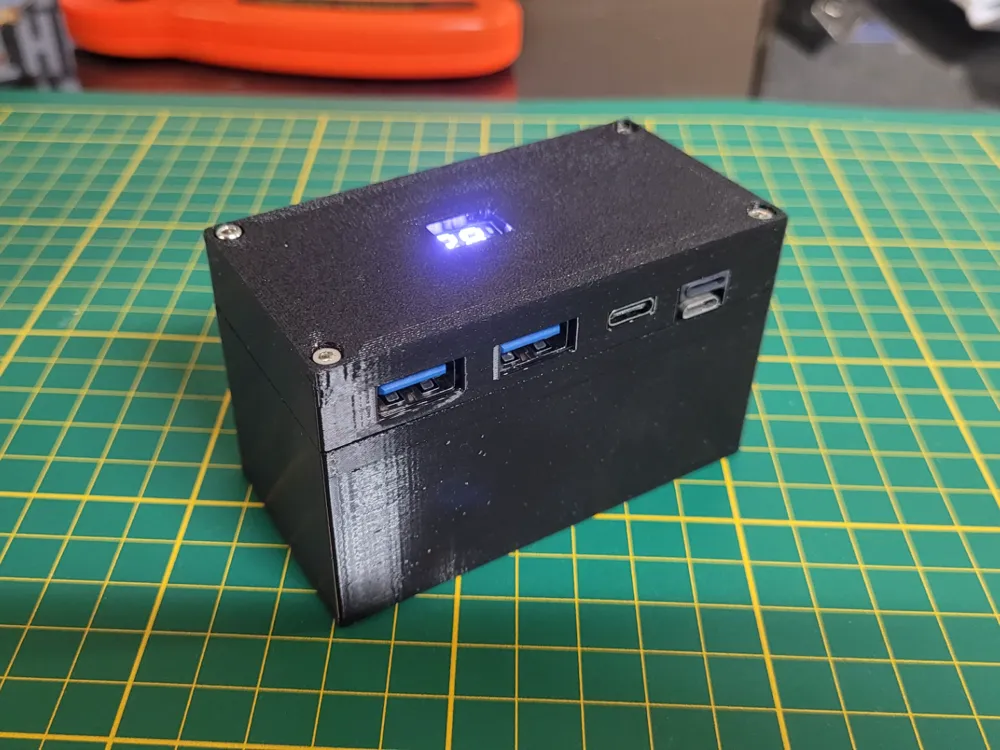

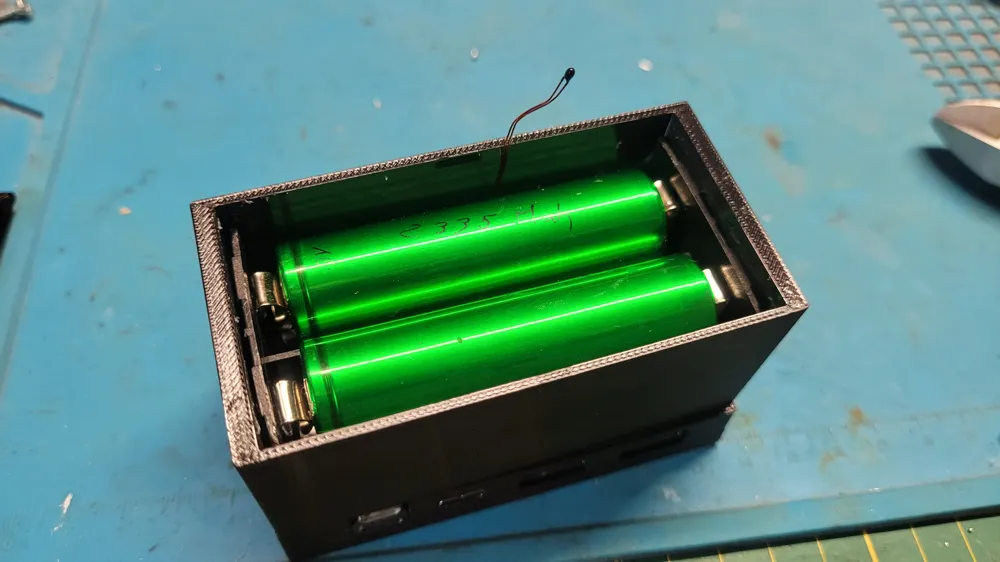

This 3D-printed enclosure houses two 18650 cells alongside a compact and cheap USB-C fast charging module, turning readily available batteries into a fully-featured power bank. The design prioritizes repairability — cells can be swapped in seconds without any tools. A side-mounted button activates a built-in LED display showing the current battery level, so you always know your remaining charge at a glance.
The integrated module supports up to 22.5W output with a wide range of fast charging protocols including PD3.0/PD2.0, QC4+/QC4/QC3.0/QC2.0, AFC, FCP, SCP, SFCP, VOOC, and PE2.0/PE1.1. On the input side it handles PD3.0/PD2.0, AFC, FCP, SCP, and PE1.1, with USB Type-C Try SRC support and BC1.2 DCP / Apple / Samsung compatibility. Charging efficiency reaches up to 95%.

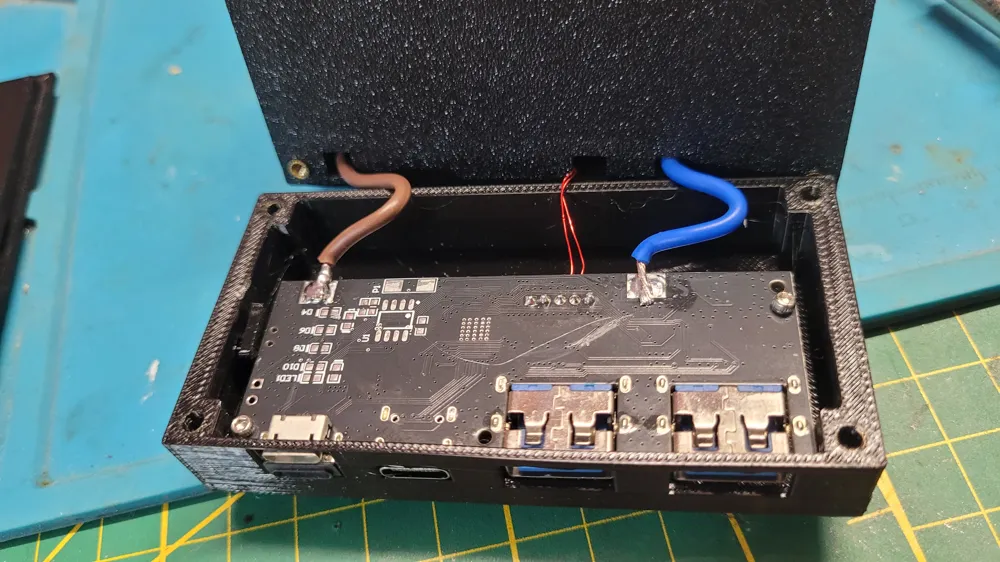

Assembly requires 2× M1.6×8 screws for the board and 4× M2.5×16 screws with 4× M2.5×L6×D3.5 heat-set inserts.
AliExpress links for all components (module, dual 18650 holder, screws, inserts) :
18650 holder : https://aliexpress.com/item/1005009209614011.html
Board : https://aliexpress.com/item/1005008762570366.html
Screws : https://aliexpress.com/item/1005005204317611.html
Inserts : https://aliexpress.com/item/1005008963974563.html
