IEC Rocker Switch Enclosure
Print Profile(1)
Description

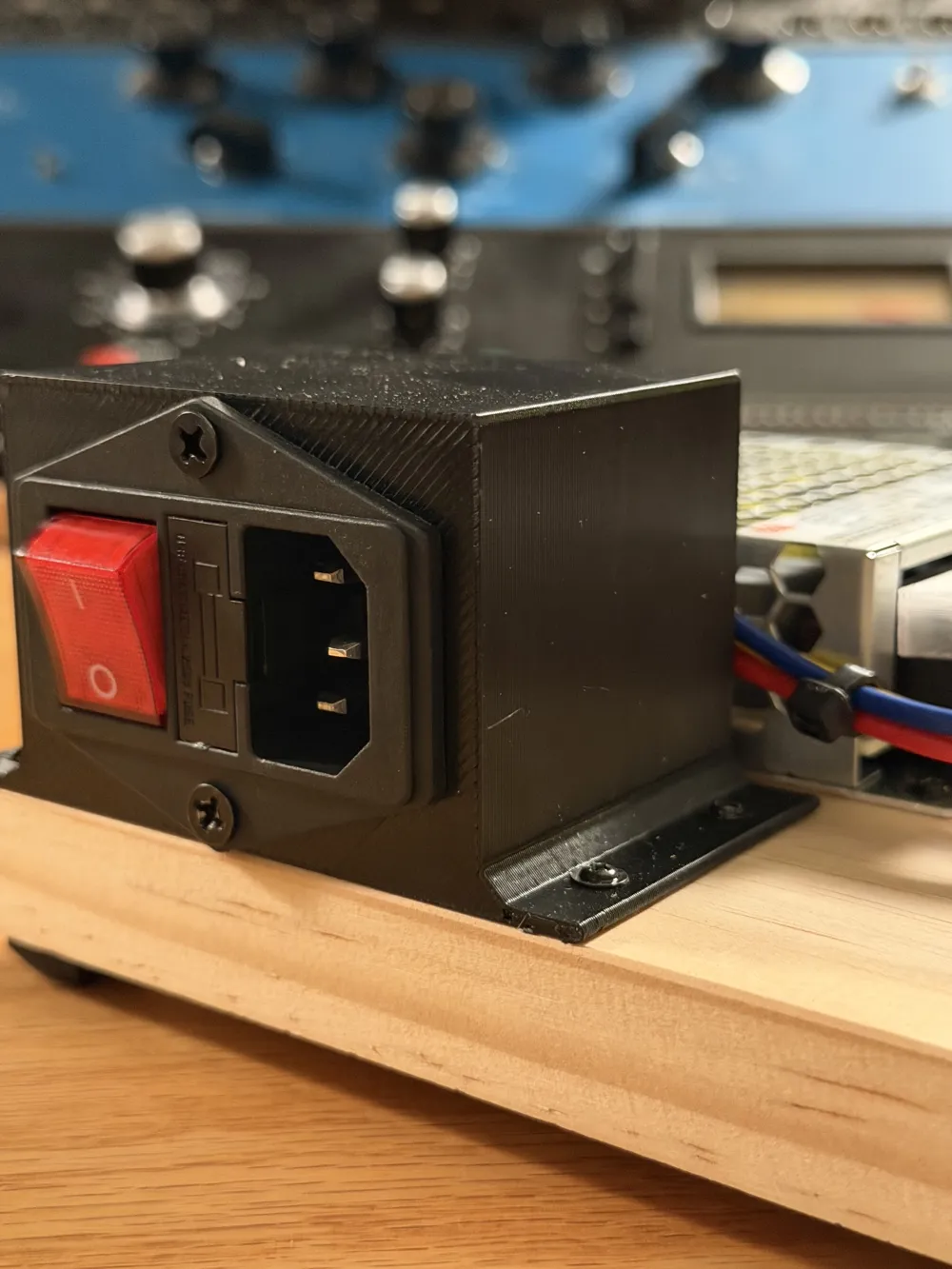

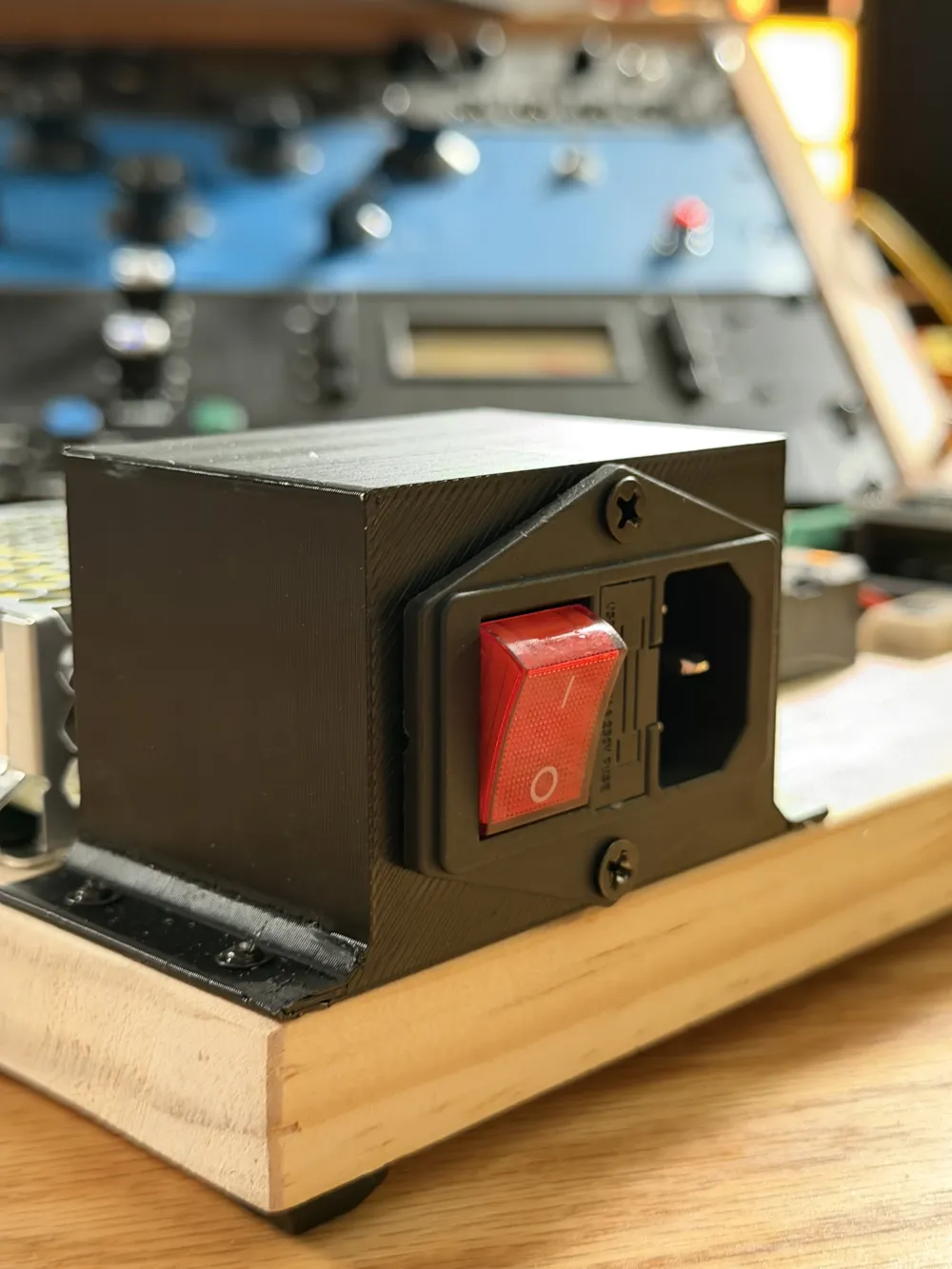

15A 250v Rocker Switch Power Socket Enclosure
A compact, durable power entry enclosure designed for clean integration into DIY electronics projects, control boxes, and custom builds.

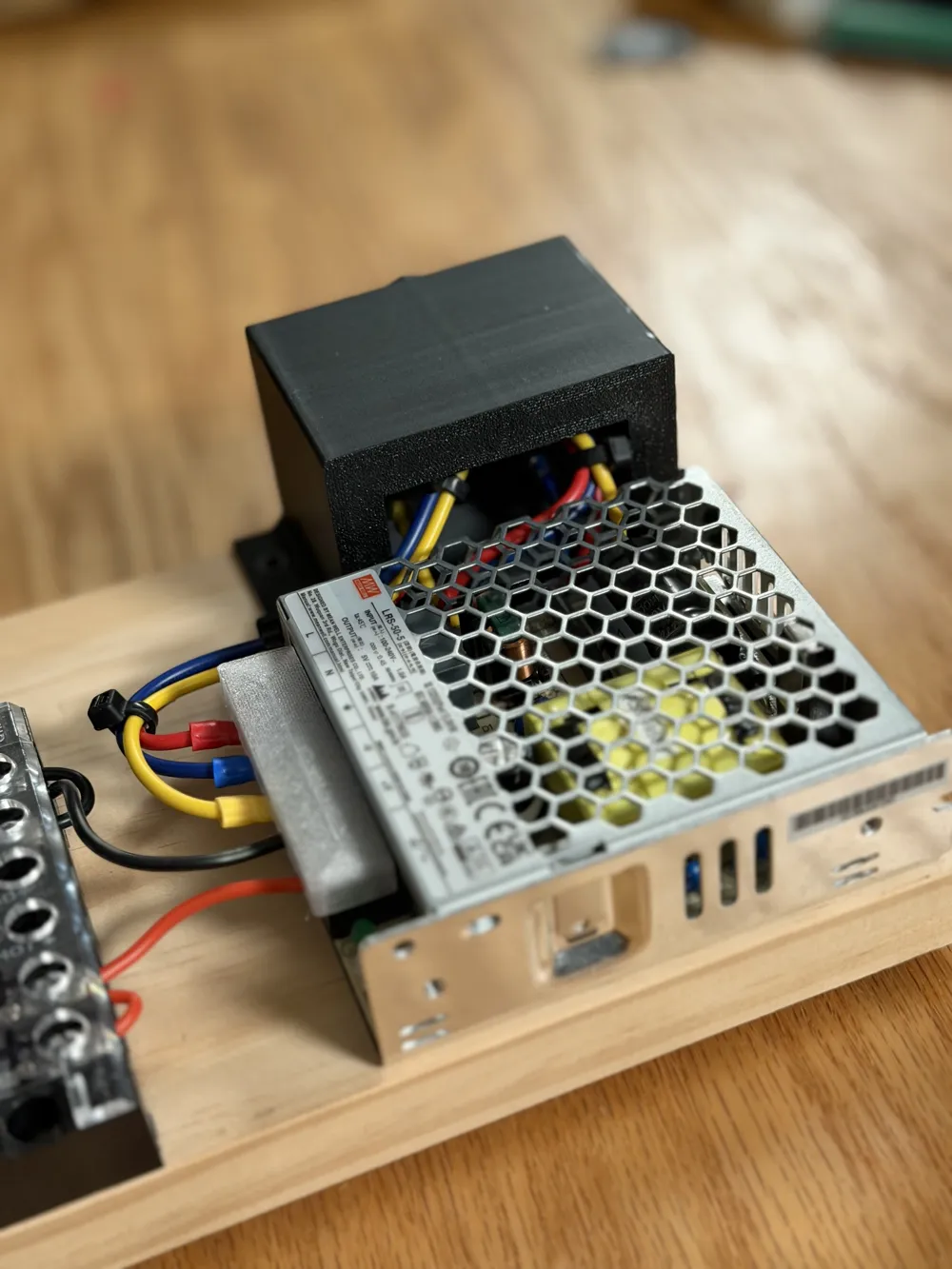

This enclosure was originally created as part of an ESP32/WLED prototyping board, but the design is intentionally general-purpose-making it useful anywhere you need a reliable, switched IEC power input mounted to a surface.
It accepts standard IEC C14 inlet modules with an integrated rocker switch, giving you a simple way to bring AC power into your project in a clean and controlled way.

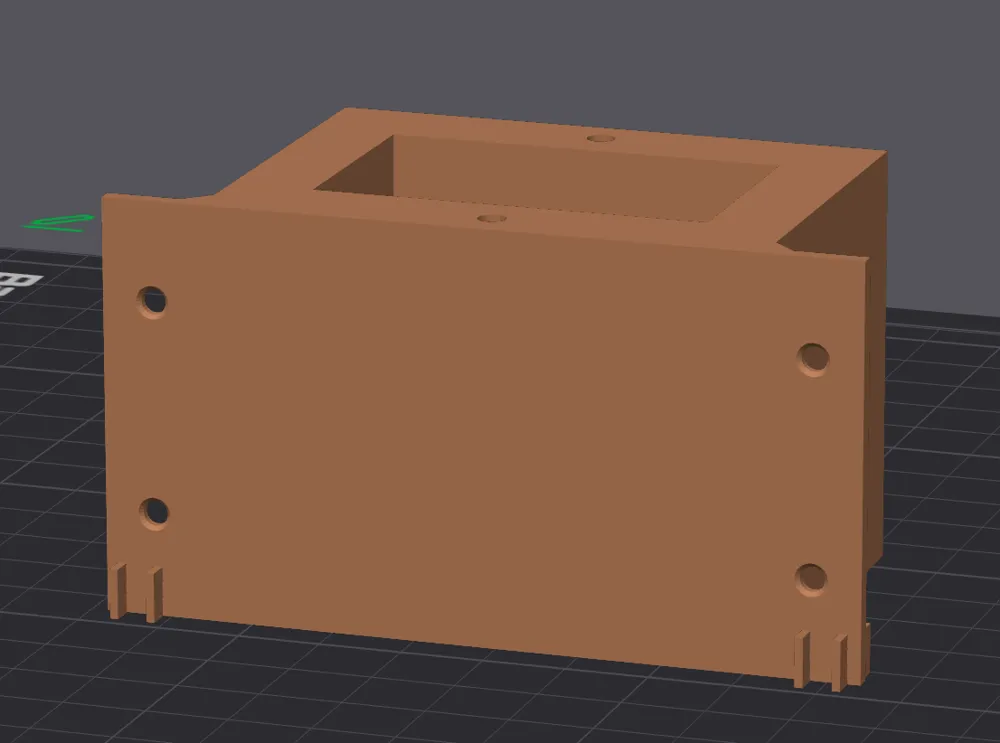

The enclosure includes mounting holes so it can be screwed directly into a base plate, desk, rack panel, or enclosure-ideal for prototyping or permanent installs.

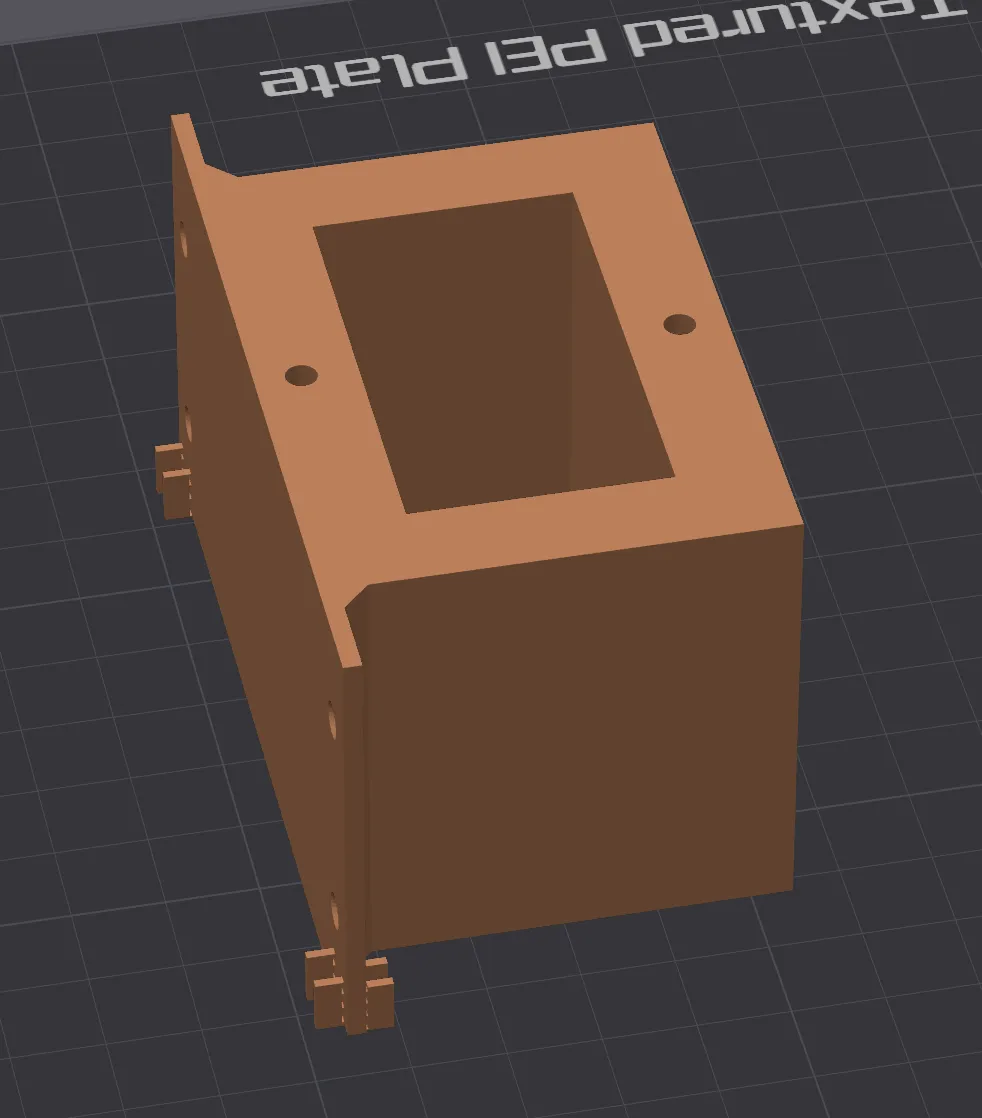

To ensure a clean print without extra setup, the model uses integrated break-off tabs, allowing it to be printed without supports or a brim. Once complete, the tabs snap off cleanly.
Features
Fits standard IEC C14 inlet + rocker switch modules
General-purpose design for DIY electronics and power integration
Support-free print with break-off tabs
Mounting holes for secure installation
Thick walls for durability and rigidity
Clean, minimal look for professional builds
Print Notes
Material: PETG recommended
Walls: 5-6 walls for strength
Supports: None required
Tabs: Snap off after printing
Orientation: Print flat as shown
Use Cases
DIY electronics and prototyping
Control boxes and embedded builds
LED / lighting power setups
broadcast utility builds
Workbenches
Compatible Hardware
Designed around standard IEC C14 inlet modules with rocker switch:
https://a.co/d/0fDhhJVO
(Most similar panel-mount IEC modules should fit)
Files Included
STL (ready to print)
STEP (for compatibility)
3MF (for direct print)
F3D (Fusion 360 source file)
Designed for functional use
Feel free to modify or adapt for your own setup.
Designed by Jesse @ freejoy.club
