X2D/P2S/P1S Sealed Waste Drawer (Poop Chute) V2

🌟 V2 model released, featuring an improved mounting design with top and bottom pins! 🌟

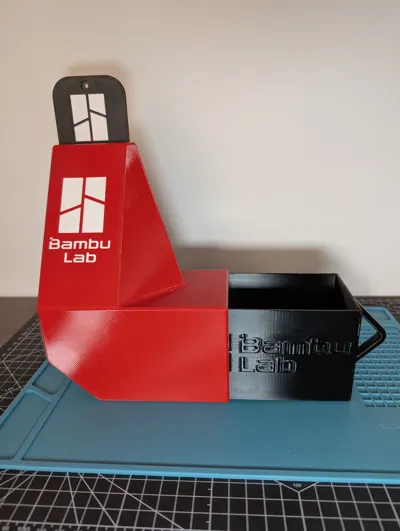

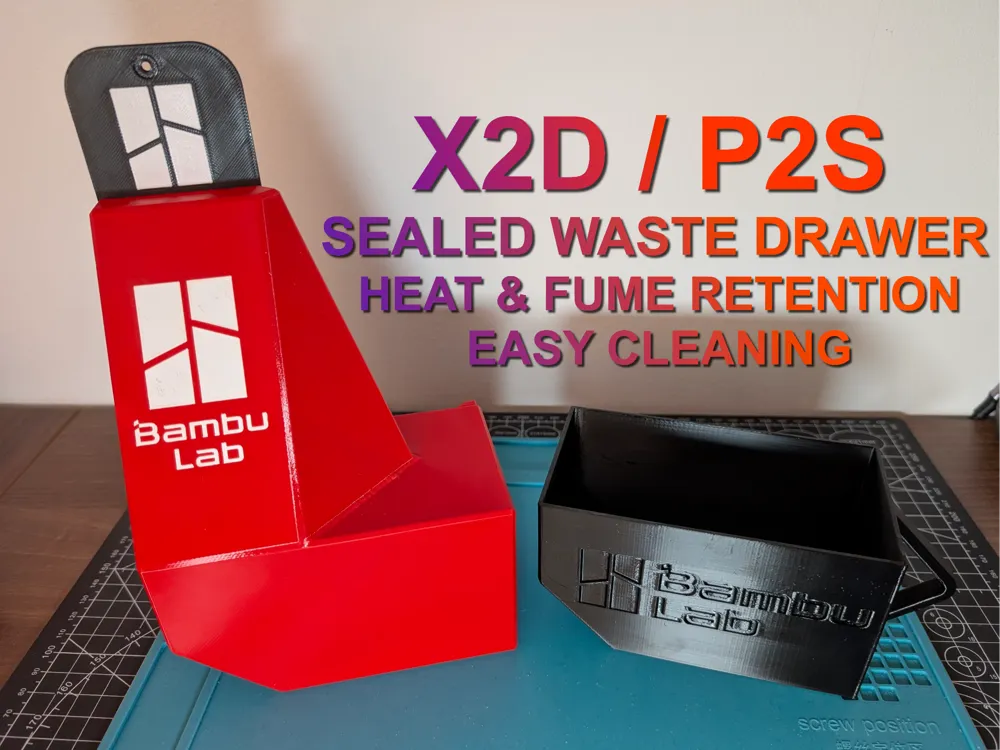

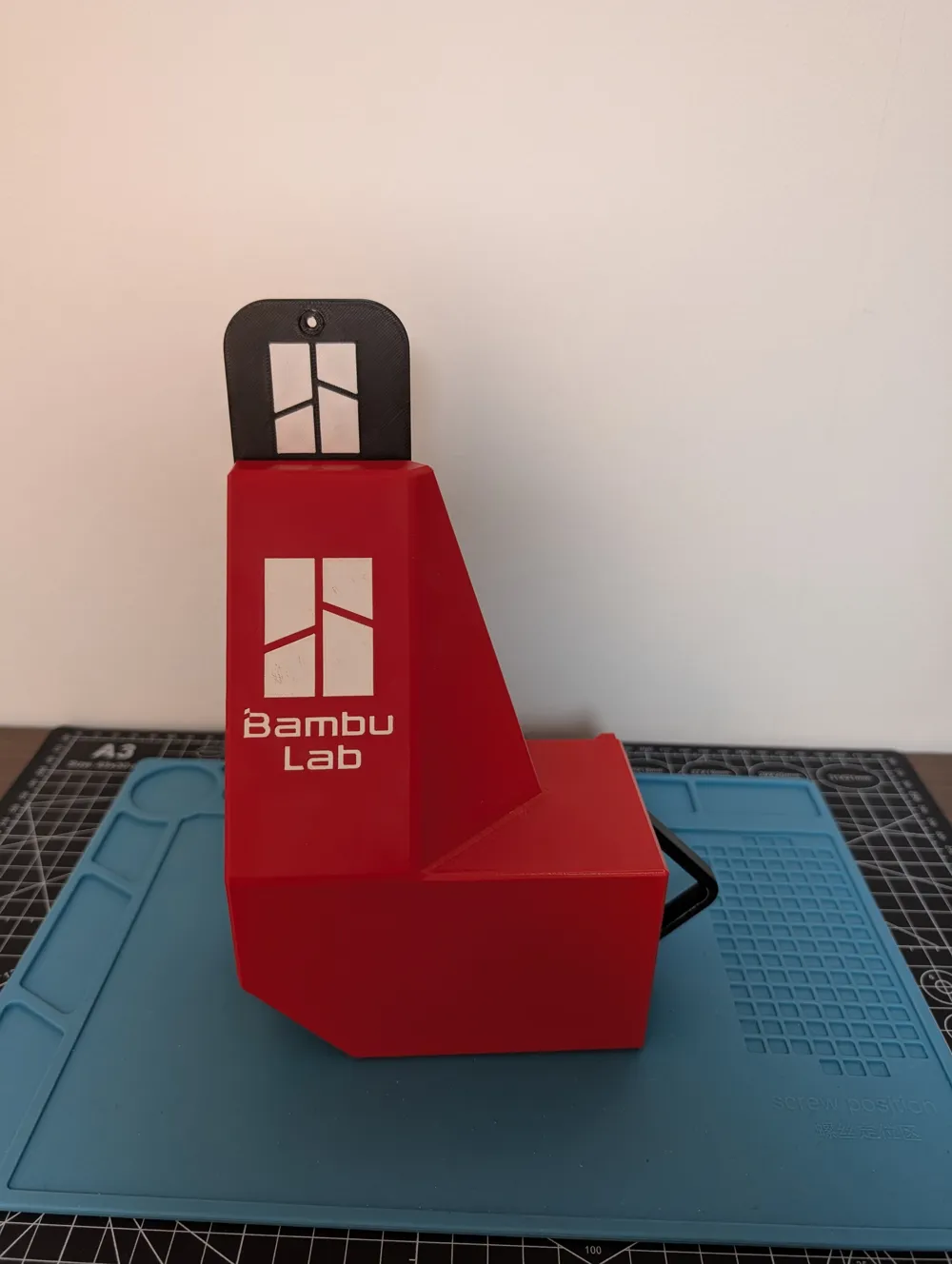

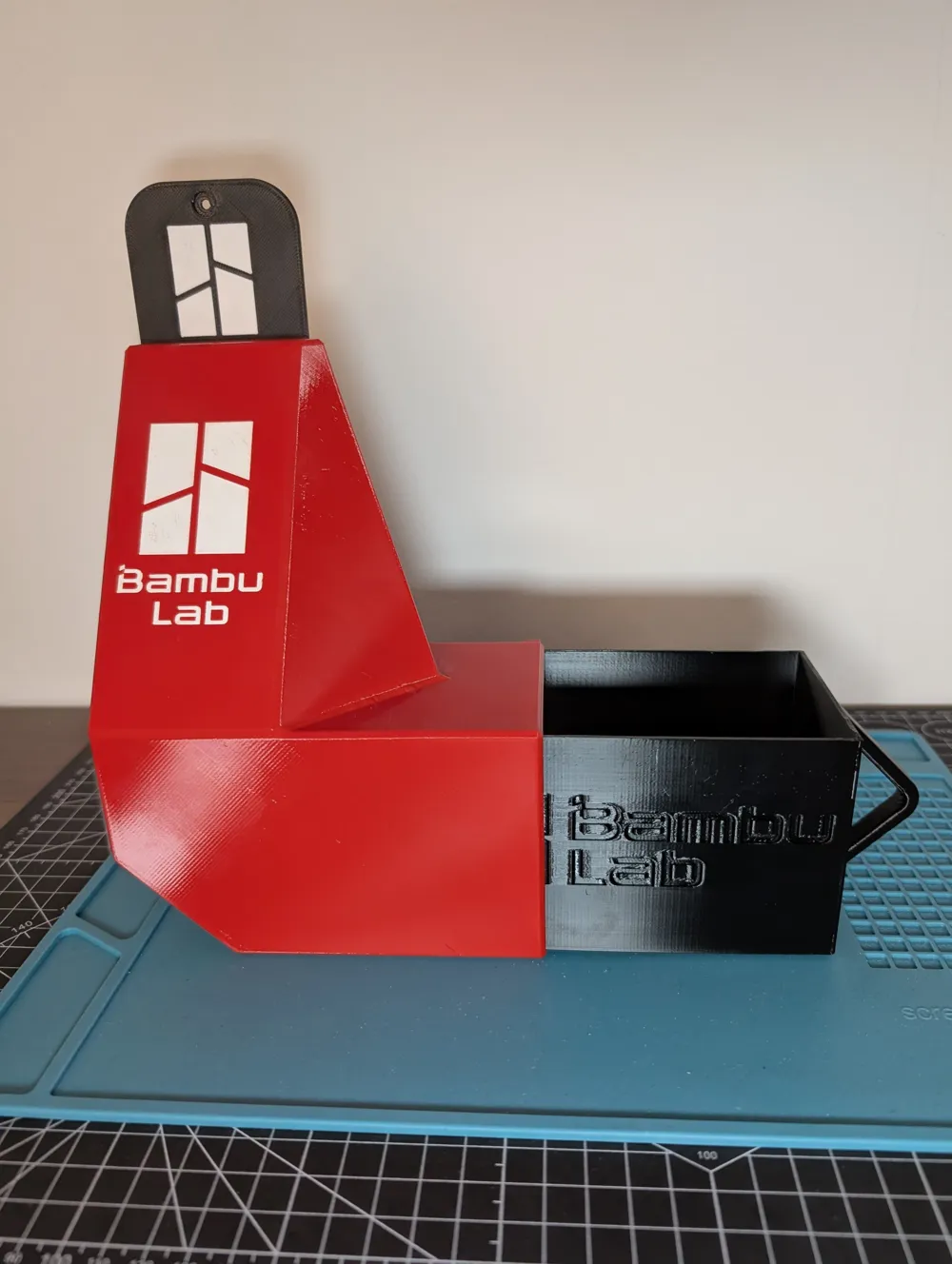

Sealed Waste Drawer for X2D

Specifically designed for the X2D, a clean, functional, and fully sealed waste management solution designed with both performance and aesthetics in mind.

This sealed waste drawer helps improve thermal management inside the printer while also better containing potentially harmful fumes and particles, allowing them to be filtered or vented more effectively. Unlike open waste bins, the enclosed design helps retain heat consistency and reduces unwanted airflow leakage.

The system features a simple and convenient slide-out drawer, making waste removal quick, convenient and hassle-free without needing to disassemble anything or fumble behind the printer.

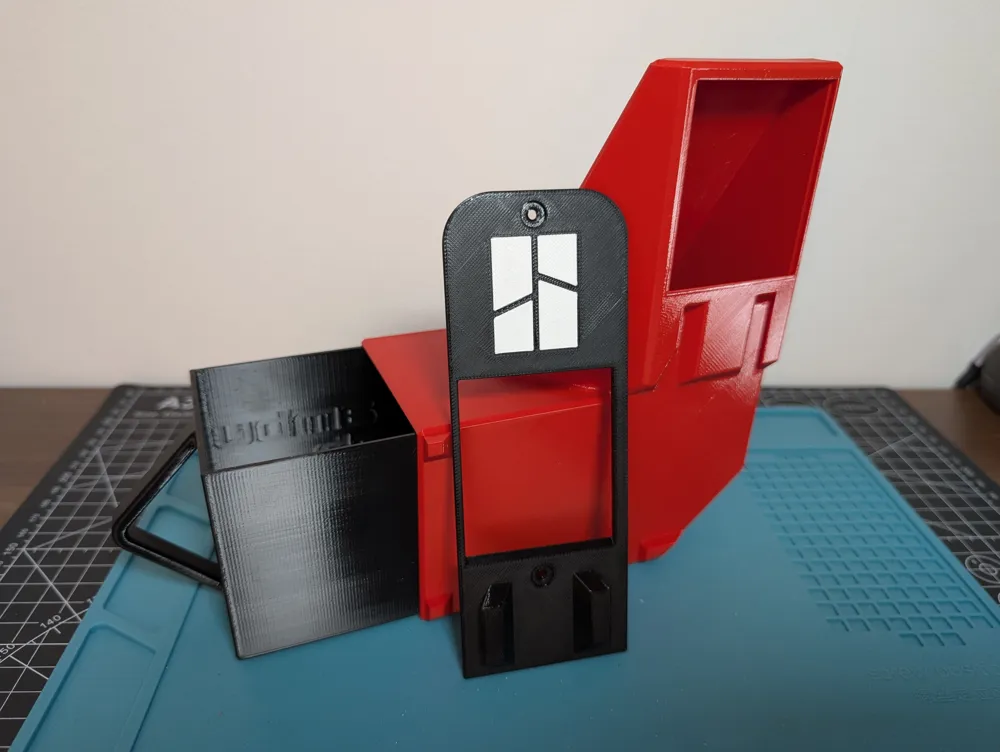

Installation is straightforward thanks to the slide-on mounting system that reuses the stock screws — no drilling, cutting, or additional holes required. This preserves the printer housing and helps maintain a better overall seal.

The design fits with the back exhaust fan exactly and maintains proper clearance from the right-side vents, with integrated spacers that prevent wobble while ensuring reliable fitment and internal components cooling.

Features:

• Fully sealed waste drawer design
• Improved thermal retention and fume containment
• Smooth slide-out drawer for easy cleaning
• Uses original mounting screws
• No permanent printer modifications required
• Vent clearance with anti-wobble spacers
• Stylish angular aesthetic
• Multicolor and debossed variations
• Prints completely support-free
• Optimized for easy and reliable printing

PLA is recommended for the best print quality and dimensional consistency, although the showcased prints were produced successfully in PCTG/PETG.

Perfect for users looking for a cleaner, more refined, and more functional waste solution for the X2D.
