100W Funky Boombox
Print Profile(1)
Bill of Materials
- Two Conductor Speaker Wire Spring Terminal x 2: https://www.parts-express.com/Two-Conductor-Speaker-Terminal-260-300?quantity=1
- Dayton Audio RS100-4 4" Reference Full-Range Driver x 2: https://www.parts-express.com/Dayton-Audio-RS100-4-4-Reference-Full-Range-Driver-4-Ohm-295-378?quantity=1&custcol1=Dayton%20Audio%20RS100-4%204%22%20Reference%20Full-Range%20Driver%204%20Ohm&custcol_ava_item=295-378&custcol_ava_incomeaccount=General&custcol_ava_upccode=844632068133&custcol_ava_pickup=F&custcol_disableshopping=F&undefined=48.99
- Dayton Audio KAB-250v4 2 x 50W Class D Audio Amplifier x 1: https://www.parts-express.com/Dayton-Audio-KAB-250v4-2-x-50W-Class-D-Audio-Amplifier-Board-with-Bluetooth-5.0-325-505?quantity=1&custcol1=Dayton%20Audio%20KAB-250v4%202%20x%2050W%20Class%20D%20Audio%20Amplifier%20Board%20with%20Bluetooth%205.0&custcol_ava_item=325-505&custcol_ava_incomeaccount=General&custcol_ava_upccode=848791007842&custcol_ava_pickup=F&custcol_disableshopping=F&undefined=64.99
- Dayton Audio KAB-PMV3 Panel Mount x 1: https://www.parts-express.com/Dayton-Audio-KAB-PMV3-Panel-Mount-for-KAB-v3-Boards-with-Function-LED-and-Install-Kit-325-116?quantity=1&custcol1=Dayton%20Audio%20KAB-PMV3%20Panel%20Mount%20for%20KAB-v3%20Boards%20with%20Function%2C%20LED%2C%20and%20Install%20Kit&custcol_ava_item=325-116&custcol_ava_incomeaccount=General&custcol_ava_upccode=848791005367&custcol_ava_pickup=F&custcol_disableshopping=F&undefined=31.99
- Dayton Audio KAB-BE 18650 Battery Extension Board x 1: https://www.parts-express.com/Dayton-Audio-KAB-BE-18650-Battery-Extension-Board-for-Bluetooth-Amplifier-Boards-325-113?quantity=1&custcol1=Dayton%20Audio%20KAB-BE%2018650%20Battery%20Extension%20Board%20for%20Bluetooth%20Amplifier%20Boards&custcol_ava_item=325-113&custcol_ava_incomeaccount=General&custcol_ava_upccode=848791002571&custcol_ava_pickup=F&custcol_disableshopping=F&undefined=14.99
- Lishen 18650 2600mAh Li-Ion x 1: https://www.parts-express.com/3-Pack-18650-2600mAh-Li-Ion-Flat-Top-Battery-142-103?quantity=1&custcol1=Lishen%203-Pack%2018650%202600mAh%20Li-Ion%20Flat%20Top%20Battery&custcol_ava_item=142-103&custcol_ava_incomeaccount=General&custcol_ava_upccode=848864032948&custcol_ava_pickup=F&custcol_disableshopping=F&undefined=21.99
- 15V 4A DC Power Supply AC Adapter x 1: https://www.parts-express.com/15-VDC-4A-AC-Adapter-Power-Supply-with-2.1-x-5.5mm-Plug-Center-Positive-120-057?quantity=1&custcol1=15%20VDC%204A%20AC%20Adapter%20Power%20Supply%20with%202.1%20x%205.5mm%20Plug%20Center%20Positive%20(%2B)&custcol_ava_item=120-057&custcol_ava_incomeaccount=General&custcol_ava_upccode=848864044033&custcol_ava_pickup=F&custcol_disableshopping=F&undefined=30.99
Description

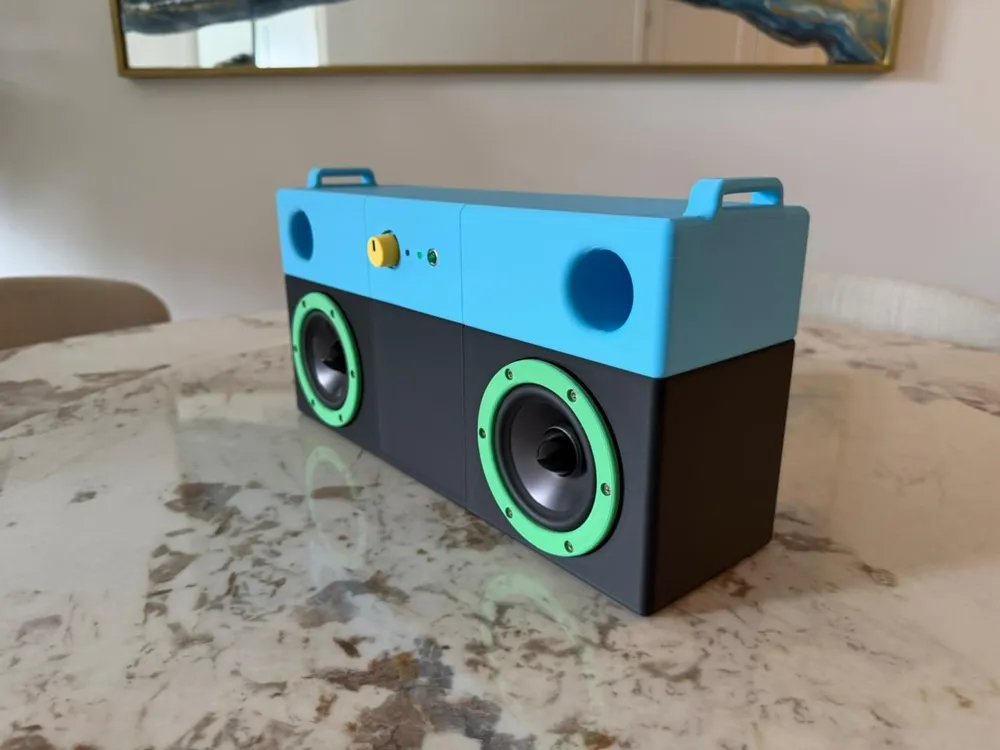

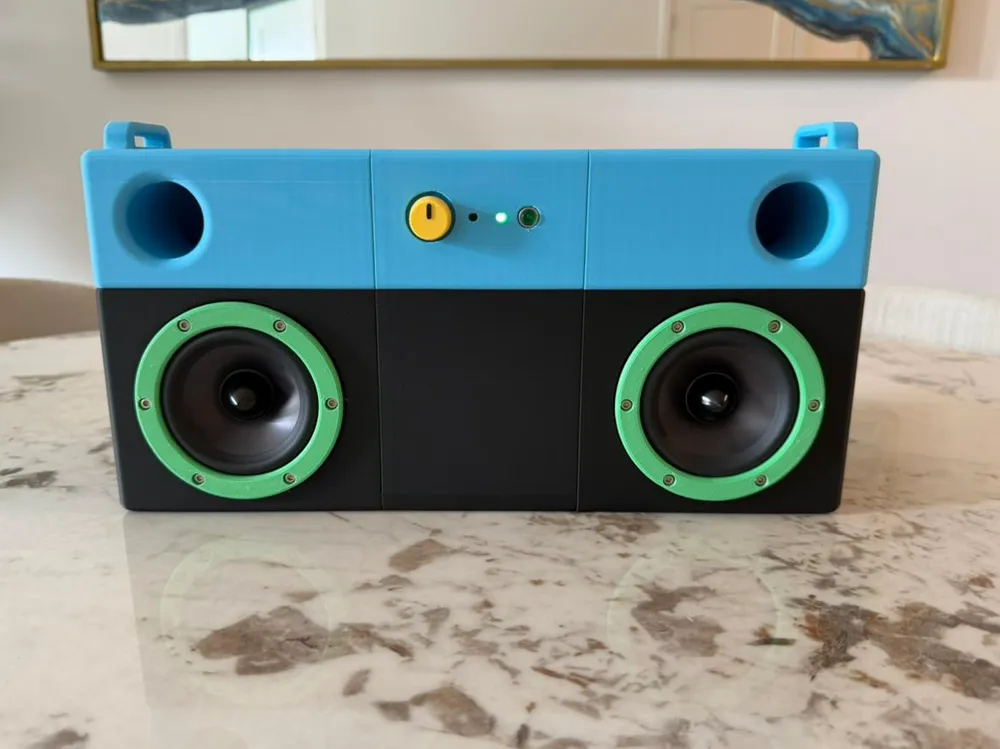

Did a Boombox with speaker components form parts express!
Boost Me (for free)
Your boost help our work a lot!
****PLEASE READ BEFORE PRINTING****
-To save filament on supports, there are 3 plates that have to be printed before the enclosures. These will help when printing the enclosures avoid the need of support on the top.
The printer will automatically pause when it's ready for the plate to be placed in it's keyed position and just press play to continue printing!
-You will need a lot of screws to assemble it. All ot them are M3 and can be bought on Maker supply.
-You will also need a tool to heat up the threaded inserts. either a threaded insert tool or a soldering iron will work.
-Almost all of the screw holes work with threaded inserts.
-Only the holes for the spring terminals are directly driven to the plastics.
-Only the holes to join the enclosure use nuts. You have to force them into the slots on the sides of the speaker enclosures.
Parts list below!
Enjoy the build! Its worth it!
