Vinyl Siding Profiles - Clapboard Dutch Lap Hardie
Print Profile(3)
Description
This project is a set of siding profiles for you to use in your own projects and models. I spent a good amount of time converting these from the manufactures CAD drawings and I felt it was a waste to not share them for other people to use.
How to use this:

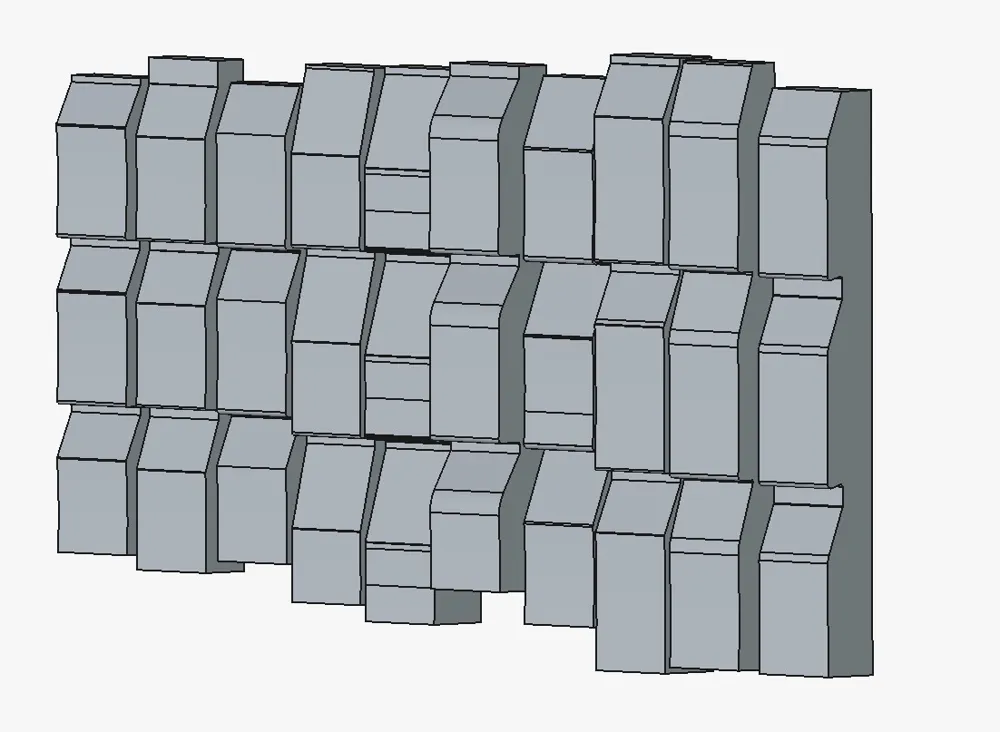

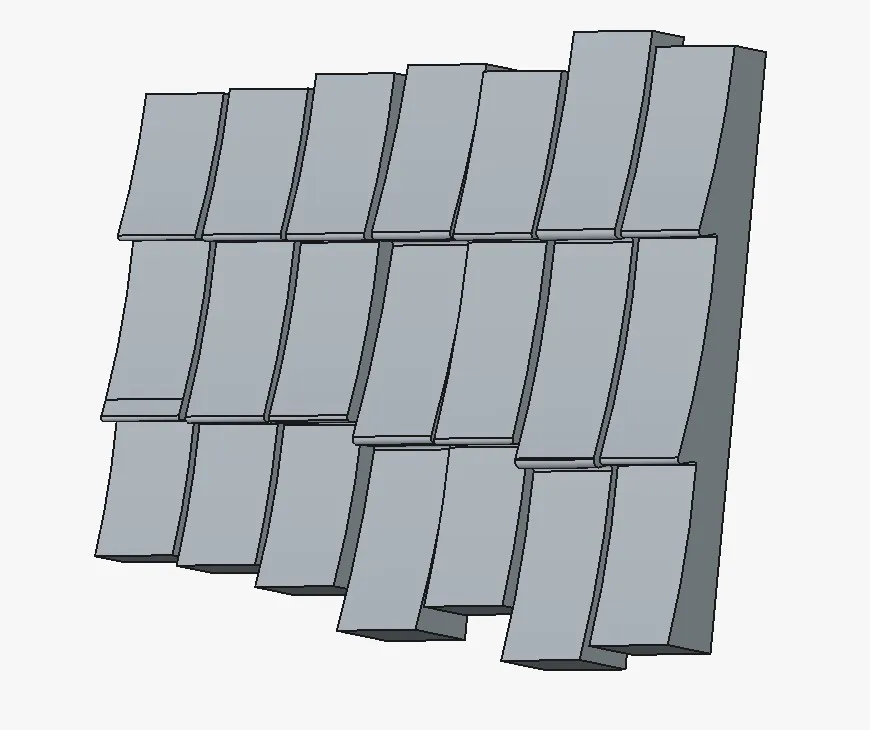

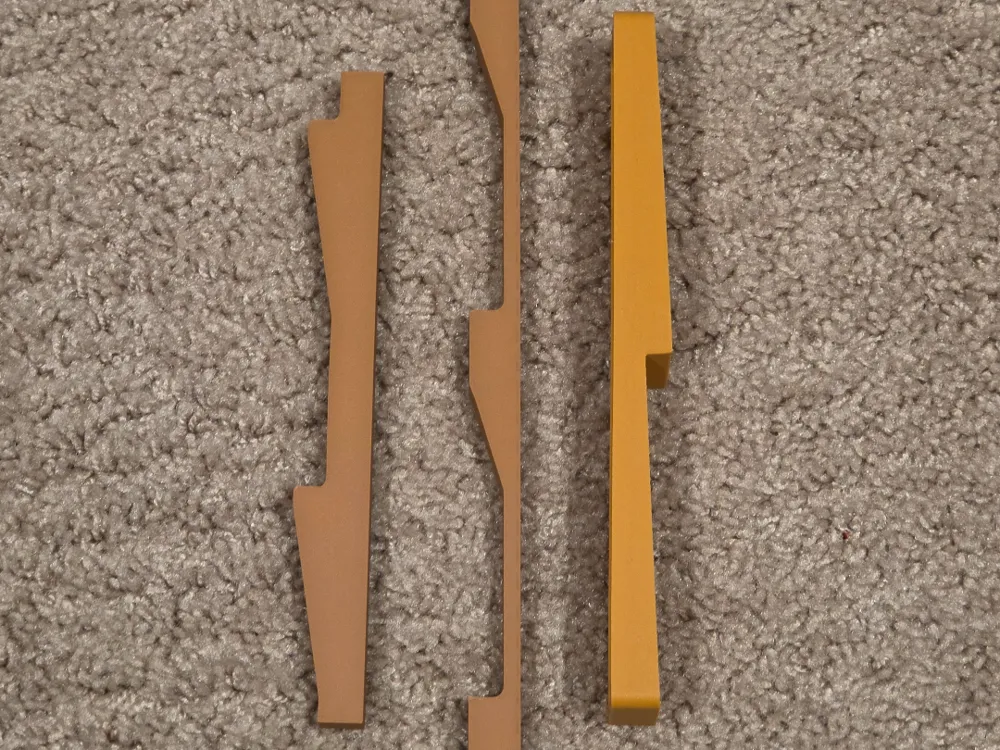

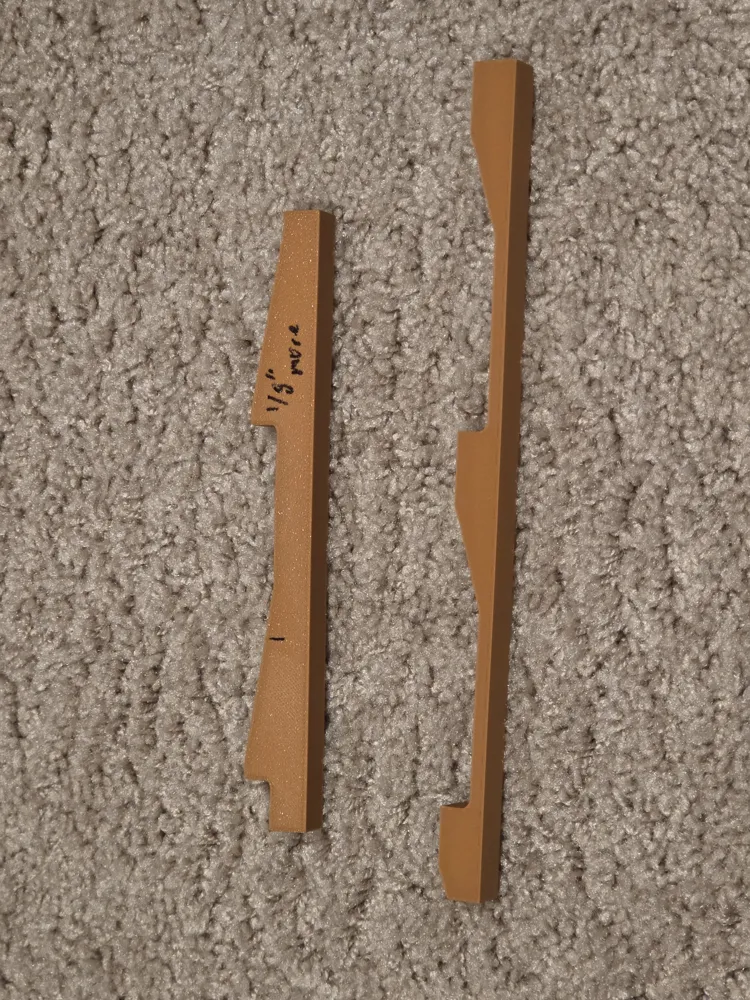

There are a total of 18 different siding profiles that have been converted. There are 3 print profiles each with different siding test prints. If you are designing something and you want to be able to mount it on your siding you can find the one that matches best, print out the test file, then if it fits you can download the STEP file or FreeCAD file which are both included. You can then subtract that model from your model to get the profile cutout so it mounts flush.
File Sources:
Most of the CAD files came from ARCAT and then were converted/scaled using the free and open source CAD program FreeCAD in conjunction with ODA File Converter to import the DWG files. The Hardie Board profile was created by me from measurements as was the standard clapboard profile.
Siding List:

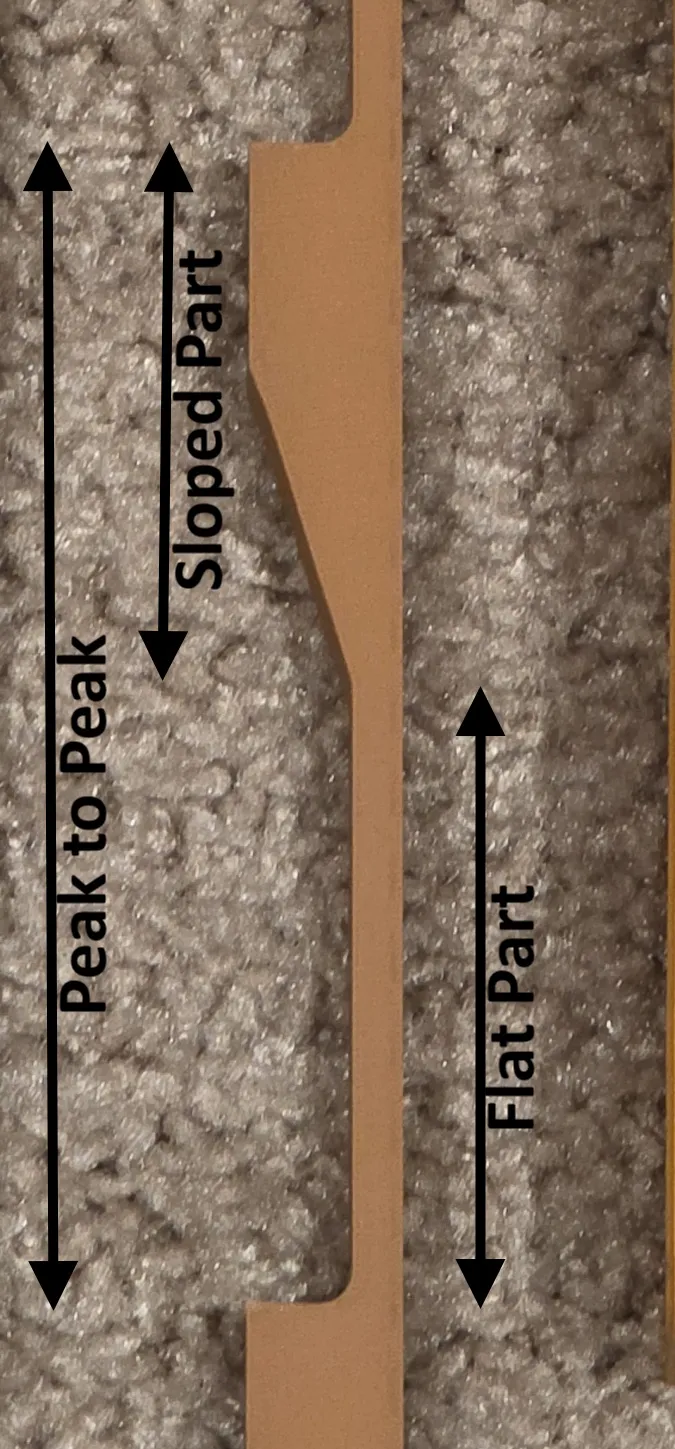

There are a ton of siding types out there. Clapboard profiles are pretty similar to each other so several might fit your siding, but dutch lap varies a lot more. For dutch lap I've listed the overhang size and the rough ratio of flat surface to sloped/overhang. All sizing is peak to peak.
Siding profiles:
4" Clapboard
- Standard: 0.5" overhang
- Alside Coventry: 0.4" overhang
- Alside Odyssey Plus: 0.4" overhang
4.5" Clapboard
- Alside Charter Oak: 0.7" overhang
- Alside Conquest: 0.5" overhang
5" Clapboard
- Alside Odyssey Plus: 0.6" overhang
- Alside Coventry: 0.6" overhang
4" Dutch Lap
- Alside Odyssey Plus: 0.5" overhang, ~60/40 flat to sloped
- Ply Gem Mastic Mill Creek: 0.5" overhang, ~70/30 flat to sloped
- Alside Landscape: 0.5" overhang, ~65/35 flat to sloped
4.5" Dutch Lap
- Alside Seneca and Conquest Plus: 0.5" overhang, ~50/50 flat to sloped
- Alside Charter Oak: 0.7" overhang, ~45/55 flat to sloped
- Ply Gem Mastic Quest: 0.7" overhang, ~60/40 flat to sloped
- Alside Centerlock: 0.7" overhang, ~60/40 flat to sloped
5" Dutch Lap
- Alside Odyssey Plus: 0.56" overhang, ~70/30 flat to sloped
- Ply Gem Mastic Mill Creek: 0.50" overhang, ~65/35 flat to sloped
- Alside Coventry: 0.50" overhang, ~65/35 flat to sloped
7" Hardie Board
- 0.625" overhang
Hopefully this is helpful for people.
