Orange Pi 4 Pro Ventilated Screwless Case (Remix)

This is an improved remix of a screwless Orange Pi 4 Pro case.
The original author honestly wrote that “it’s not good, but it works”, and suggested to grab the Fusion 360 file and make it normal – so I tried to do exactly that.

Changes in this remix:

• Added ventilation holes on both sides of the case to improve airflow and help the board stay cooler under load.
• Added a dedicated mount for the stock Wi‑Fi antenna, so it can be fixed cleanly without tape or extra brackets.
• Reworked the snap‑fit latches: in the original model they were very hard to use with the board installed because the pins were in the way. Now the latches can be engaged and released with the board inside, as the case was intended.
• Kept the screwless concept: assembly and disassembly still require no screws or tools.

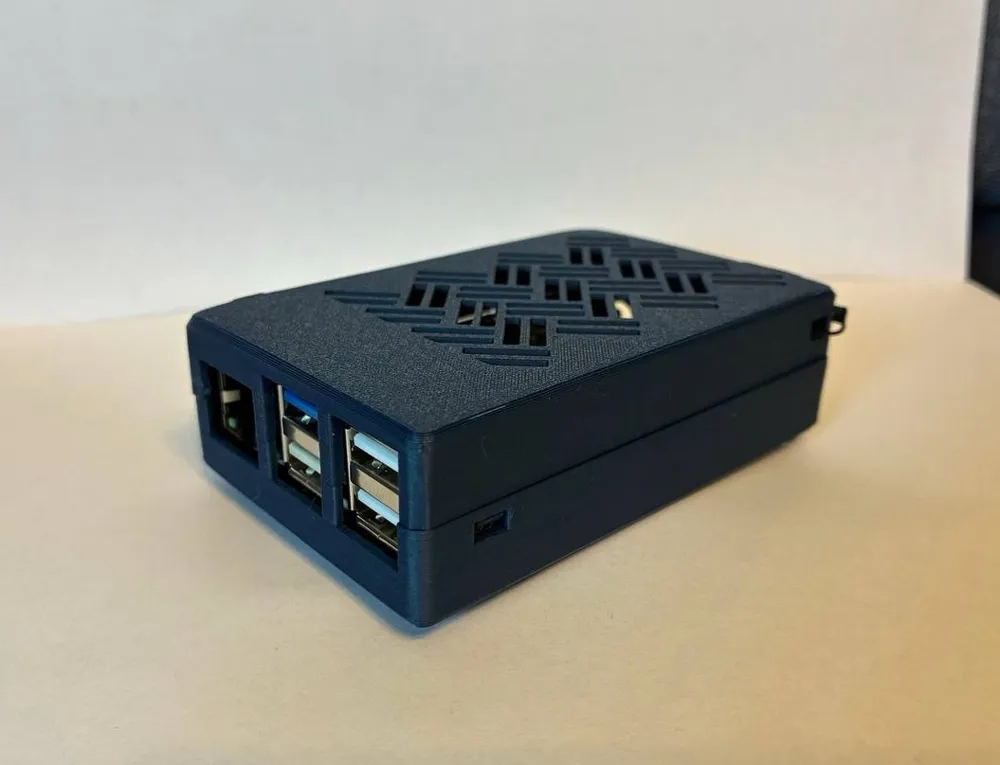

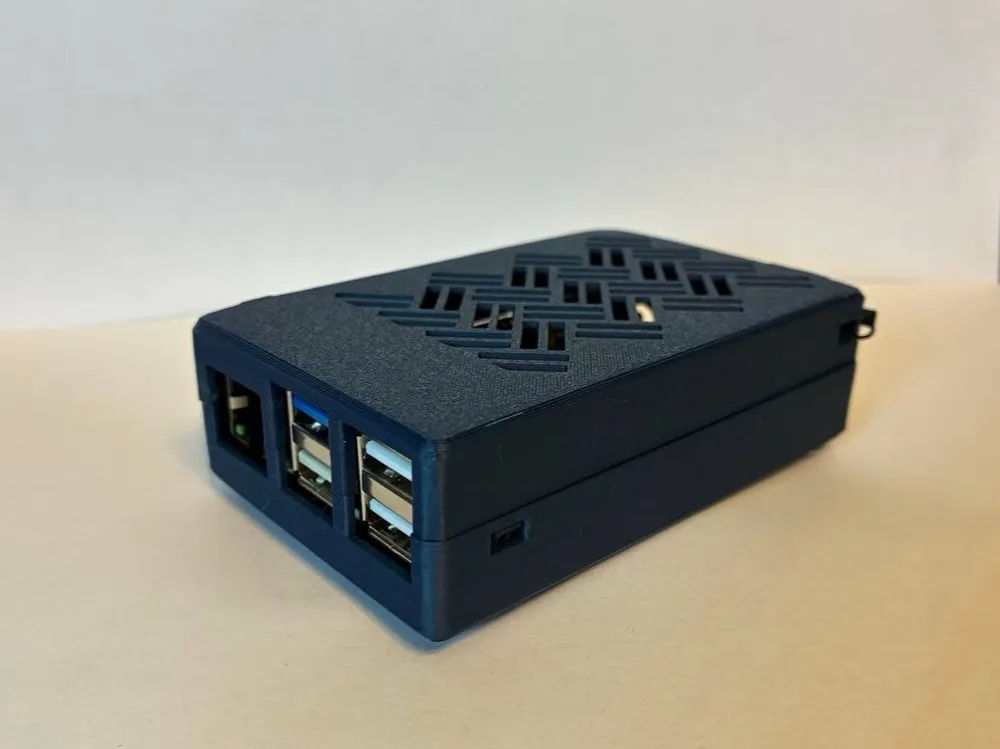

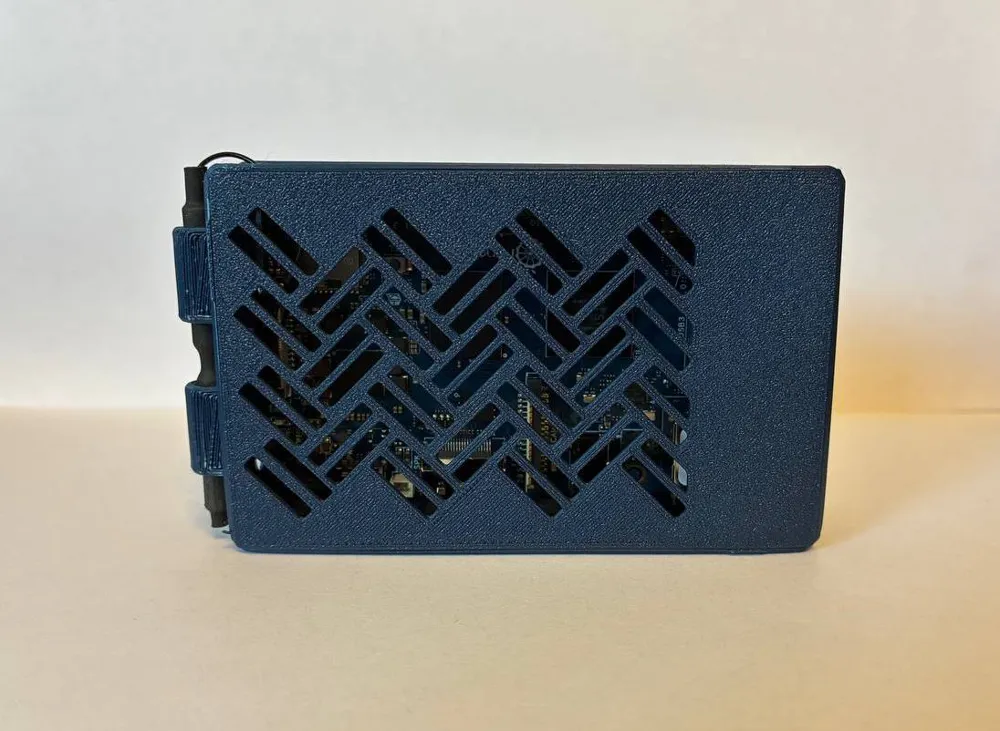

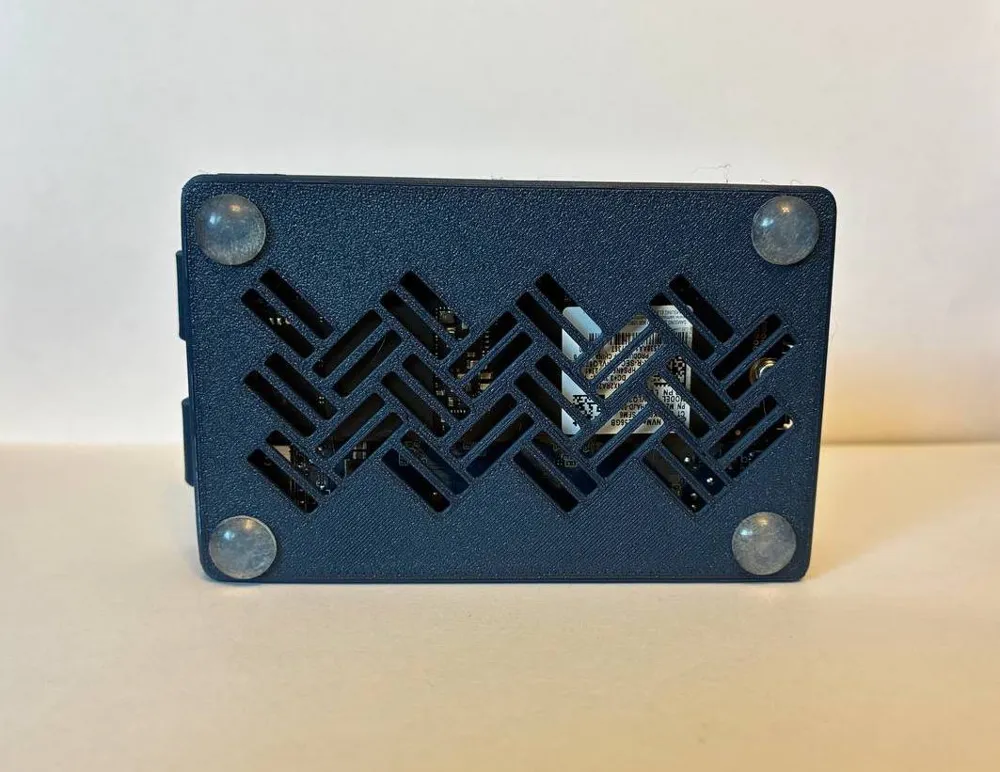

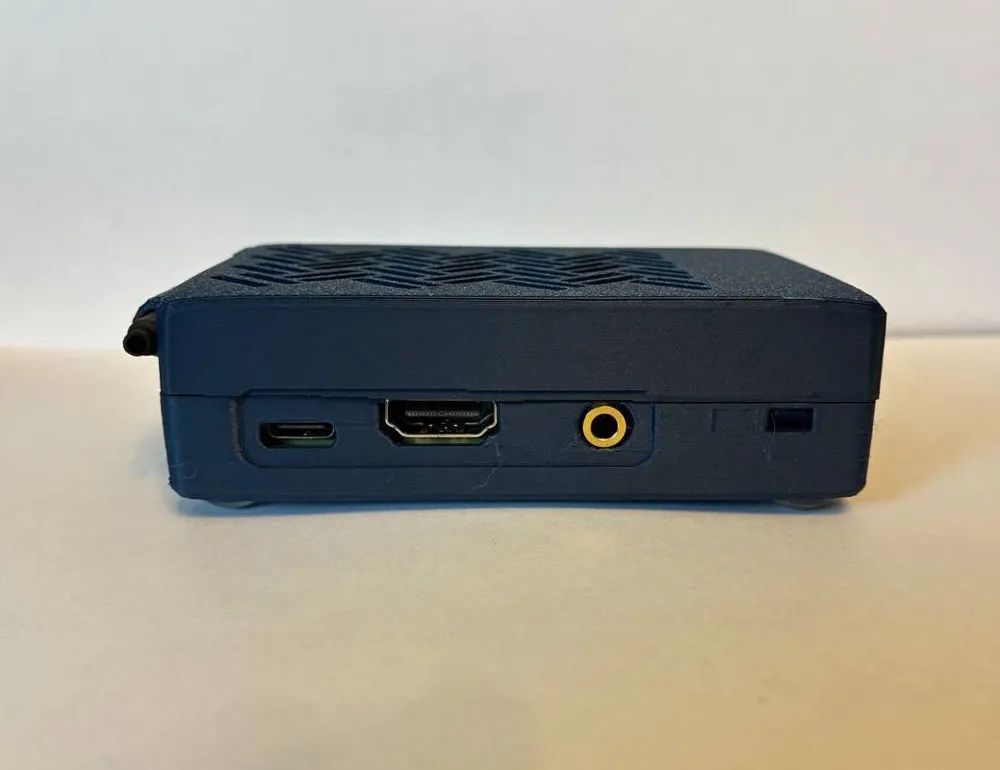

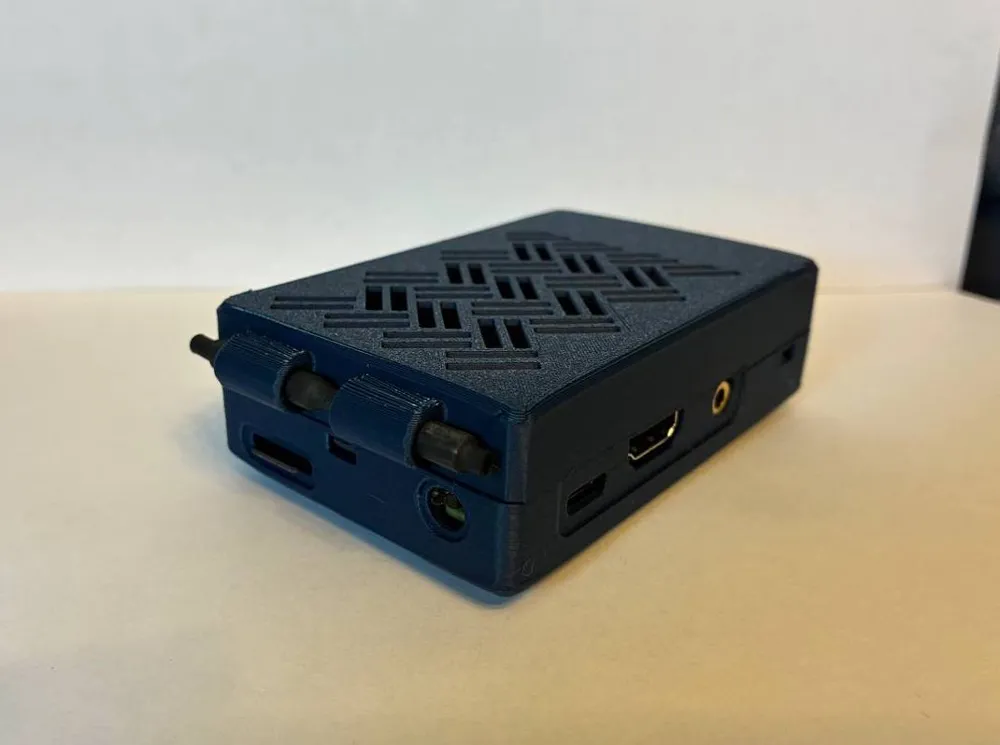

This model is printed and tested using my own setup, so all photos in this upload show the modified version of the case, not the original one.

Feel free to further remix it if you need additional mounting options, fan support or other tweaks.

Remix info / attribution:
This model is a remix based on the original Orange Pi 4 Pro screwless case by SilllyWorkshop on MakerWorld https://makerworld.com/ru/@SillyPrinter . All credits for the original idea and base geometry go to the original creator. My contribution is focused on improving ventilation, antenna mounting and latch usability.
