<boostme><boosttitle>Boost Me</boosttitle><boostcontent>Boost me for more Harley Tools.</boostcontent></boostme>&nbsp;Dieses 3-teilige Rear Alignment Tool wurde speziell für Harley-Davidson Softail Modelle entwickelt und orientiert sich am Werkzeug HD-48856-B. Mit dem Werkzeug lässt sich der Abstand der hinteren Steckachse links und rechts präzise messen, um das Hinterrad exakt auszurichten.&nbsp;Das Set besteht aus:<ul><li>2 Adaptern für die Hinterachse</li><li>1 L-förmigem Messwerkzeug</li></ul><h3>Anwendung:</h3><ul><li>Es wird ein O-Ring (Innendurchmesser 3 - 3,5 mm benötigt welcher auf das L-förmige Messtool-aufgebracht wird</li><li>Adapter in Steckachse stecken und Mittelpunkt mit einem Stift markieren (Mittelpunkt wird bereits gedruckt)</li><li>Linke Radseite messen indem das L an der Plan gefrästen Fläche angehalten und der O-Ring auf den Mittelpunkt der Achse geschoben wird</li><li>Die andere Seite auf das exakt gleiche Maß einstellen</li><li>Beachten dass die Riemenspannung gem. Handbuch passt und die Steckachse auf jeden Fall wieder gem. Handbuch festgezogen wurde</li><li>Steckachsenadapter wieder entfernen</li></ul><h3>Eigenschaften:</h3>Das Werkzeug ermöglicht eine schnelle, einfache und präzise Kontrolle der Hinterradausrichtung und eignet sich perfekt für Wartung, Umbauten und Reifenwechsel.Passend für Harley-Davidson Softail Modelle<ul><li>Präzise Hinterrad-Ausrichtung</li><li>Einfaches Handling</li><li>3-teiliges Spezialwerkzeug</li><li>Robust und leicht zu drucken</li><li>Ideal für Garage und Werkstatt</li></ul>Hinweis: Die Nutzung erfolgt auf eigene Verantwortung. Ich übernehme keine Gewährleistung oder Haftung für Schäden, Folgeschäden oder Vorfälle, die durch die Nutzung des Werkzeugs entstehen.&nbsp;<h2>English:</h2>&nbsp;This 3-piece rear alignment tool was specifically designed for Harley-Davidson Softail models and is based on tool HD-48856-B.The tool allows you to precisely measure the distance between the left and right rear thru-axles to accurately align the rear wheel.&nbsp;The set consists of:<ul><li>2 adapters for the rear axle</li><li>1 L-shaped measuring tool</li></ul><h3>Application:</h3><ul><li>An O-ring (inner diameter 3–3.5 mm) is required, which is placed on the L-shaped measuring tool</li><li>Insert the adapter into the thru-axle and mark the center point with a pin (the center point is already printed)</li><li>Measure the left side of the wheel by holding the L against the flat milled surface and sliding the O-ring onto the center of the axle</li><li>Adjust the other side to the exact same measurement</li><li>Ensure that the belt tension is correct according to the manual and that the thru-axle has definitely been tightened again according to the manual</li><li>Remove the thru-axle adapters</li></ul><h3>Features:</h3>This tool enables quick, easy, and precise checking of rear wheel alignment and is perfect for maintenance, modifications, and tire changes. <ul><li>Suitable for Harley-Davidson Softail models</li><li>Precise rear wheel alignment</li><li>Easy to use</li><li>3-piece special tool</li><li>Robust and easy to print</li><li>Ideal for garages and workshops</li></ul>&nbsp;Note:Use at your own risk. I assume no warranty or liability for damage, consequential damage, or incidents resulting from the use of this tool.&nbsp;

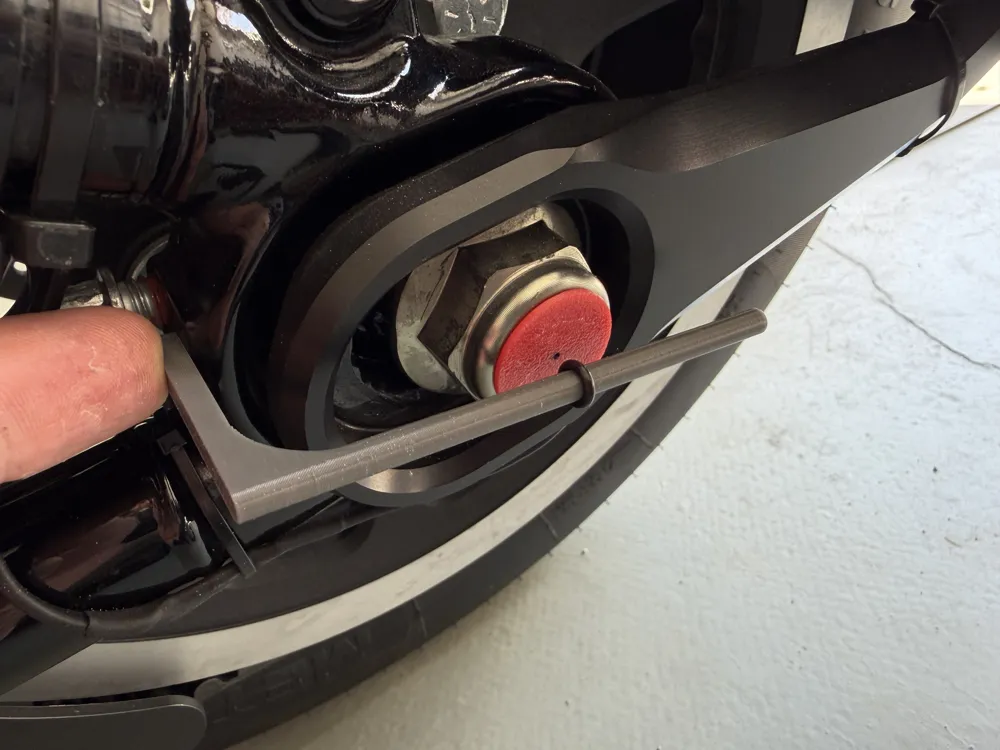

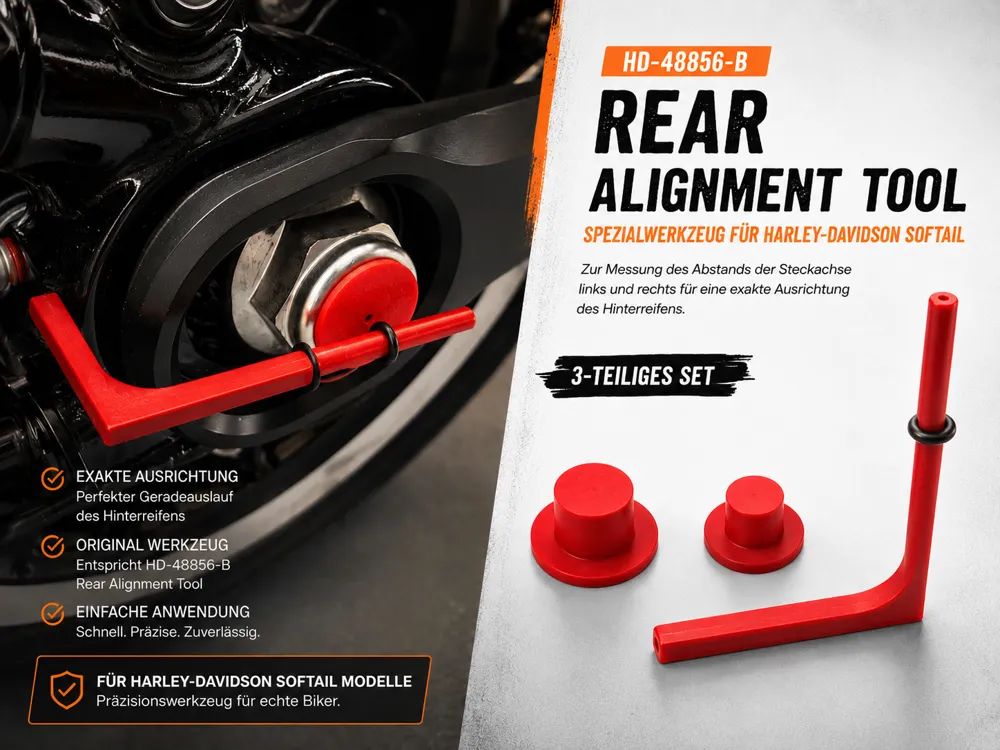

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>Boost me for more Harley Tools</boostcontent></boostme>&nbsp;This 3-piece Rear Alignment Tool was specifically designed for Harley-Davidson Softail models and is based on tool HD-48856-B The tool allows you to precisely measure the distance between the left and right rear thru-axles to accurately align the rear wheel&nbsp;The set consists of:<ul><li>2 adapters for the rear axle</li><li>1 L-shaped measuring tool</li></ul><h3>Application:</h3><ul><li>An O-ring (inner diameter 3–3.5 mm) is required, which is placed on the L-shaped measuring tool</li><li>Insert the adapter into the thru-axle and mark the center point with a pin (the center point is already printed)</li><li>Measure the left side of the wheel by holding the L against the flat milled surface and sliding the O-ring onto the center of the axle</li><li>Adjust the other side to the exact same measurement</li><li>Ensure that the belt tension is correct according to the manual and that the thru-axle has definitely been tightened again according to the manual</li><li>Remove the thru-axle adapters</li></ul><h3>Features:</h3>This tool enables quick, easy, and precise checking of rear wheel alignment and is perfect for maintenance, modifications, and tire changes<ul><li>Suitable for Harley-Davidson Softail models</li><li>Precise rear wheel alignment</li><li>Easy to use</li><li>3-piece special tool</li><li>Robust and easy to print</li><li>Ideal for garages and workshops</li></ul>Note: Use at your own risk. I assume no warranty or liability for damage, consequential damage, or incidents resulting from the use of this tool&nbsp;
