Description

Content has been automatically translated.

Show original

Boost Me (for free)

Boost Me (for free) 🚀 Support my work with a Boost! If you find this case useful for your Pavo 20 Pro II, please consider leaving me a Boost! As this is my second project on MakerWorld, every support is crucial to allow me to continue designing free accessories for the FPV community
## Here you can also find the case for Flywoo 20 Pro ##
https://makerworld.com/it/models/2740541-fiywoo-firefly-20-pro-nano-case-lightweight#profileId-3038911

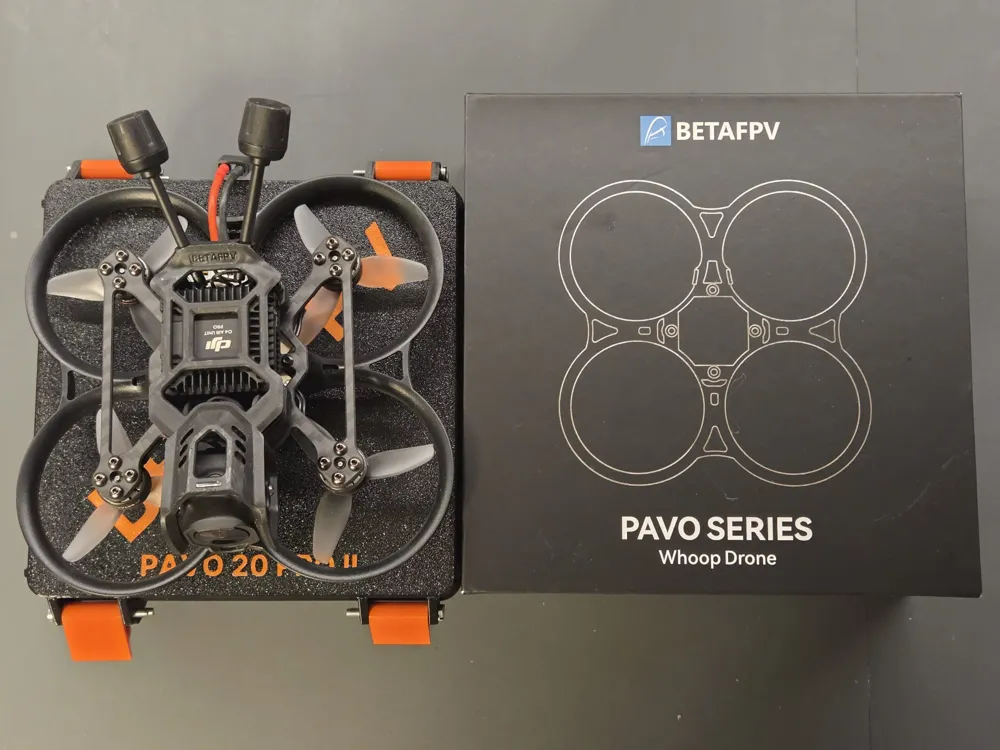

Protect your Pavo Pro II with a robust, functional, and uniquely styled case. This project was created for those who seek maximum protection in an optimized design. Thanks to the customized lid, your FPV kit will have a professional look and be immediately recognizable

🛠️Technical Specifications & Hardware

To complete the assembly of this case, you will need:

Hardware: 8 M3 x 25mm screws to ensure a solid and durable closure
Filament Consumption: Approximately 100g in total, a featherlight weight for maximum strength
Recommended Materials: PETG or ABS for superior mechanical durability and thermal resistance

🖨️ printing plate Guide (AMS Ready)

The file is organized into 3 plates for simplified management:

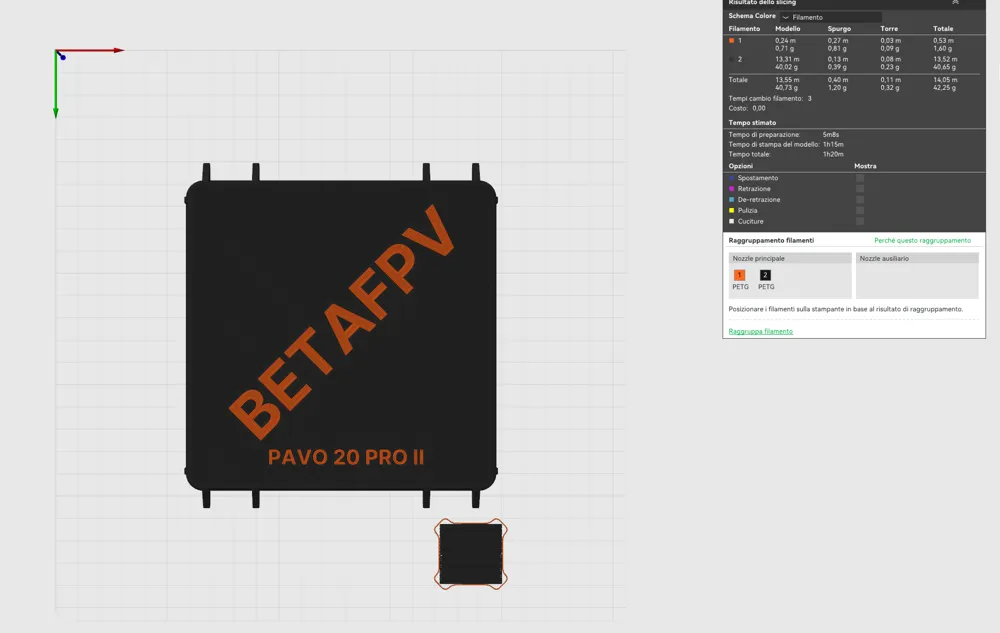

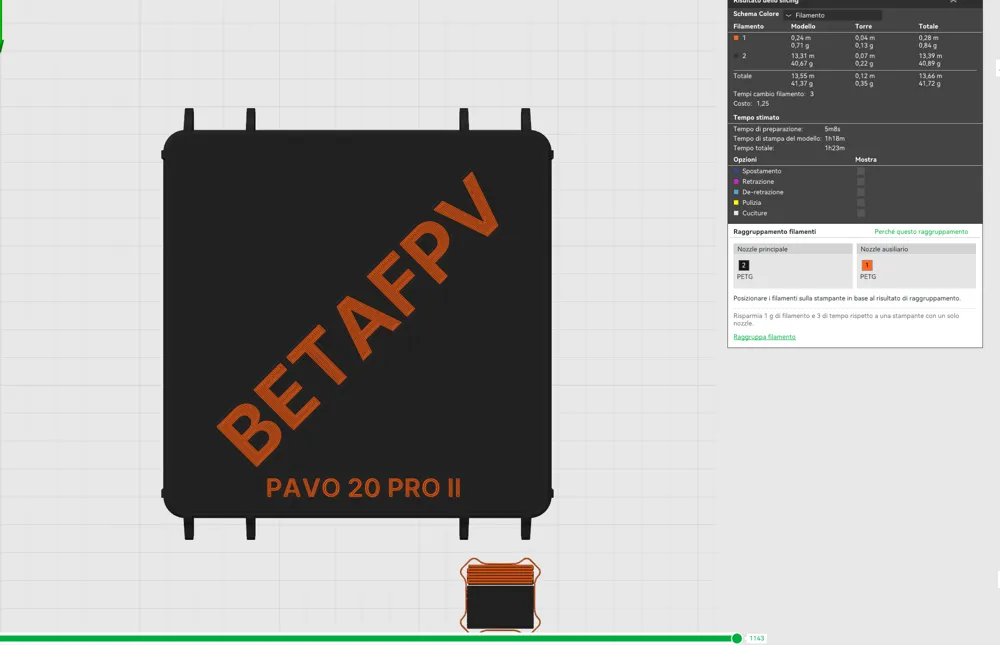

Plate 1: Two-color Betafpv Logo Lid. It is the only plate that requires the use of AMS or filament changes to make the logo stand out

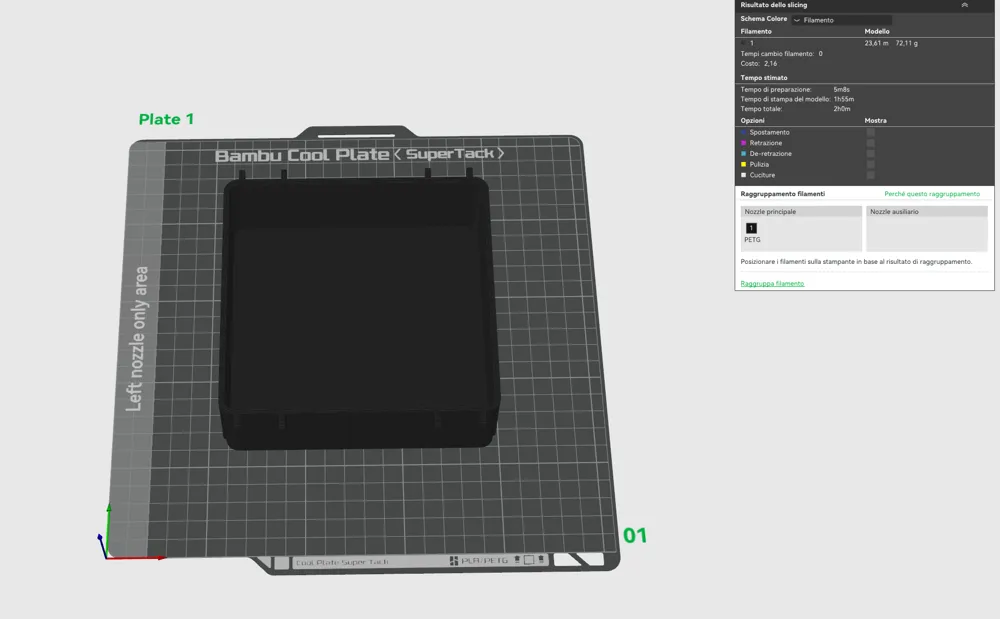

Plate 2 Structural part of the case (monochromatic print)

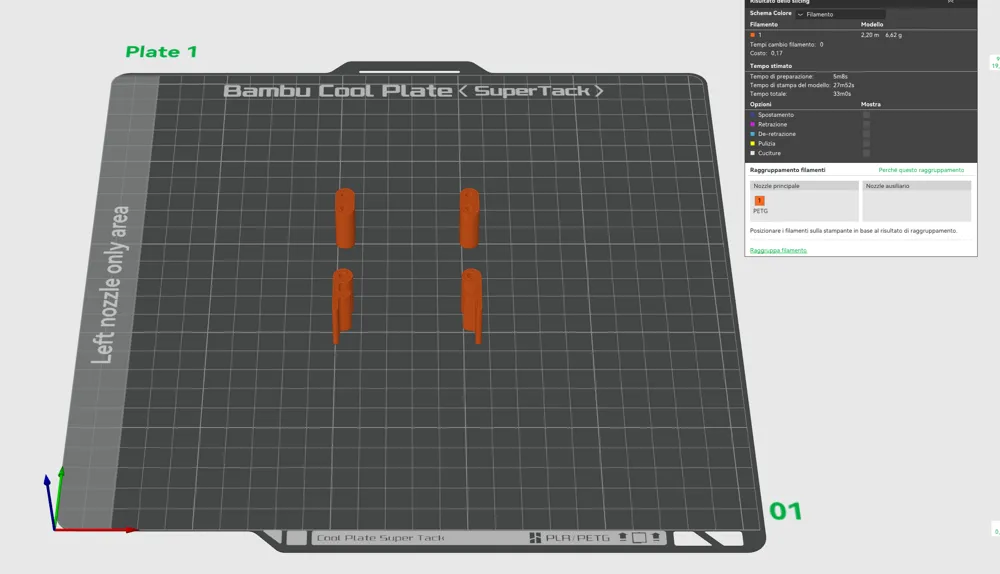

Plate 3: Pins and small parts necessary for assembly

💡 Why choose this design?

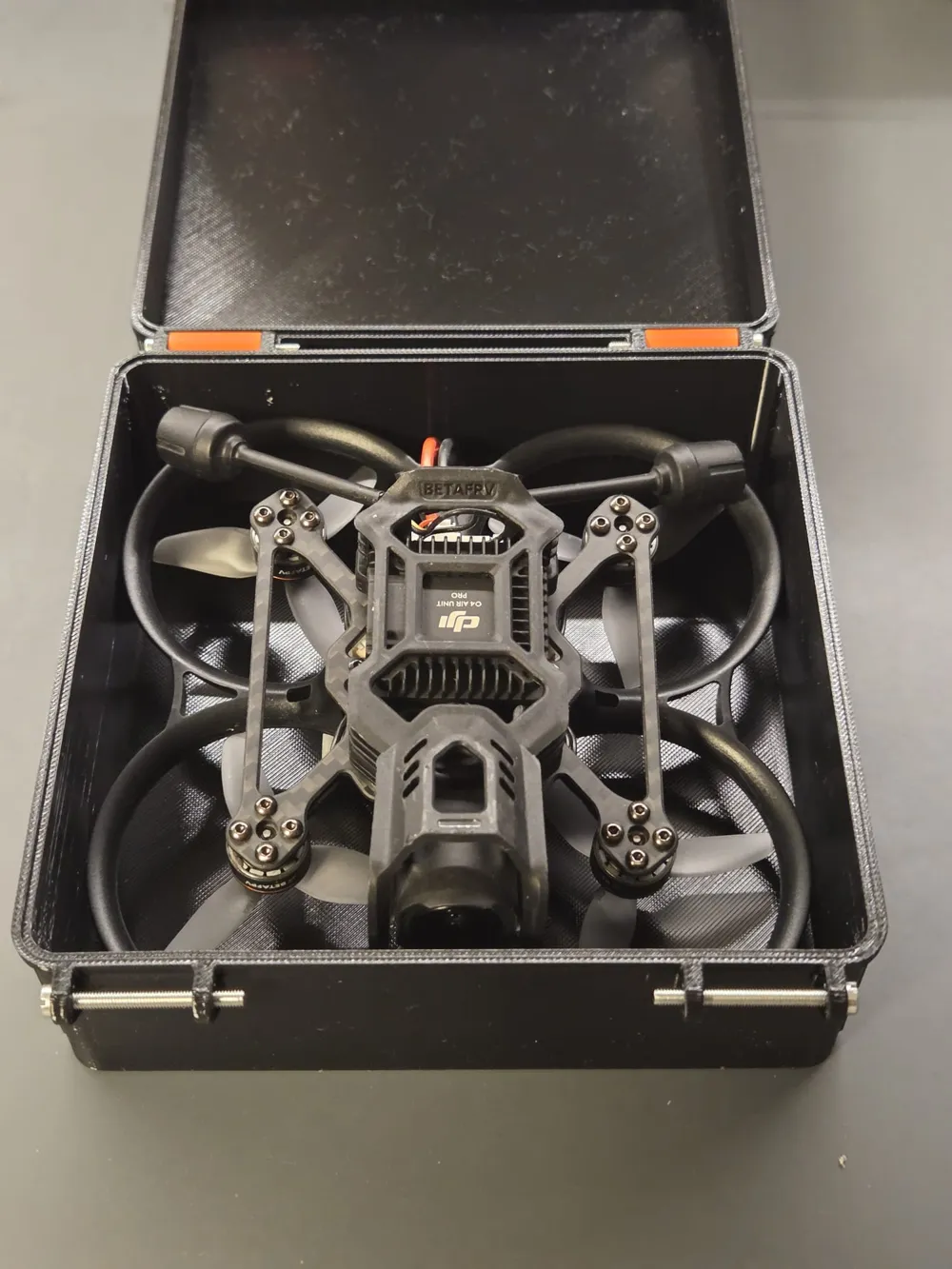

Precision Fit: Precisely shaped to the forms of the Pavo 20 Pro II to prevent internal movement
"Tough" Structure: Reinforced walls at stress points to withstand impacts during transport
Efficiency: Only 100g of filament for complete protection

🔧 Quick Instructions

Load the print profile and select the colors for Plate 1
Use the 8 M3 25mm screws to secure the hinges and close the case
Insert your drone and fly carefree!

If you print my model, upload a photo!

## Here you can also find the case for Pavo 20 Pro II ##
