đ ď¸ GUDE GS 4002 P - Rope Mount (Handle Replacement)
A practical, heavy-duty replacement part for the GUDE GS 4002 P submersible water pump.

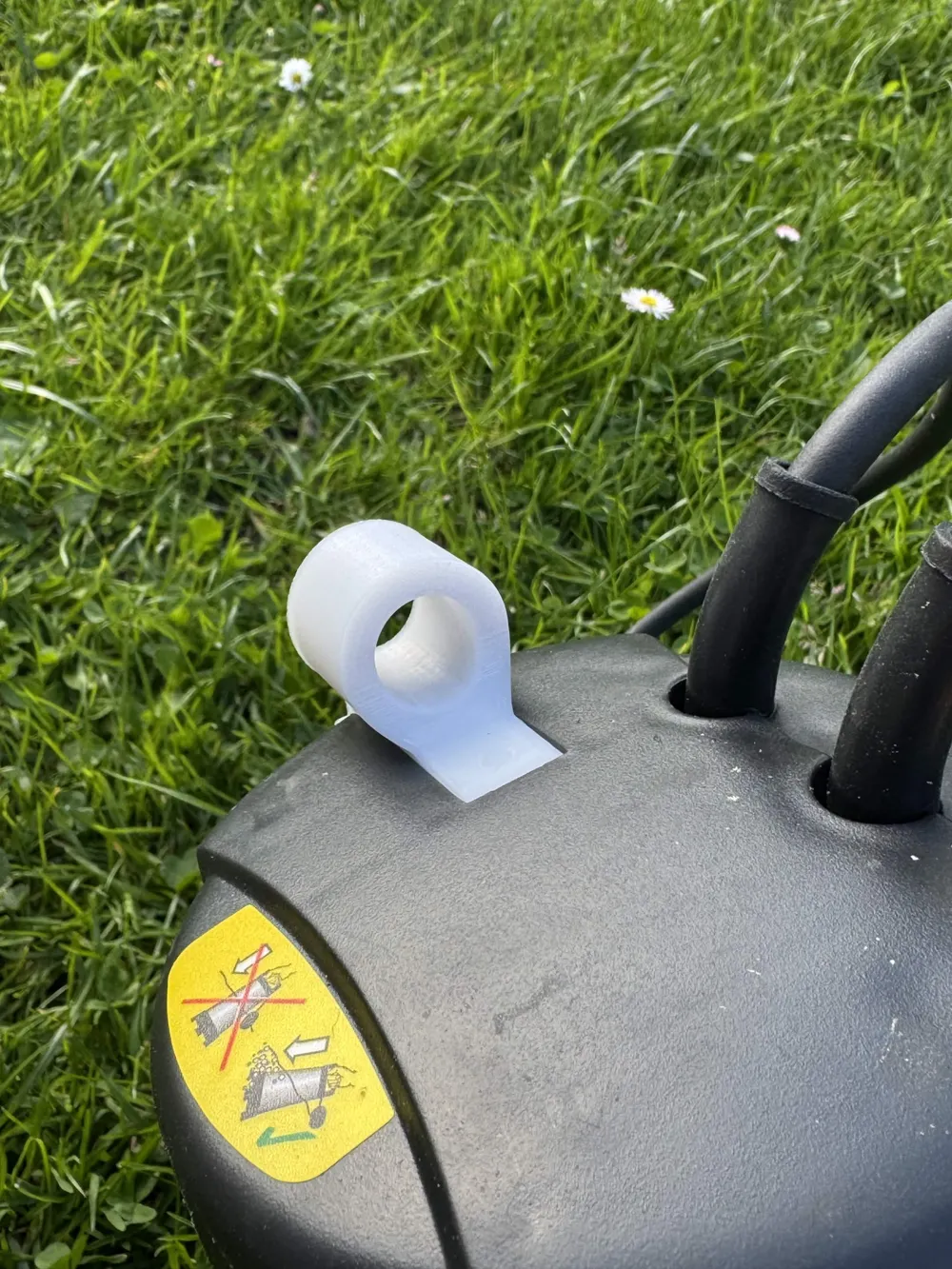

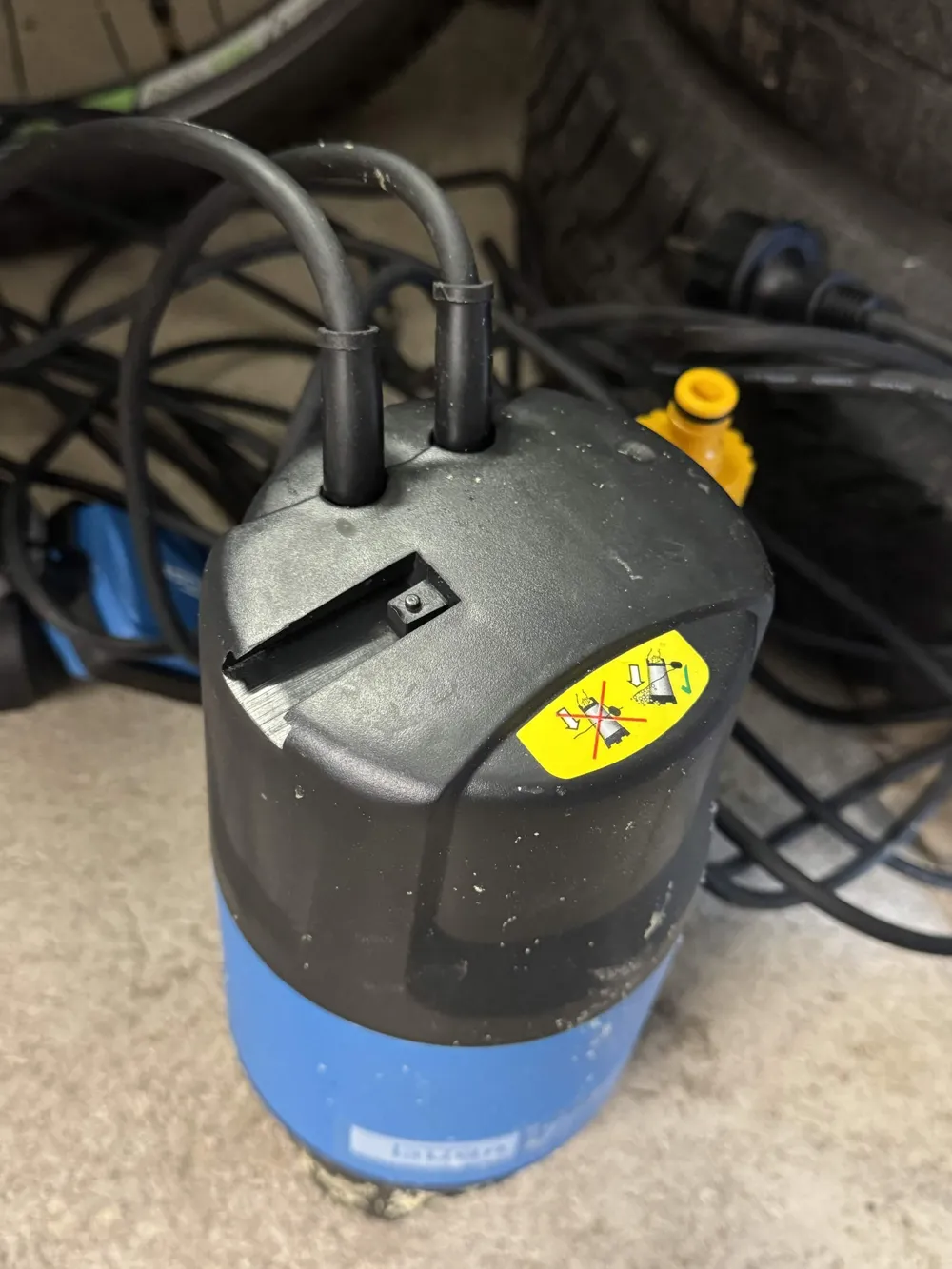

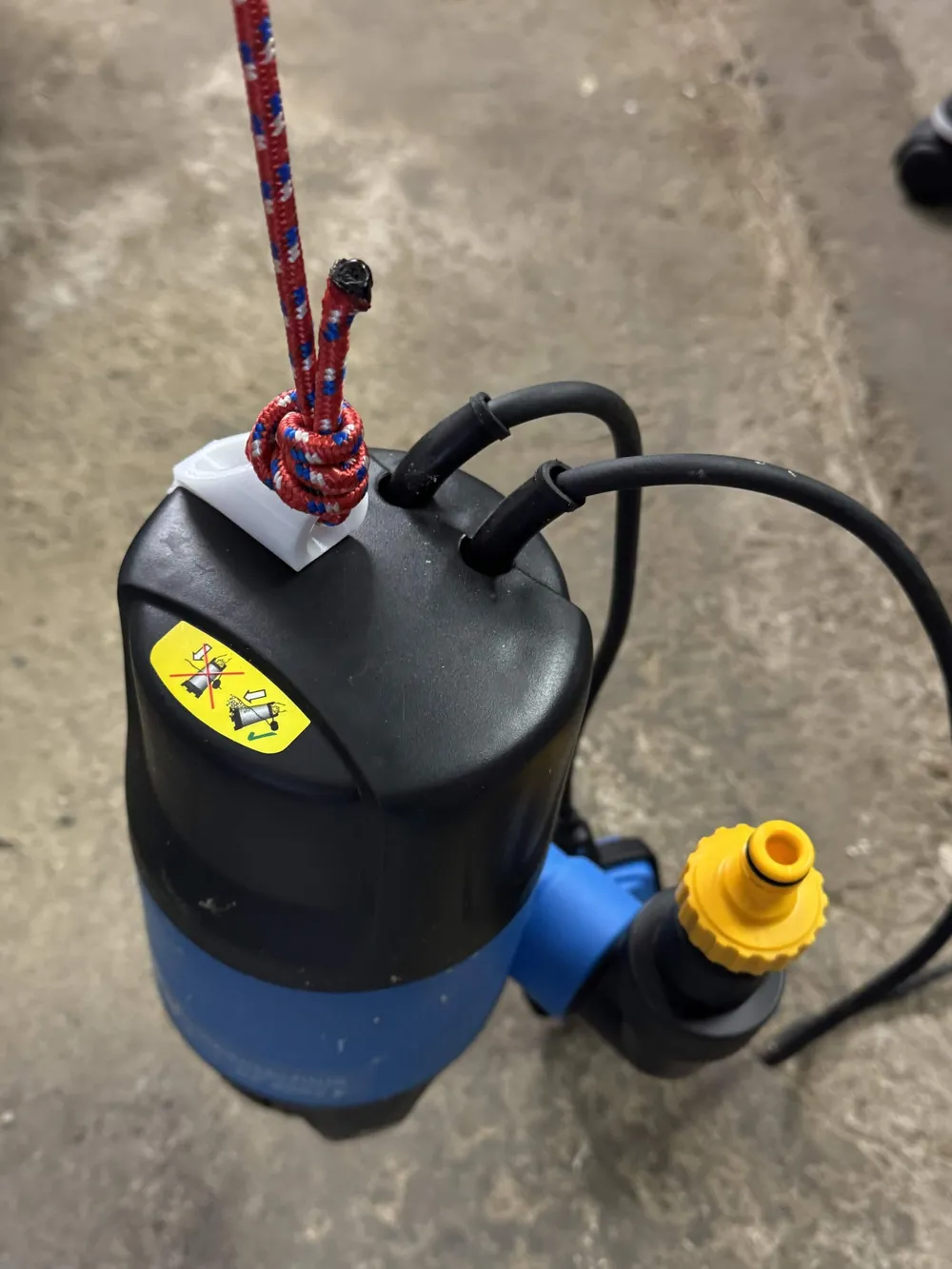

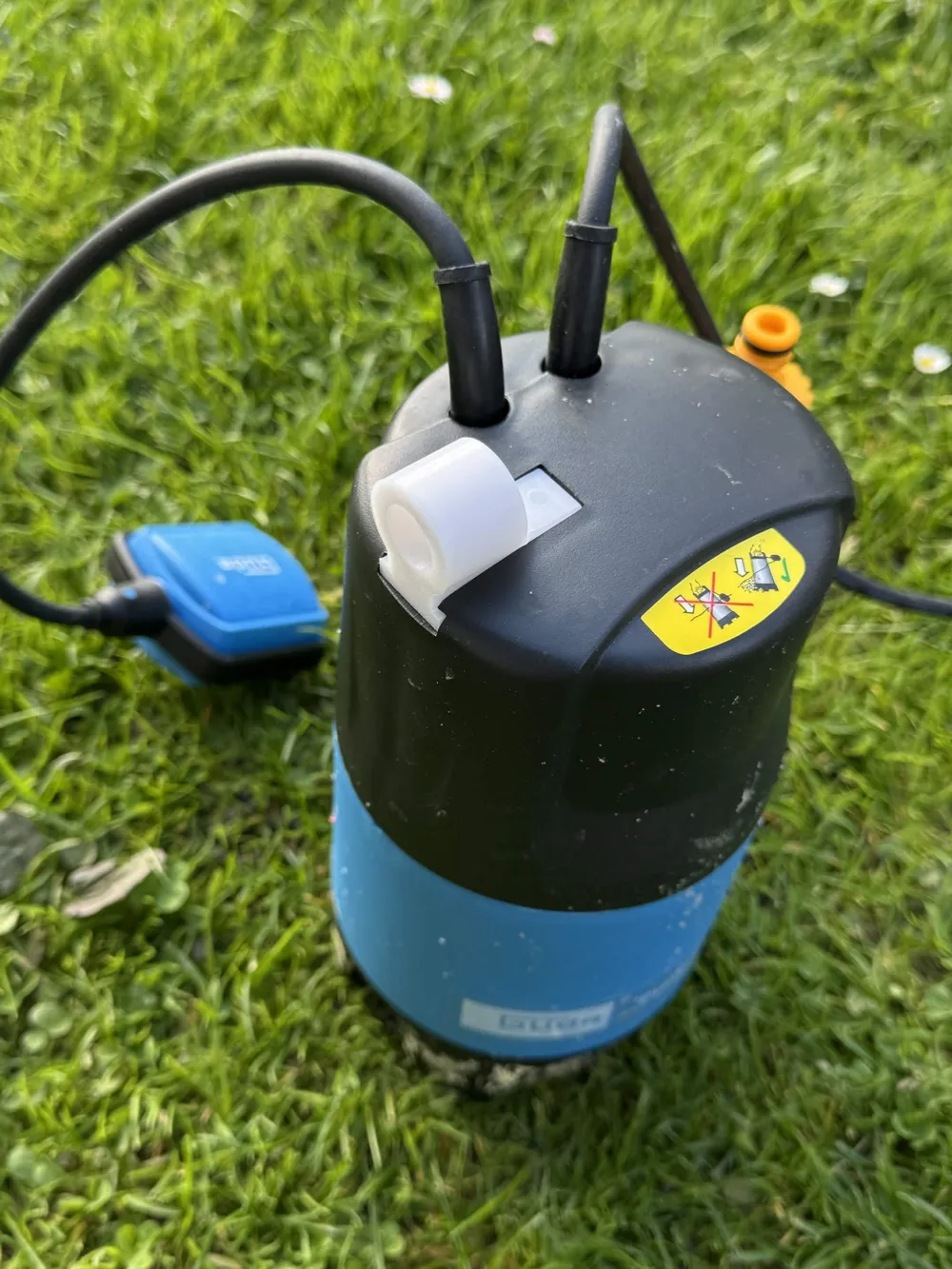

This model replaces the original stock handle with a robust, dedicated rope eyelet (loop). It allows you to safely hang and lower the pump into a well using a safety rope or cable, preventing dangerous tension on the power cord or water hose.
Key Features

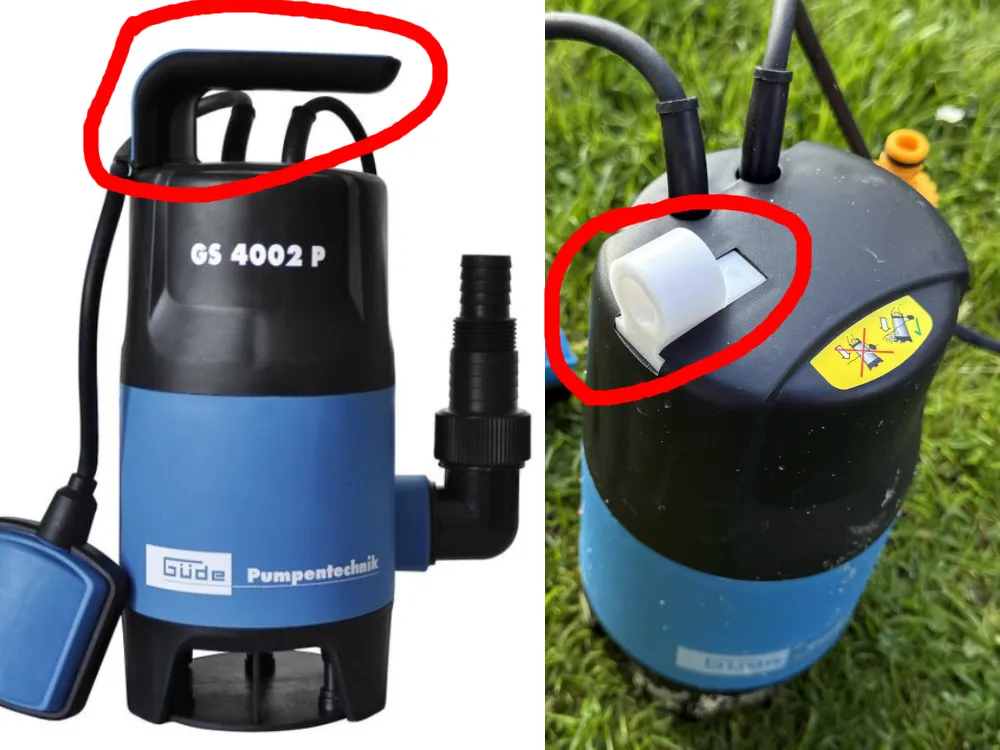

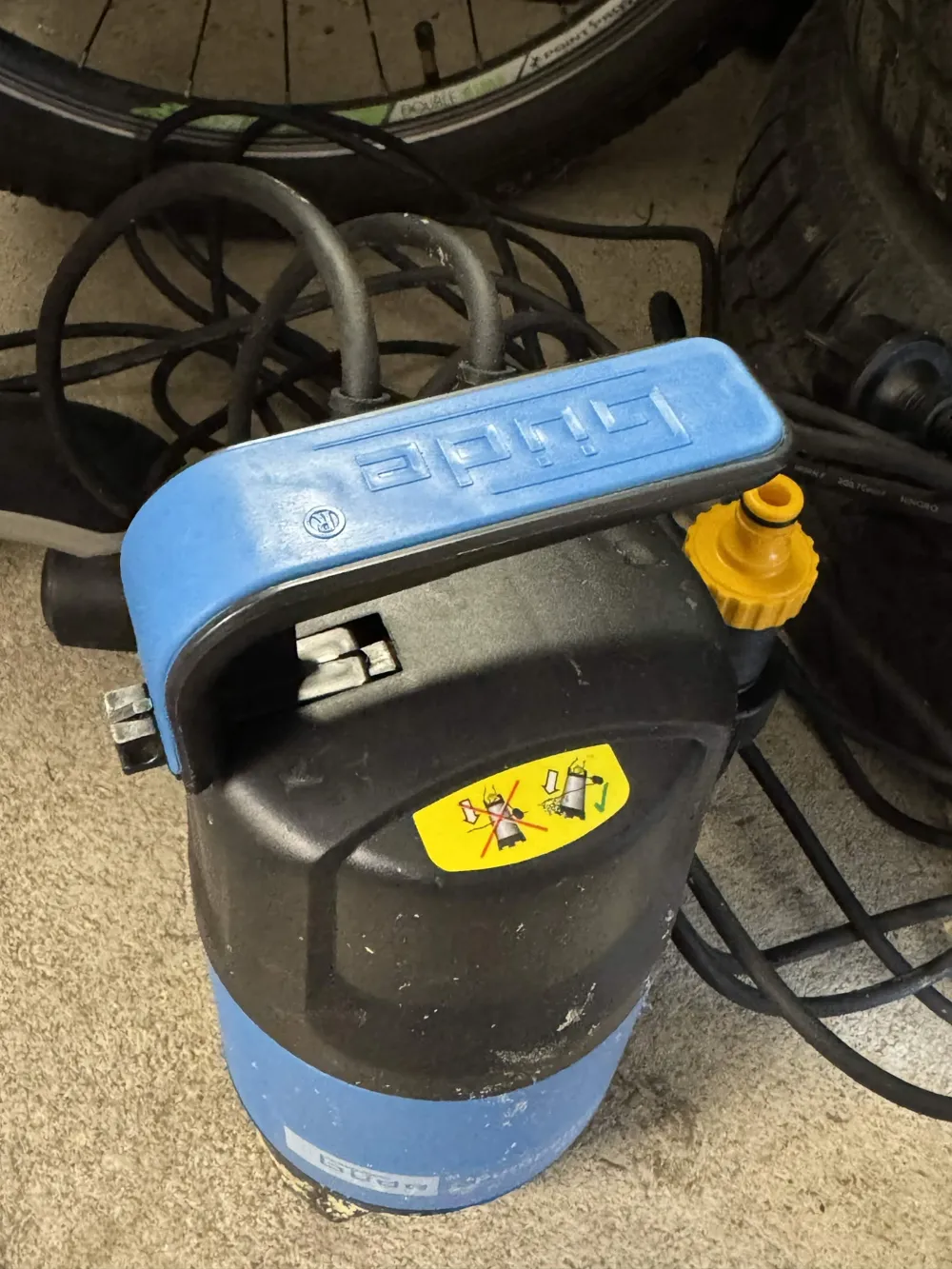

- Perfect Fit: Designed specifically as a direct replacement for the GUDE GS 4002 P handle.
- Safety First: Keeps the weight of the pump off the electrical cable and hose.
- Heavy-Duty Design: Reinforced eyelet to withstand the weight of the pump under water.
đ¨ď¸ Recommended Print Settings
Because this part will hold a heavy pump submerged in water, do not use standard PLA or default print settings.
- Material: PETG, ASA, or ABS (UV resistant, water-resistant, and tougher than PLA).
- Wall Loops / Perimeters: At least 4 to 6 walls for maximum structural strength.
- Infill: 30% - 50% (Gyroid or Cubic for multi-directional strength).
- Layers: 0.2mm for optimal bonding.
