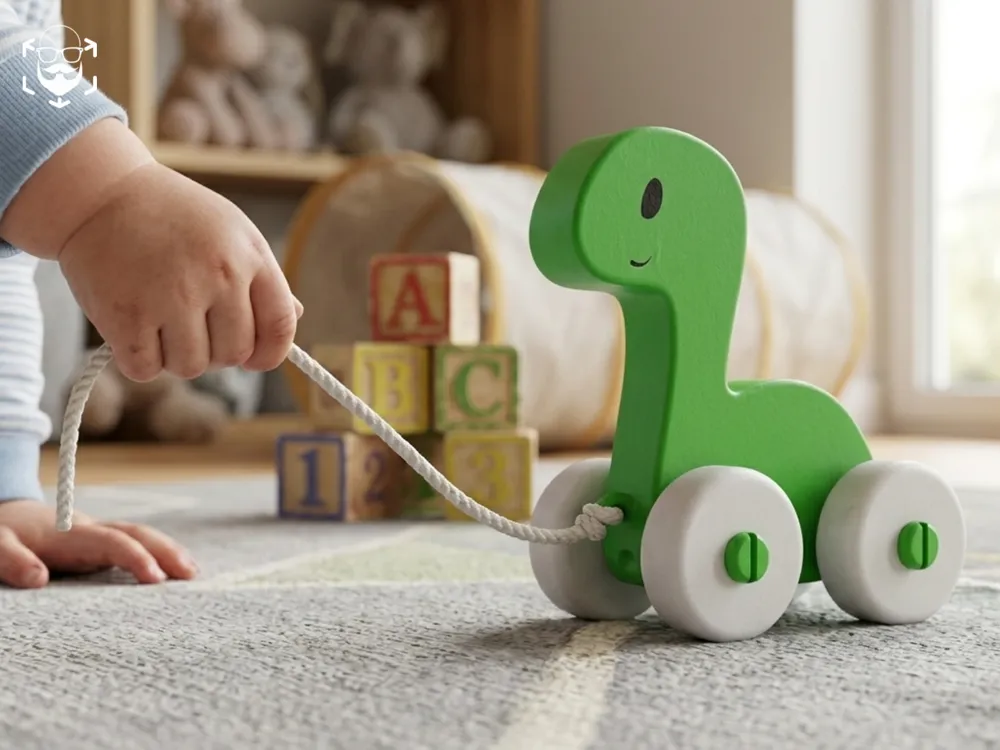

Tiro il Dino – Pull-Along Dinosaur Toy

Tiro il Dino is a pull-along toy designed for young children, inspired by Montessori principles: simple shapes, clear materials, and an intuitive function.
The dinosaur features a front eyelet where a cord can be attached, allowing kids to pull it around easily.

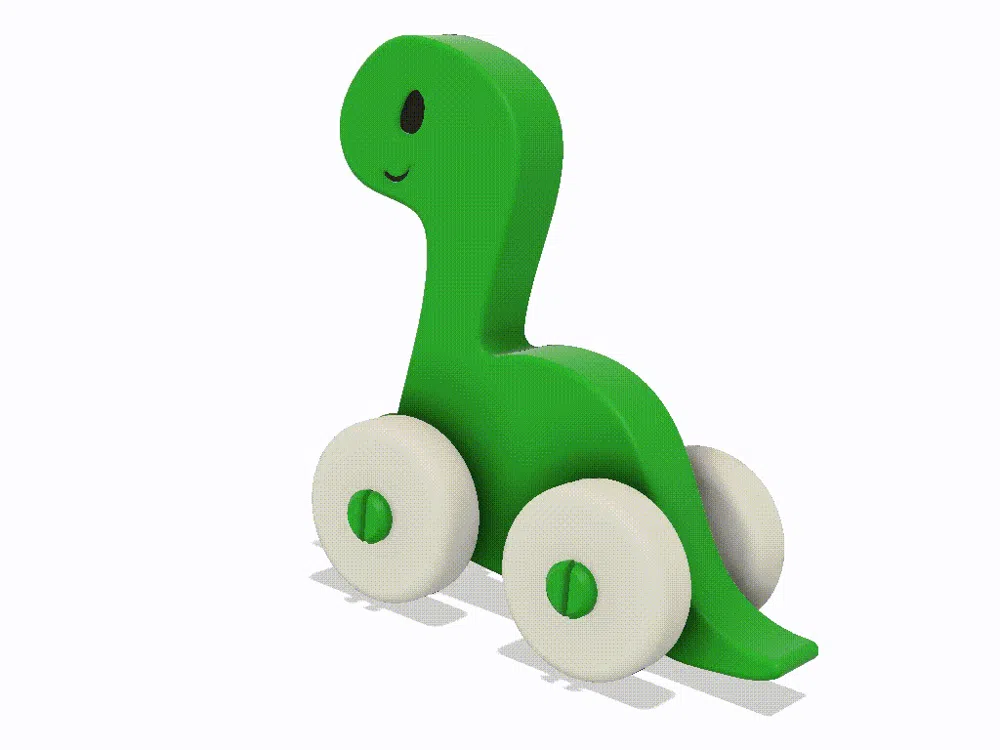

The model consists of two printable parts:

• Dinosaur body (single-piece print)
• Wheels (printed separately and snap-fit into the hubs)

Once assembled, the wheels rotate freely without screws, pins, or extra hardware.

Technical Features

• Original size: slightly over 20 cm long and just under 20 cm tall
• Front eyelet: integrated for attaching a cord
• Wheels: no supports required; snap-fit design
• Body: requires supports
• Scalable: can be resized depending on your printer’s build volume

3D Printing

Recommended Settings

• Material: PLA
• Layer height: 0.2 mm
• Infill: 15–20%
• Supports: required only for the dinosaur body
• Brim: recommended for adhesion

Wheels

• Print without supports
• Snap-fit into the hubs
• Tolerances tuned for smooth rotation

Assembly

1. Print the dinosaur body with supports.
2. Print the four wheels without supports.
3. Clean any leftover support material from the hubs.
4. Press-fit the wheels until they click into place.
5. Tie a cord to the front eyelet.

Your pull-along dinosaur is ready to play.

Safety Notes

• Use a short, age‑appropriate cord.
• Ensure wheels are securely attached before use.
• Print using non‑toxic materials.

Final Notes

Tiro il Dino is designed to be simple, sturdy, and fun.
You can customize the colors, scale it to larger sizes, and integrate it into motor‑skill development activities.

Happy printing!
