Parametric Adjustable Furniture Foot
Print Profile(1)
Description

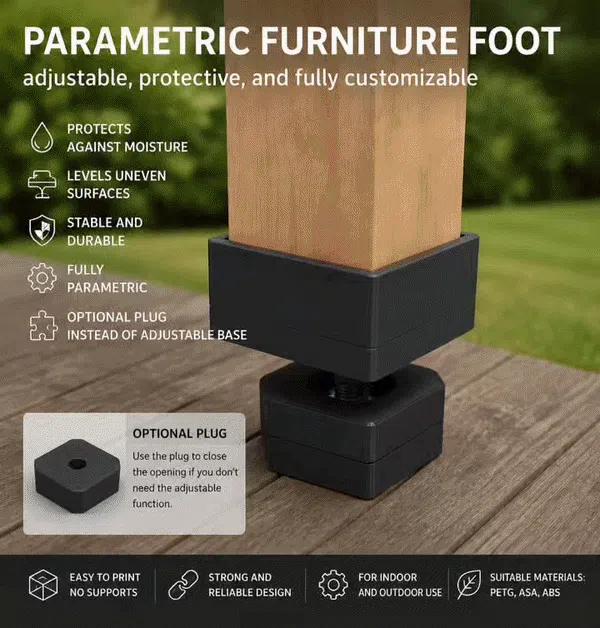

Fully parametric adjustable furniture foot designed for tables, benches, outdoor furniture, workbenches, shelves, and other wooden constructions.
The model helps protect wooden legs from moisture while also allowing height adjustment for leveling uneven floors or outdoor surfaces.
Designed specifically for MakerWorld Customizer with easy parameter editing.
Boost Me (for free)
Your support helps me create more free and practical designs for makers like you. Thank you!
Features
- Fully parametric design
- Adjustable for different furniture leg sizes
- Height adjustable base
- Moisture protection for wooden furniture
- Hidden screw system
- Recessed M16 nut mounting
- Two-piece bottom assembly
- Customizable chamfered edges
- Optional plug version without adjustable foot
- Easy to print and assemble
- Indoor and outdoor use
How It Works

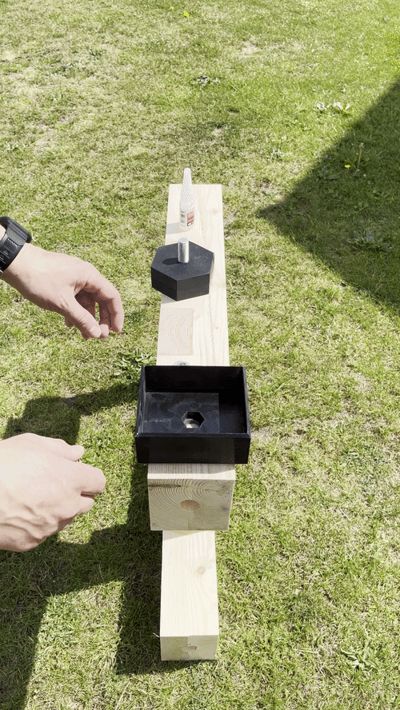

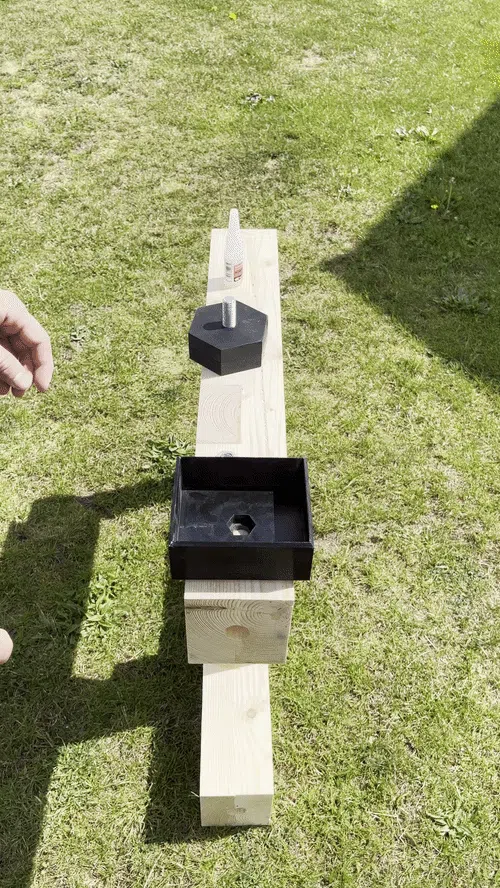

The upper sleeve slides onto the furniture leg.
Inside the upper section is a recessed pocket for an M16 nut.

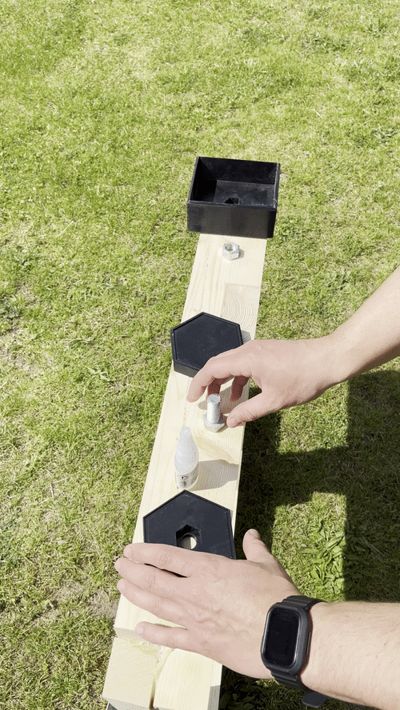

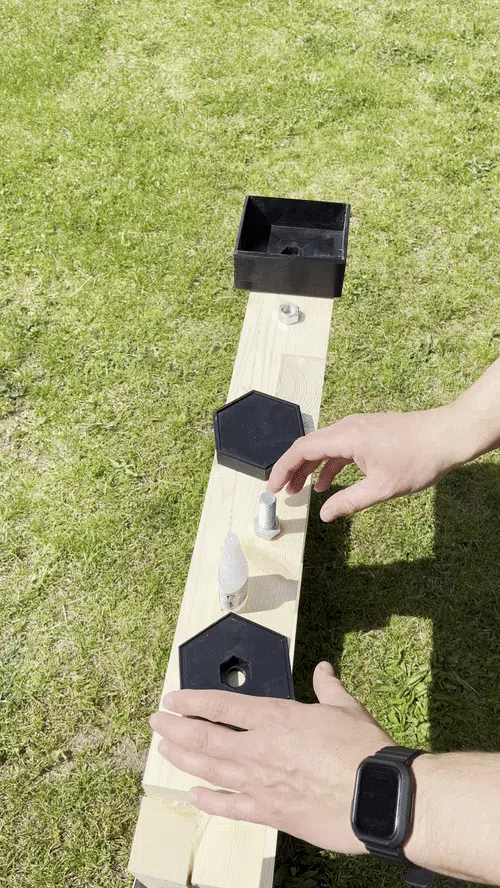

The lower adjustable base is made from two separate parts:
- an internal screw holder
- an external bottom cover that hides the screw inside the assembly
The M16 screw is inserted from below and threaded into the recessed nut.

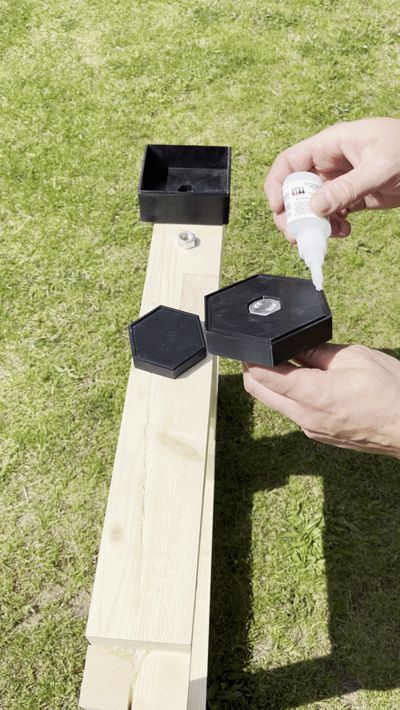

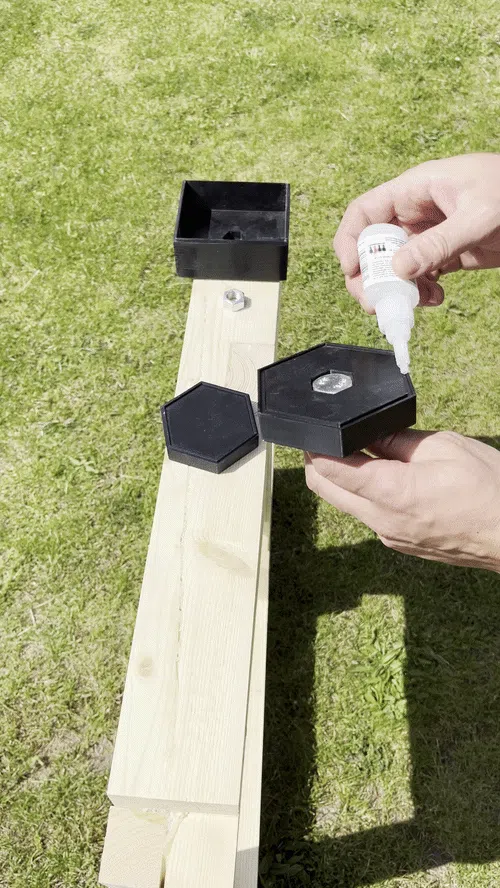

Prepared grooves allow the screw to be secured with a small drop of glue if desired.

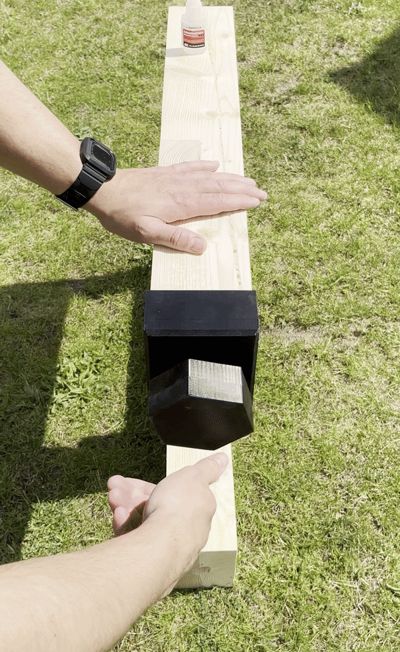

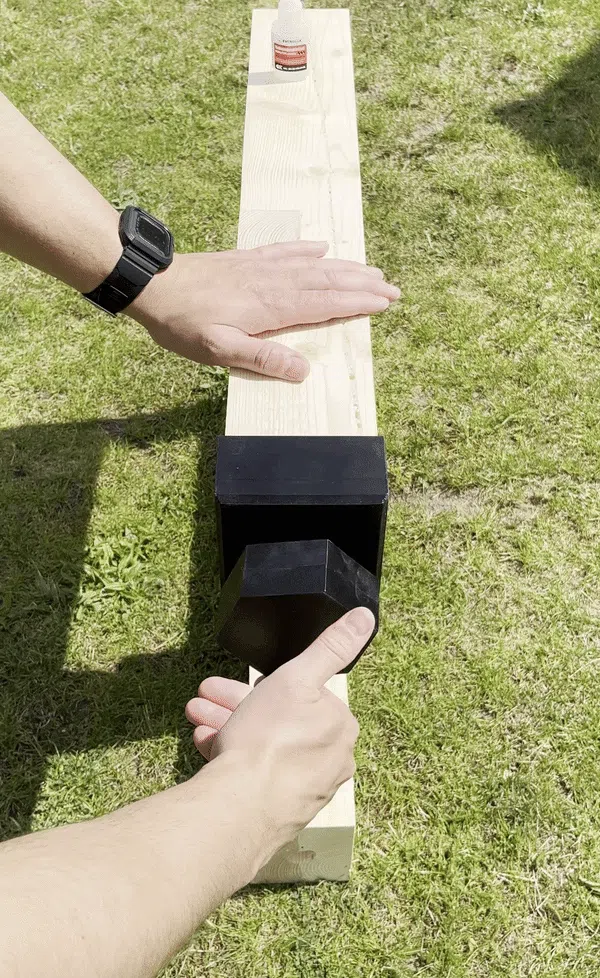

The adjustable base allows easy leveling of furniture on uneven surfaces.
For users who do not need height adjustment, an optional plug insert can be used to close the opening.
Main Adjustable Parameters
| Parameter | Function |
|---|---|
| leg_width_dimension | Sets the furniture leg width. |
| leg_depth_dimension | Sets the furniture leg depth. |
| leg_width_tolerance | Adds extra clearance for easier fitting. |
| leg_depth_tolerance | Adds extra clearance for easier fitting. |
| wall_thickness | Changes body wall thickness and strength. |
| nut_recess_depth | Controls how deeply the M16 nut sits inside the upper part. |
| bottom_edge_chamfer | Adjusts chamfer size on the bottom section edges. |
| top_edge_chamfer | Adjusts chamfer size on the upper sleeve edges. |
| draft_angle_bottom | Controls lower section taper/chamfer angle. |
| draft_angle_middle | Controls transition taper/chamfer angle. |
| fit_test_height | Allows quick fit testing before full printing. |
| foot_thickness_bottom | Changes thickness and strength of the bottom section. |
Customizable Edge Design
Additional chamfer parameters allow users to customize the appearance of the model:
- sharper technical edges
- softer smoother transitions
- easier insertion onto furniture legs
- reduced sharp corners
Required Hardware
- 1× M16 nut
- 1× M16 screw
Screw length depends on the desired adjustment range.
Recommended Materials
Recommended for outdoor use:
- PETG
- ASA
- ABS
PLA is recommended mainly for indoor environments.
Recommended Print Settings
- Layer height: 0.2 mm
- Infill: 20–40%
- 3–4 perimeters
- Supports usually not required
Ideal For
- outdoor tables
- garden furniture
- workbenches
- pergolas
- wooden benches
- shelving
- heavy wooden furnitur
