Klipsch RP-502S / RP-502S II Corner Mount
Print Profile(1)
Bill of Materials
- Starbond Thick CA Glue x 1: https://amzn.to/4dV1mIq
- #10 x 3" Wood Screws x 8: https://amzn.to/4dV1mIq
- M6 x 30 button head screw x 2: https://amzn.to/3PPjHxv
- Ruthex M6 Heatset Insert x 2: https://amzn.to/4a3CI67
Description

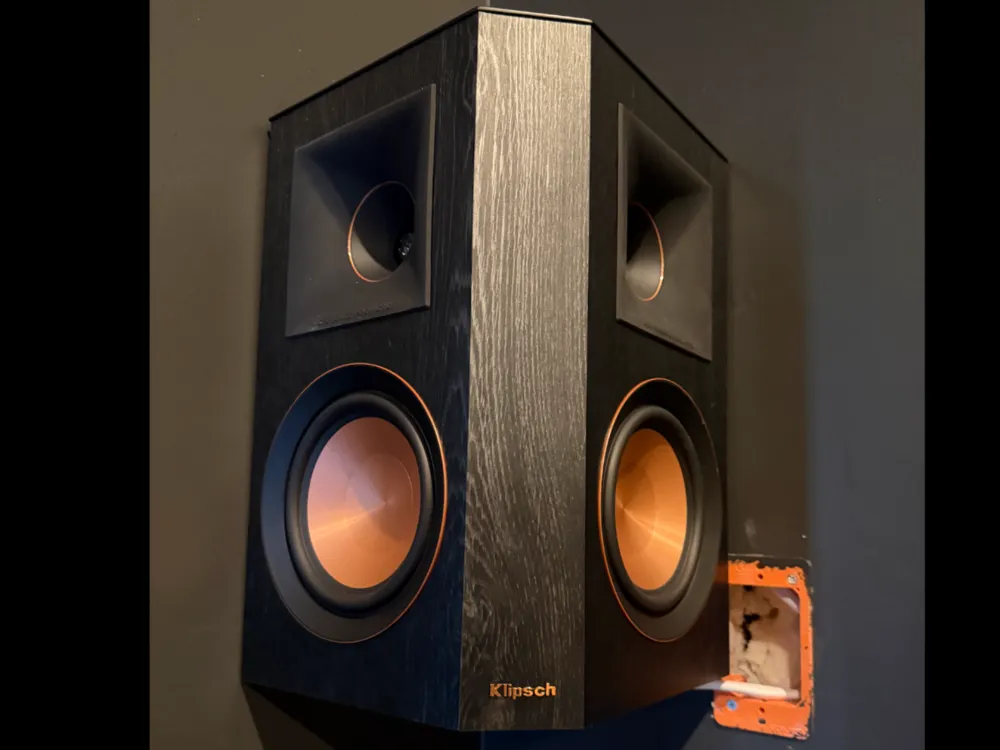

I wanted to mount my Klipsch RP502S speakers in the corner instead of sticking out from the back wall nearish to the corner. Klipsch doesn't make a corner mount, and I didn't want to have to install shelves for the speakers, so I created these. I used PETG for the print, and its plenty strong. The model is broken into 2 pieces designed to be re-attached to eachother with a pair of dowels and a bit of super glue. The bottom piece isn't load bearing, simply a spacer so this is plenty strong.
See the BOM below for other required fasteners.
This will mount to the wall with some #8x3" or #10x3" wood screws into the corners. Since a corner has to have at least one stud for the drywall to be hung on, you are guaranteed to hit a stud.
