Clever Skimmer Adjustable (Bestway & Intex Pools)

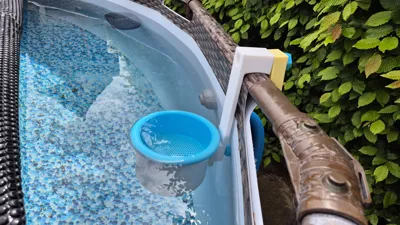

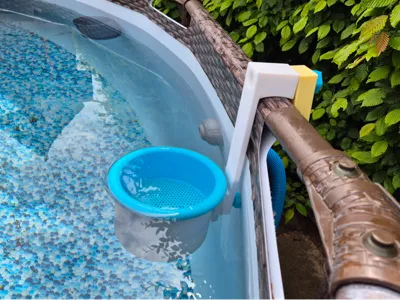

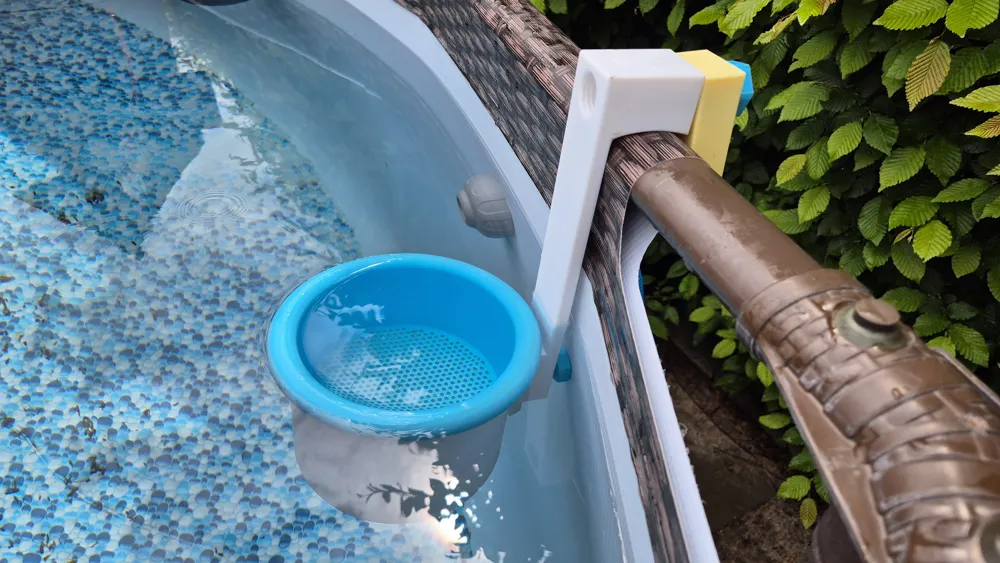

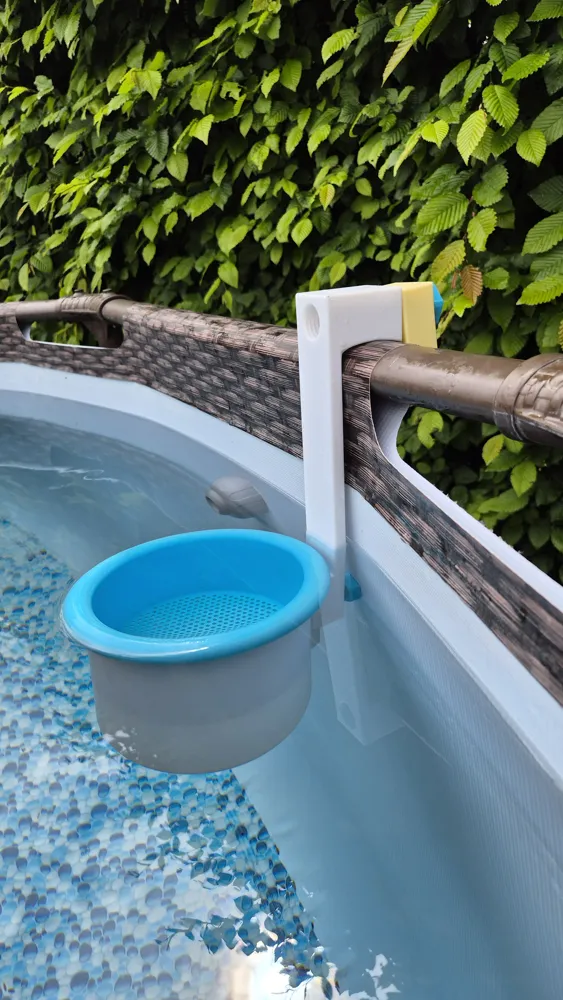

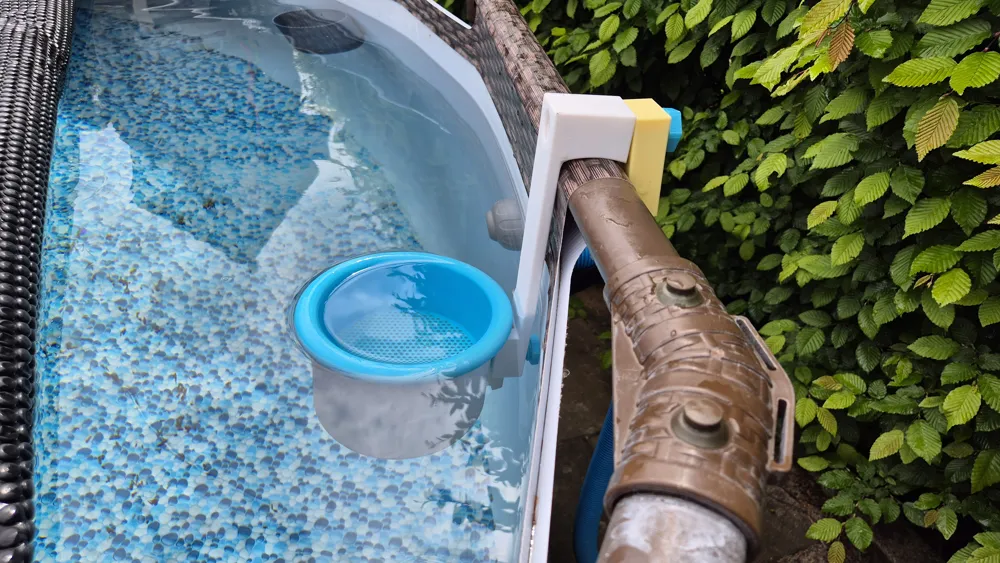

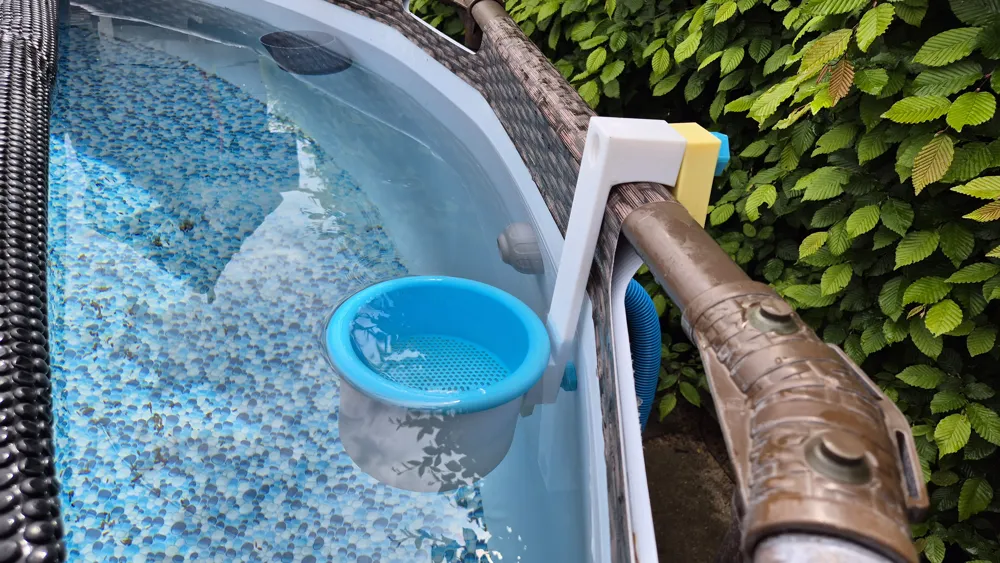

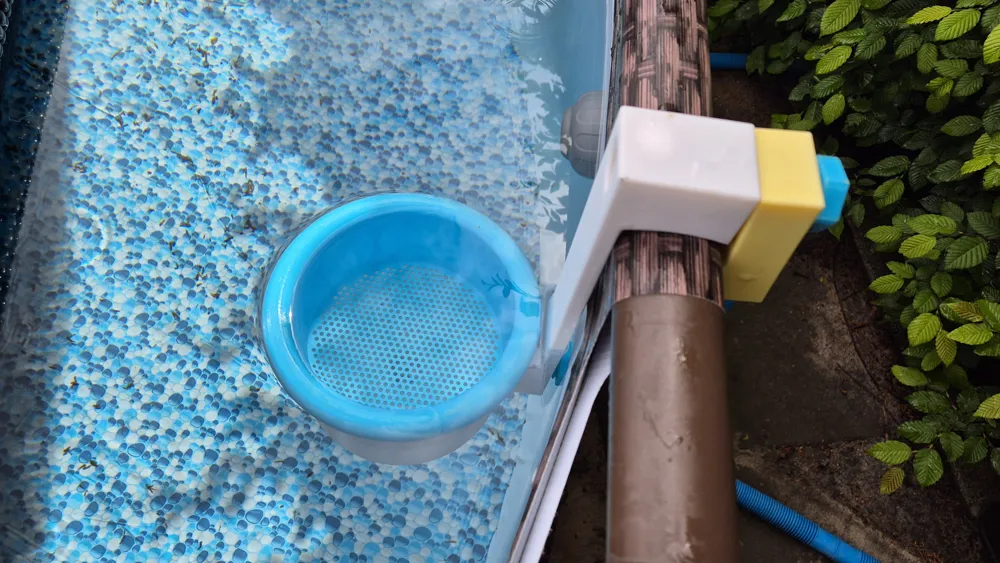

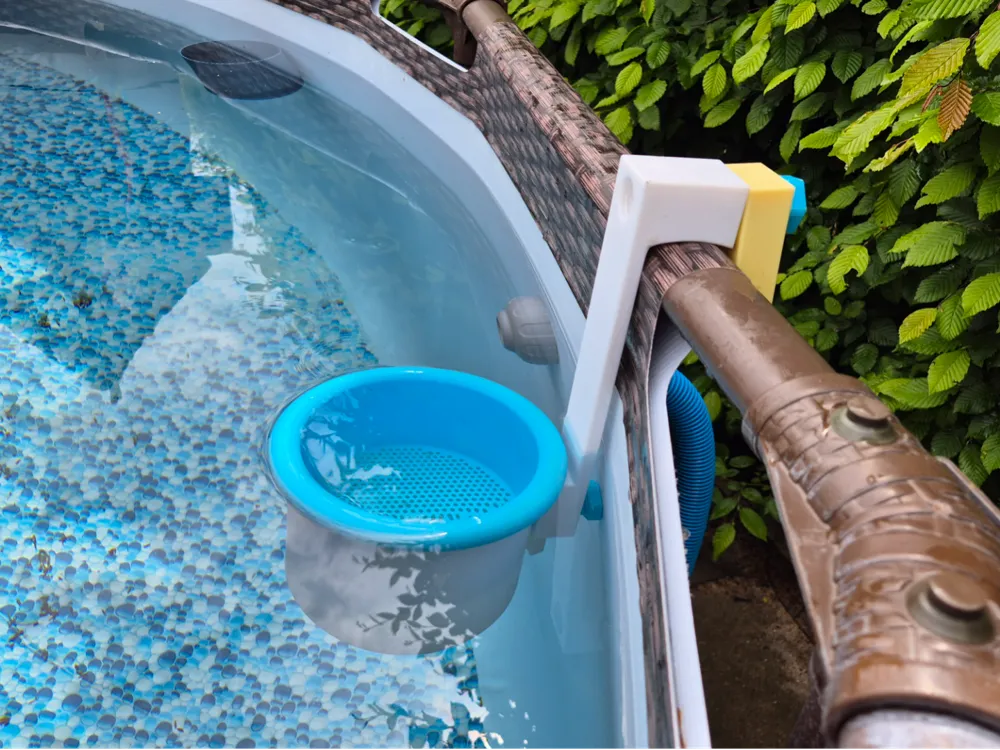

This simple, two-part surface skimmer keeps your pool surface free of leaves, insects, and dirt.

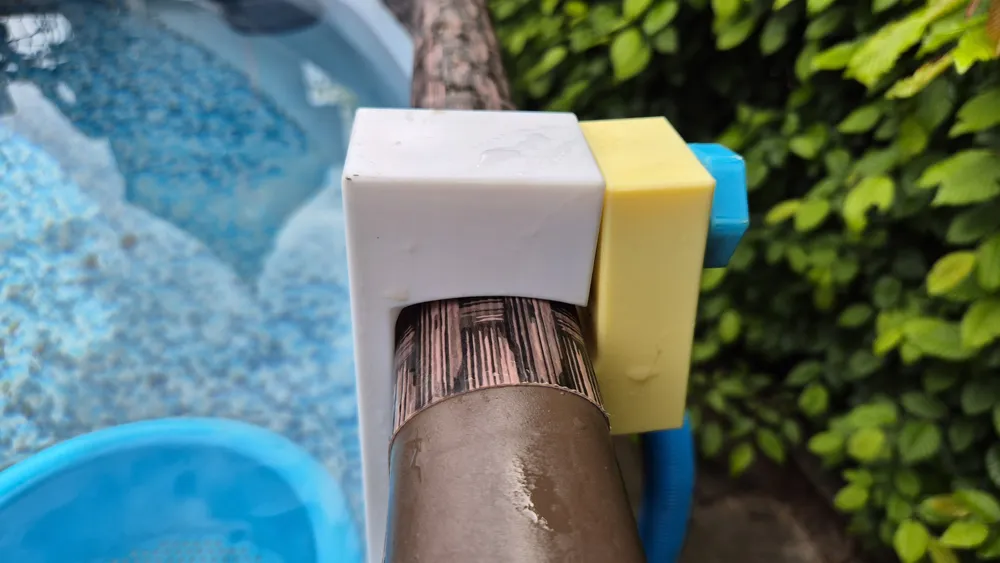

It was specifically designed for Bestway and Intex above-ground pools that have an oval pole.
However, it should also fit round poles.
Thanks to a rail guide, the height can be perfectly adapted and adjusted to your water level.
The screws provide the necessary grip.
🛠️ Design & Function

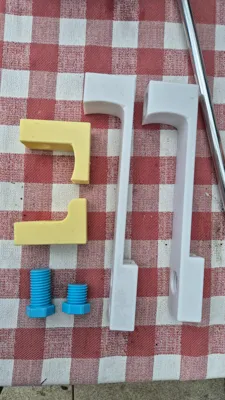

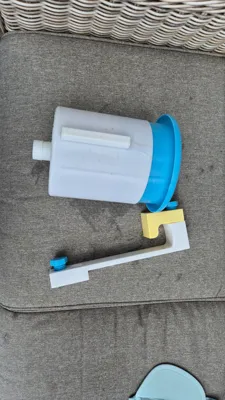

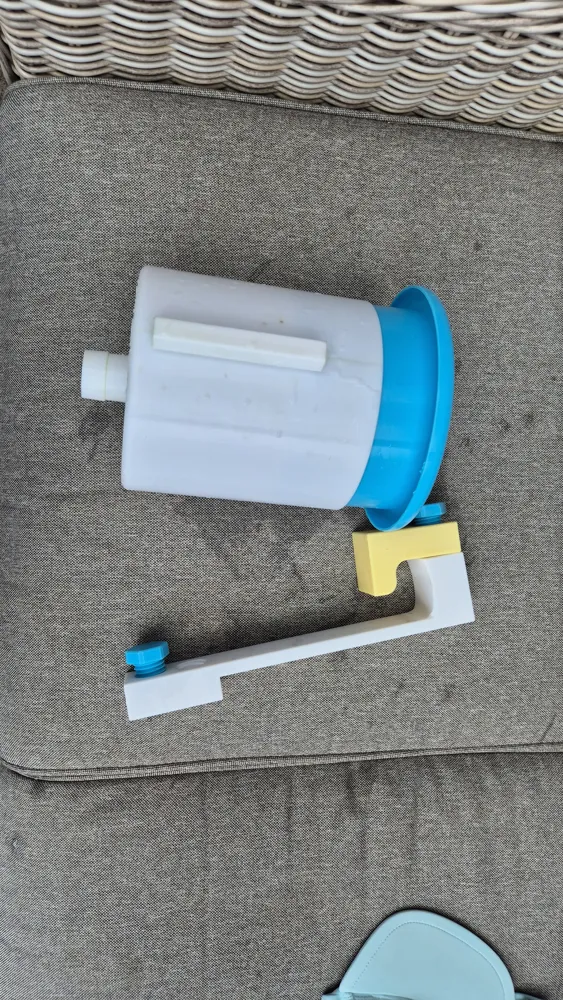

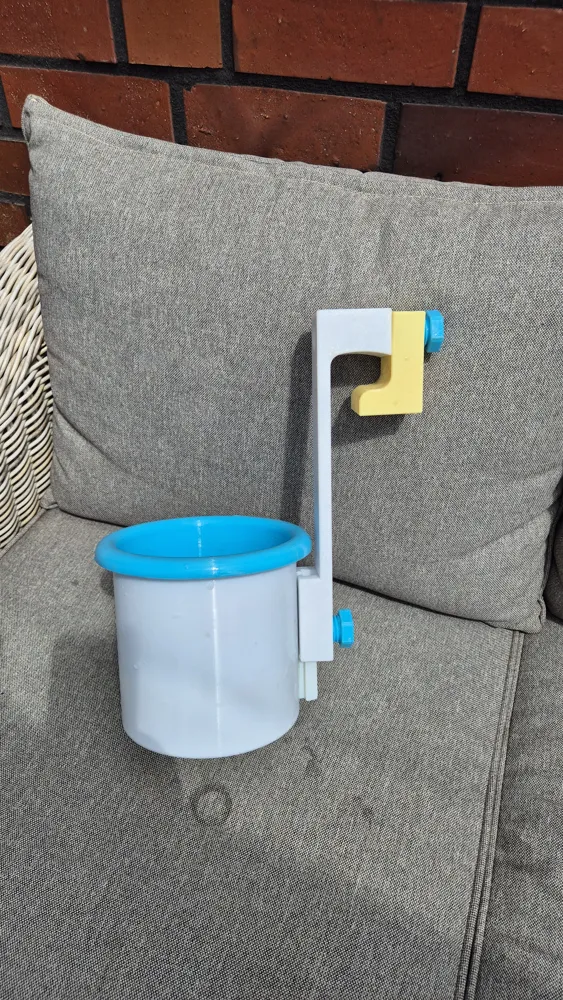

The system consists of two precisely fitting parts and a locking screw:
- Body (Main housing): Is attached to the pool's intake channel with an adapter and a short hose.

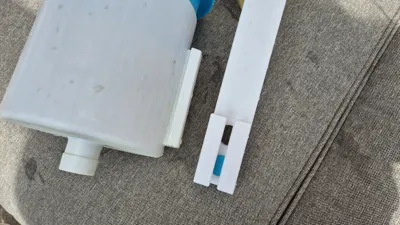

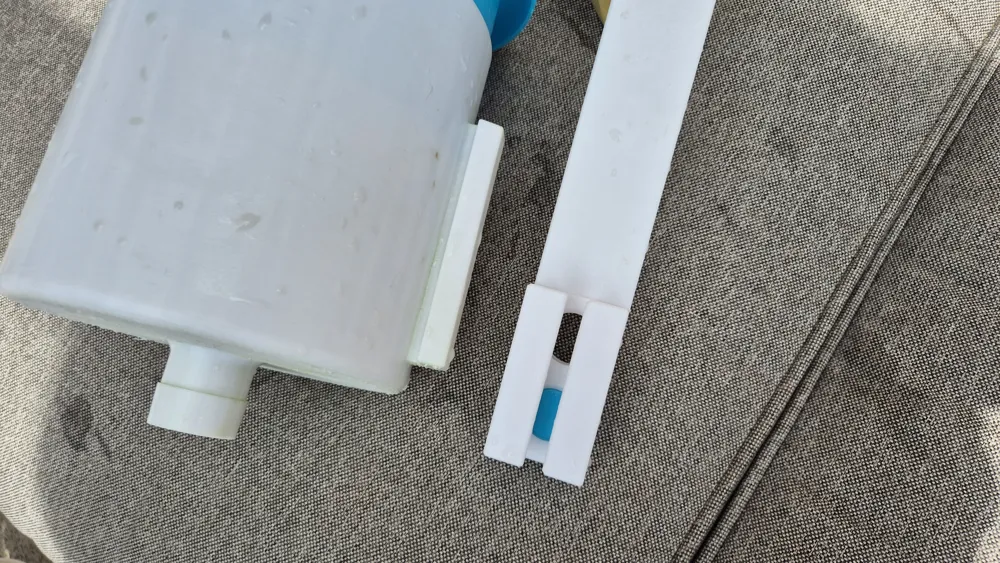

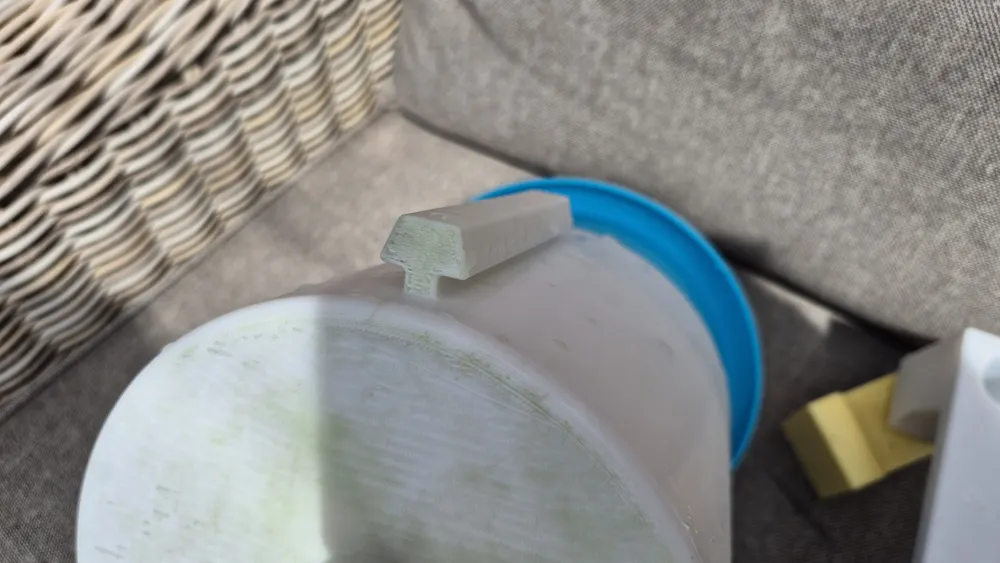

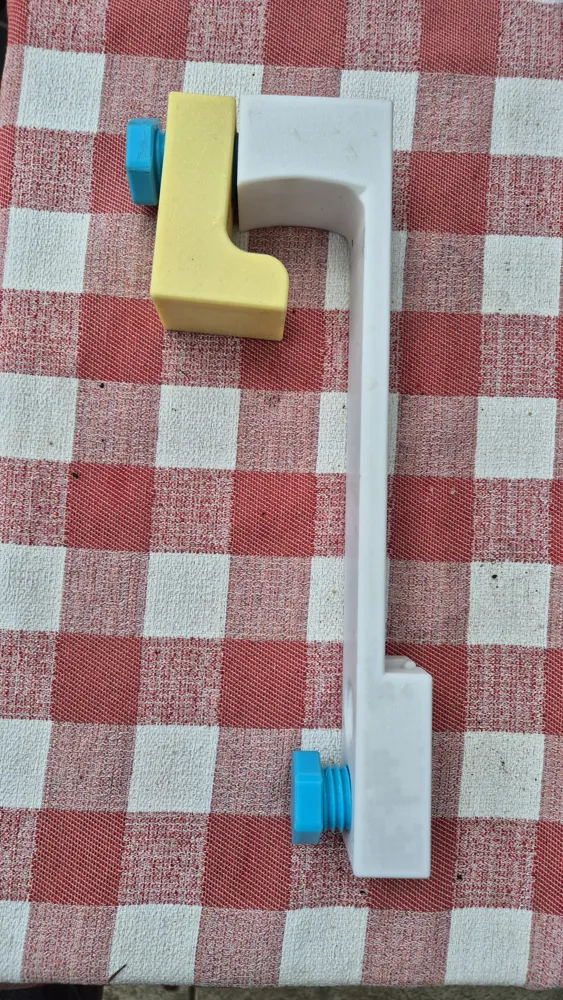

- The basket has an integrated guide rail that can be continuously adjusted.
- Adjustable Basket (Sieve): Slides up and down in the body's guide.

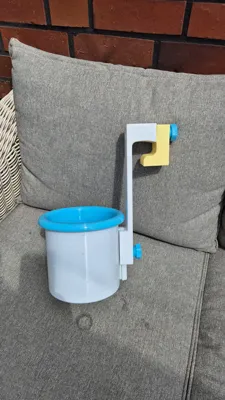

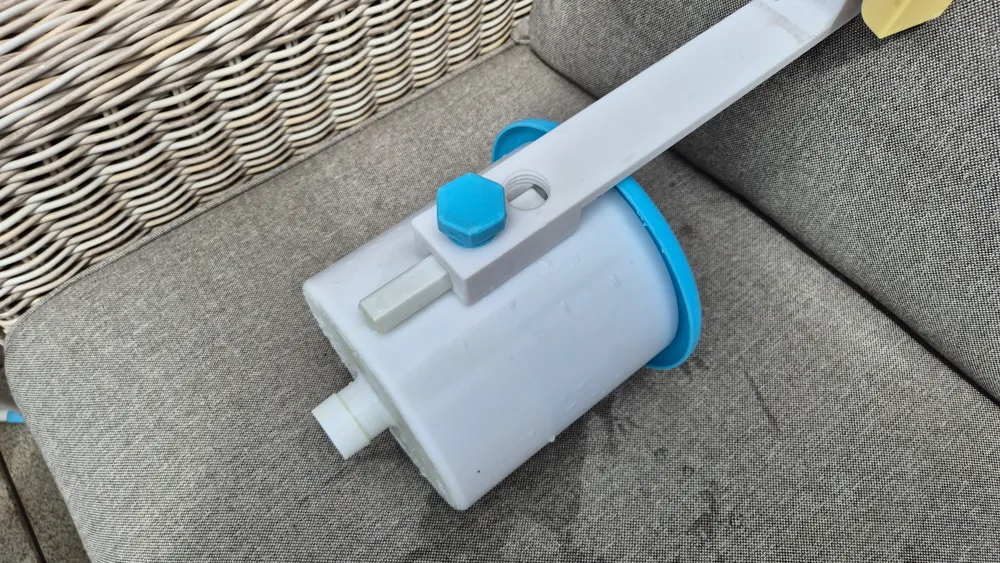

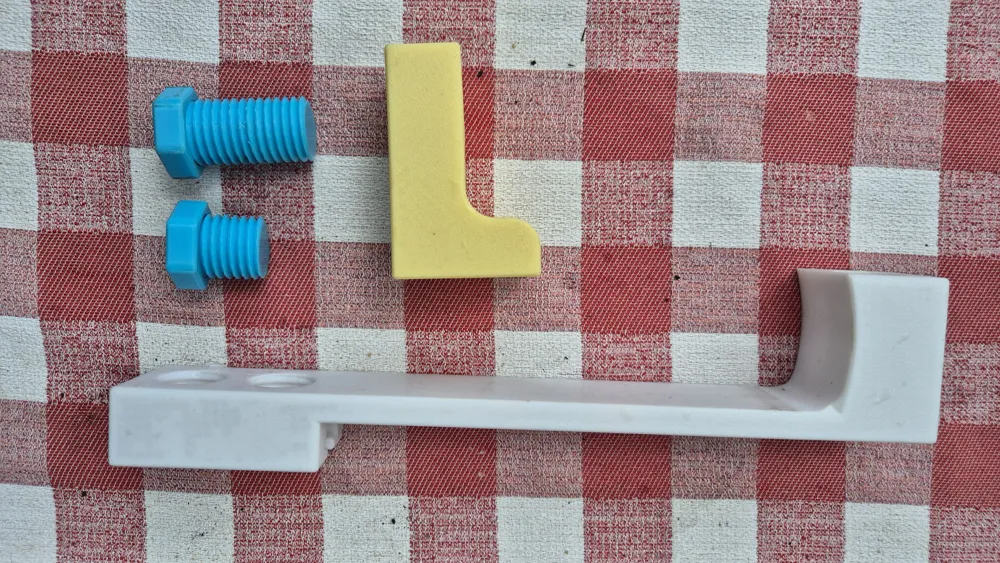

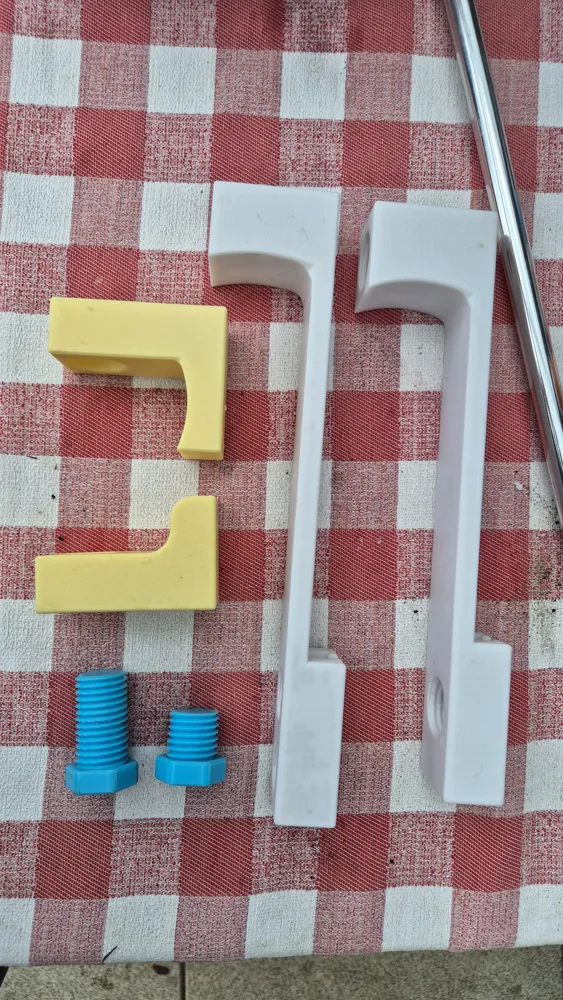

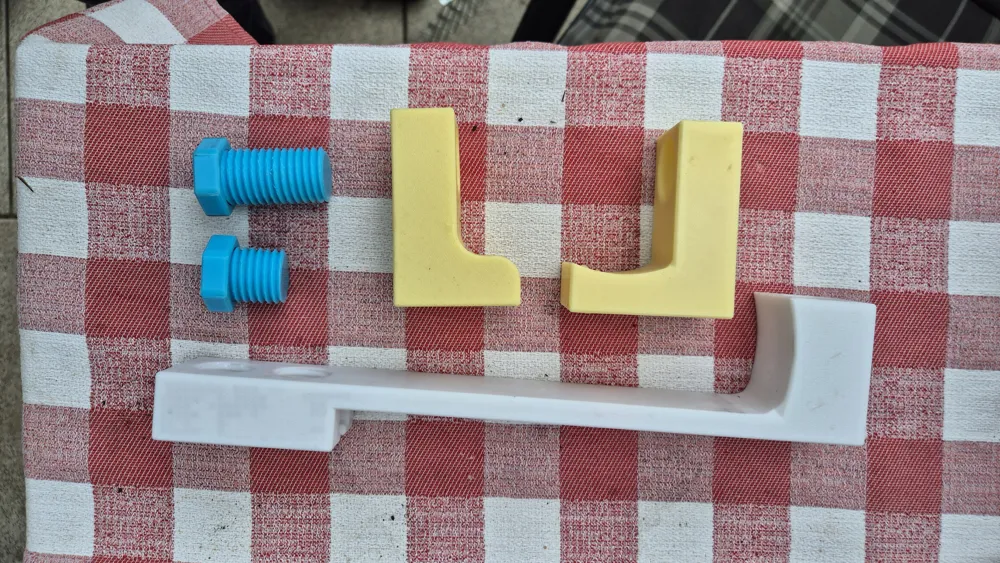

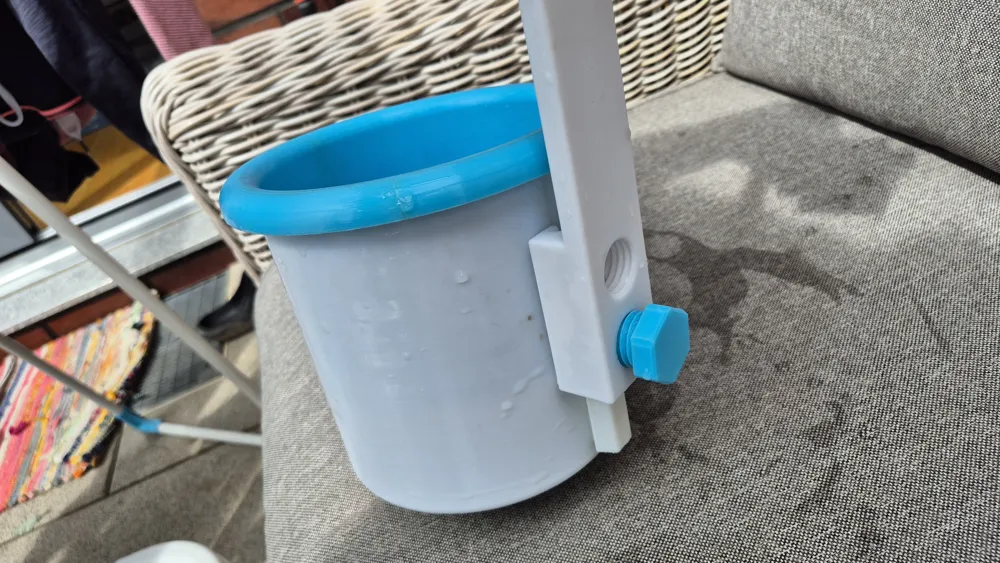

- Manual Height Adjustment: The basket is simply pushed to the desired height and securely fixed with a large, printed plastic screw.
- An adapter is included, which is needed for the hose!
📐 Technical Specifications
- Diameter: approx. 150 - 160 mm
- Mechanism: Continuous height adjustment via rail guide and clamping screw.
- Compatibility: Standard Bestway and Intex above-ground pools.
🖨️ Printing Recommendations
- Material: PETG recommended (due to UV resistance and chlorine resistance).
- Infill: 15 - 20% for the screws and the holder.
- Walls: At least 3–4 wall lines, to ensure the thread of the large screw and the guide are stable and durable.
