Description

Content has been automatically translated.
Show original

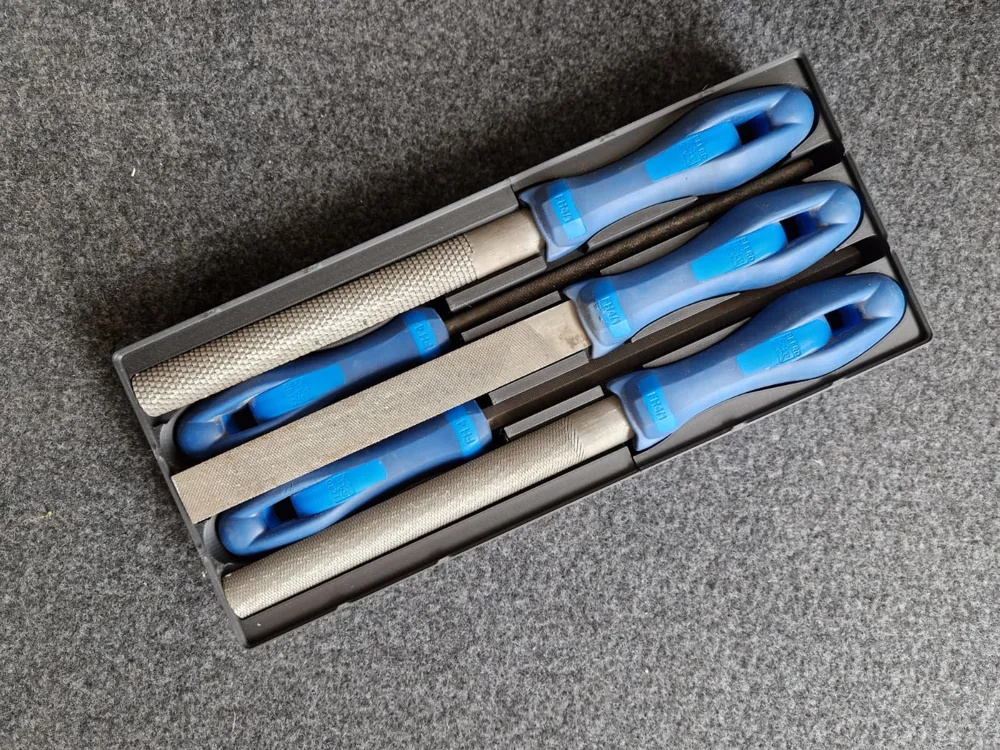

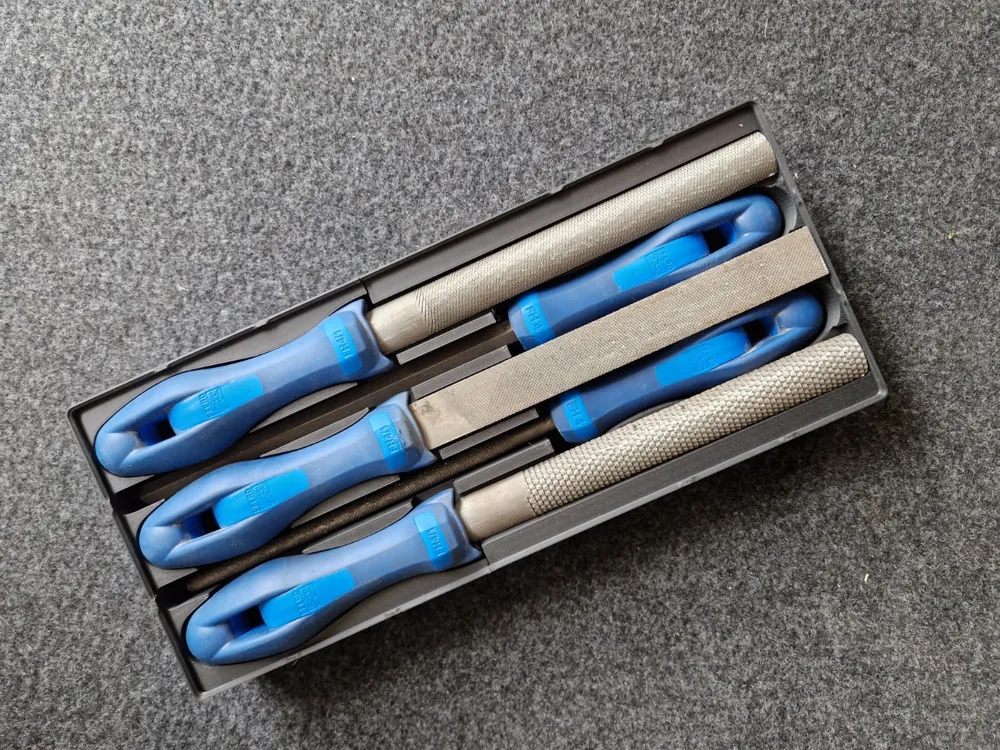

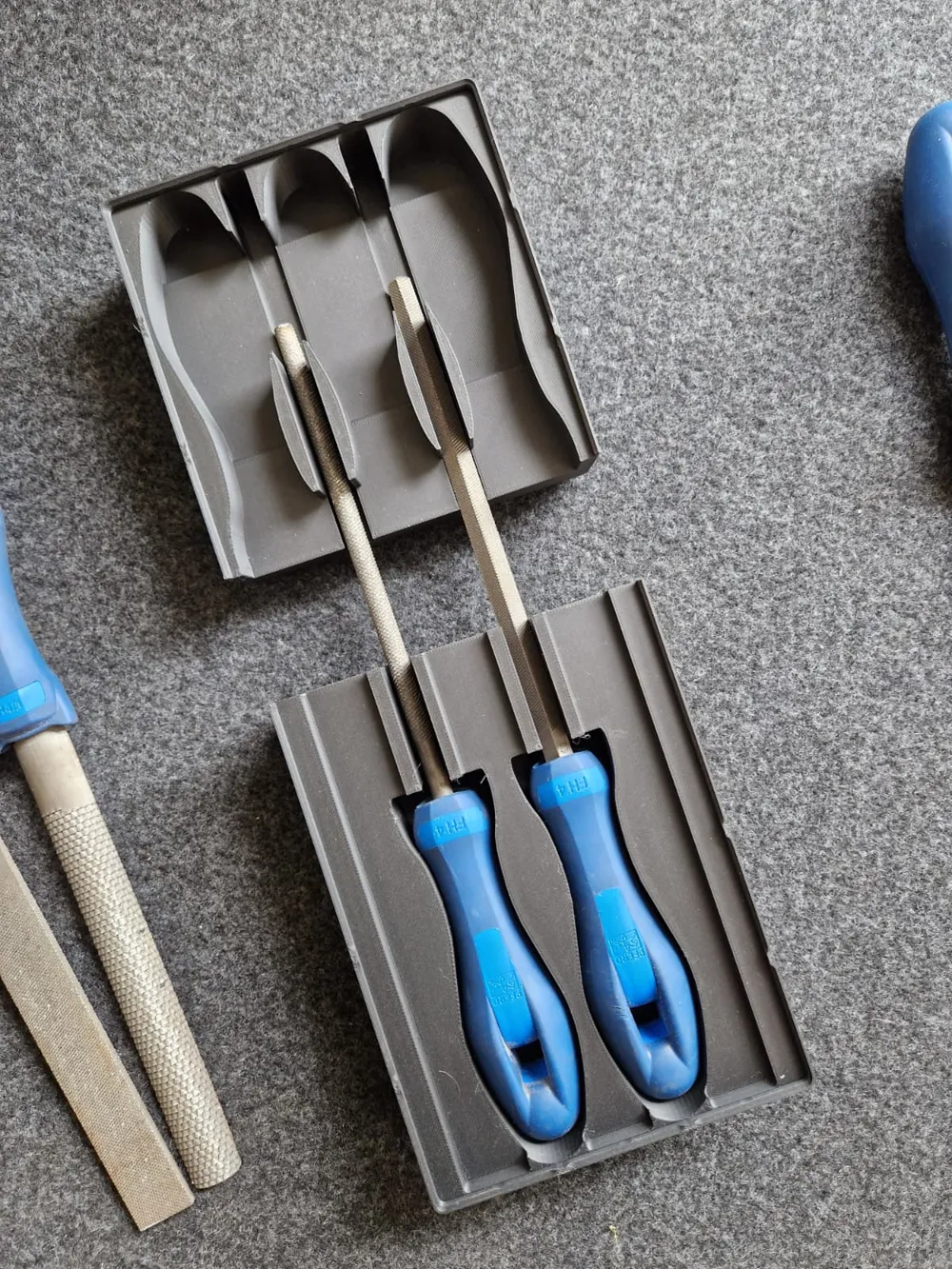

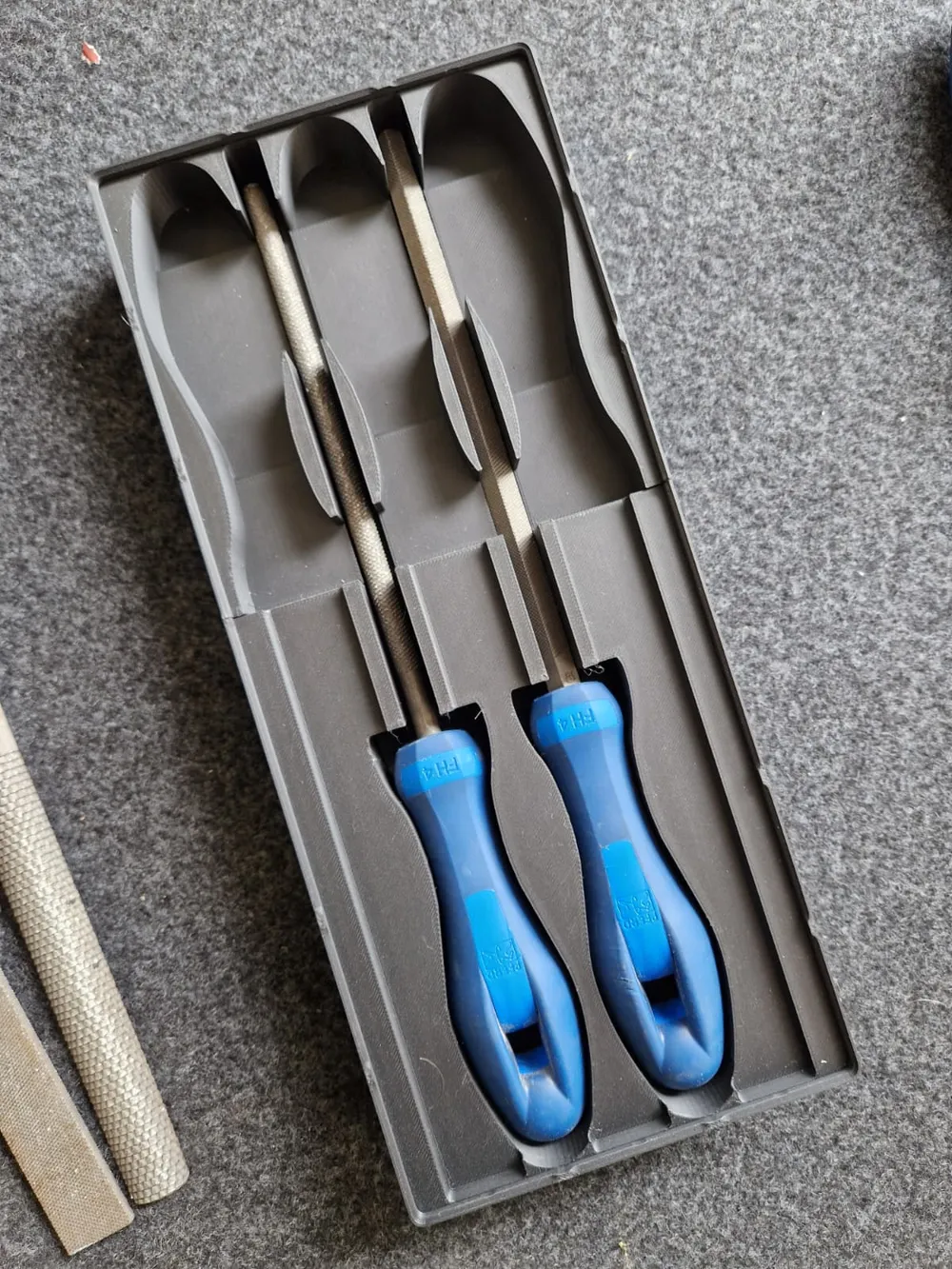

The Gridfinity bin measures 7x3 or 8x3 and consists of two components

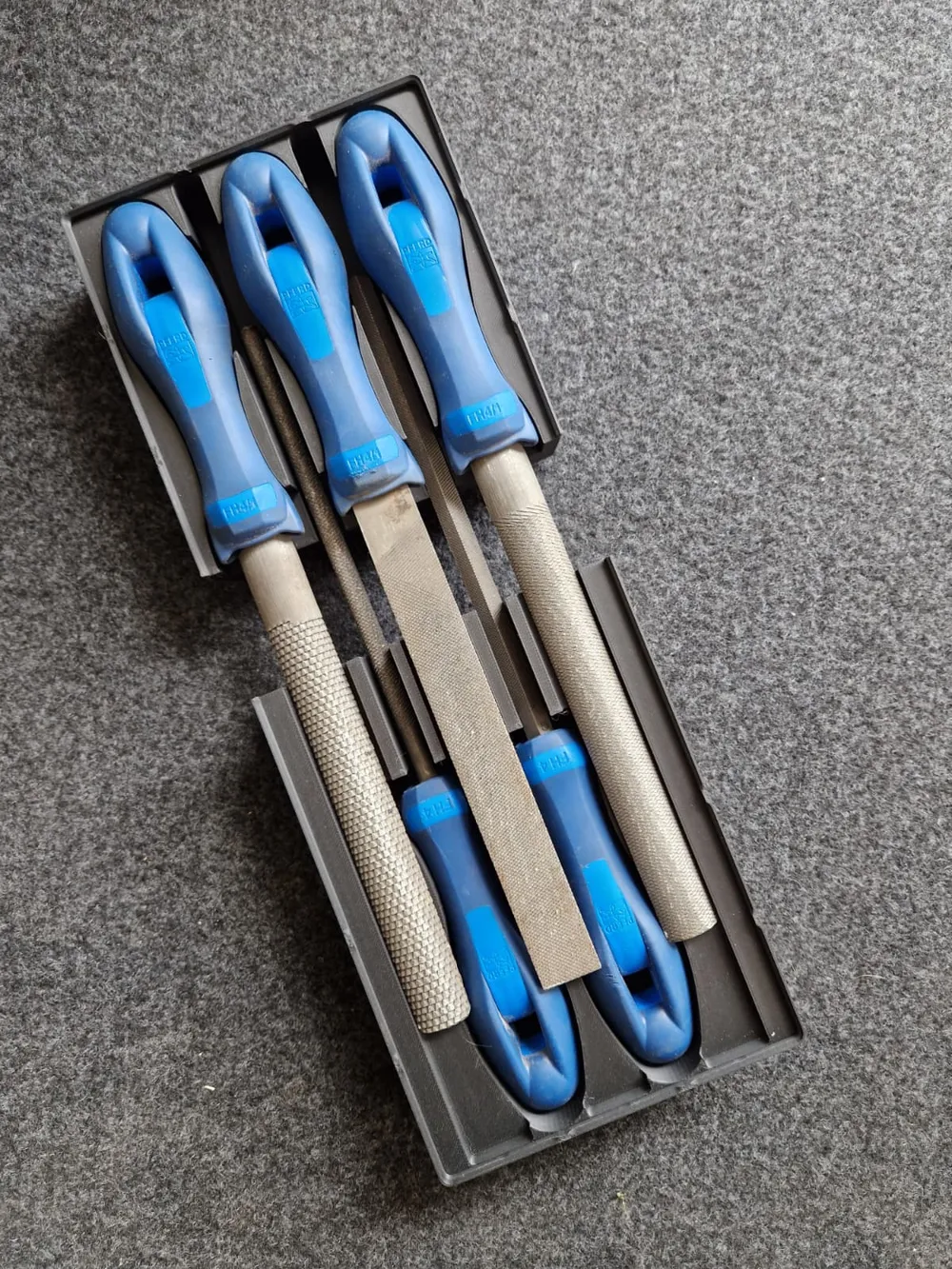

I shortened the files by a few millimeters so that the dimensions can be designed for a 7x3 grid. If you understandably do not want to shorten your files, you can arrange the two parts offset by one bin width.

Since I (unfortunately) have to store my tools very compactly for my workshop cart, the files are packed very tightly. Usability might suffer for some because of this. For me, it's sufficient, but I don't want to leave that unmentioned.

If you want, you can find an alternative among my other models.

Feel free to write in the comments how you feel about compact models and what you would optimize.

In the future, I plan more bins for compact tool storage. The goal is to organize my workshop cart extremely compactly and fully in the future. Depending on the application, the choice of size will sometimes favor compactness and sometimes good usability.
