Talaria Original Mirror Relocation Mount

A clean and discreet mirror relocation mount designed for the Talaria using the original mirrors.

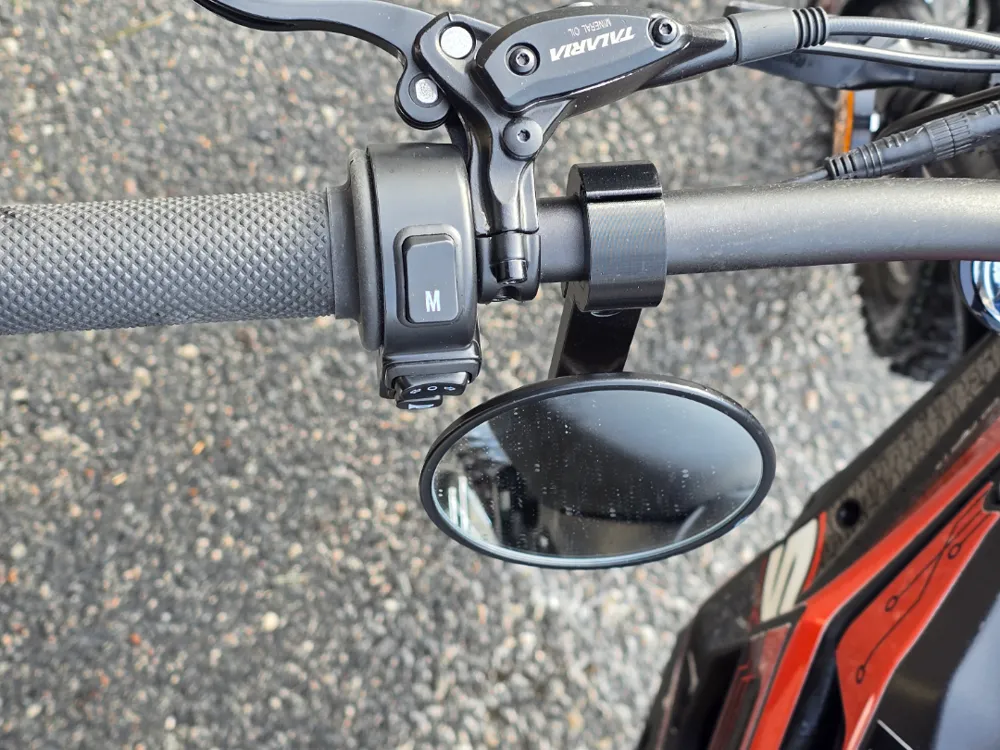

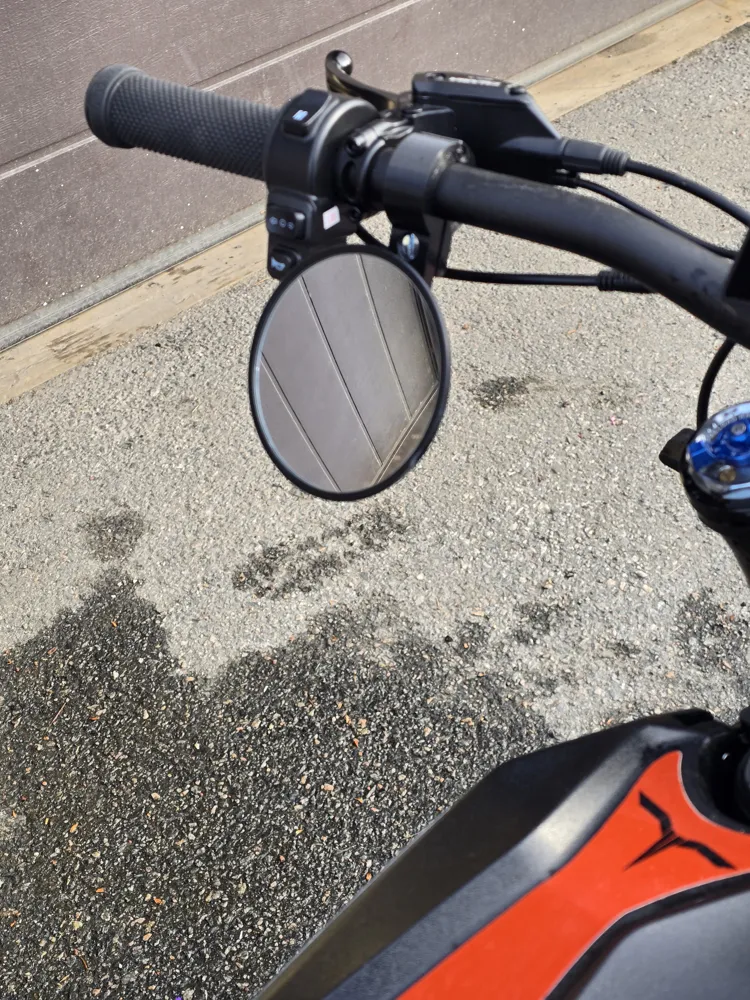

This bracket allows you to move the original mirrors inward onto the handlebar instead of using the standard bar-end mounting position. The result is a much cleaner and more compact look, while still keeping the original mirrors and a practical riding setup.

It is a simple upgrade for anyone who wants the mirrors to look more integrated with the bike instead of sticking out from the bar ends like an afterthought.

Updates:

2026-07-14
Version 2 print profile. Better design to get the mirror more to the left to see bettter whats behind and still not interfere with the horn.


Features

• Uses the original Talaria mirrors
• Moves the mirrors inward onto the handlebar
• Cleaner and more discreet than the standard bar-end mirror position
• Keeps the bar ends free
• Compact design with a tidy factory-style appearance
• Easy to print and install
• Great for a cleaner street/legal-style build

Required hardware

This design reuses the original mirrors.

Additional hardware needed:

• 2 × M6 nuts
• 1 × M6 × 10 mm hex socket screw

Recommended print settings

For best results, print in a strong and durable material.

Recommended materials:

• PETG
• ASA
• ABS

 the relocated position. Make sure the mirror is tightened properly and does not interfere with the brake lever, throttle, buttons, cables or steering movement.

Check mirror visibility before riding and adjust the position as needed.

For extra security, threadlocker can be used on the screw and nut assembly.

Important note

This file is for the mirror relocation mount only.
Original mirrors are reused and are not included.

Disclaimer

This is a 3D printable custom part. Use suitable material, print settings and hardware for your application. The user is responsible for installation, road legality and safety. Inspect the part regularly, especially after off-road riding or heavy vibration.
