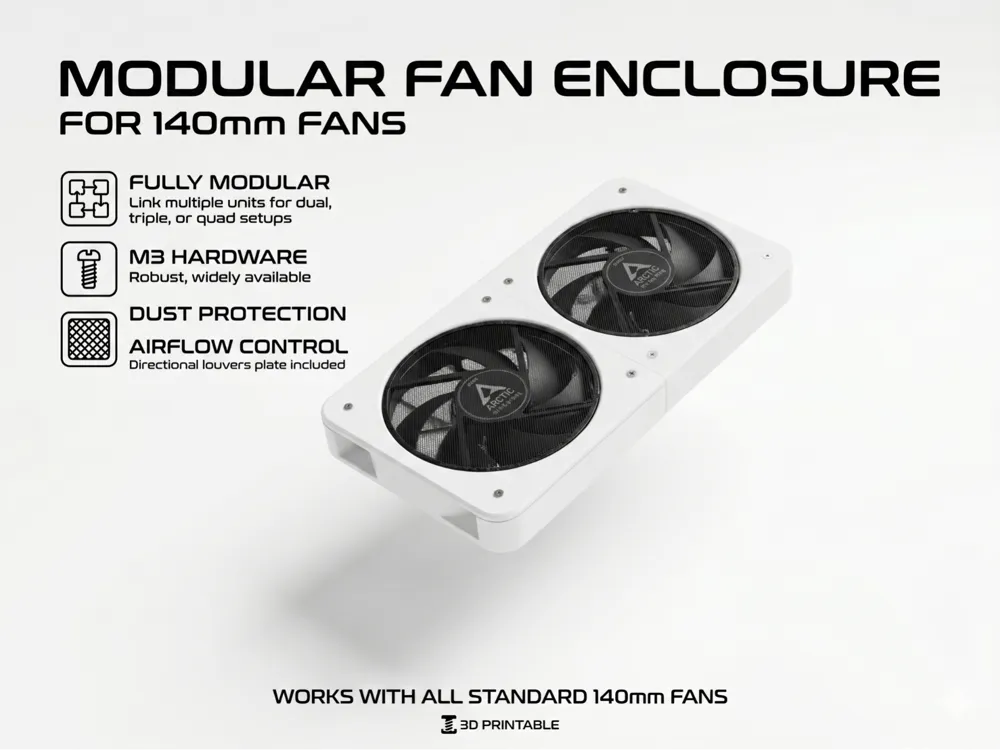

Modular 140mm Fan Enclosure System

Modular 140mm Fan Enclosure System (M3 Screw Mount)

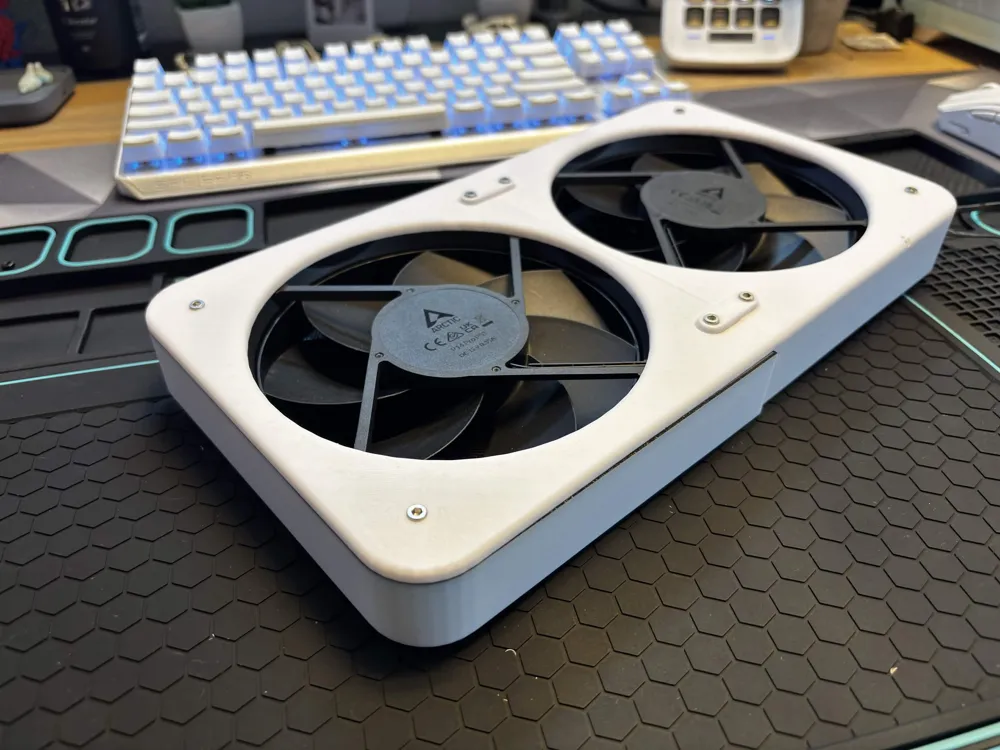

Welcome to the ultimate, fully modular enclosure system for 140mm fans! This project was designed from scratch to give you complete freedom in configuring your cooling setup. Whether you need a single fan shroud, a dual radiator cover, or a massive multi-fan cooling wall for your server rack or 3D printer enclosure – this system has you covered.

The project was precisely tailored around the Arctic P14 Pro PWM fans, but thanks to standard 140mm spacing, it should perfectly fit any standard 140mm fan on the market.

Key Features:

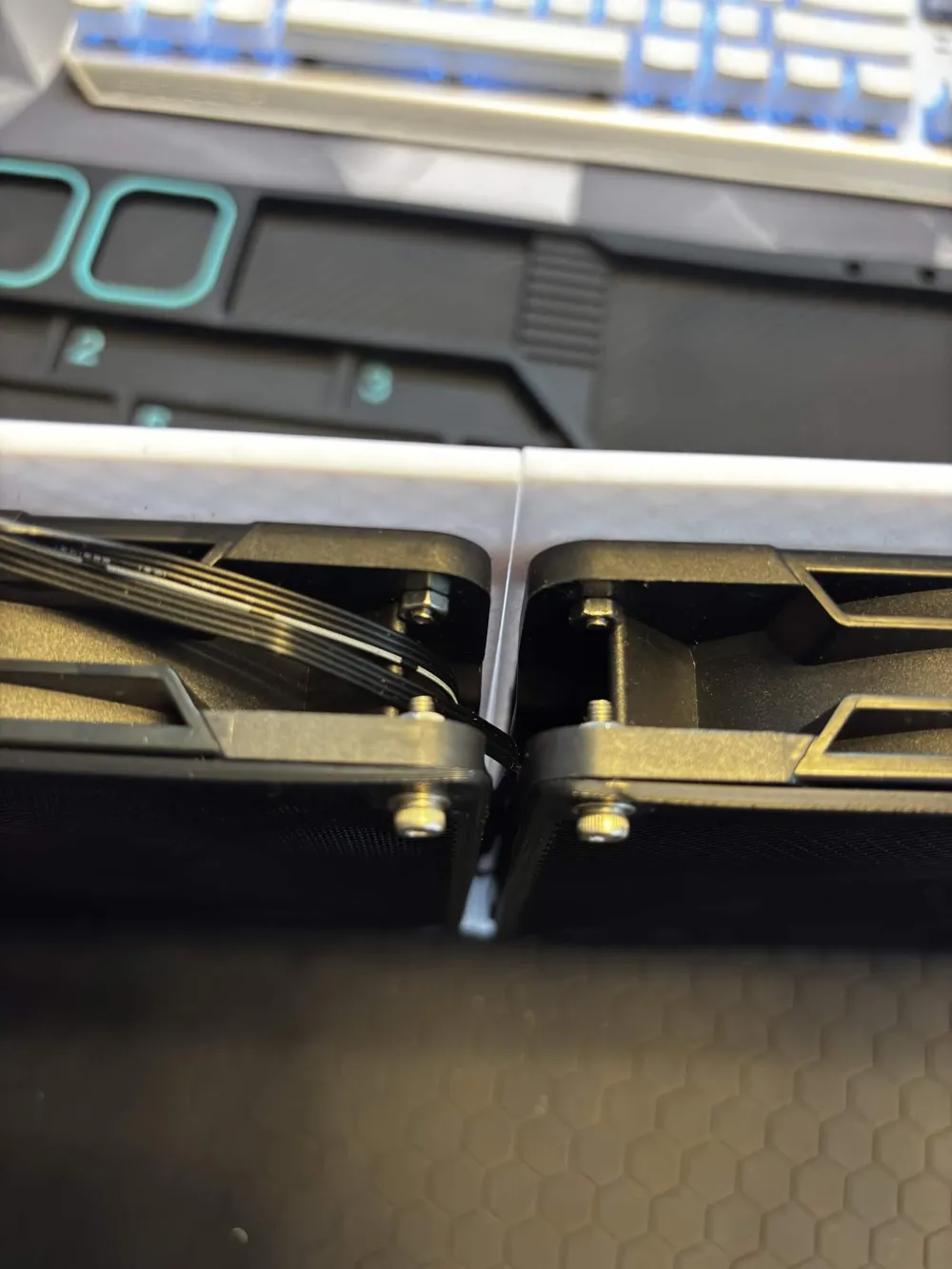

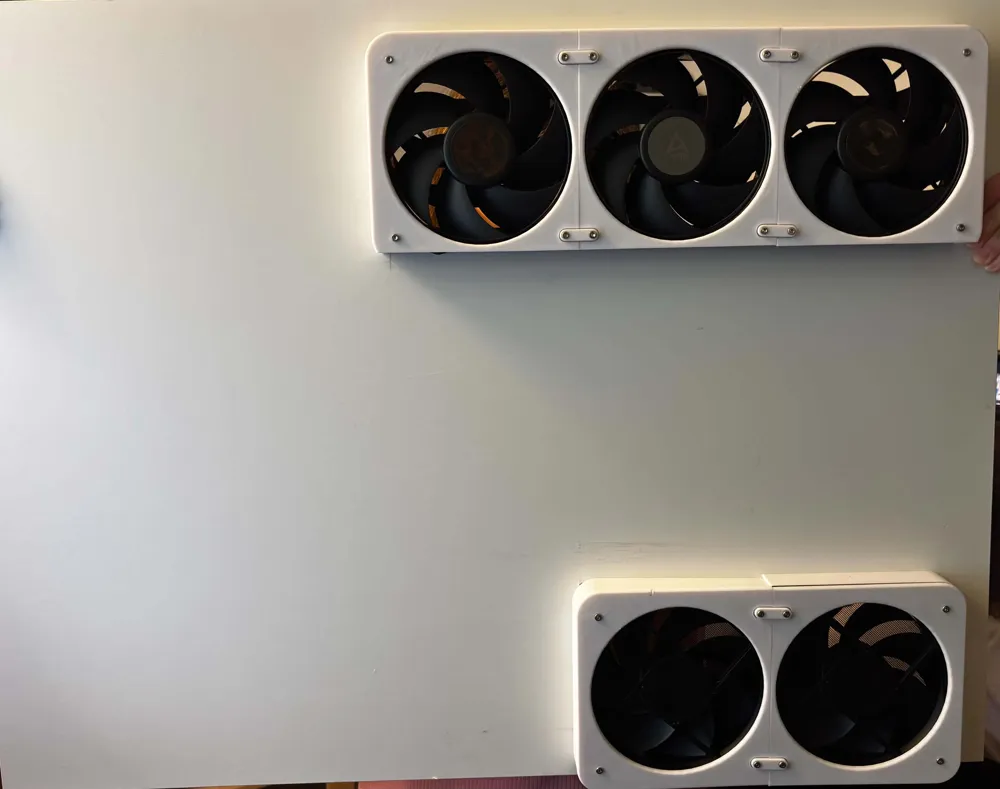

• 100% Modular Design: Connect as many elements as you want, horizontally or vertically.

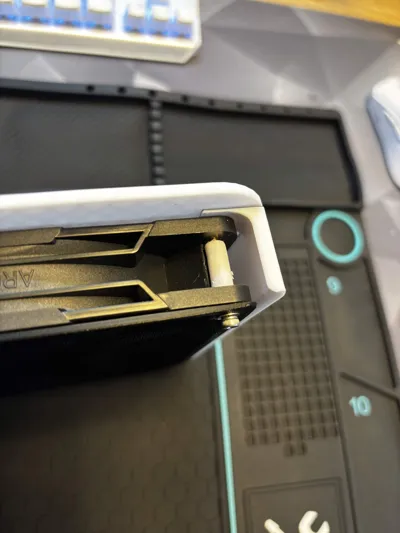

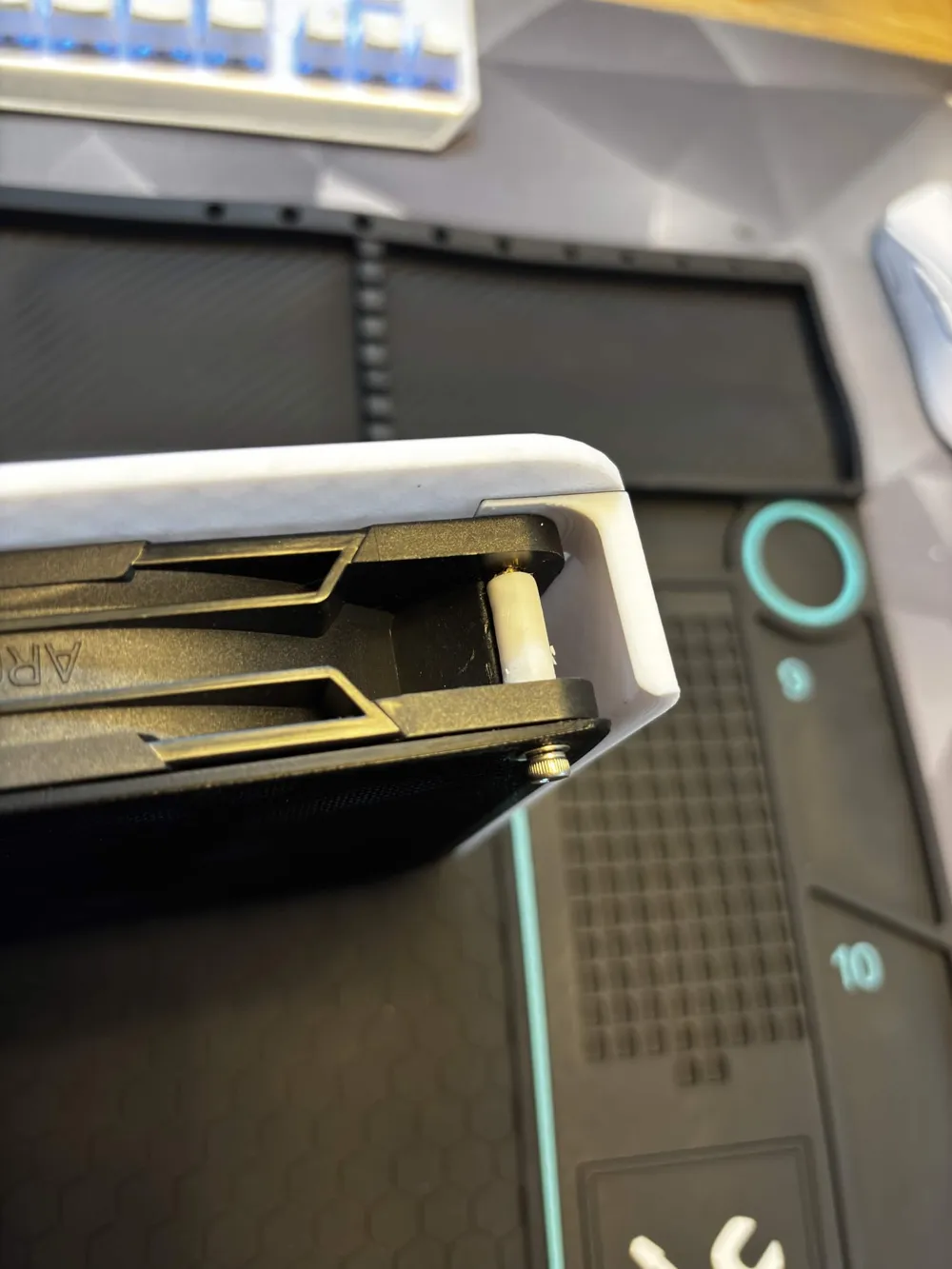

• Robust M3 Hardware Compatibility: Designed to work with various lengths of M3 screws. Supports both direct screw mounting and heat-set inserts for maximum durability.

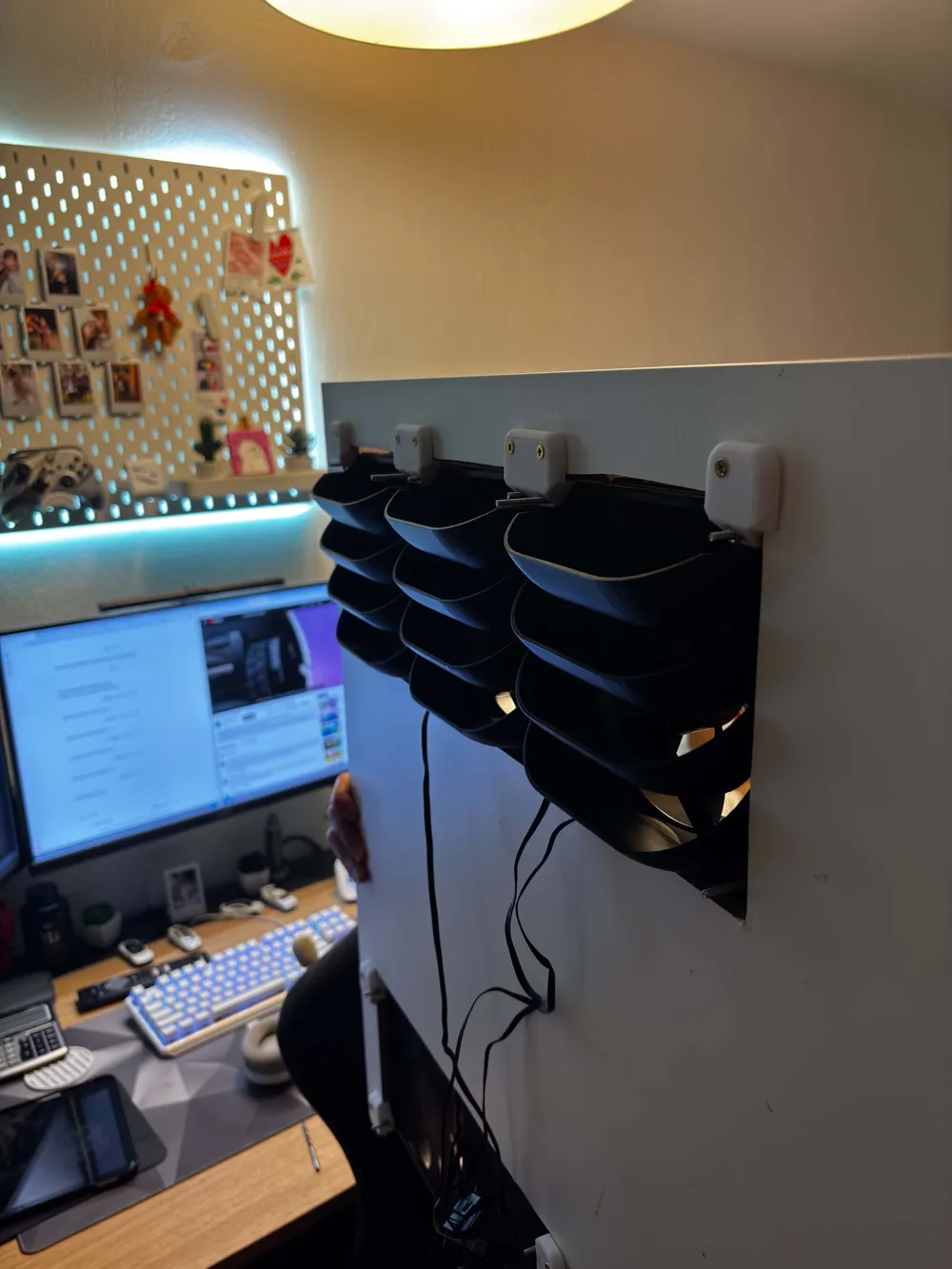

• Airflow Control: Includes dedicated directional louvers to guide the airflow exactly where you need it.
• Dust Protection: Ready for a 140mm dust filter integration.

Plate Content Guide:

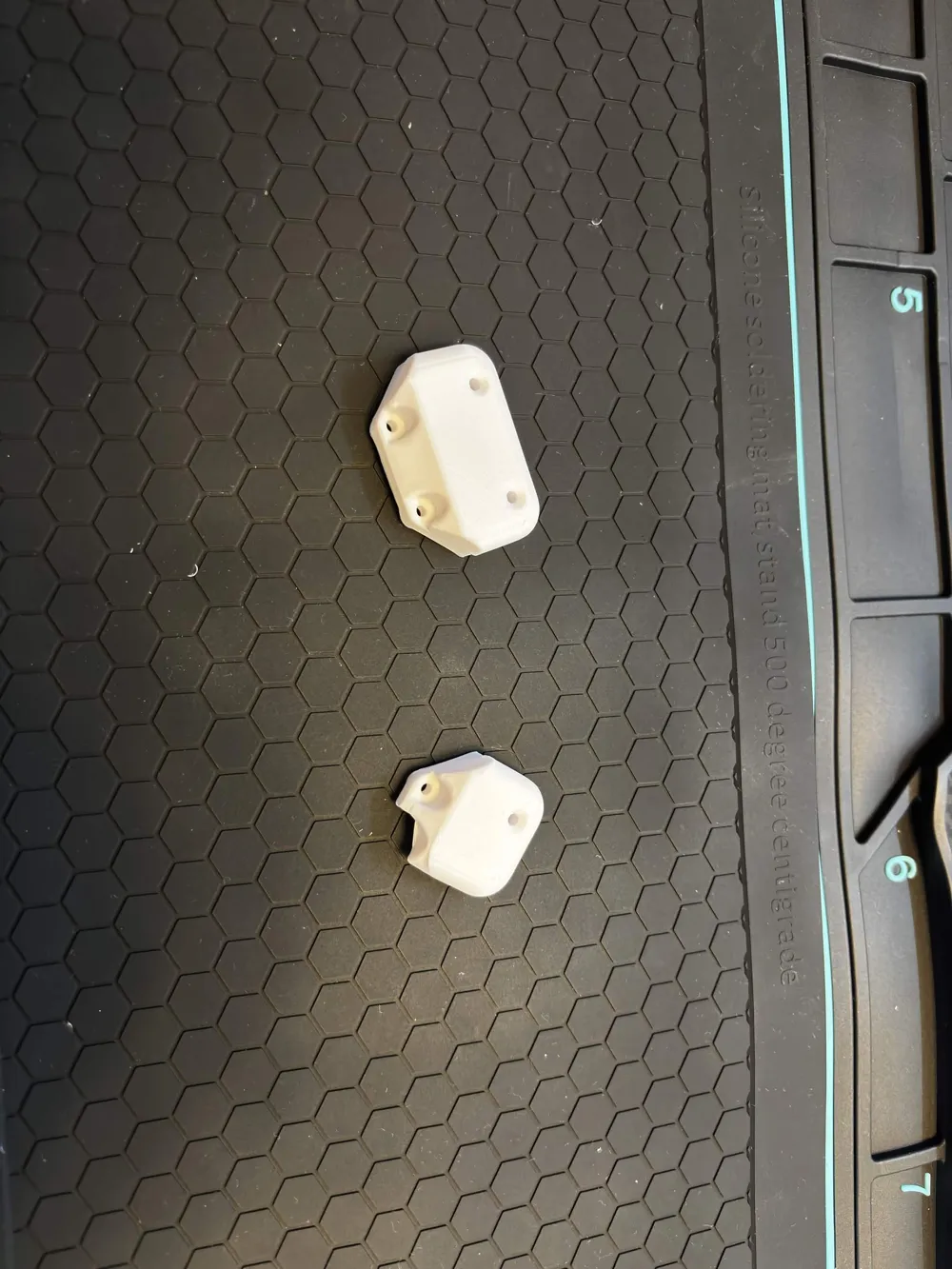

• Plate 01: Screw mounting tools and heat-set insert middle mounts.
• Plate 02: Corner Back Mounts.
• Plate 03: Middle Back Mounts.
• Plate 04: Middle Side Cover.
• Plate 05: Left side cover (cut from the bottom).
• Plate 06: Right side cover (cut from the top).
• Plate 07: Left Front Plate.
• Plate 08: Right Front Plate.
• Plate 09: Middle Front Plate.

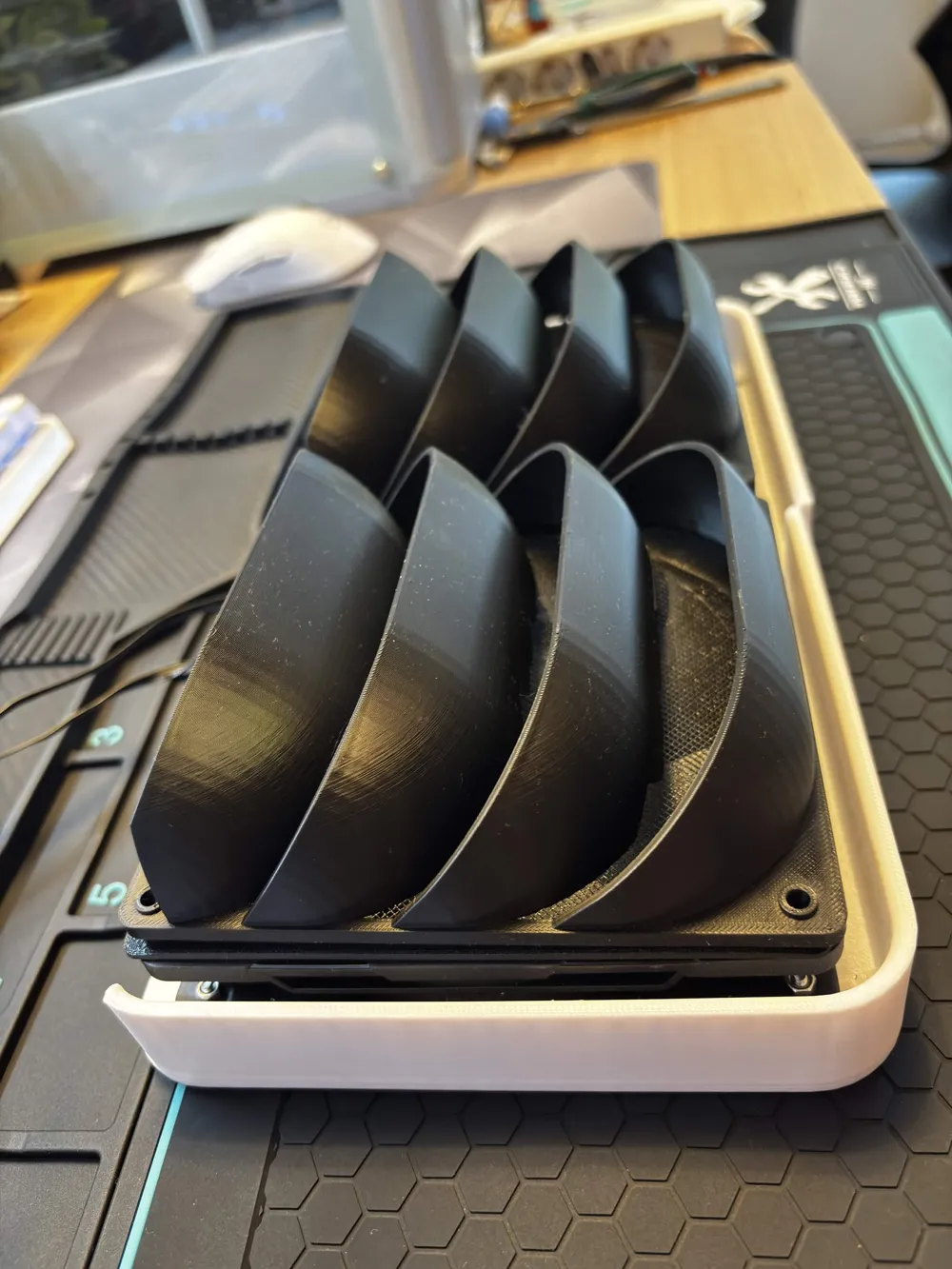

• Plate 10: Fan Direction Louvers (Airflow guides).

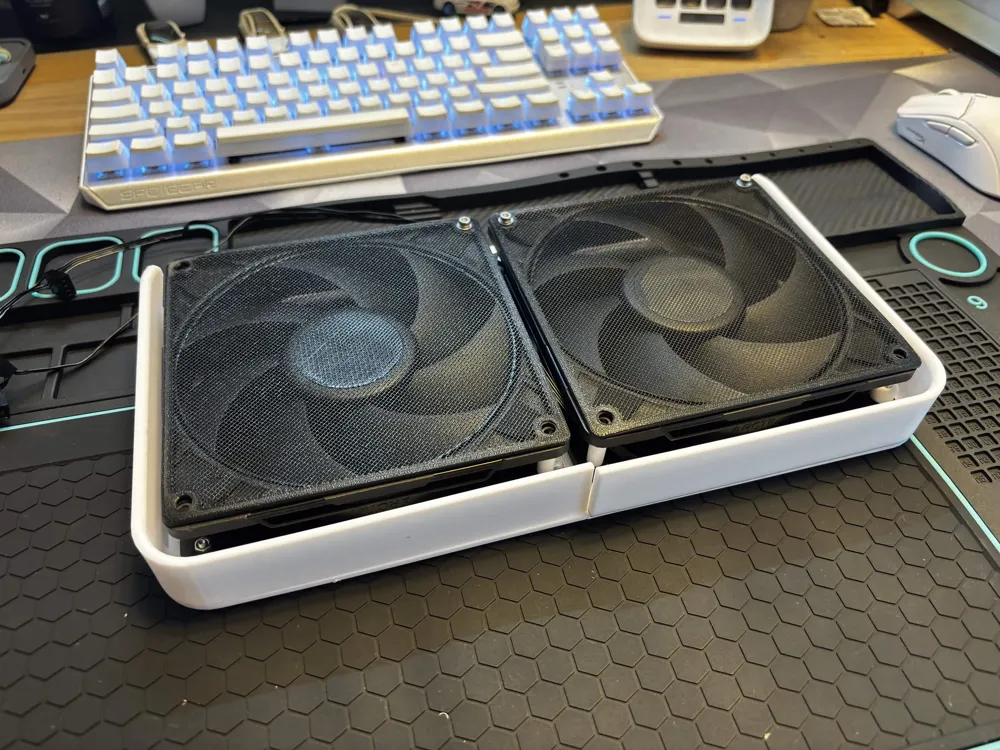

• Plate 11: 140mm Dust Filter.

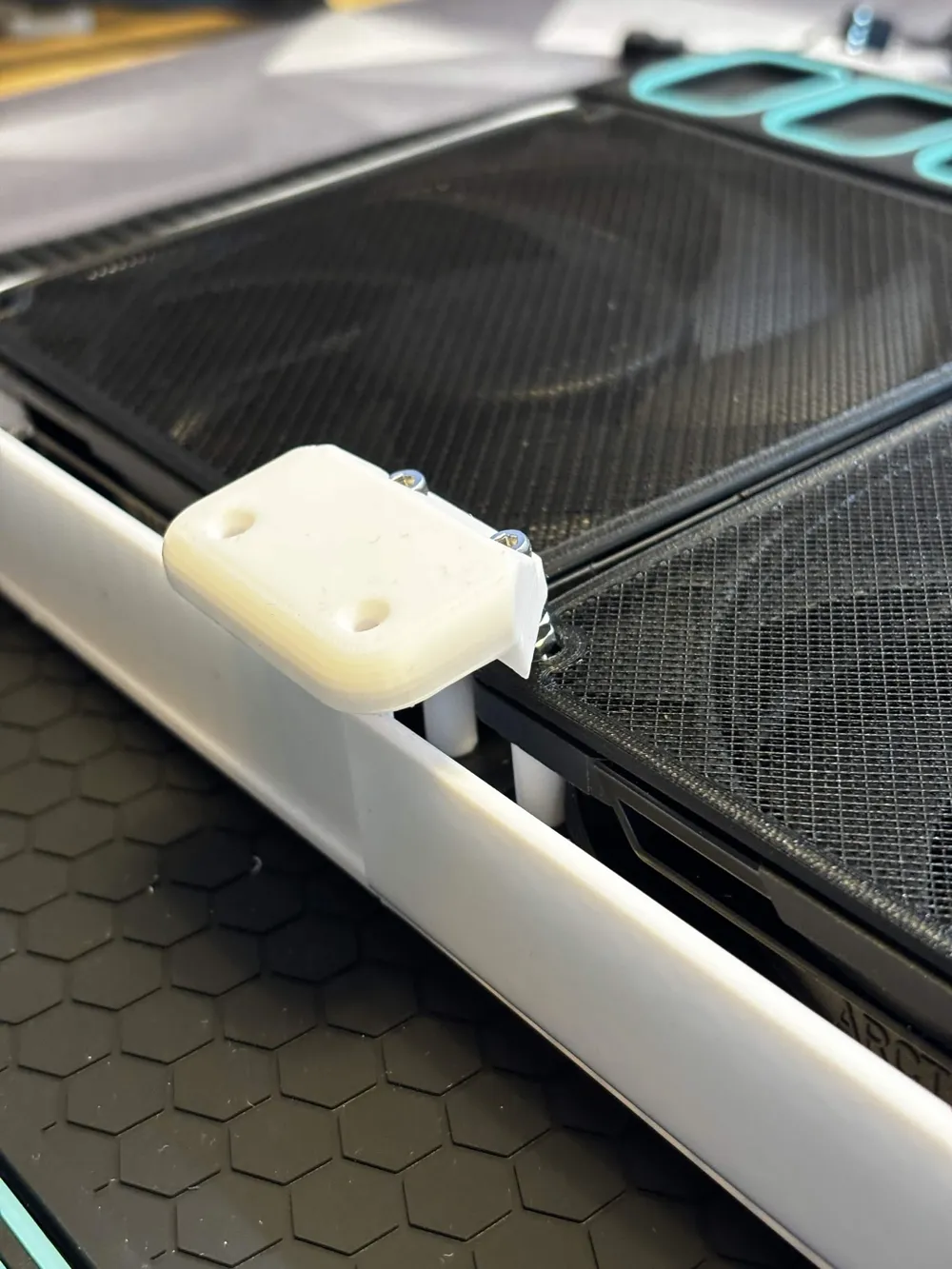

• Plate 12: Front Connectors (2 types included – choose your preferred style).

Remix & License:

Feel free to modify, adapt, and remix this project to fit your specific needs! The only requirement is to give proper credit to the original design.

If you like this project and it solved your cooling challenges, please leave a 👍, download the profile, and share your makes in the comments! Every download helps support my work. Happy printing!
