C-Clamp V2: Hidden Mechanism Design
Print Profile(1)
Description

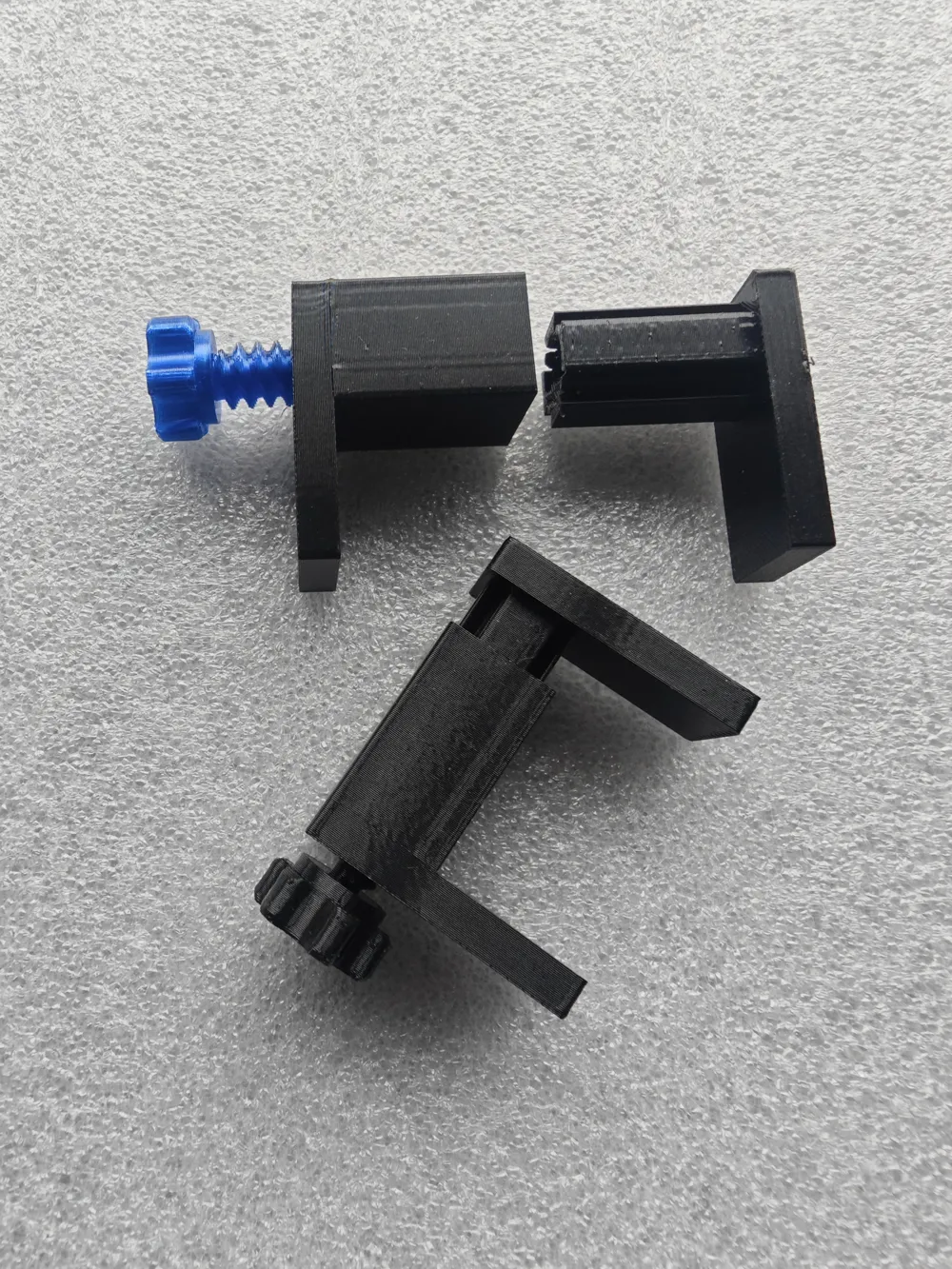

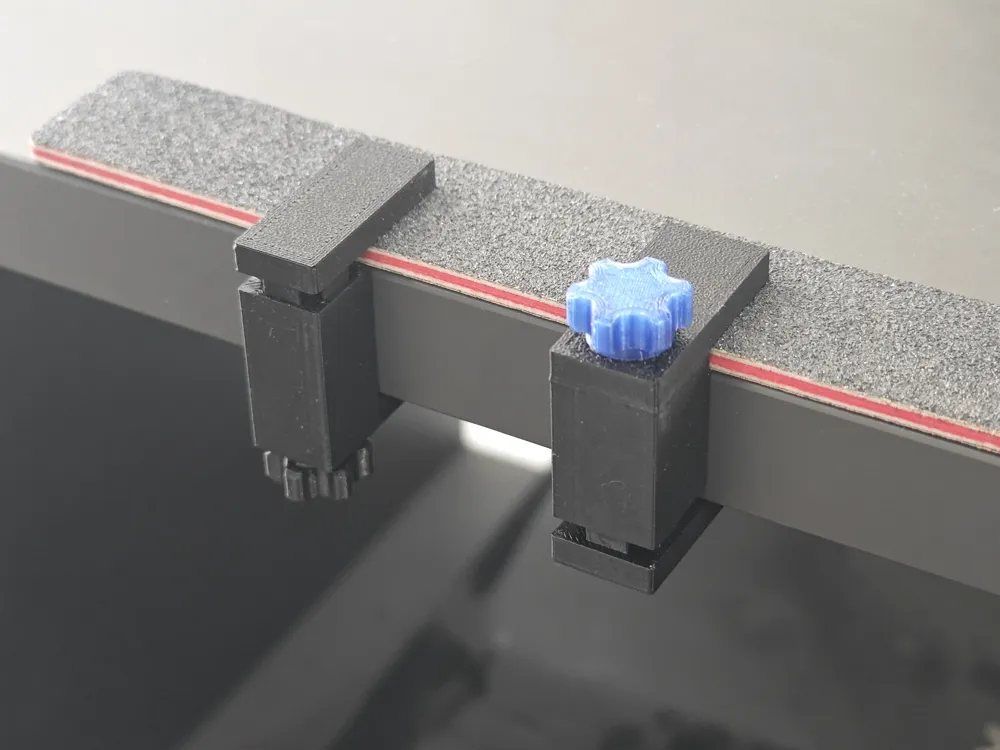

This innovative table clamp features a sleek, low-profile aesthetic by hiding the clamping screw and sliding mechanism entirely within the main vertical arm. It is designed to be highly functional, visually clean, and fully customizable directly through the portal's built-in configurator.
Customization & Parametric Capabilities
The built-in configurator allows for deep customization to fit virtually any mounting need. You can adjust:

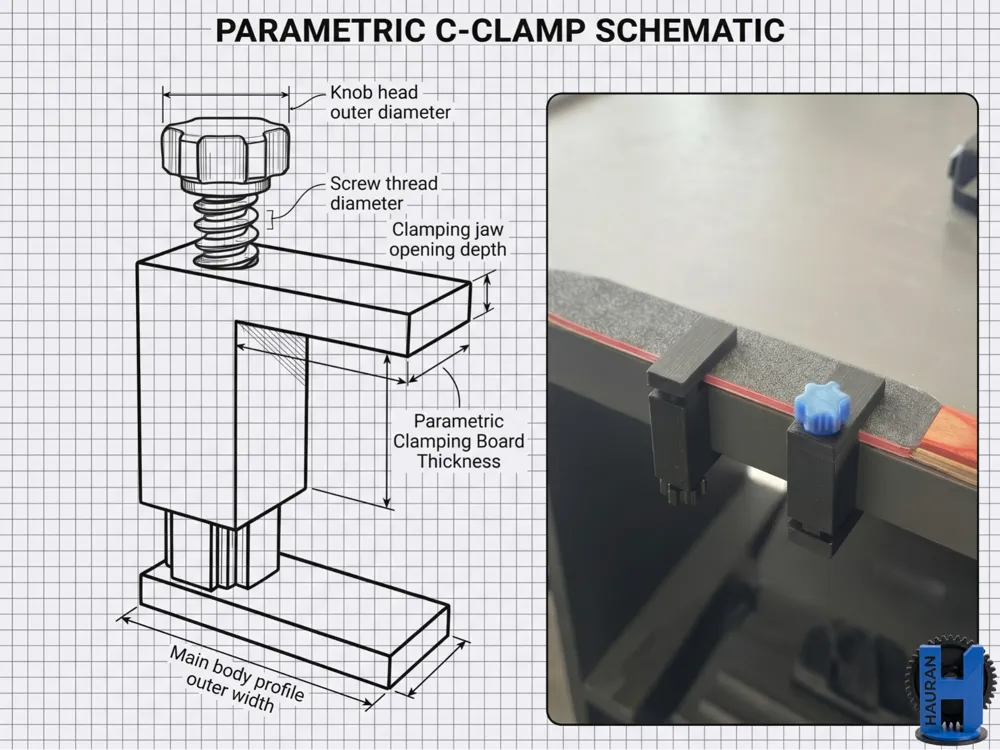

- Core Dimensions: Modify the minimum clamping board thickness jaw depth (reach) , overall jaw thickness , and the main outer profile size.

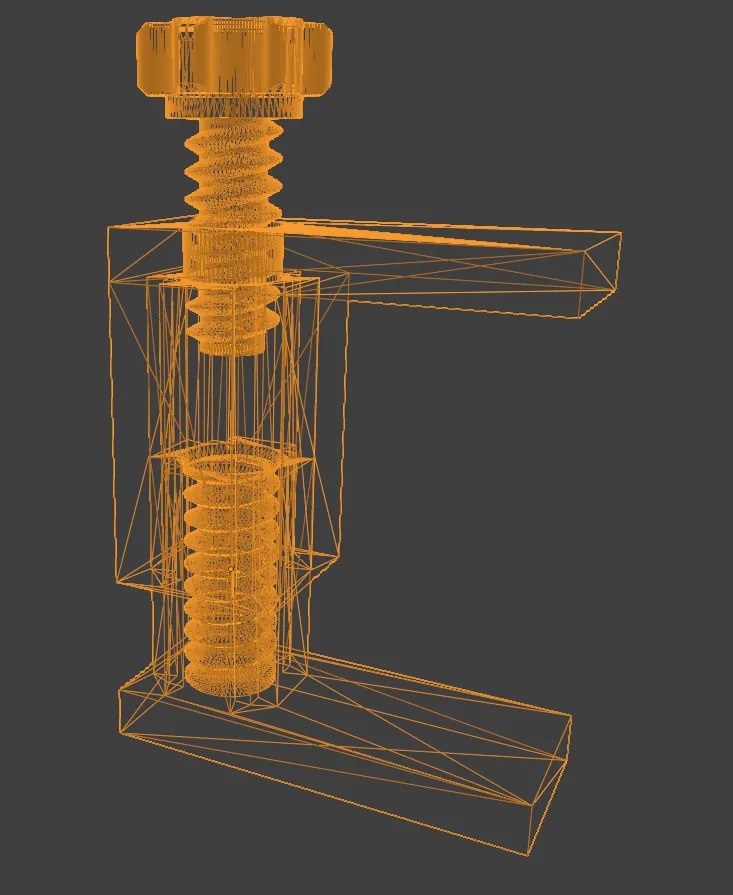

- Mechanism Fine-Tuning: Adjust the inner sliding core size , dovetail dimensions , and X/Y tolerances for a perfect sliding fit.
- Screw & Thread Properties: Customize the screw thread diameter (recommended 9mm or higher) , thread pitch , knob head size , and thread clearance tolerances.
