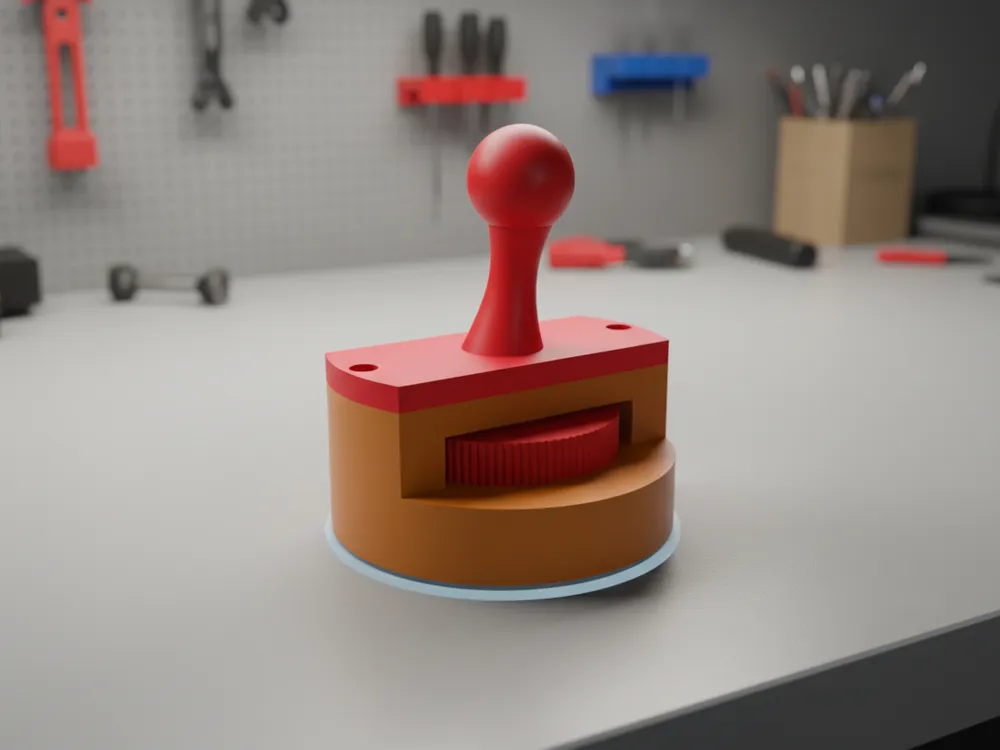

Car Interior Baby Observation Mirror Base
Print Profile(1)
Description

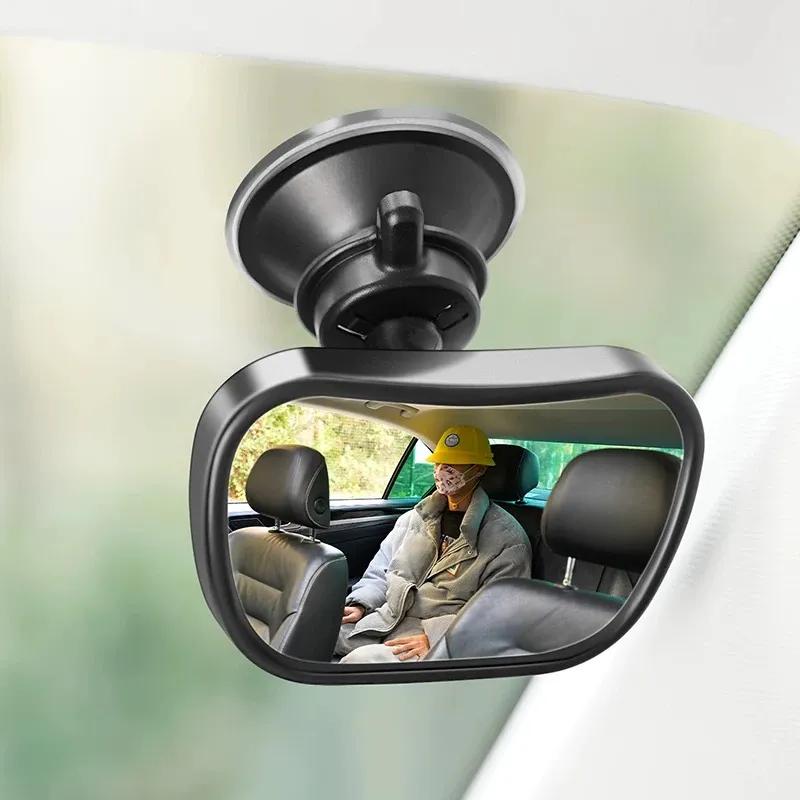

I originally bought a rear-view mirror to stick on the front windshield to keep an eye on the child seat, but the quality of the base I got was too poor, and the suction cup broke twice. So I decided to design and make a new suction cup base myself.
It is recommended to print with PETG or ABS, as PLA will deform due to high temperature and sun exposure in the car
You will need:

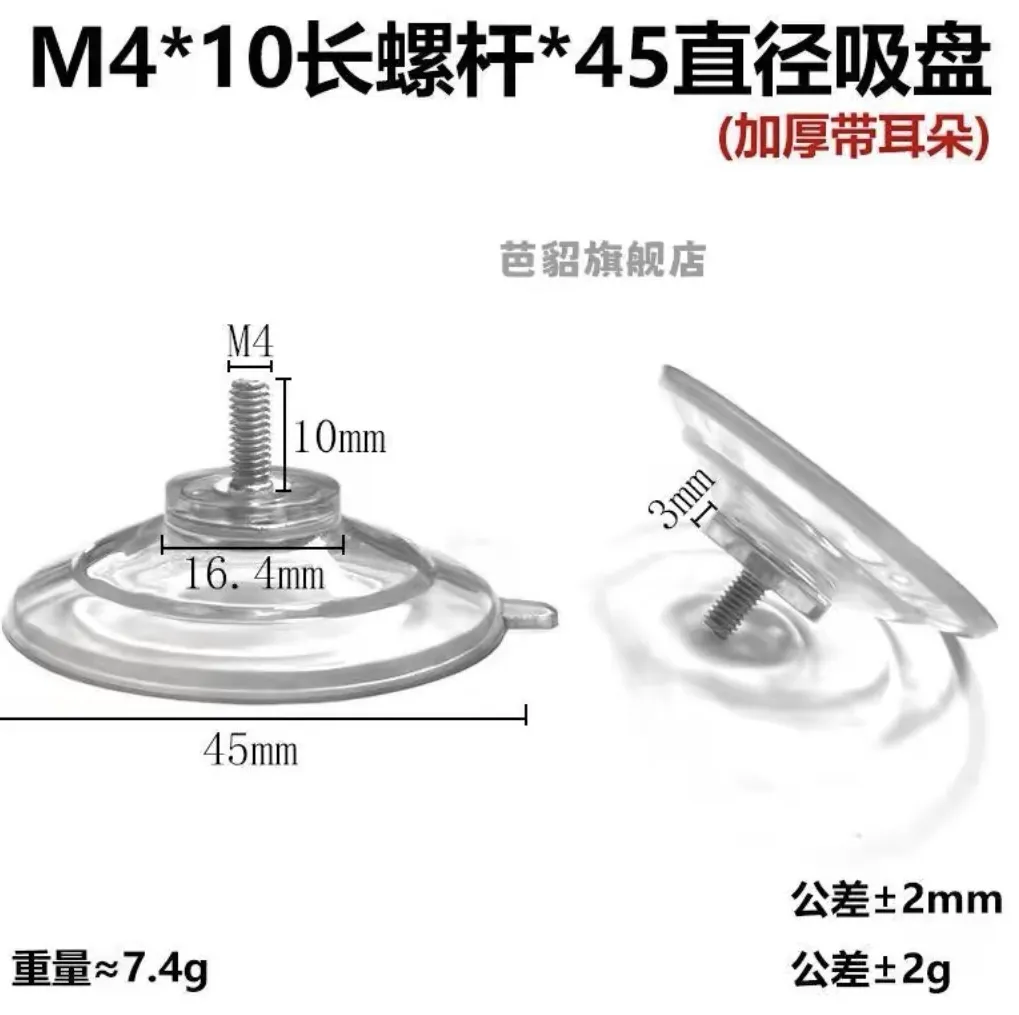

Suction cup *1 (just search by image)
- M4 nut *1
- M3x8 *2 (length not recommended to exceed 10, otherwise it will be difficult to screw in)
- 502 glue
Assembly:

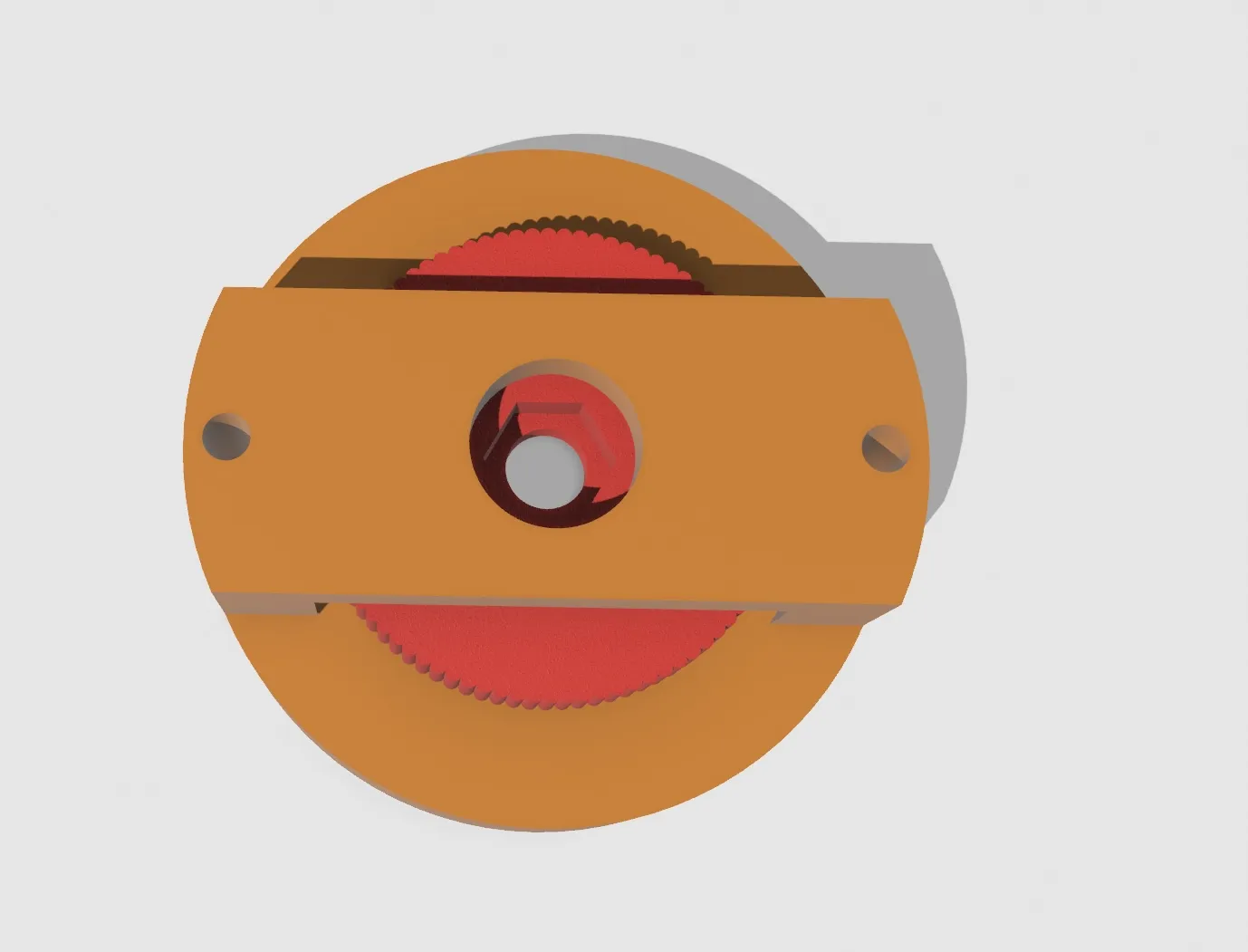

After printing, first insert the round piece from the side, making sure the hexagon faces up, and insert the nut from the large hole.

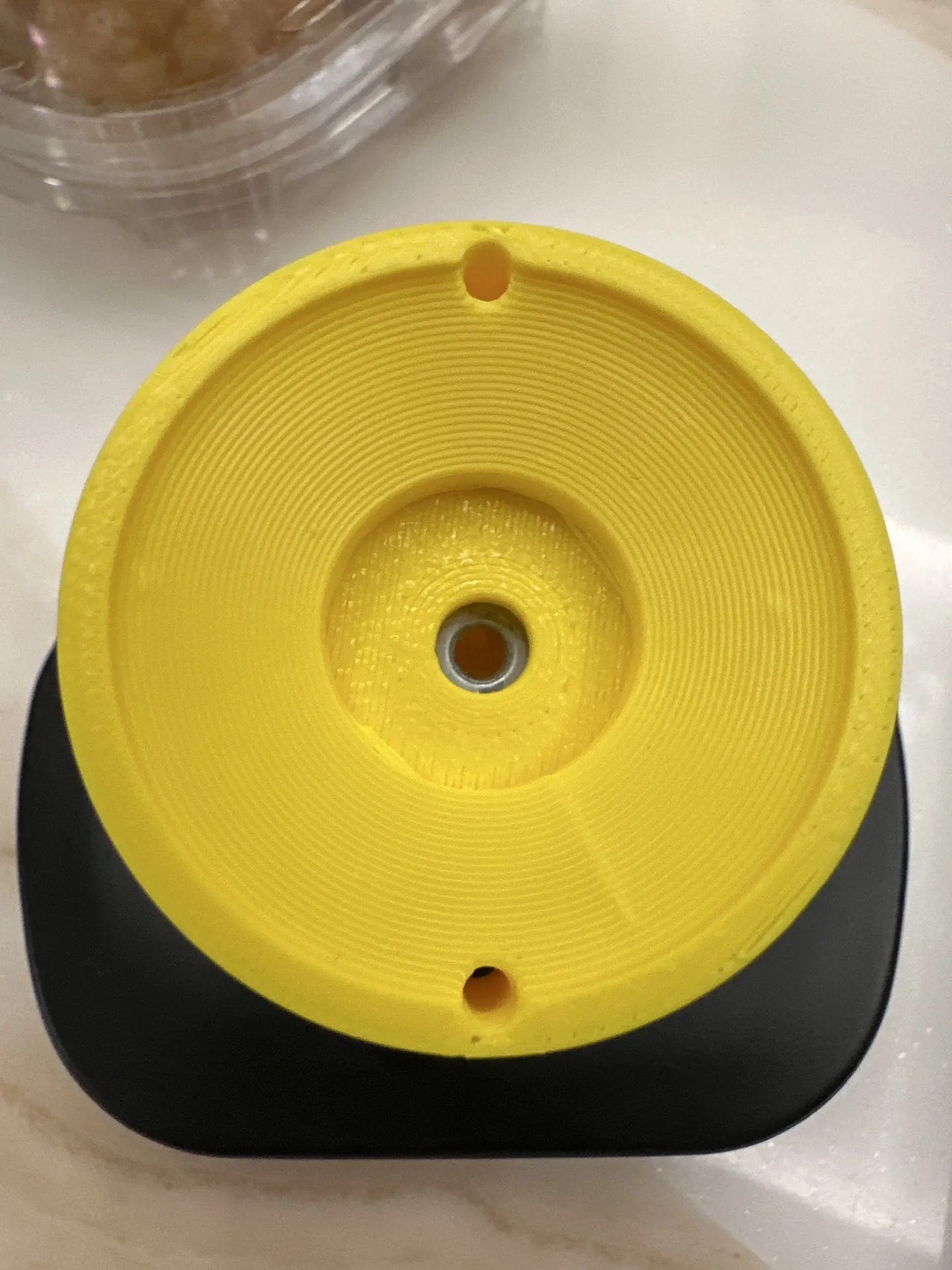

Flip it over and drop a small amount of 502 glue into the small round hole, being careful not to get it on the nut's threads.

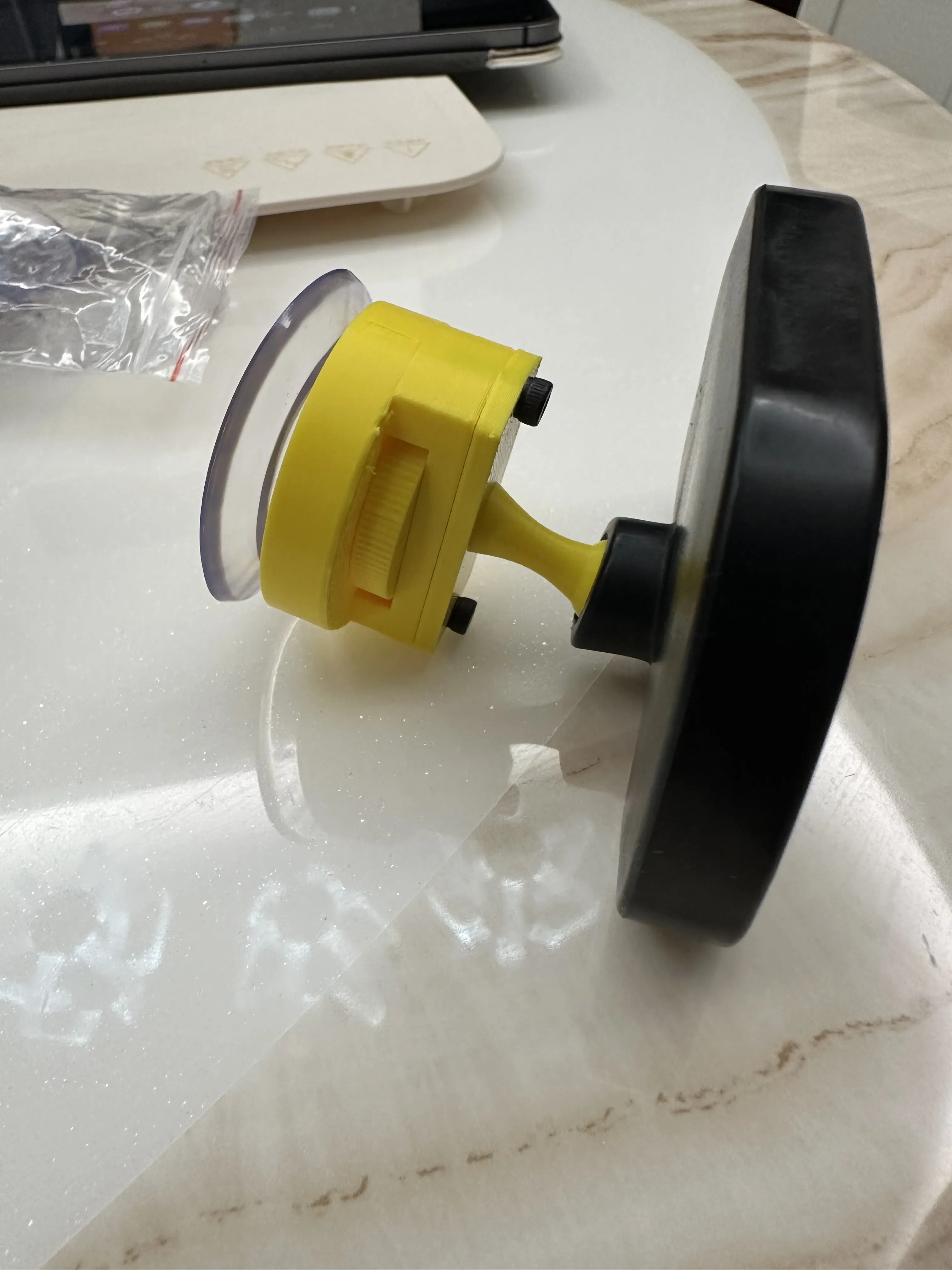

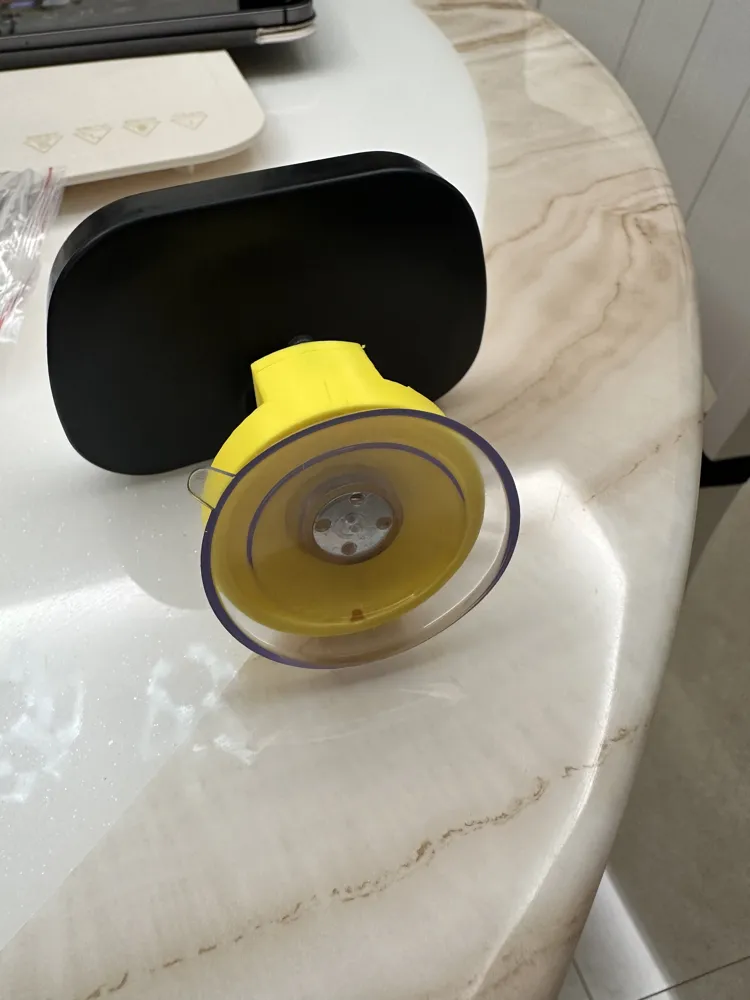

Install the mirror, using two M3 screws or directly connecting the base and bracket with 502 glue. Install the suction cup (just screw it in).

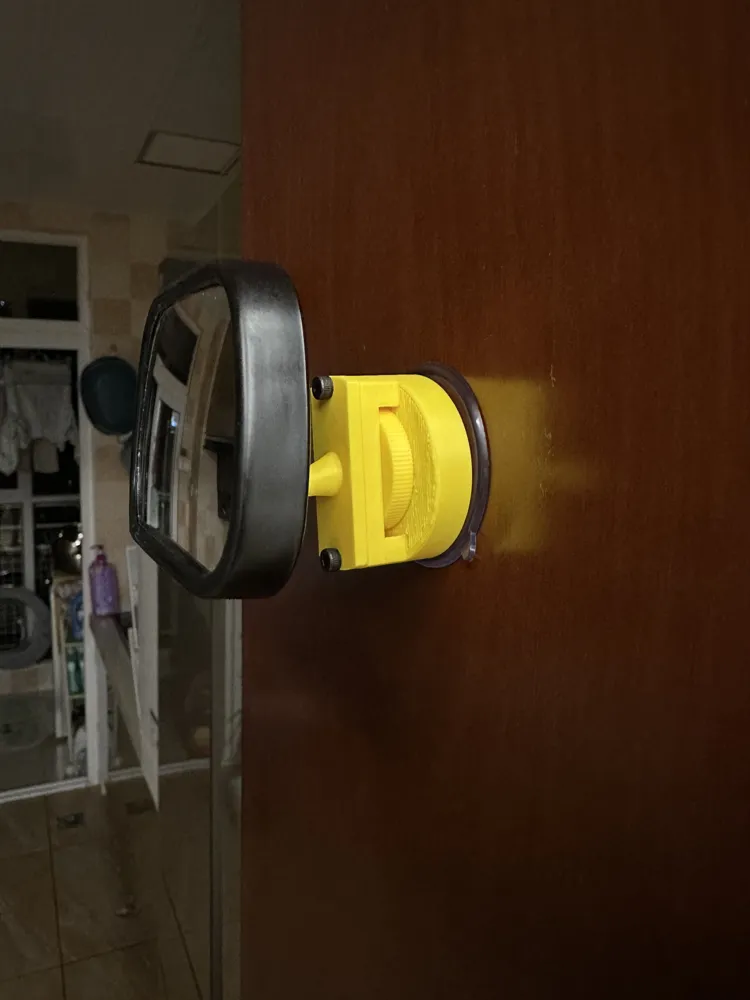

- Adhere it to the glass and tighten the nut.
You can design the mirror base yourself or tell me the dimensions you need, and I will modify it for you.
