Acetech Brighter C Mock Suppressor Spacer Adapter

I got an Acetech Brighter C from the last Evike trading post.

The threads are kinda busted, but the tracer still worked. I had several cans lying around that I would love to put in a tracer unit. I made some spacers/adapter before, but I wasn't too hapy with those results. Enter PTS Sandman's tracer unit design, I figured I can adapt their design for the Brighter C and this is the result.

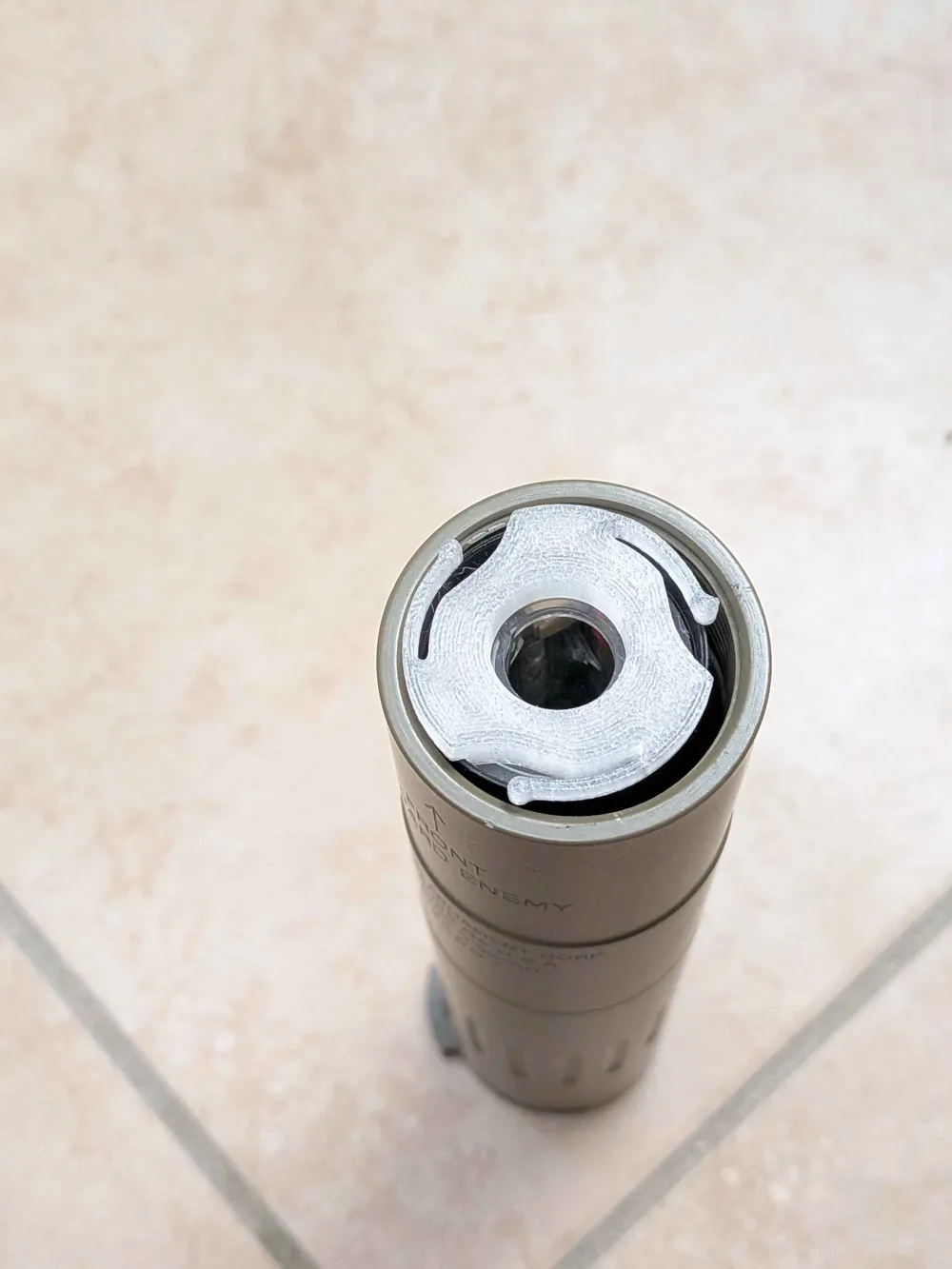

I've made 4 sizes of the adapters to fit different mock suppressors, which are the PTS Sandman, G&P MK12 Mock Suppressor, VFC OPS 3rd M4 Suppressor (the gordy carbine can), and a CYMA MP5SD. I have also included a RAW step file as well if there is one there that doesn't fit your need, you can adjust it in a CAD program.

You will need to do some cross multiplication to scale it to your suppressor, althought I will note make sure the Brighter C isn't bigger than your can.

The best way is to measure the diameter of the cap of the can, cross multiply, enter the %scale change, and go from there. You will need to boolean/combine the part that retains the Brighter C and I did leave pilot holes for anyone to boolean/combine if they want to adapt it to screw into the Brighter C. (It is a very rudimentary way without getting too involved with parameters)

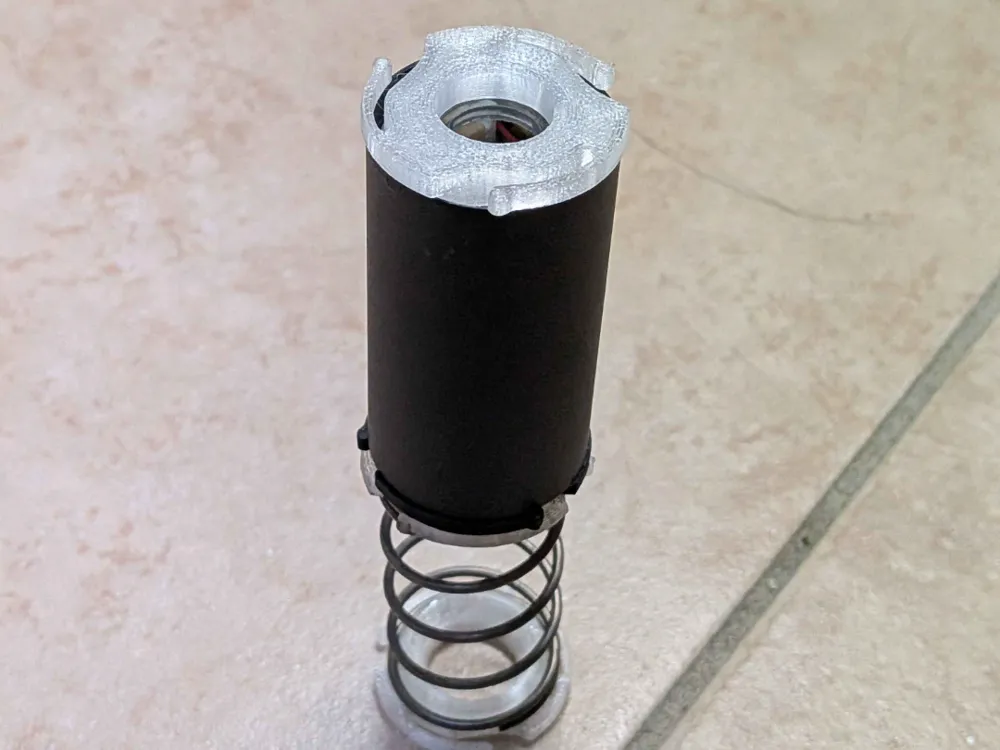

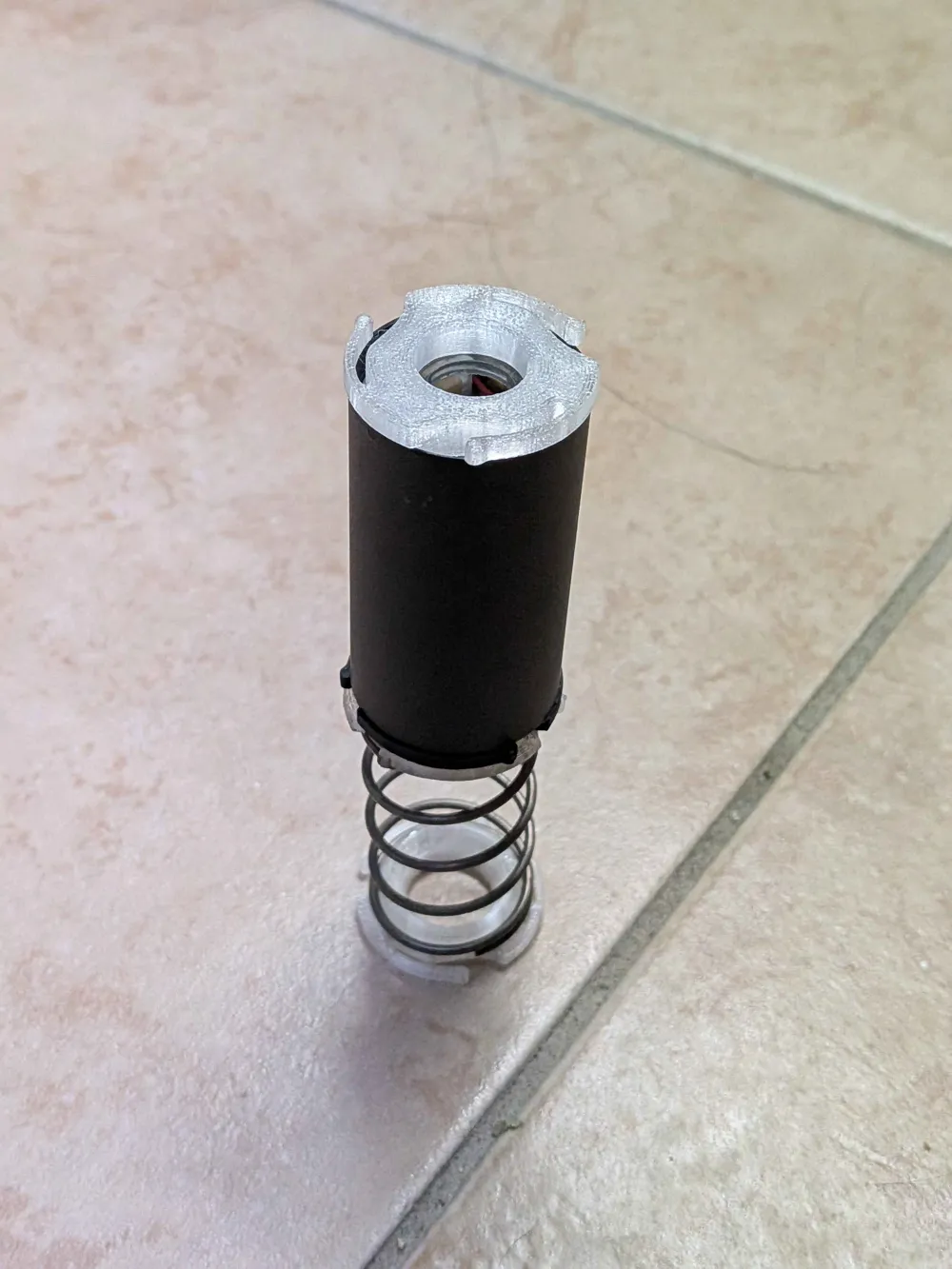

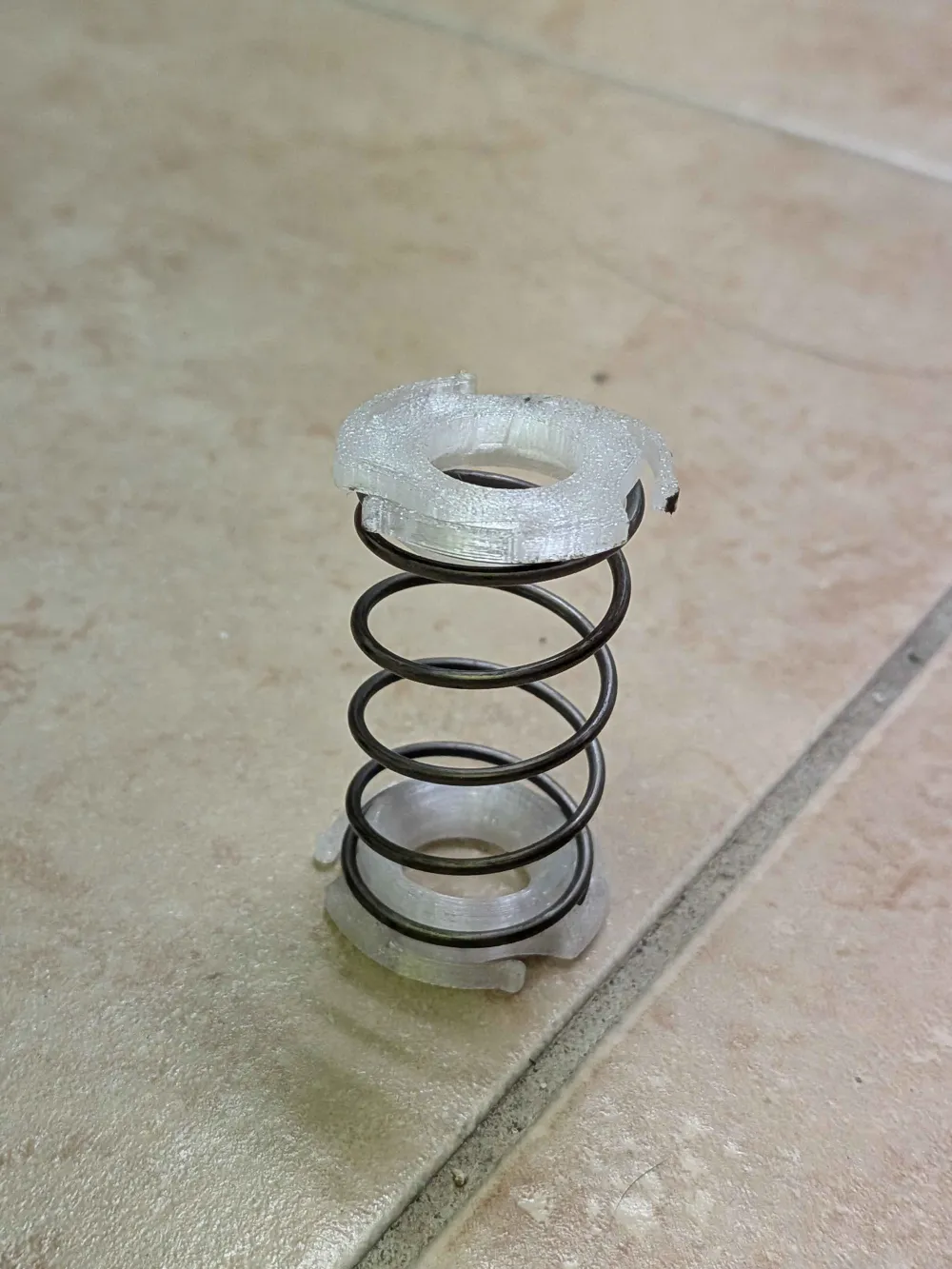

You may need a spring to keep the tracer unit together while it sits inside the suppressor, like how the PTS sandman does it.

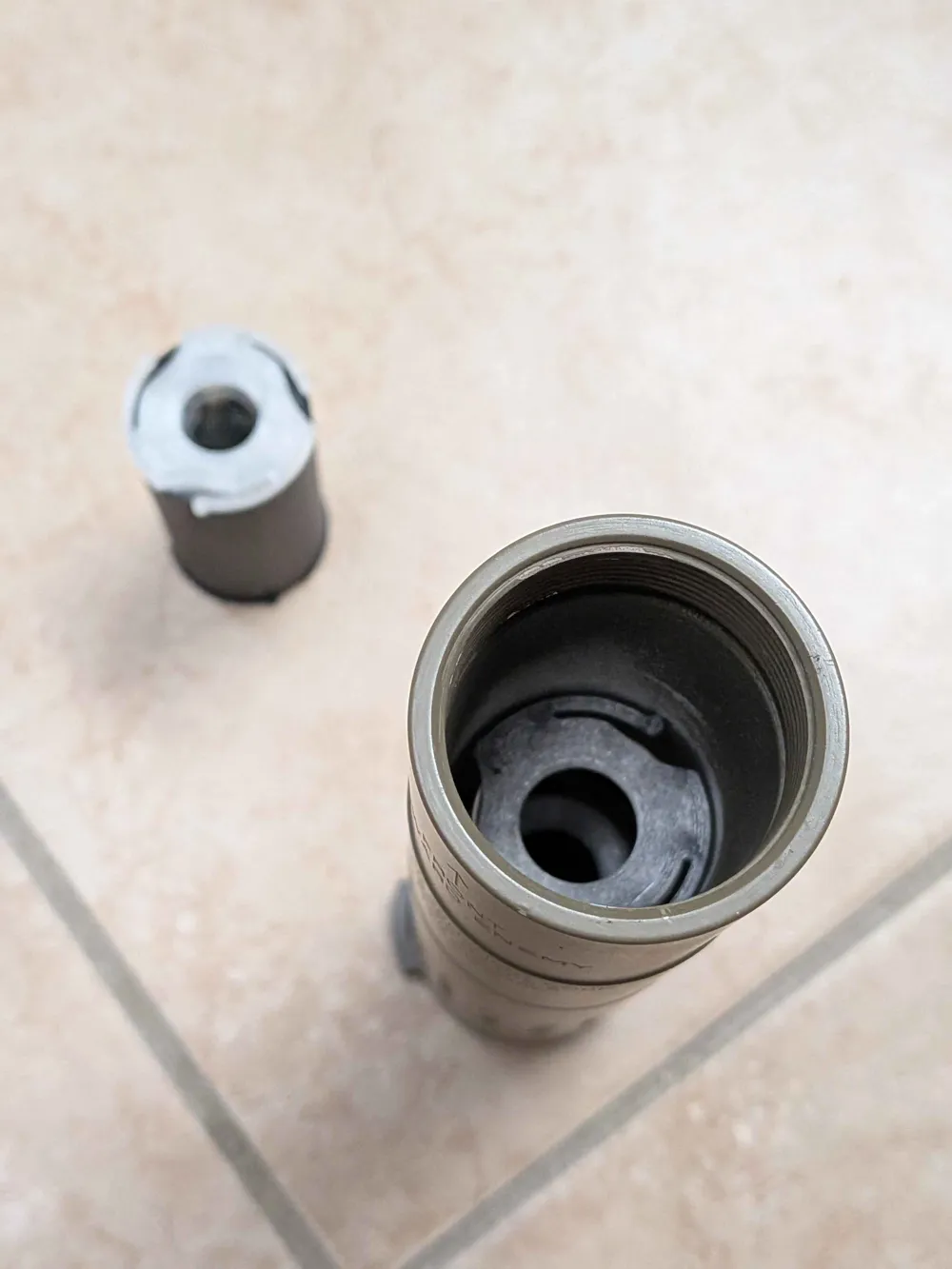

(I have foam and spacers in my MK12 to keep it held up against the cap inside)
