Extended rear links +10mm SCX30 (plug & play)

Hello everyone, I present the rear links you've been waiting for

They increase the wheelbase by approximately 10.5mm, bringing it to approximately 110.5mm

Once in operation, they will also have an increased rear approach angle

They are indeed plug & play, BUT I specify that I am using them on a full INJORA build, even though I believe the measurements are the same as with a completely stock setup

What I think is that if you have everything stock or almost, you can try printing them, at most you'll use a few grams of material for testing

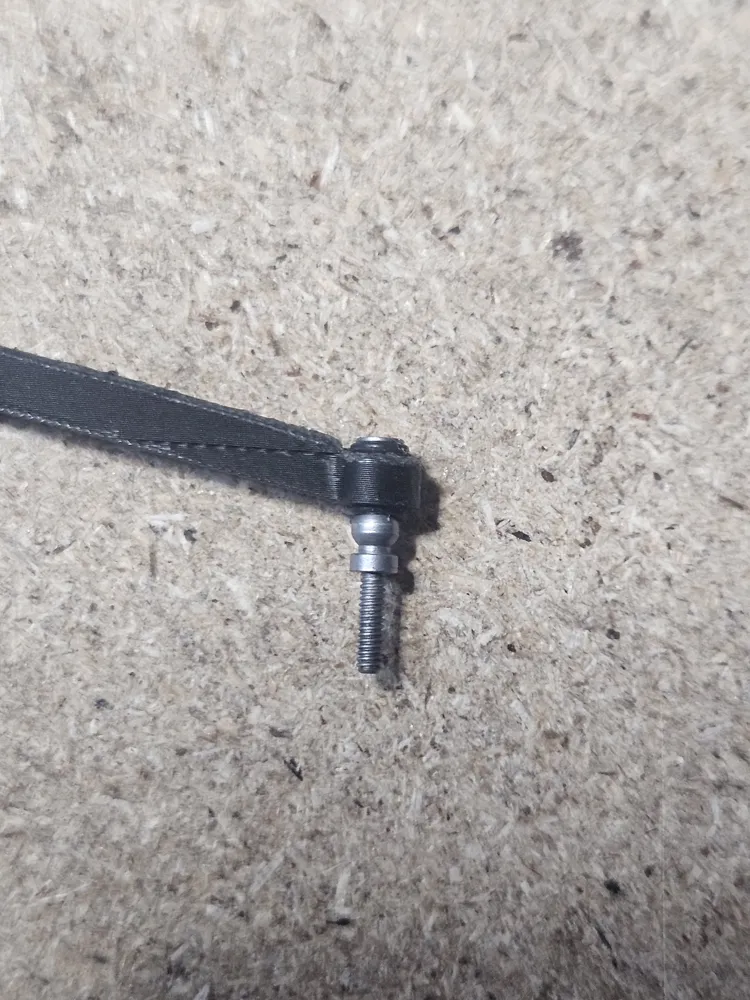

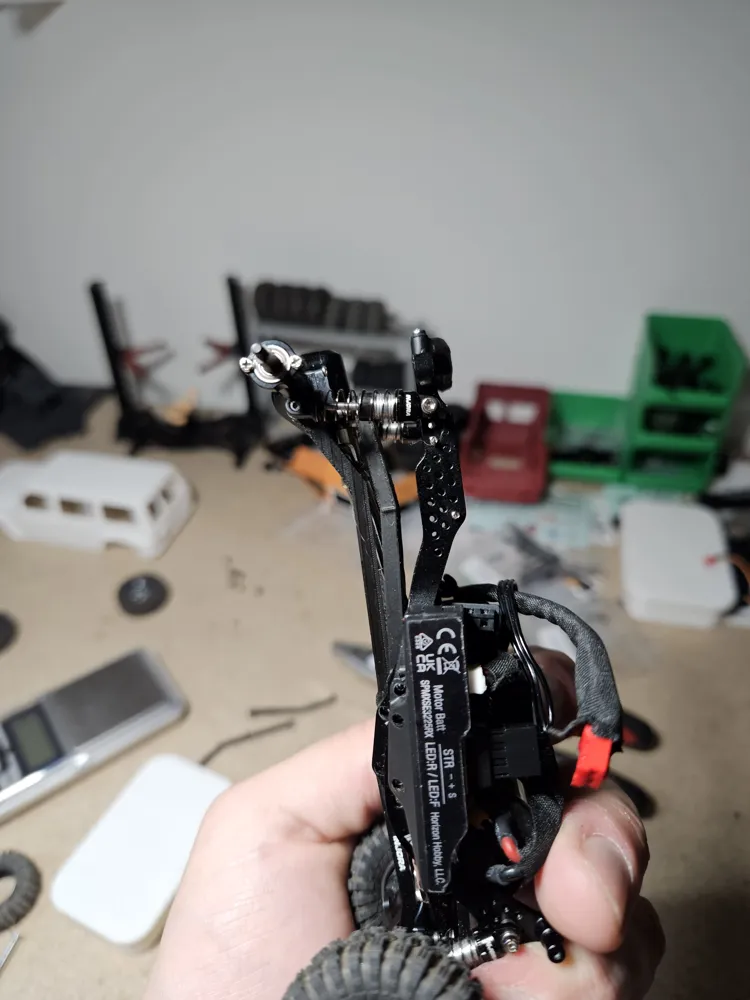

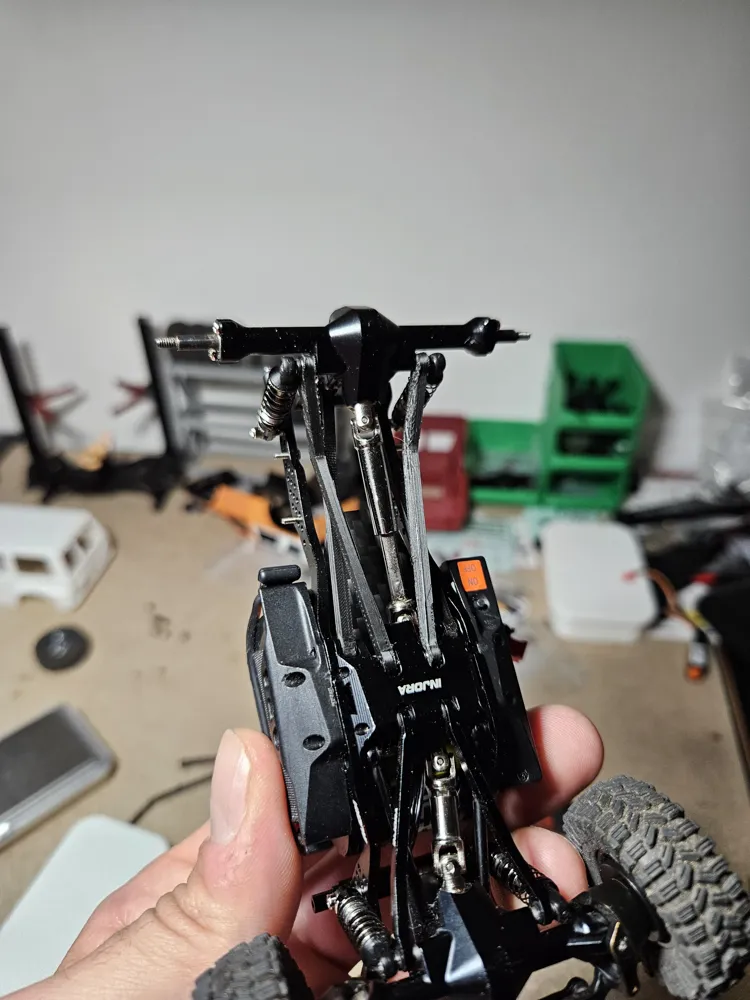

I also specify that for the part of the links attached to the skid plate, I only used the screws with the Injora balls WITHOUT O-RINGS, while as you can see in the photo, for the rear mount you will necessarily have to use o-rings as in the stock or Injora build for fastening

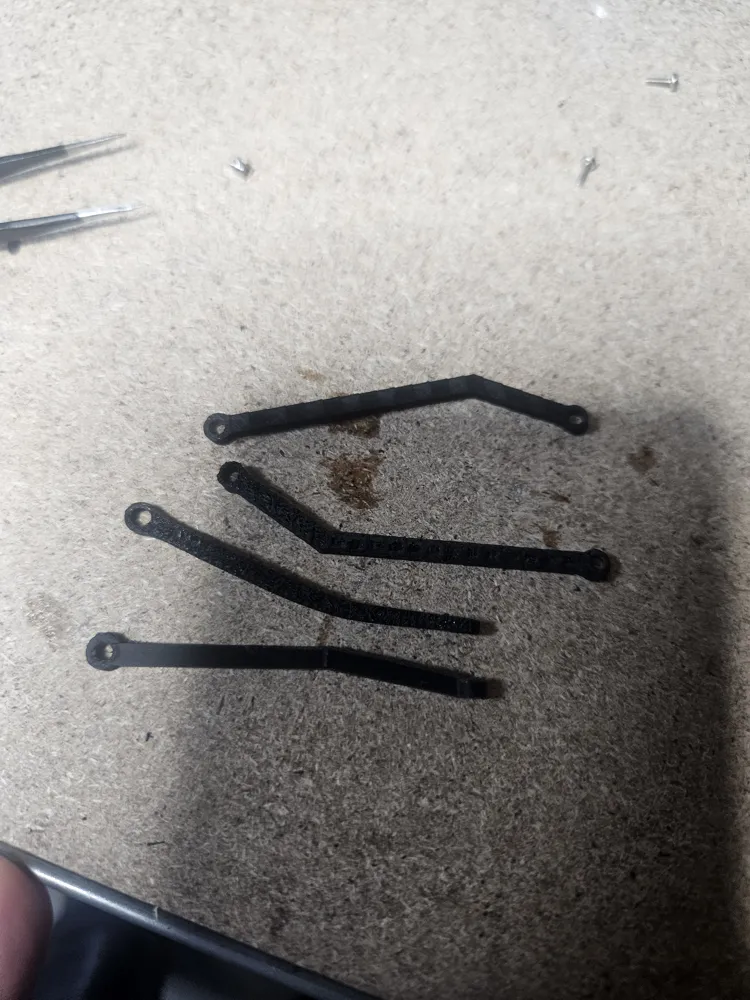

Everything is very simple, be careful when removing the parts from the supports and give a small and light sanding inside the holes, possibly with a small cylindrical file, be very delicate, I repeat

Use this extended rear mount

https://makerworld.com/en/models/2819365-long-rear-body-mount-scx30#profileId-3139546

I used a 0.2 nozzle, they should be large enough for 0.4 as well

For any information, do not hesitate to write to me
