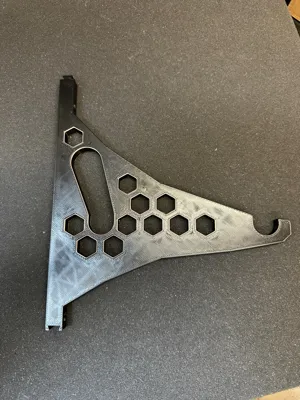

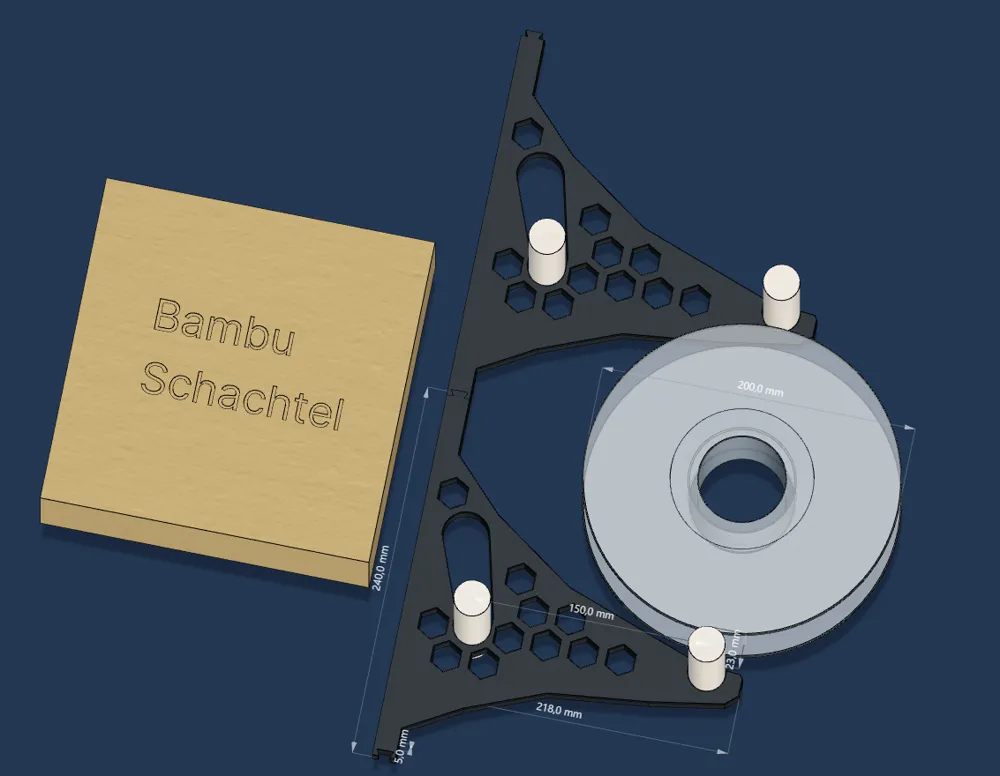

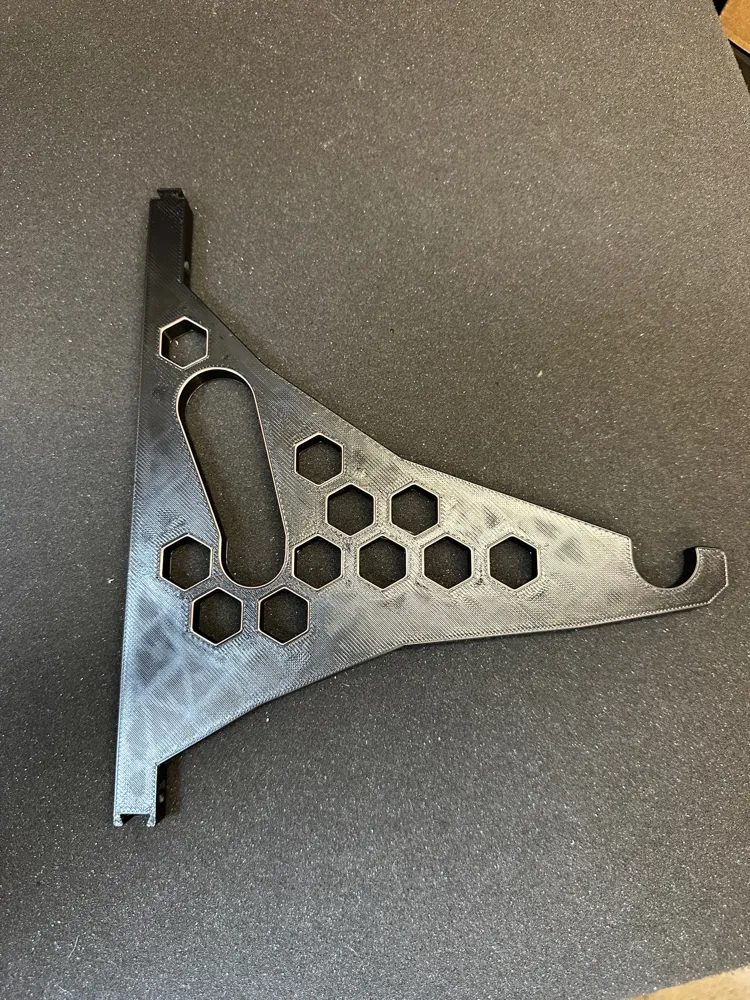

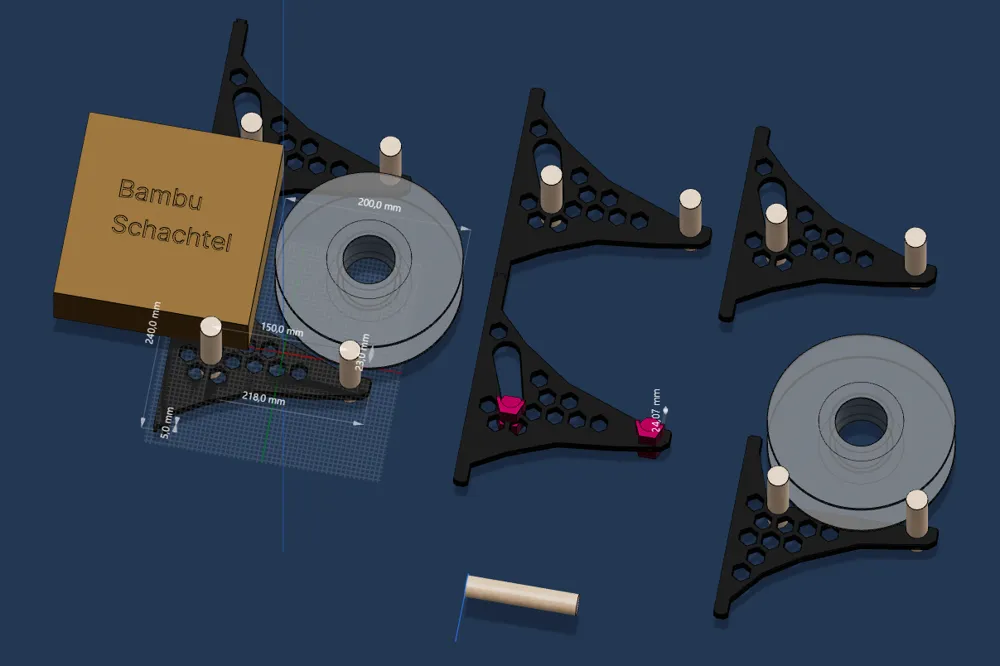

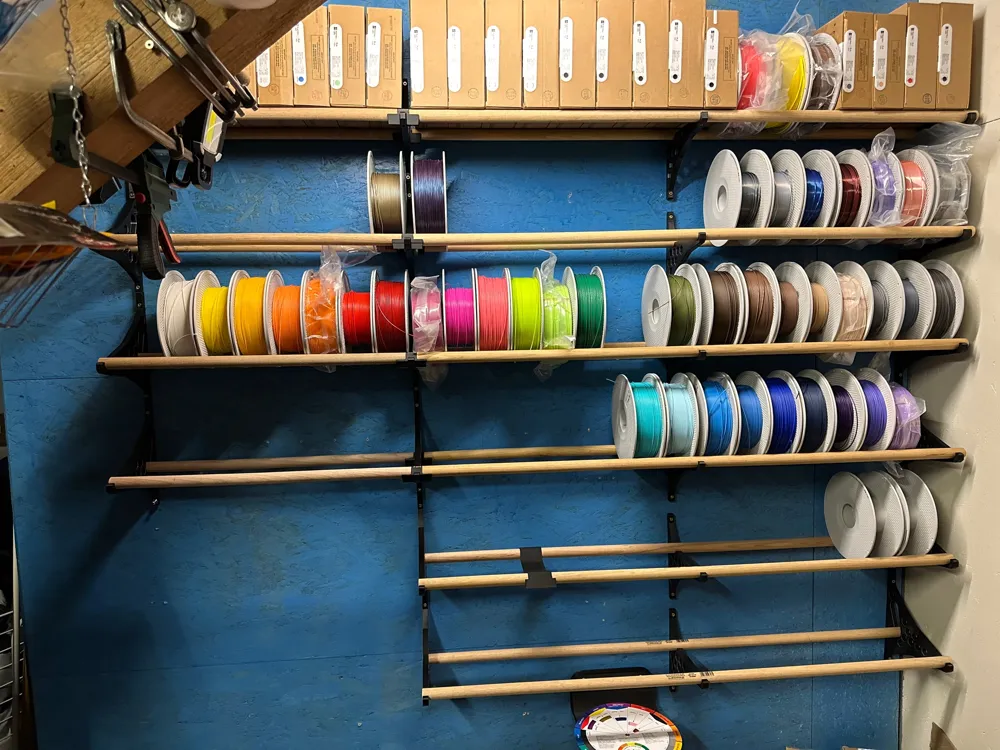

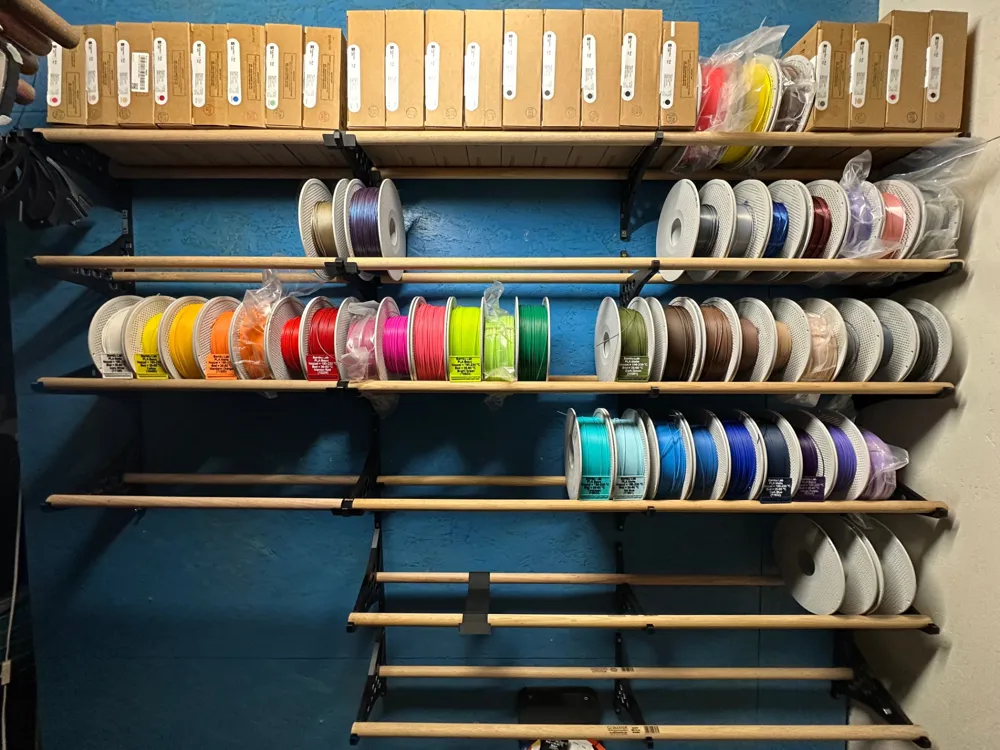

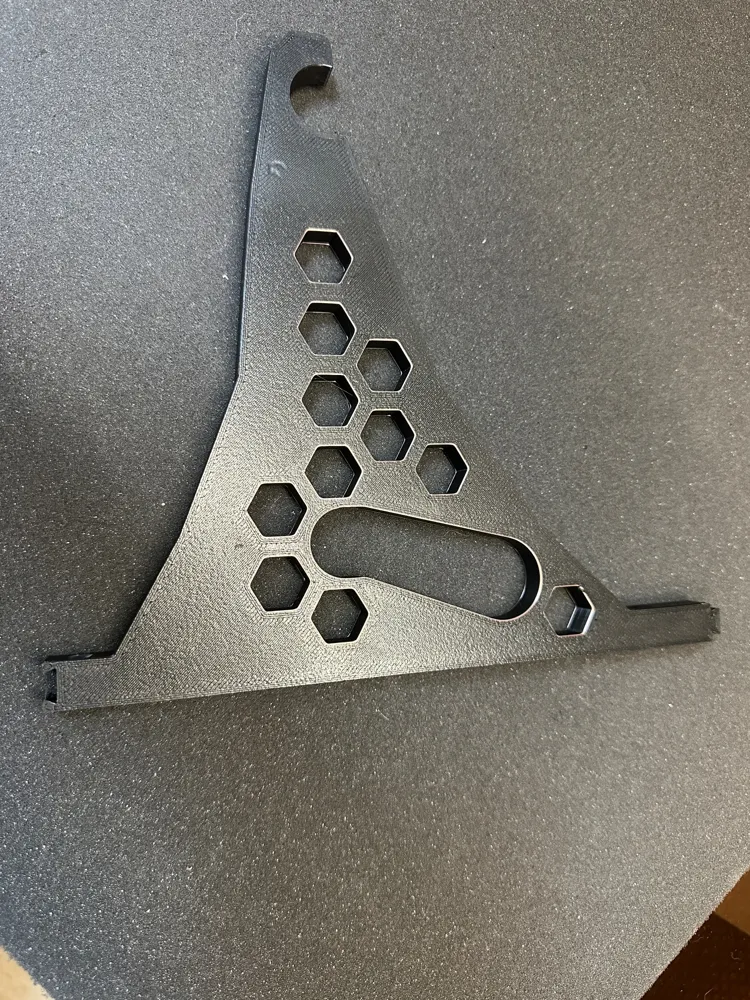

I wanted to develop my own shelf system that is universally adaptable, maximally space-saving, and very stable. This is the result. I will also expand it with a filament swatch, as there are none that fit thinly in width. Bambu spools are 6.5 cm, and all good swatches are wider

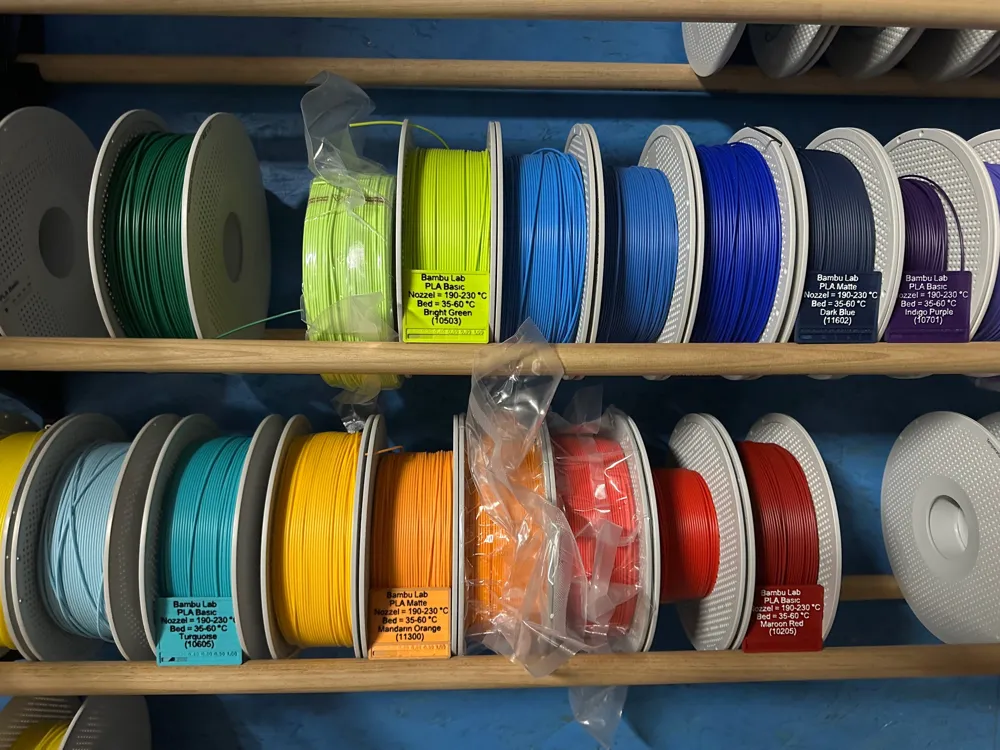

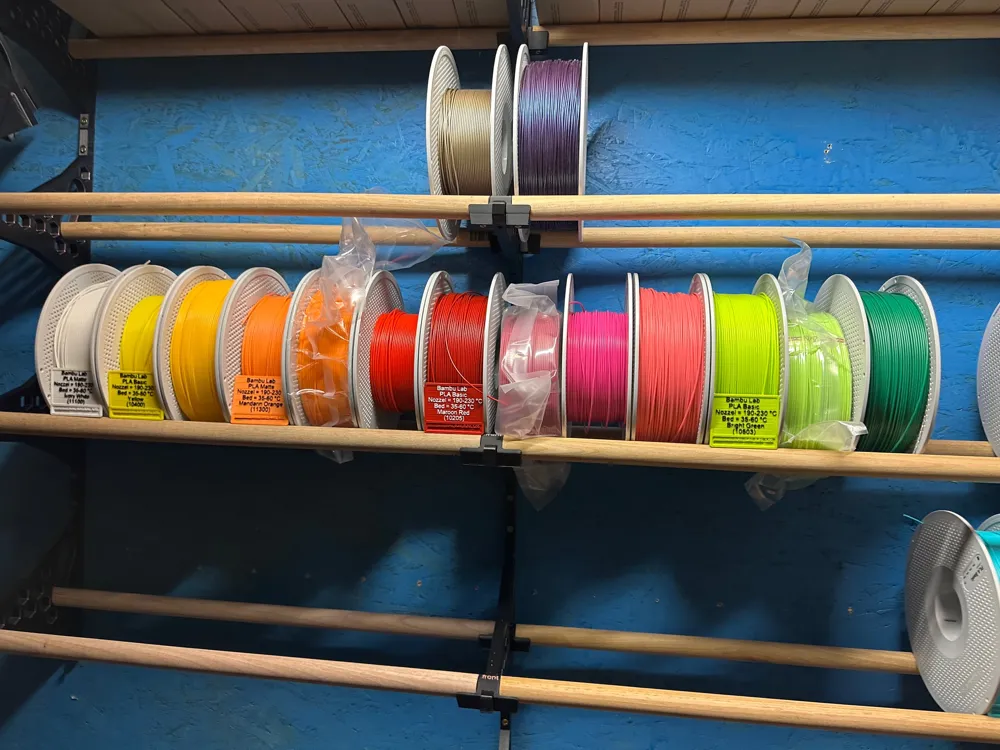

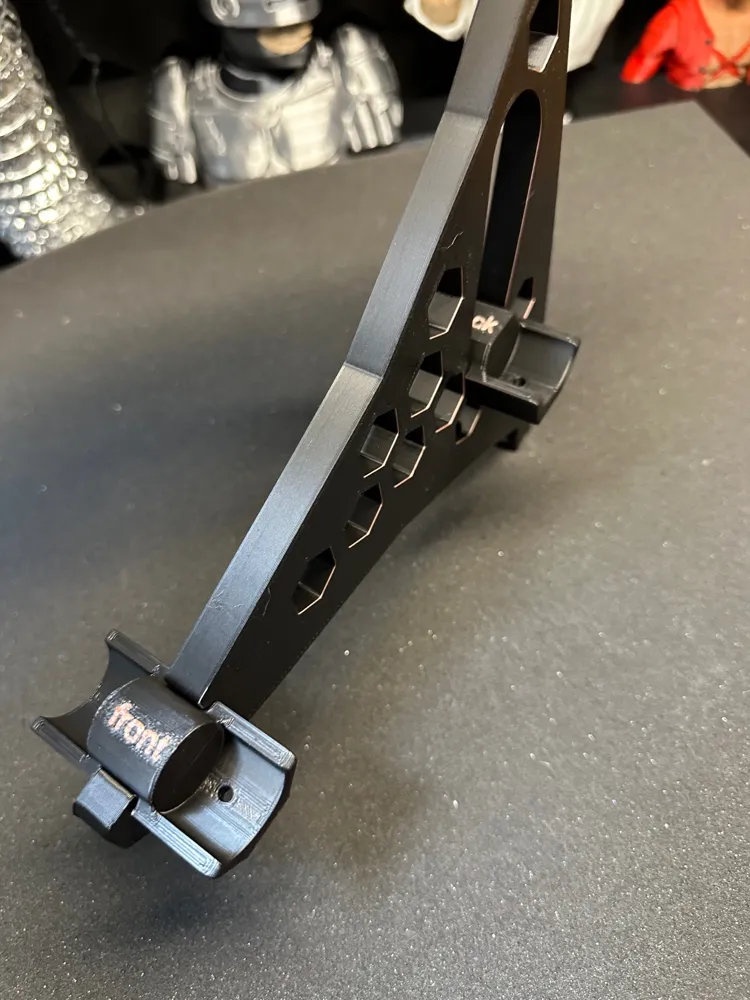

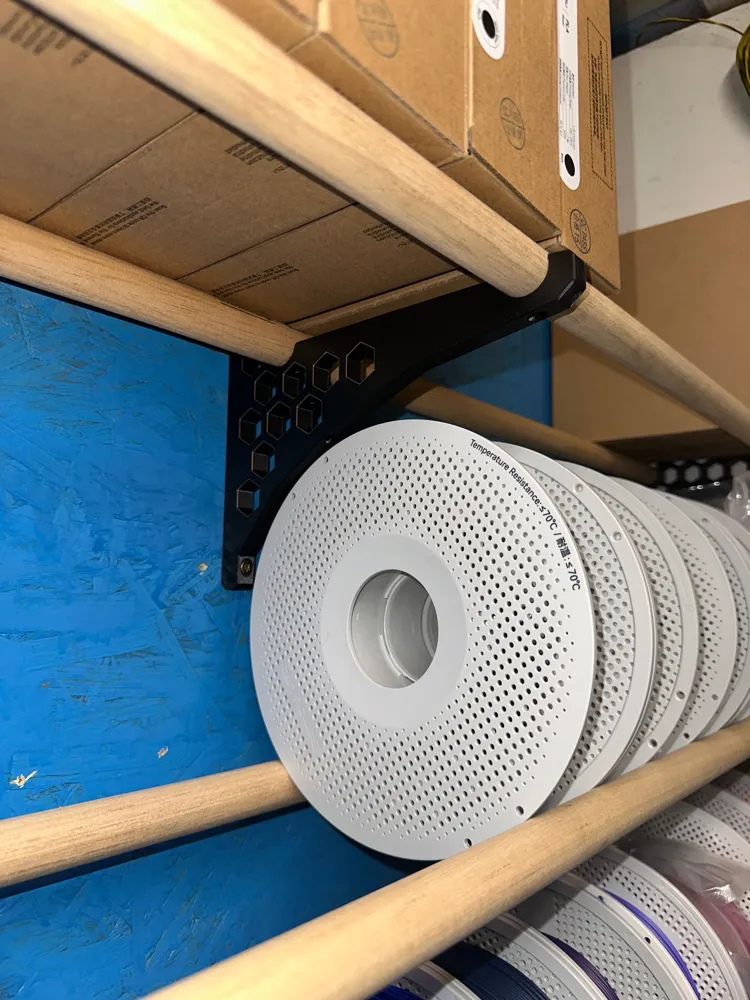

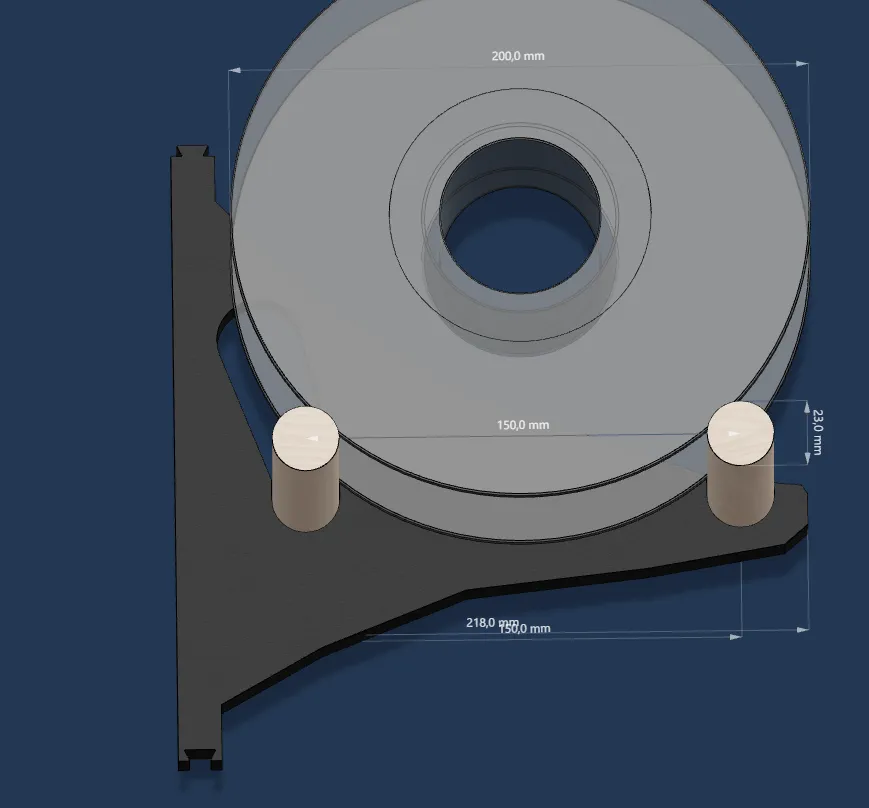

For the rod, I used a broomstick from Germania, which can be found at any discount store (Sonderposten Markt). The diameter is 23.5 mm, 23 mm would also work, maybe even 22 mm, but I couldn't test that

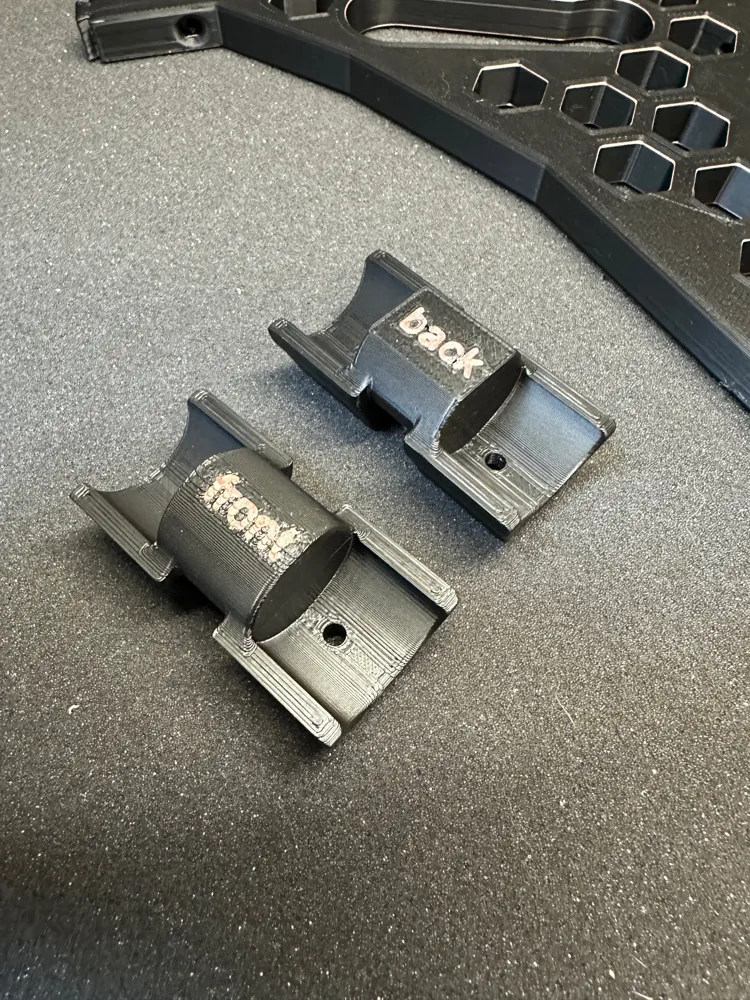

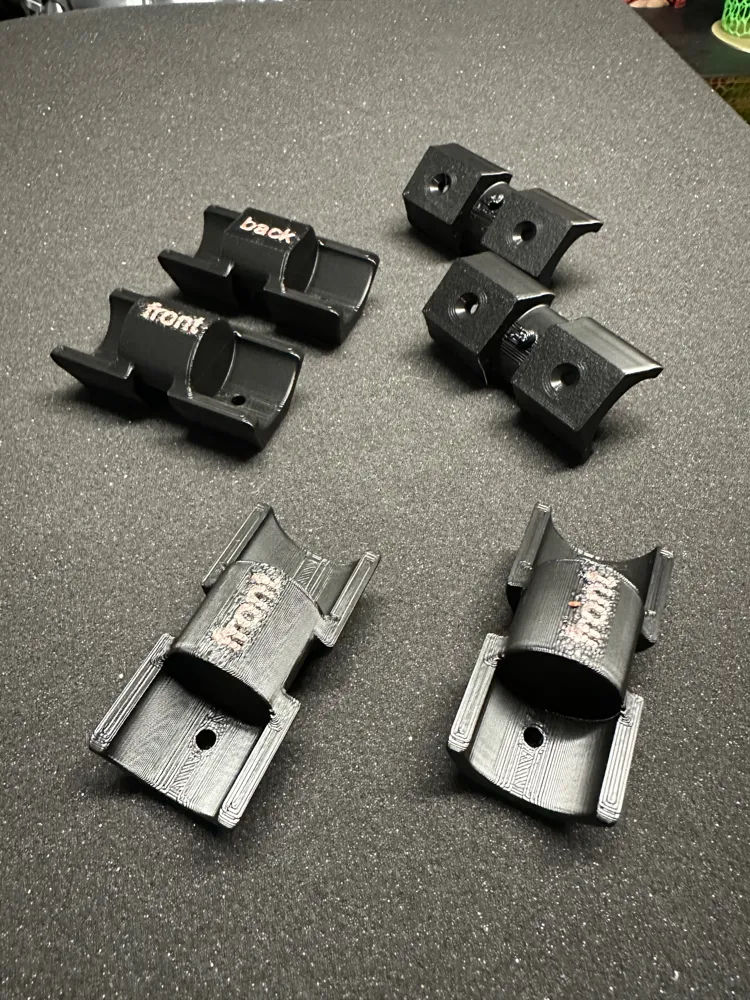

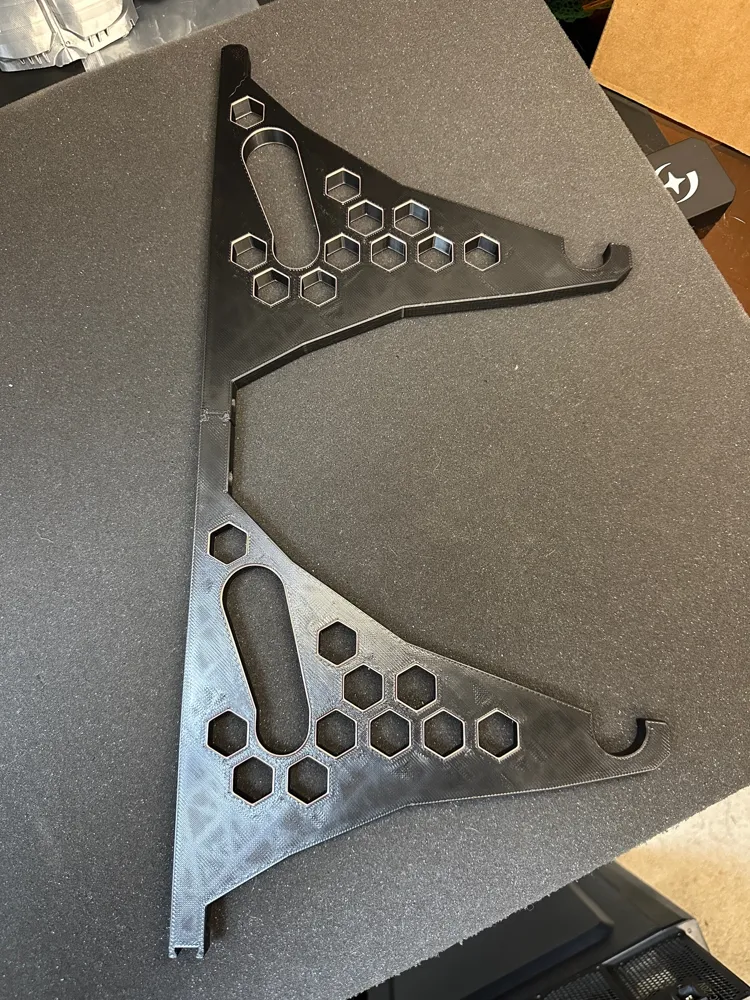

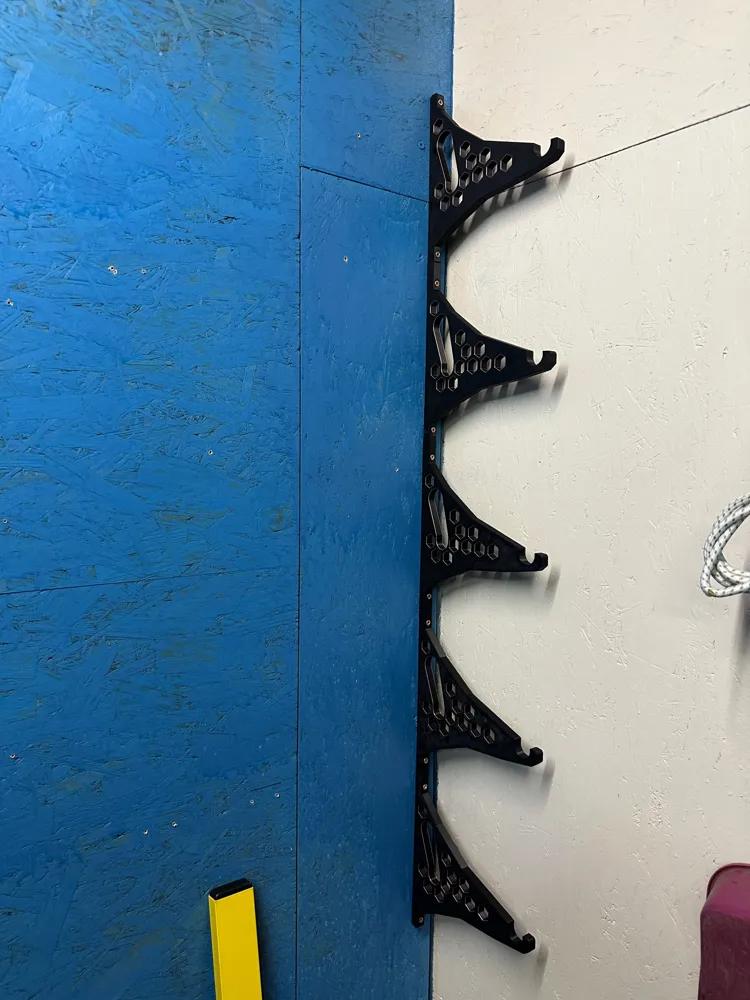

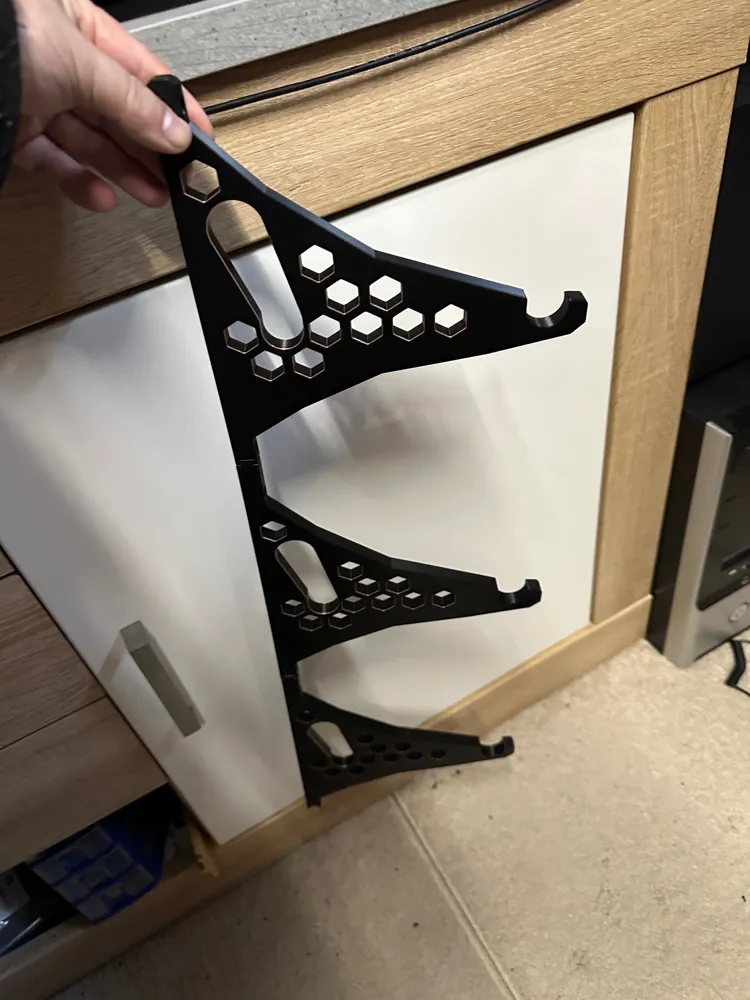

The system is designed as a tongue and groove system so that the heights are always correct. This also makes it very easy to assemble

I will expand everything here and update the pictures

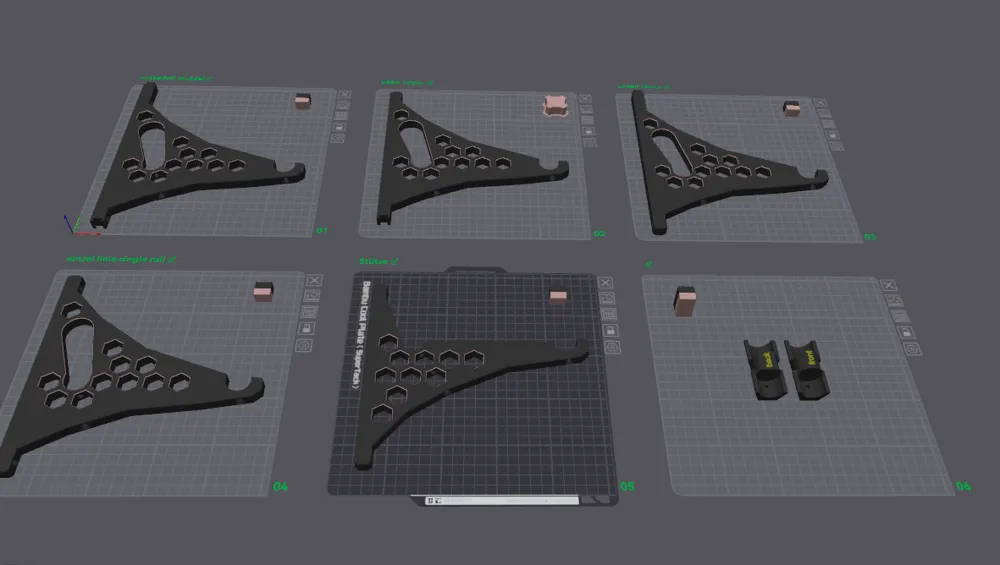

I used PLA as the material, which is completely sufficient

You can find the matching index cards or filament swatches here:

https://makerworld.com/en/models/2825486-blab-px1-filament-swatches-customizable-text-tool#profileId-3147449
