Lever for Greiner magnOmatic EM 1
Print Profile(1)
Description

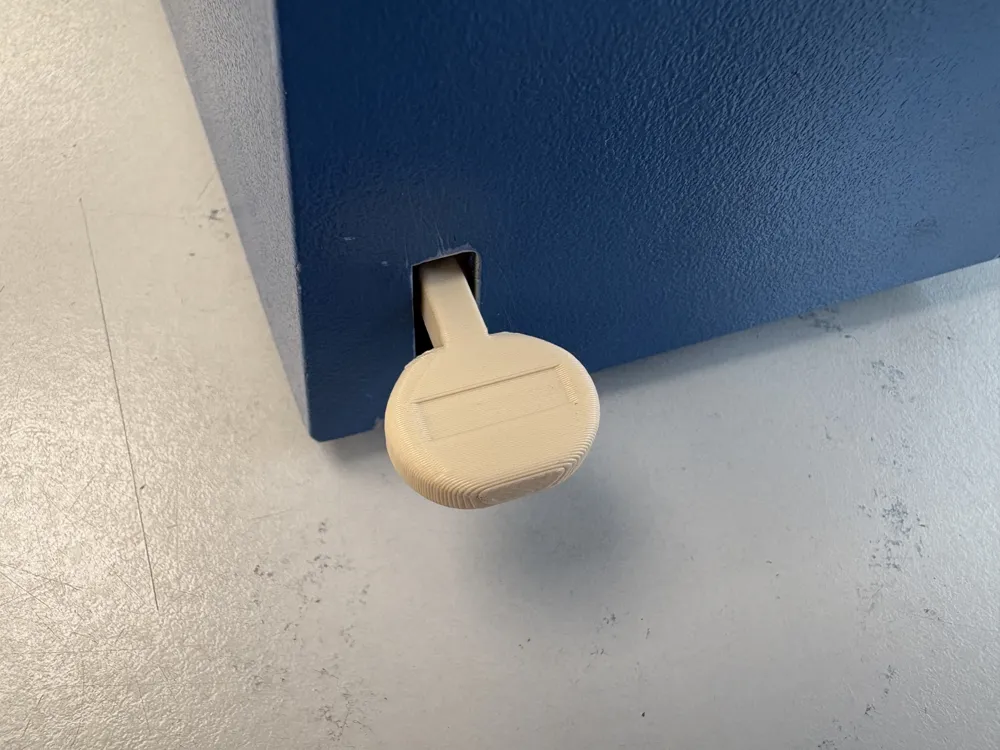

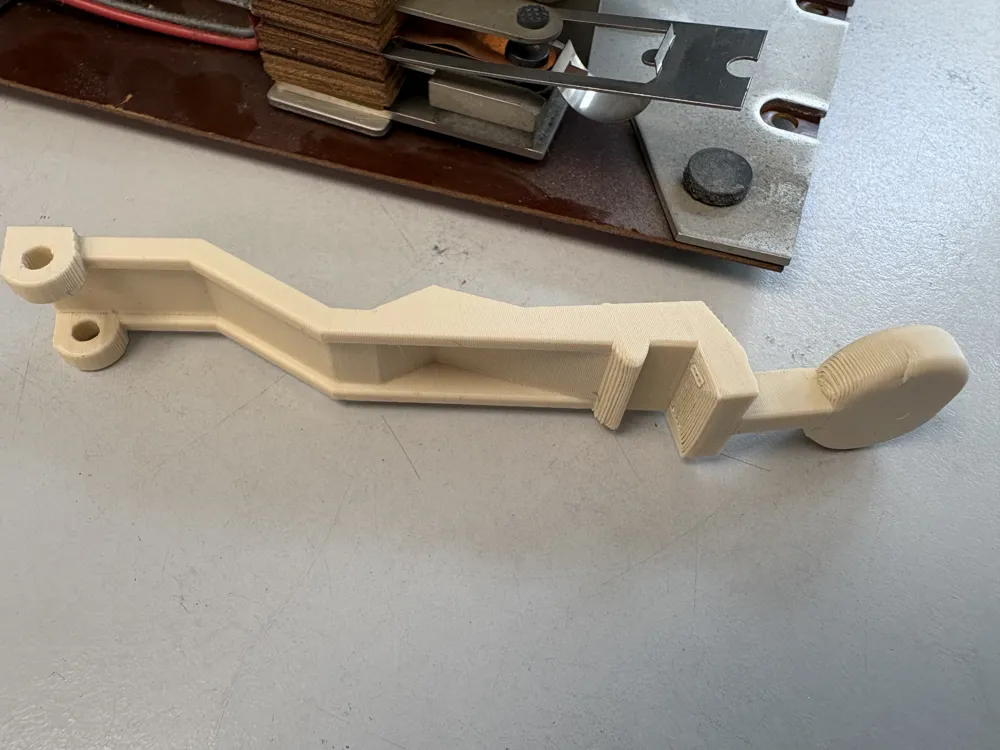

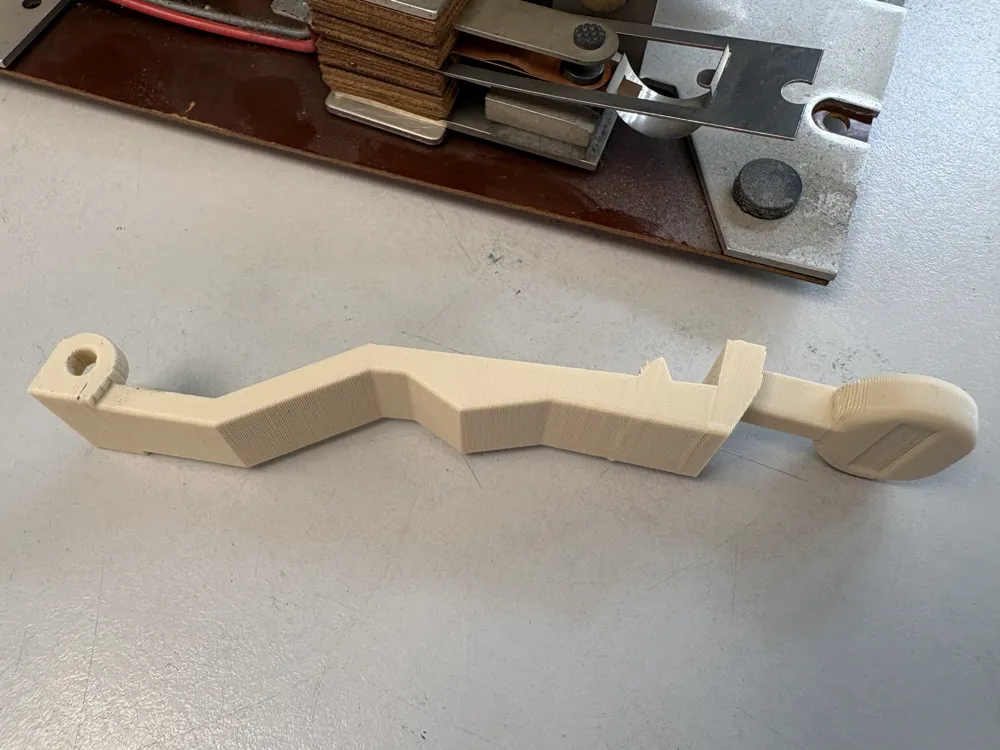

Replacement Lever for Greiner magnOmatic EM 1
Matching replacement lever for the Greiner magnOmatic EM 1, developed as a 3D-printable replacement for the original lever, which often becomes brittle and breaks on many devices due to age.

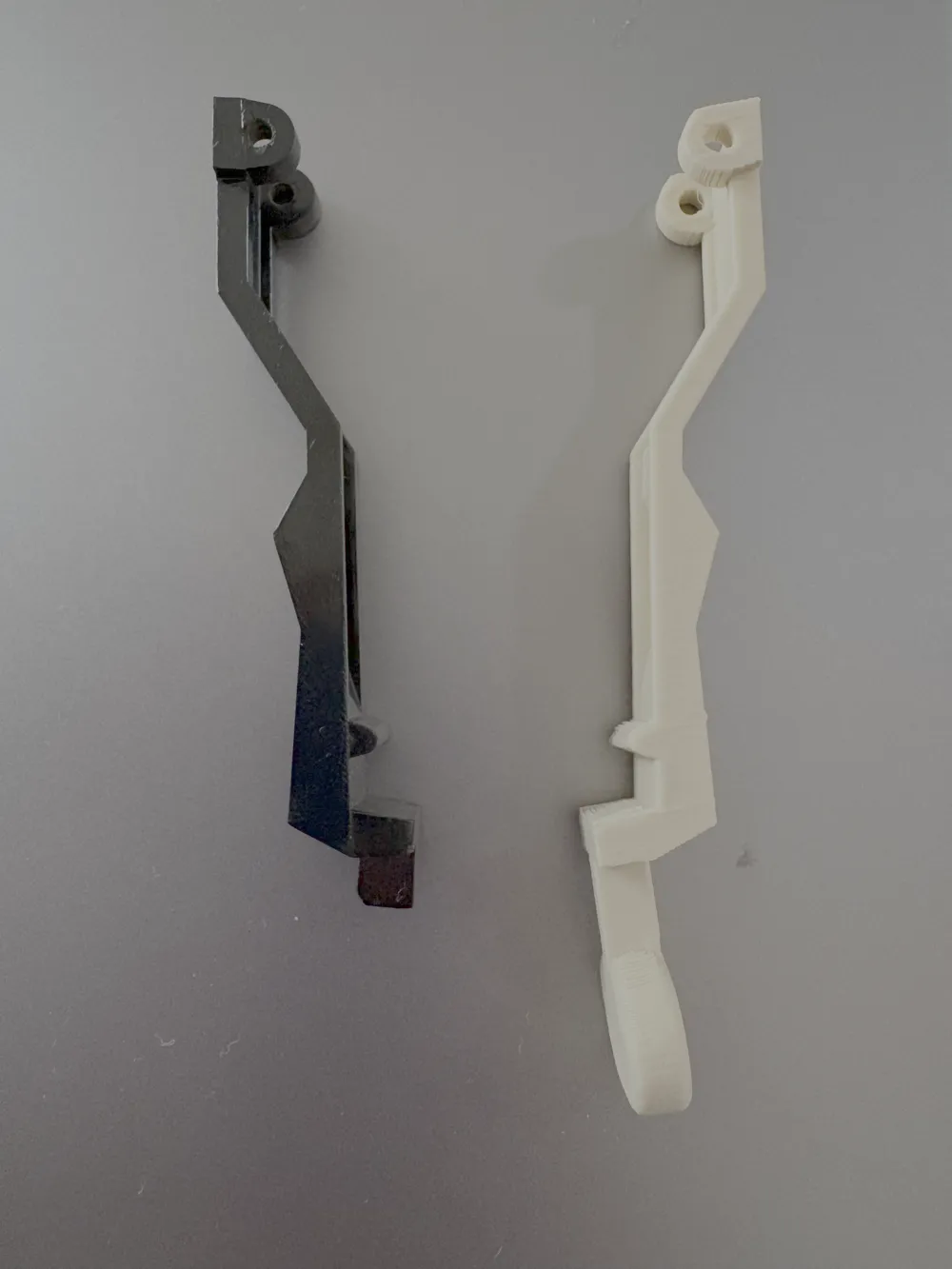

This model was reverse-engineered from the original part to enable easy repair and continued operation of these devices.
Features

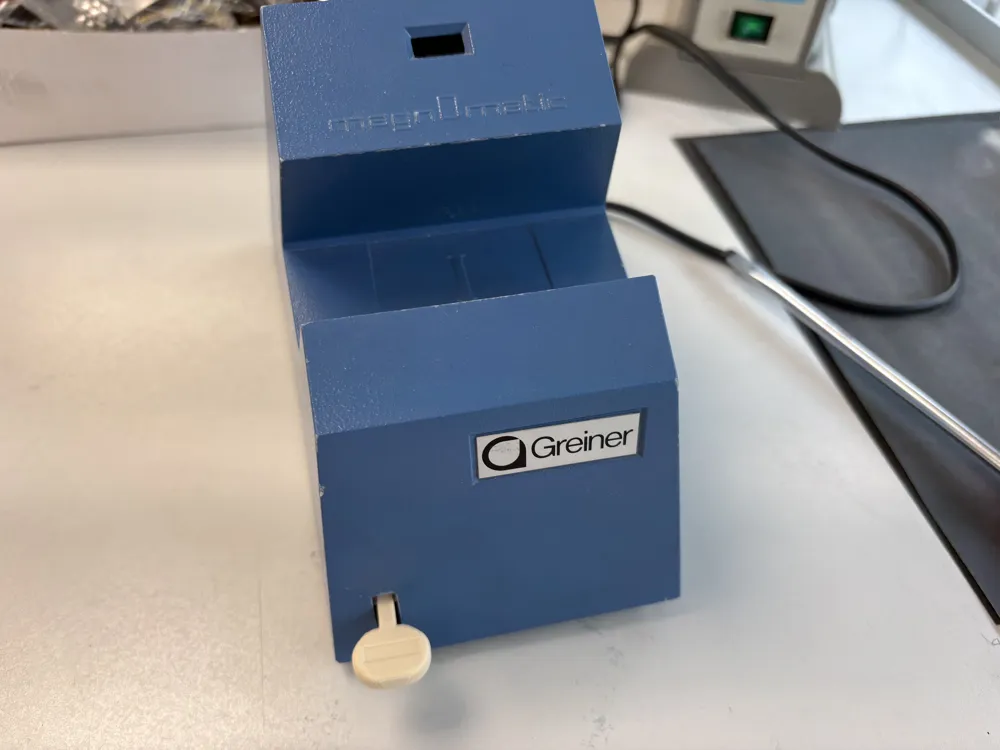

- Suitable for Greiner magnOmatic EM 1
- Replacement for the frequently breaking plastic lever
- Easy repair option instead of replacing the entire device
Print Recommendations
Material:
PETG or ABS/ASA are recommended for better durability and higher load capacity. PLA generally works but may be less durable depending on use and aging. For more stability, change the orientation of the object, which however requires extensive supports. I printed the model in PLA and positioned it upright, and the device has been in problem-free operation for several days now.
Notes

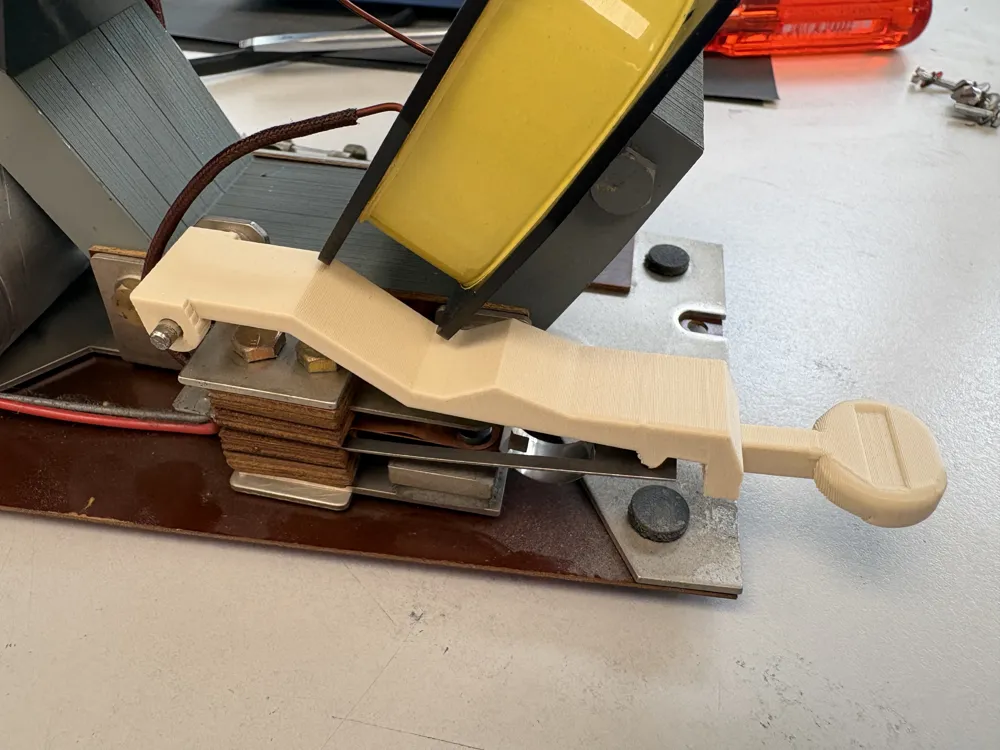

Since the original parts age and become brittle over many years, there may be slight differences between individual devices or components. Please check the fit before final assembly.
If the model was helpful, I would appreciate a like or a comment with a picture. Good luck with the repair!
do not touch the capacitor! ;-)
