Adapter for attaching a remote control switch to a single-pole light switch
Print Profile(1)
Description

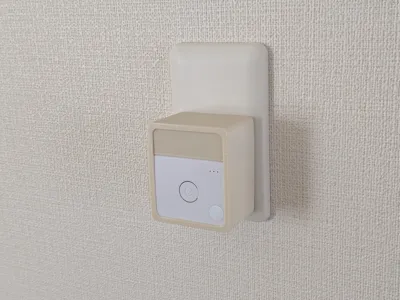

This is an adapter that allows you to operate a Jinbo Electric single-pole switch, used for lighting and other purposes, with a remote control switch.
It is compatible with the white, square switches commonly sold on Aliexpress and similar platforms. Please refer to the photos.

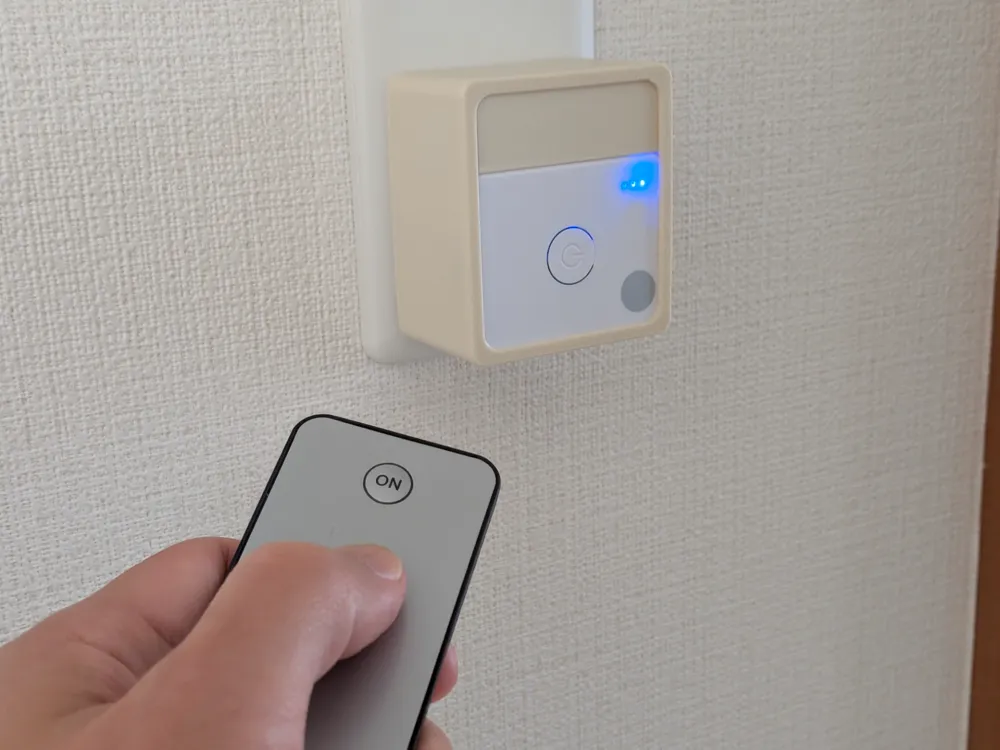

There are infrared models and 433MHz wireless models, but if you are using it in Japan, please choose the infrared model.

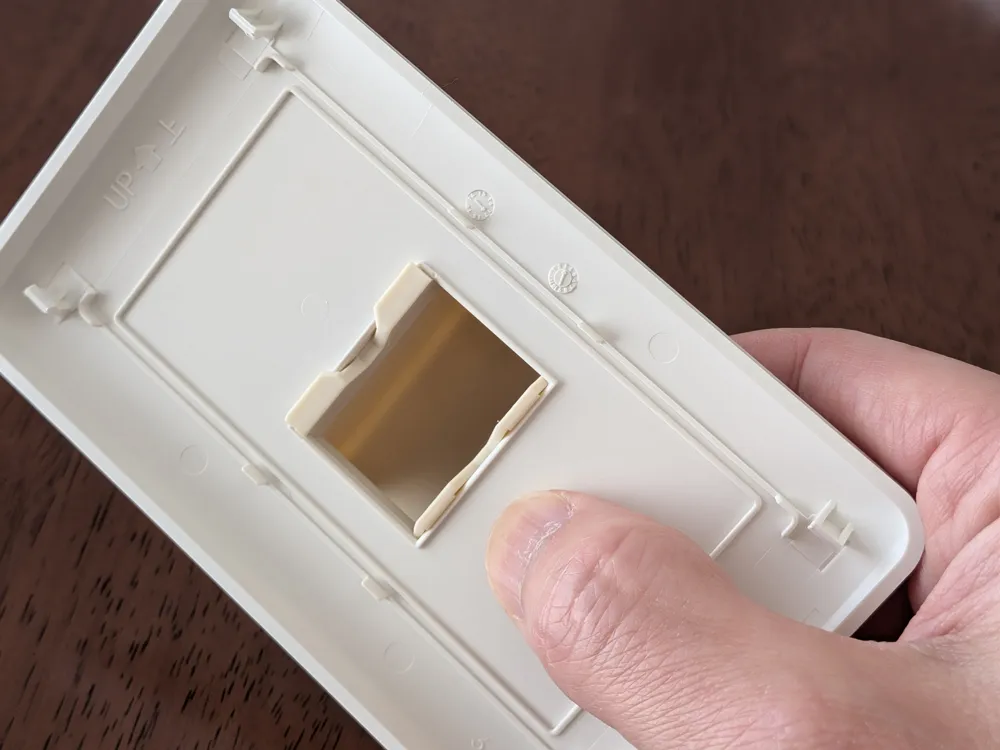

Additionally, you will need to prepare a separate single-gang outlet plate (model number WJE-1).

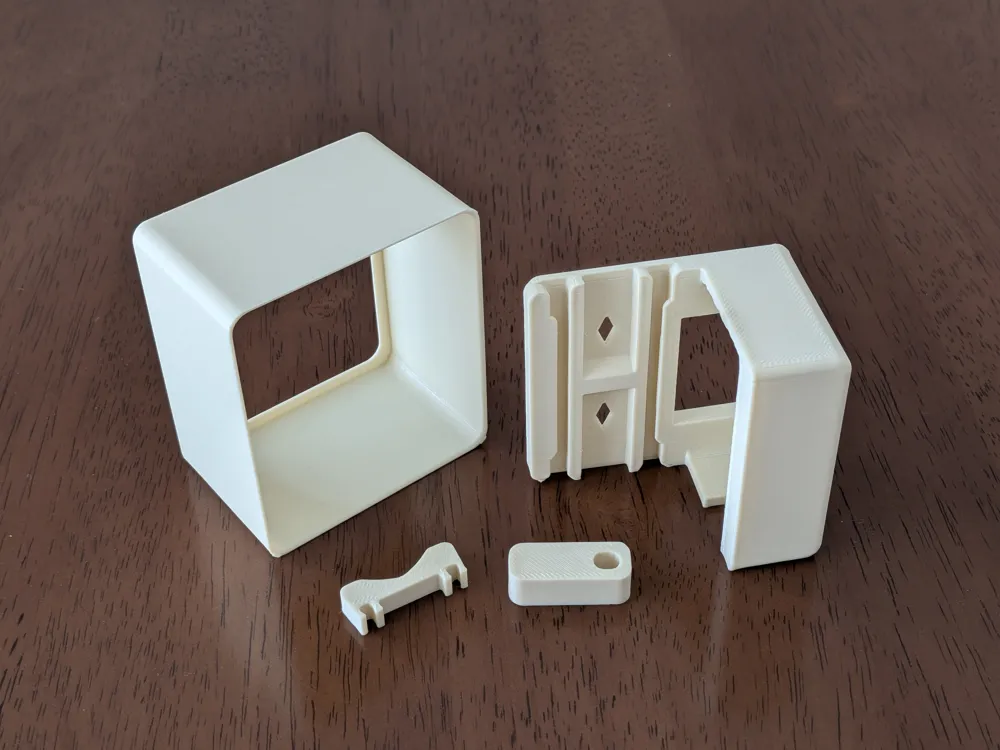

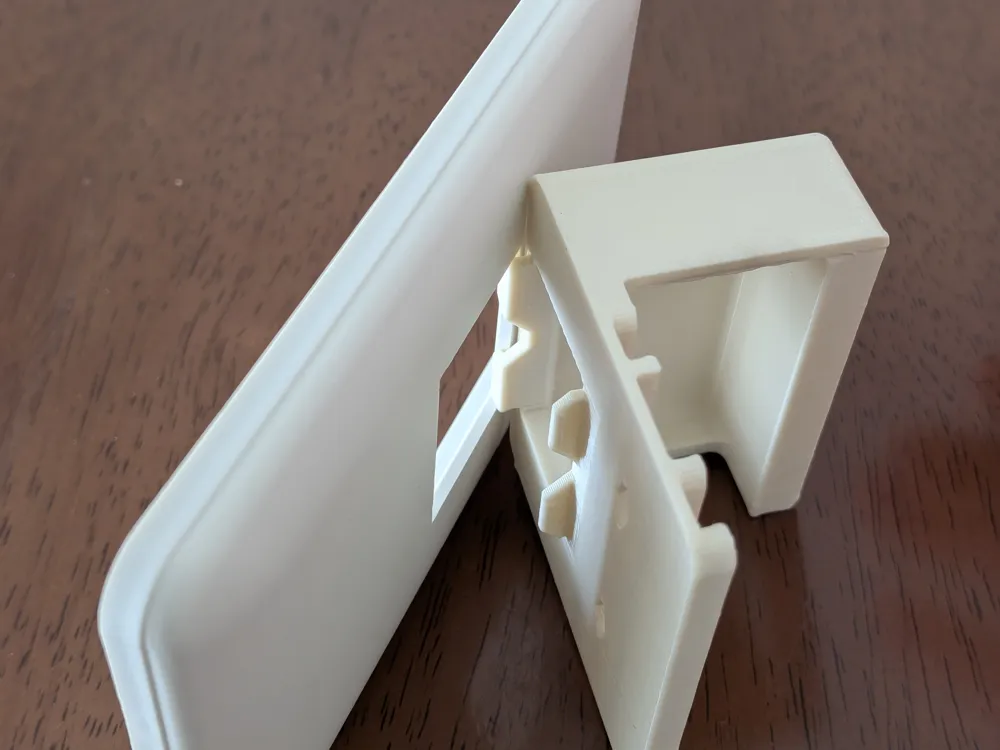

The model consists of four parts: a main fixing tool, a switch pressing part, an arm, and a cover.
It has been adjusted for PETG, but since no special techniques are involved, PLA might also be fine.
The assembly procedure is simple:
1. Hook the claws of the main fixing tool into the holes of the outlet plate and snap it in.

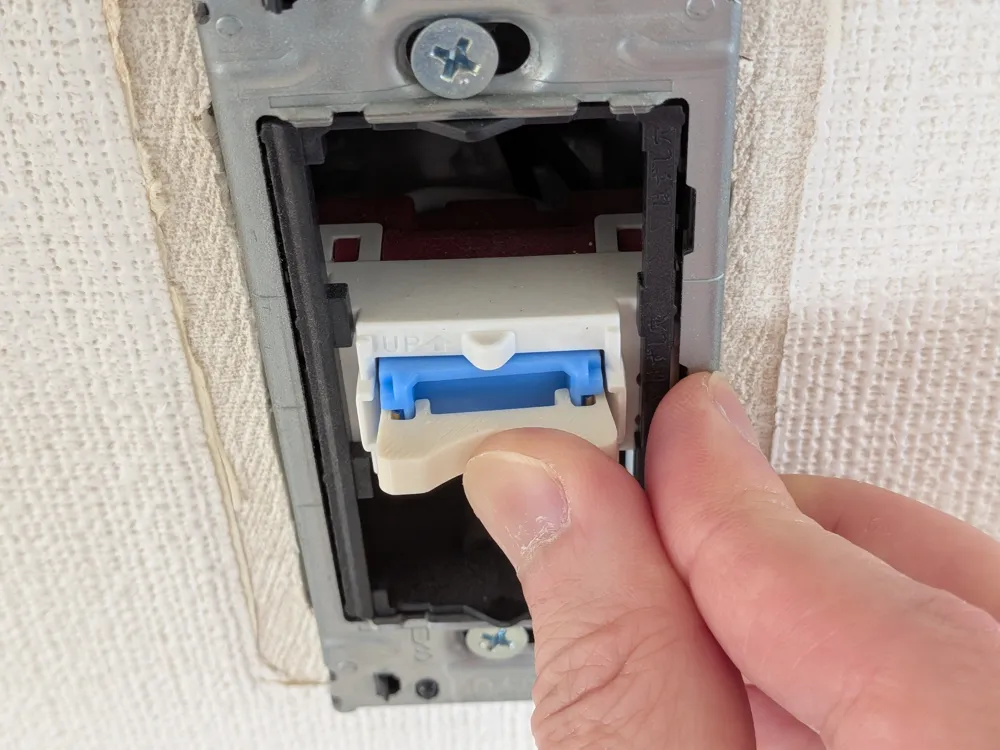

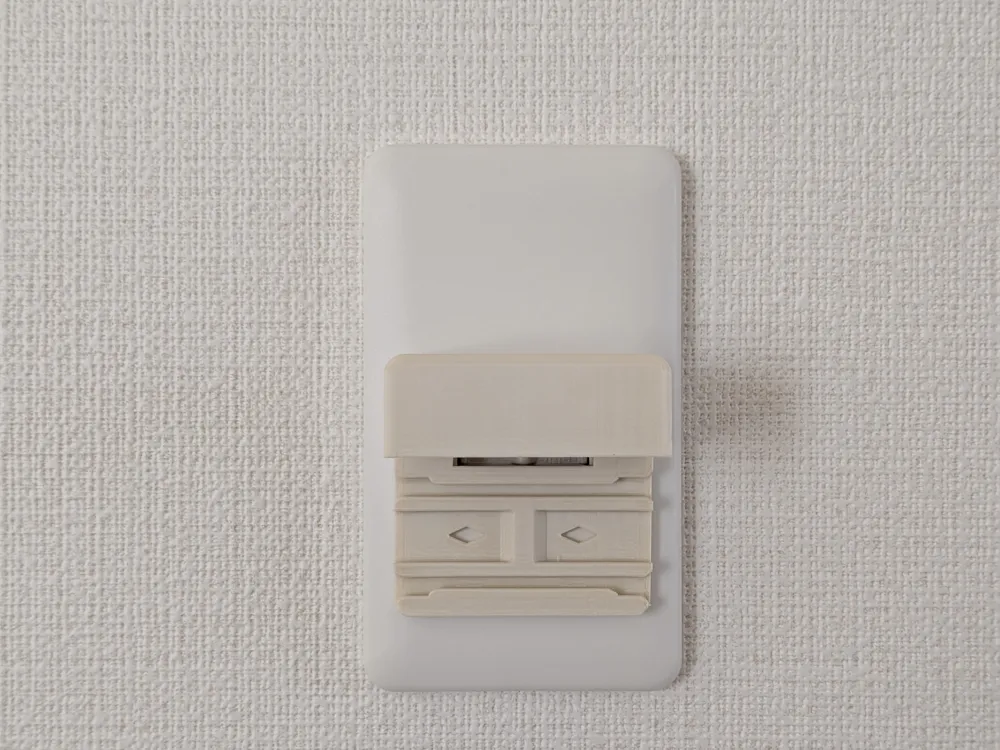

2. Attach the switch pressing part to the existing switch on the wall.
3. Mount the plate from step 1 onto the wall.

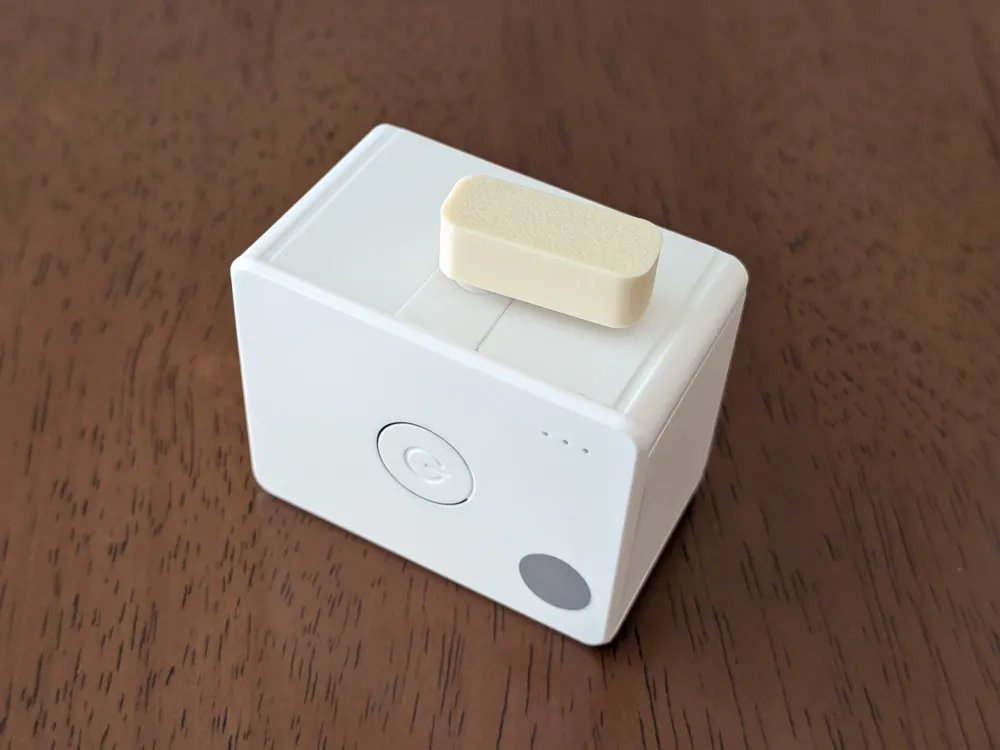

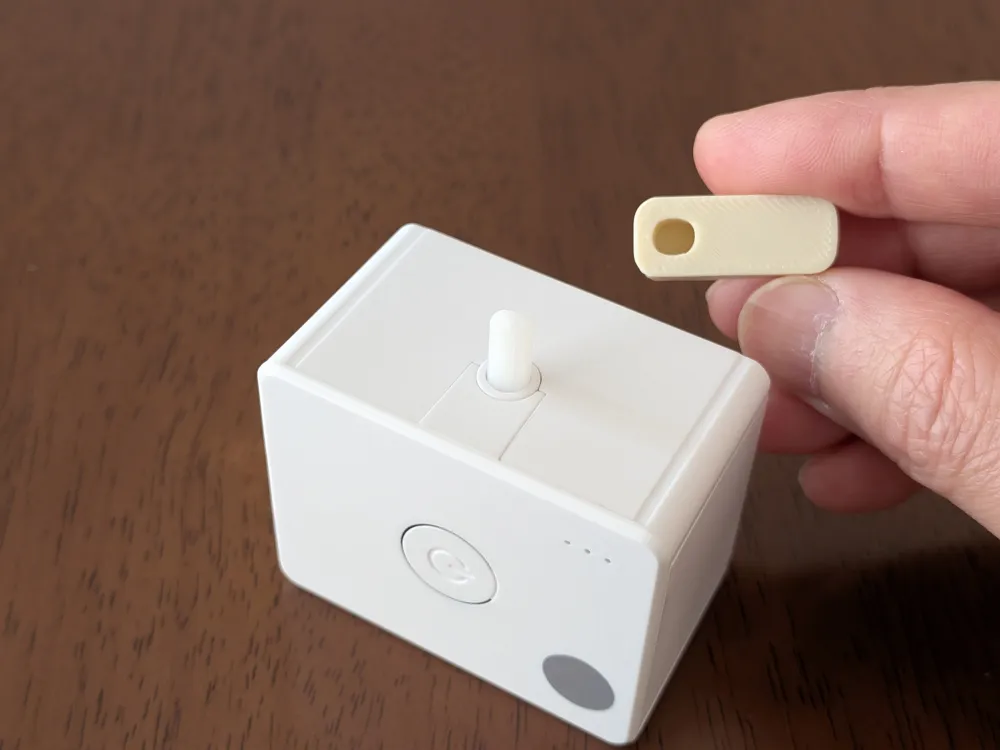

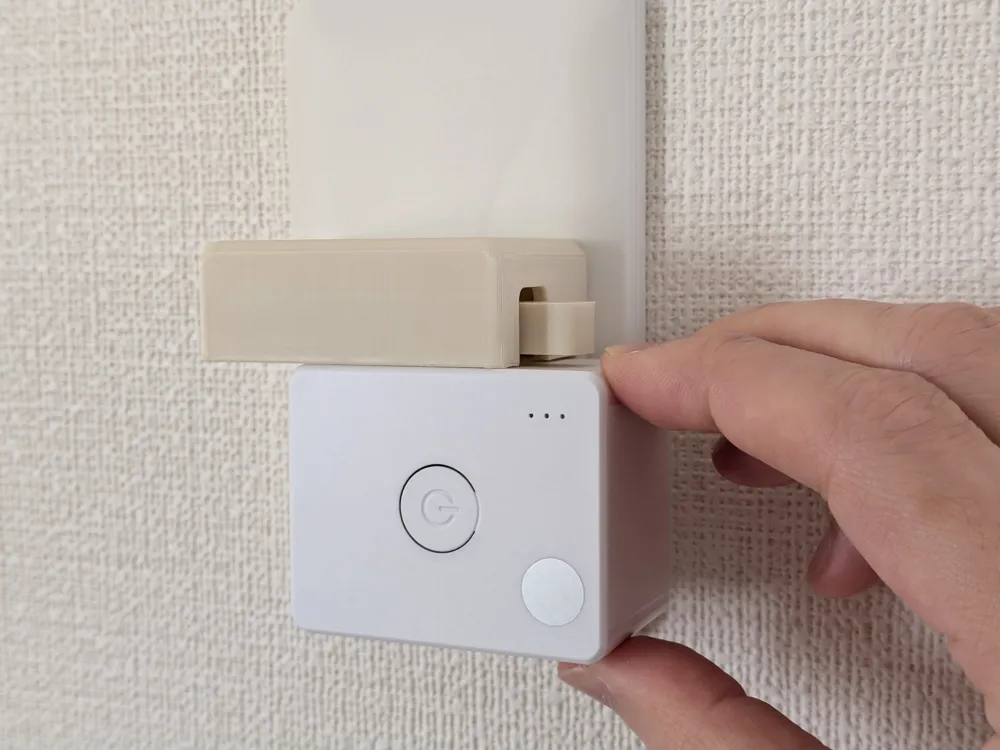

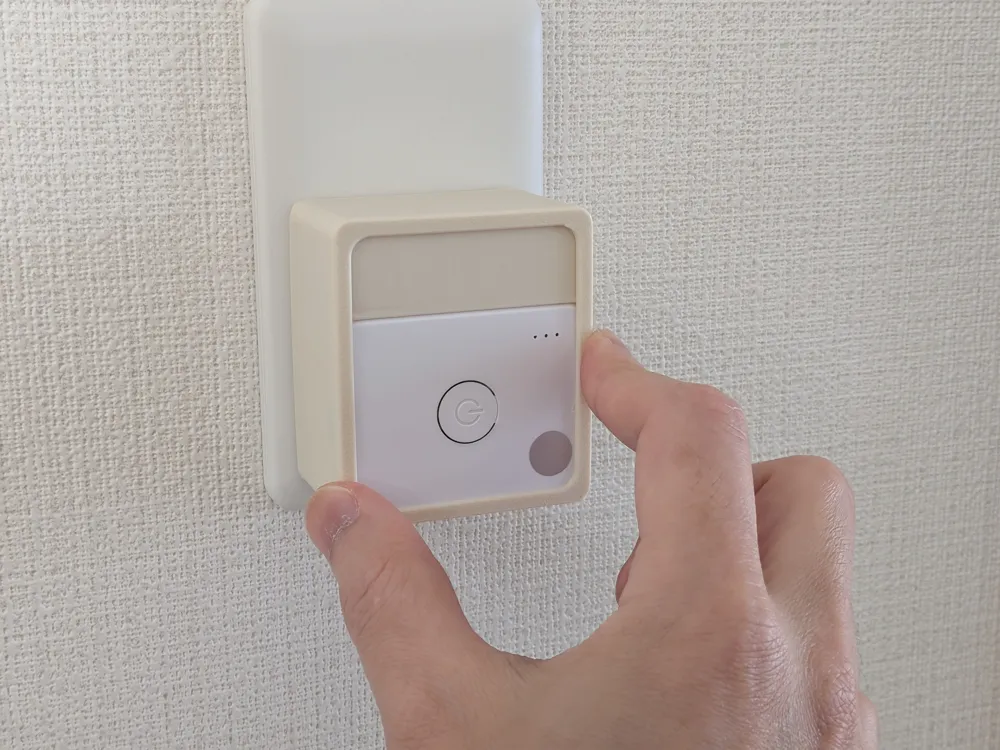

4. Insert the remote control switch with the arm attached from the side and align its position.

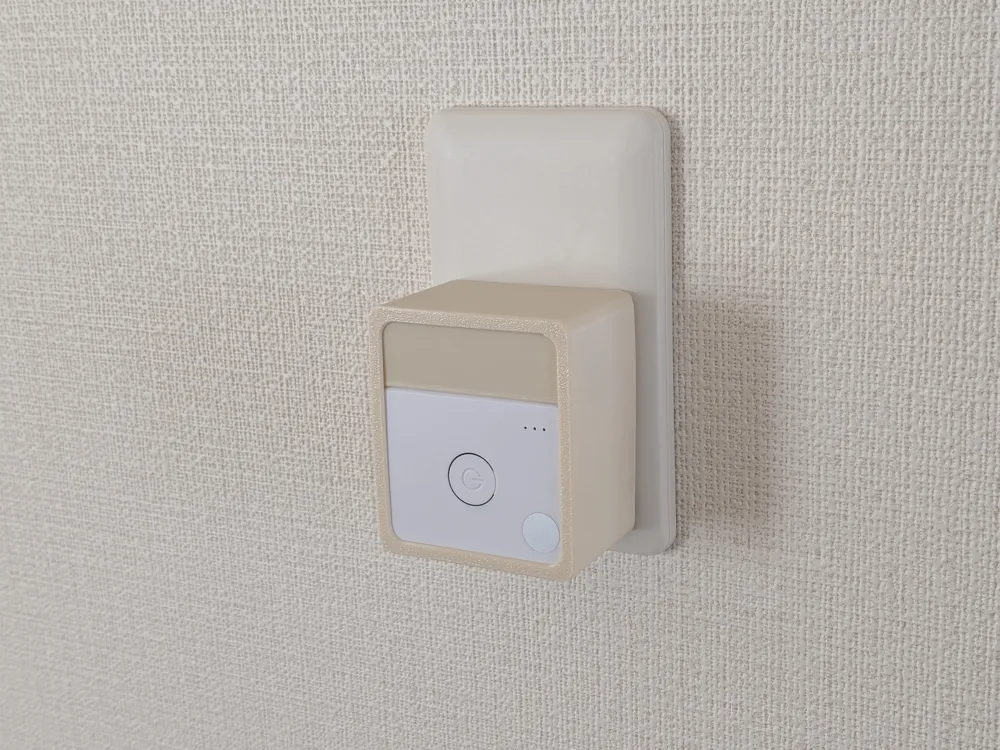

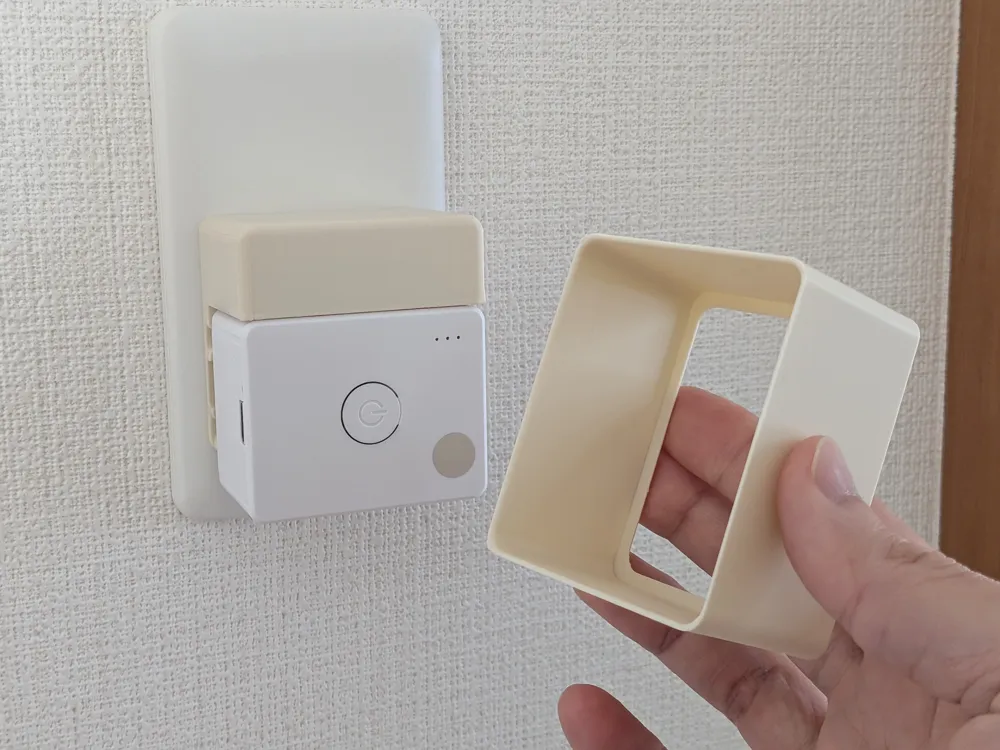

5. Push the cover from the front to complete.
Of course, no adhesive is required.
As you can see, it's not so difficult that it requires creating assembly documentation.
By the way, before step 4, please check if the arm's rotation direction and the switch's tilted direction are correct. It's okay if the switch is tilted towards the extending arm.
*Exchanging only the plate does not require an electrician's license, and choosing an infrared model does not violate radio wave laws, so it can be used completely legally in Japan.
